H8DSP-8
H8DSP-i
USER'S MANUAL
Revision 1.0a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H8DSP-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro H8DSP-8

Summary of Contents for Supermicro H8DSP-8

  • Page 1 H8DSP-8 H8DSP-i USER’S MANUAL Revision 1.0a...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: Manual Organization

    This manual is written for system integrators, PC technicians and knowledgeable PC users. It provides information for the installation and use of the H8DSP-8/H8DSP-i serverboard. The H8DSP-8/H8DSP-i is based on the ServerWorks HT-2000/1000 chipset and supports single or dual AMD Opteron processors (single or dual core) in 940-pin microPGA ZIF sockets and up to 32 GB of DDR333/266 or 16 GB of DDR400.

  • Page 4: Table Of Contents

    Manual Organization ....................iii Chapter 1: Introduction Overview ......................1-1 Checklist ....................1-1 H8DSP-8/H8DSP-i Image ................ 1-3 H8DSP-8/H8DSP-i Serverboard Layout ..........1-4 H8DSP-8/H8DSP-i Quick Reference ............1-5 Serverboard Features ................1-6 ServerWorks HT-200/100 Chipset: System Block Diagram ..... 1-8 Chipset Overview ................... 1-9 PC Health Monitoring ...................
  • Page 5 Table of Contents USB2/3 Headers ..................2-11 Serial Ports ..................... 2-11 Fan Headers ..................2-11 Overheat LED ..................2-11 Chassis Intrusion ..................2-11 Power LED/Speaker ................2-12 ATX PS/2 Keyboard/Mouse Ports ............2-12 JLAN1/2 (Ethernet Ports) ............... 2-12 IPMB Header ..................2-12 DOC Power Header ................
  • Page 6 H8DSP-8/H8DSP-i User’s Manual No Power ....................3-1 No Video ....................3-1 Memory Errors ..................3-2 Losing the System’s Setup Confi guration ..........3-2 Technical Support Procedures ............... 3-2 Frequently Asked Questions ................3-3 Returning Merchandise for Service ..............3-4 Chapter 4: BIOS Introduction .....................

  • Page 7: Chapter 1: Introduction

    Please check that the following items have all been included with your serverboard. If anything listed here is damaged or missing, contact your retailer. One (1) H8DSP-8 or H8DSP-i serverboard One (1) IDE cable (CBL-036) One (1) fl oppy cable (CBL-022)
  • Page 8 H8DSP-8/H8DSP-i User’s Manual Notes...

  • Page 9: H8Dsp-8/H8Dsp-I Image

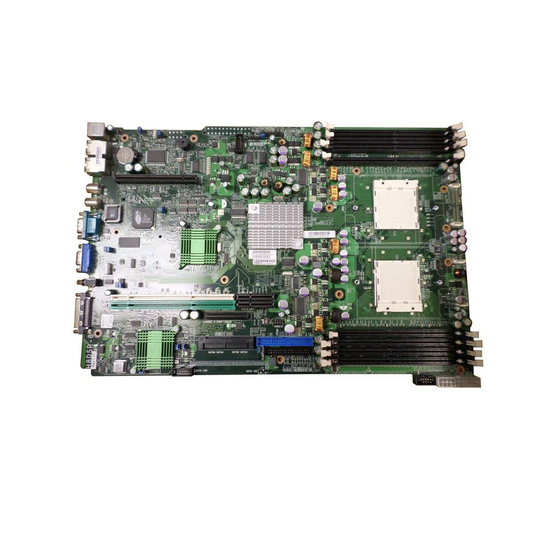

    Chapter 1: Introduction Figure 1-1. H8DSP-8/H8DSP-i Image Note: the H8DSP-8 is pictured. The H8DSP-i shares the same layout but without SCSI controllers, jumpers or connectors.

  • Page 10: H8Dsp-8/H8Dsp-I Serverboard Layout

    H8DSP-8/H8DSP-i User’s Manual Figure 1-2. H8DSP-8/H8DSP-i Serverboard Layout (not drawn to scale) Mouse COM1 JPB1 U320 SCSI CHB LAN2 LAN1 USB0/1 BIOS Battery C1/JI JPXBO JPXAO Rage JWOL1 JWOR AIC-7902W JWD1 JBT1 JPG1 JPA2 JPA3 Speaker HT-1000 DB8/7/6/5/4/3/2/1 JSM1 COM2...

  • Page 11: H8Dsp-8/H8Dsp-I Quick Reference

    Chapter 1: Introduction H8DSP-8/H8DSP-i Quick Reference Jumpers Description Default Setting JBT1 CMOS Clear See Section 2-7 Onboard Spkr En/Disable Pins 6-7 (Enabled) C1/2 C to PCI Enable/Disable Closed (Enabled) JP17 DOC Bus Select Closed (Master) JPA1* SCSI Enable/Disable Pins 1-2 (Enabled) JPA2/JPA3* SCSI Channel A/B Term.

  • Page 12: Serverboard Features

    H8DSP-8/H8DSP-i User’s Manual Serverboard Features • Single or dual AMD Opteron 200 series 64-bit processors in 940-pin microPGA ZIF sockets Memory • Eight dual/single channel DIMM slots supporting up to 32 GB of registered ECC DDR333/266 or up to 16 GB of registered ECC DDR400 SDRAM Note: Memory capacities are halved for single CPU systems.
  • Page 13 • Internal/external modem ring-on Onboard I/O • Adaptec AIC-7902W SCSI controller for dual-channel Ultra320 SCSI, RAID 0, 1, 10 and JBOD supported (H8DSP-8 only) • On-chip (HT-1000) controller for 4-port SATA subsystem, RAID 0, 1, and 10 supported • One (1) ATA100 IDE port •...
  • Page 14 H8DSP-8/H8DSP-i User’s Manual 184- pin DIMMs 184 -pin DIMMs 16 x 16 @ 1 GB Opteron Opteron Processor (2) Processor (1) 144-bit, 266-400 MT/s 144-bit, 266-400 MT/s 16 x 16 @ 1 GB x8 PCI-Express Slots 133 MHz PCI-X Slot...

  • Page 15: Chipset Overview

    Chapter 1: Introduction Chipset Overview The H8DSP-8/H8DSP-i serverboard is based on a Serverworks' chipset composed of two main components: the HT-2000 HyperTransport SystemI/O controller and the HT-1000 HyperTransport SystemI/O Hub. The HT-2000/1000 chipset provides high performance, scalability and reliability. Its HyperTransport architecture reduces IO bottlenecks to improve overall system performance.

  • Page 16: Pc Health Monitoring

    H8DSP-8/H8DSP-i User’s Manual PC Health Monitoring This section describes the PC health monitoring features of the H8DSP-8/H8DSP-i. The serverboard has an onboard System Hardware Monitor chip that supports PC health monitoring. Onboard Voltage Monitors for the CPU core voltages, 2.5V, 5Vin, 1.2V, ±12V, 5V stby, 2.5V stby, DDR and Battery Voltages...

  • Page 17: Power Confi Guration Settings

    Chapter 1: Introduction Power Confi guration Settings This section describes the features of your serverboard that deal with power and power settings. Microsoft OnNow The OnNow design initiative is a comprehensive, system-wide approach to system and device power control. OnNow is a term for a PC that is always on but appears to be off and responds immediately to user or other requests.

  • Page 18: Power Supply

    CPU, some are inadequate. A 2 amp current supply on a 5V Standby rail is strongly recommended. Note that the power supply connectors on the H8DSP-8/H8DSP-i are of a proprietary design and require a proprietary power supply for proper connection.

  • Page 19: Super I/O

    Chapter 1: Introduction Super I/O The disk drive adapter functions of the Super I/O chip include a fl oppy disk drive controller that is compatible with industry standard 82077/765, a data separator, write pre-compensation circuitry, decode logic, data rate selection, a clock genera- tor, drive interface control logic and interrupt and DMA logic.
  • Page 20 H8DSP-8/H8DSP-i User’s Manual Notes 1-14...

  • Page 21: Chapter 2: Installation

    Chapter 2: Installation Chapter 2 Installation Static-Sensitive Devices Electric Static Discharge (ESD) can damage electronic com ponents. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally suffi cient to protect your equipment from ESD. Precautions •...

  • Page 22: Processor And Heatsink Installation

    H8DSP-8/H8DSP-i User's Manual Processor and Heatsink Installation Exercise extreme caution when handling and installing the proces- sor. Always connect the power cord last and always remove it be- fore adding, removing or changing any hardware components. Installing the CPU Backplates Two CPU backplates (BKT-0004) are optional items that may be included in the retail box.
  • Page 23 Chapter 2: Installation 4. With the CPU inserted into the socket, inspect the four corners of the CPU to make sure that it is properly installed and fl ush with the socket. 5. Gently press the CPU socket lever down until it locks in the plastic tab. For a dual-processor system, repeat these steps to install another CPU into the CPU#2 socket.

  • Page 24: Mounting The Serverboard Into A Chassis

    1. Check the compatibility of the serverboard ports and the I/O shield The H8DSP-8/H8DSP-i serverboard requires a chassis that can support extended ATX boards 9.6" x 16.2" in size. Make sure that the I/O ports on the serverboard align with their respective holes in the I/O shield at the rear of the chassis.
  • Page 25 Chapter 2: Installation Support The H8DSP-8/H8DSP-i supports single or dual-channel, registered ECC DDR400/333/266 SDRAM. Both interleaved and non-interleaved memory are supported, so you may populate any number of DIMM slots (see note on previous page and charts on following page). The CPU2 DIMM slots can only be accessed when two CPUs are installed (however, the CPU2 DIMM slots are not required to be populated when two CPUs are installed).
  • Page 26 H8DSP-8/H8DSP-i User's Manual Populating Memory Banks for 128-bit Operation CPU1 CPU1 CPU1 CPU1 CPU2 CPU2 CPU2 CPU2 DIMM1A DIMM1B DIMM2A DIMM2B DIMM1A DIMM1B DIMM2A DIMM2B Notes: X indicates a populated DIMM slot. If adding at least four DIMMs (with two CPUs installed), the confi...

  • Page 27: I/O Port And Control Panel Connections

    Chapter 2: Installation I/O Port and Control Panel Connections The I/O ports are color coded in conformance with the PC99 specifi cation to make setting up your system easier. See Figure 2-3 below for the colors and locations of the various I/O ports. Figure 2-3.

  • Page 28: Connecting Cables

    Defi nition Pin # Defi nition Connector Ground Ground Ground The primary power supply connector Ground (J43) on the H8DSP-8/H8DSP-i is a +3.3V Ground proprietary design with unique pinouts +3.3V Ground and requires the correct proprietary +5VSB Ground power supply to operate. Refer to the...

  • Page 29: Hdd Led

    Chapter 2: Installation HDD LED HDD LED The HDD (IDE Hard Disk Drive) LED Pin Defi nitions (JF1) connection is located on pins 13 and Pin# Defi nition 14 of JF1. Attach the IDE hard drive LED cable to display disk activity. HD Active Refer to the table on the right for pin defi...

  • Page 30: Power Fail Led

    H8DSP-8/H8DSP-i User's Manual Power Fail LED Power Fail LED Pin Defi nitions (JF1) The Power Fail LED connection is lo- Pin# Defi nition cated on pins 5 and 6 of JF1. See the table on the right for pin defi nitions.

  • Page 31: Usb2/3 Headers

    Chapter 2: Installation USB2/3 Headers Extra Universal Serial Bus Headers Pin Defi nitions (USB2/3) Tw o a d d i t i o n a l U S B 2 . 0 h e a d - USB2 USB3/4 Pin # Defi...

  • Page 32: Power Led/Speaker

    H8DSP-8/H8DSP-i User's Manual Power LED/Speaker PWR LED Connector Pin Defi nitions (JD1) Pin# Defi nition On JD1, pins 1, 2, and 3 are for the +Vcc power LED and pins 4 through 7 are for the speaker. See the tables on the -Vcc right for pin defi...

  • Page 33: Doc Power Header

    Chapter 2: Installation DOC Power Header DOC Power Header Pin Defi nitions (JWF1) Pin# Defi nition JWF1 is a power header for a DOC (Disk-On-Chip) device. Connect the appropriate cable here to provide Ground power to a DOC device on your sys- Signal tem.

  • Page 34: Jumper Settings

    H8DSP-8/H8DSP-i User's Manual Jumper Settings Explanation of Jumpers To modify the operation of the Connector serverboard, jumpers can be used to Pins choose between optional settings. Jumpers create shorts between two pins to change the function of the Jumper connector. Pin 1 is identifi ed with a square solder pad on the printed circuit board.

  • Page 35: Pci-X#1/Pci-X#2 Frequency Select

    Chapter 2: Installation PCI-X#1/#2 Frequency Select PCI-X#1/#2 Frequency Select Jumper Settings Jumpers JXAO and JXBO are used (JXAO/JXBO) to set the speed of PCI-X slots 1 and Jumper Setting Defi nition 2, respectively. The recommended Pins 1-2 66 MHz PCI-X (default) setting is open for Auto.

  • Page 36: Scsi Controller Enable/Disable

    H8DSP-8/H8DSP-i User's Manual SCSI Controller Enable/ Disable (H8DSP-8 only) SCSI Enable/Disable Jumper Settings (JPA1) Jumper JPA1 is used to enable or dis- Both Jumpers Defi nition able the Adaptec AIC-7902W SCSI Pins 1-2 Enabled controller. The default setting is on pins...

  • Page 37: I 2 C To Pci Enable/Disable

    Chapter 2: Installation C to PCI Enable/Disable C1/2 pair of jumpers allow you to connect the System Management Bus C to PCI Enable/Disable Jumper Settings to any one of the PCI slots. The default C1/JI setting is closed for both jumpers to en- Jumper Setting Defi...

  • Page 38: Scsi Activity Leds

    H8DSP-8/H8DSP-i User's Manual SCSI Activity LEDs (H8DSP- SCSI Channel Activity LEDs 8 only) (DA1/DA2) State System Status There are two SCSI activity LEDs on SCSI Channel Active the serverboard. When illuminated, SCSI Channel Inactive DA1 indicates activity on SCSI chan- nel A and DA2 indicates activity on SCSI channel B.

  • Page 39: Floppy, Ide, Scsi And Sata Drive Connections

    Chapter 2: Installation Floppy, IDE, SCSI and SATA Drive Connections Use the following information to connect the fl oppy and hard disk drive cables. The fl oppy disk drive cable has seven twisted wires. A red mark on a wire typically designates the location of pin 1. A single fl...

  • Page 40: Ide Connectors

    H8DSP-8/H8DSP-i User's Manual IDE Connectors IDE Drive Connectors Pin Defi nitions (JIDE#1) Pin# Defi nition Pin # Defi nition There are no jumpers to con- fi gure the onboard IDE connec- Reset IDE Ground tor. See the table on the right...

  • Page 41: Scsi Connectors

    Chapter 2: Installation SCSI Connectors Ultra320 SCSI Drive Connectors Pin Defi nitions (JA1/JB1) (H8DSP-8 only) Pin# Defi nition Pin # Defi nition Refer to the table at right for +DB (12) -DB (12) pin defi nitions for the Ultra320 +DB (13)

  • Page 42: Sata Connector

    H8DSP-8/H8DSP-i User's Manual SATA 4-Port Connector Pin Defi nitions (JSM1) SATA Connector Pin# Defi nition Pin # Defi nition Ground RXD+ There are no jumpers to con- RXD- Ground figure the SATA connector. TXD- TXD+ JSM1 is a 4-port connector that...

  • Page 43: Chapter 3: Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any hardware components.

  • Page 44: Memory Errors

    H8DSP-8/H8DSP-i User's Manual NOTE If you are a system integrator, VAR or OEM, a POST diagnostics card is recommended. For I/O port 80h codes, refer to App. B. Memory Errors 1. Make sure that the DIMM modules are properly and fully installed.

  • Page 45: Frequently Asked Questions

    Frequently Asked Questions Question: What type of memory does my serverboard support? Answer: The H8DSP-8/H8DSP-i supports up to 32 GB of registered ECC DDR333/266 or up to 16 GB of registered ECC DDR400 interleaved or non-inter- leaved SDRAM with two CPUs installed. With only one CPU installed the maximum memory support is halved.

  • Page 46: Returning Merchandise For Service

    H8DSP-8/H8DSP-i User's Manual Question: Why can't I turn off the power using the momentary power on/off switch? Answer: The instant power off function is controlled in BIOS by the Power But- ton Mode setting. When the On/Off feature is enabled, the serverboard will have instant off capabilities as long as the BIOS has control of the system.

  • Page 47: Chapter 4: Bios

    Chapter 4 BIOS Introduction This chapter describes the AMIBIOS™ Setup utility for the H8DSP-8/H8DSP-i. The AMI ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 48: Main Setup

    H8DSP-8/H8DSP-i User's Manual Main Menu When you fi rst enter AMI BIOS Setup Utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.
  • Page 49 Chapter 4: BIOS IDE Confi guration Onboard PCI IDE Controller The following options are available to set the IDE controller status: Disabled will disable the controller. Primary will enable the primary IDE controller. There is no Secondary option since only one IDE slot is provided on the board. Primary IDE Master/Slave Highlight one of the two items above and press <Enter>...
  • Page 50 H8DSP-8/H8DSP-i User's Manual data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1 for a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO mode 2 for a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to use PIO mode 3 for a data transfer rate of 11.1 MBs.

  • Page 51: Pci/Pnp Menu

    Chapter 4: BIOS Floppy Confi guration Floppy A Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44 MB 3½”, and 2.88 MB 3½".
  • Page 52 H8DSP-8/H8DSP-i User's Manual PCI IDE BusMaster Set this value to allow or prevent the use of PCI IDE busmastering. Select "Enabled" to allow AMI BIOS to use PCI busmaster for reading and writing to IDE drives. The options are Disabled and Enabled.
  • Page 53 Chapter 4: BIOS Serial Port2 Address This option specifi es the base I/O port address and Interrupt Request address of serial port 2. Select "Disabled" to prevent the serial port from accessing any system resources. When this option is set to "Disabled", the serial port physically becomes unavailable.
  • Page 54 H8DSP-8/H8DSP-i User's Manual User Confi guration Mode Options are Auto and Manual. Bank Interleaving This setting is used to determine whether bank interleaving is to be employed. The options are Auto and Disabled. Burst Length Use this setting to set the memory burst length. 64-bit Dq must use 4 beats.
  • Page 55 Chapter 4: BIOS DRAM Scrub Redirect Allows system to correct DRAM ECC errors immediately, even with background scrubbing on. Options are Enabled and Disabled. DRAM BG Scrub Corrects memory errors so later reads are correct. Options are Dis- abled and various times in nanoseconds and microseconds. L2 Cache BG Scrub Allows L2 cache RAM to be corrected when idle.
  • Page 56 H8DSP-8/H8DSP-i User's Manual S-ATA Confi guration HT-1000 S-ATA Use this setting to Enable or Disable the on-chip SATA controller. S-ATA Mode Use this to select either IDE, MMIO or RAID as the SATA mode. ACPI Confi guration Advanced ACPI Confi guration ACPI Version Features Select which version of ACPI you wish to use.
  • Page 57 Chapter 4: BIOS Event Log Statistics Highlight this item and press <Enter> to view details on the count of total unread events. Hyper Transport Confi guration CPU0: CPU1 HT Link Speed The HT link will run at the speed specifi ed in this setting if it is slower than or equal to the system clock and if the board is capable.
  • Page 58 H8DSP-8/H8DSP-i User's Manual PCI Express Confi guration Active State Power Management This setting is used the Enable or Disable the PCI Express L0s and L1 Link power states. Remote Access Confi guration Remote Access Use this setting to Enable or Disable remote access. If Enabled is selected, you can select a Remote Access type.

  • Page 59: Boot Menu

    Chapter 4: BIOS The other items in the submenu are all systems monitor displays for the follow- ing information: CPU1 Temperature, CPU2 Temperature (for dual CPU systems), System Tem- perature, CPU1 Vcore, CPU2 Vcore (for dual CPU systems), +5 Vin, +12Vin, -12V Vcc, DDRA VTT, DDRB VTT, 1.2V for Hyper-Transport, 2.5V, 5V standby, 2.5V standby and battery voltage.

  • Page 60: Boot Device Priority

    H8DSP-8/H8DSP-i User's Manual Add-On ROM Display Mode This setting controls the display of add-on ROM (read-only memory) messages. Select "Force BIOS" to allow the computer system to force a third party BIOS to display during system boot. Select "Keep Current" to allow the computer system to display the BIOS information during system boot.

  • Page 61: Security Menu

    Chapter 4: BIOS Hard Disk Drives This feature allows the user to prioritize the Boot sequence from available hard drives. Removable Drives This feature allows the user to specify the Boot sequence from available remov- able drives. CD/DVD Drives This feature allows the user to specify the boot sequence from available CDROM drives.

  • Page 62: Exit Menu

    H8DSP-8/H8DSP-i User's Manual Exit Menu Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup screen. Save Changes and Exit When you have completed the system confi guration changes, select this option to leave BIOS Setup and reboot the computer, so the new system confi guration parameters can take effect.

  • Page 63: Appendix A: Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 64 H8DSP-8/H8DSP-i User's Manual Notes...

  • Page 65: Appendix B: Bios Post Checkpoint Codes

    Appendix B: BIOS POST Checkpoint Codes Appendix B BIOS POST Checkpoint Codes When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, diagnostic equipment can be attached to the computer to read I/O port 0080h. Uncompressed Initialization Codes The uncompressed initialization checkpoint codes are listed in order of execution: Checkpoint...
  • Page 66 H8DSP-8/H8DSP-i User's Manual Bootblock Recovery Codes The bootblock recovery checkpoint codes are listed in order of execution: Checkpoint Code Description The onboard fl oppy controller if available is initialized. Next, beginning the base 512 KB memory test. Initializing the interrupt vector table next.
  • Page 67 Appendix B: BIOS POST Checkpoint Codes Uncompressed Initialization Codes The following runtime checkpoint codes are listed in order of execution. These codes are uncompressed in F0000h shadow RAM. Checkpoint Code Description The NMI is disabled. Next, checking for a soft reset or a power on condition. The BIOS stack has been built.
  • Page 68 H8DSP-8/H8DSP-i User's Manual Checkpoint Code Description Interrupt vector initialization is done. Clearing the password if the POST DIAG switch is on. Any initialization before setting video mode will be done next. Initialization before setting the video mode is complete. Confi guring the mono- chrome mode and color mode settings next.
  • Page 69 Appendix B: BIOS POST Checkpoint Codes Checkpoint Code Description The memory below 1 MB has been cleared via a soft reset. Clearing the memory above 1 MB next. The memory above 1 MB has been cleared via a soft reset. Saving the memory size next.
  • Page 70 H8DSP-8/H8DSP-i User's Manual Checkpoint Code Description The password was checked. Performing any required programming before WIN- BIOS Setup next. The programming before WINBIOS Setup has completed. Uncompressing the WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility next.
  • Page 71 Appendix B: BIOS POST Checkpoint Codes Checkpoint Code Description Returned from adaptor ROM at E000h control. Performing any initialization required after the E000 option ROM had control next. Initialization after E000 option ROM control has completed. Displaying the system confi guration next. Uncompressing the DMI data and executing DMI POST initialization next.
  • Page 72 H8DSP-8/H8DSP-i User's Manual Notes...
