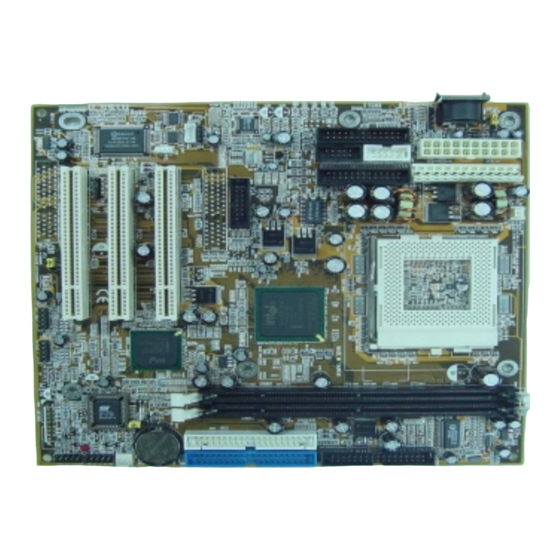

- Page 1 AZZA 810T Mainboard Series Cover Click Here Table Of Contents Click Here Introduction Click Here Hardware Installation Click Here BIOS Management Click Here...
- Page 2 8102T USER’S MANUAL Socket 370 AT Mainboard 8102T 810E2T Document NO: 8102ET-E1 Revision: 1.0V Creation Date: 2001-08-01...
-
Page 3: Package Checklist
User’s Notice User’s Notice Copyright Copyright This publication contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation adaptation without prior written permission from the copyright holders. -
Page 4: Table Of Contents
Table Of Contents Table Of Contents Table Of Contents Chapter 1:- Introduction Page 5 1.1. Overview ....................5 1.1.1. Mainboard Series ................... 6 1.1.2. Mainboard Dimensions ................6 1.1.3. Environmental Limitations ..............6 1.2. Features and Specifications ..............6 1.3. System Intelligence .................. 9 Chapter 2:- Hardware Installation Page 10 2.1. - Page 5 Table Of Contents Table Of Contents Table Of Contents 2.7. Jumper Settings ..................22 2.7.1. JP 1: OnNow Function ................22 2.7.2. JP 2: Clear CMOS ..................23 2.7.3. JP 3: Clear Keyboard Password ..............23 Chapter 3:- Managing The PC BIOS Page 24 3.1.
-
Page 6: Chapter 1:- Introduction
Introduction Introduction Chapter 1 Introduction Chapter 1 Chapter 1 Introduction Introduction MAINBOARD LAYOUT MAINBOARD LAYOUT MAINBOARD LAYOUT... -
Page 7: Mainboard Series
Introduction Introduction 1.1.1. Mainboard Series The 810 mainboard series has two models. They are: 8102T 810E2T 1.1.2. Mainboard Dimensions Width & Length: 222 mm x 210 mm. 8.27 inches x 8.74 inches Height: 1 1/2 inches PCB Thickness: 1.6 mm Weight: 18 ounces. -
Page 8: Expansion Slots
Introduction Introduction Expansion Slots Three dedicated PCI slots, and one (optional) CNR (Communication Network Riser) slot. The CNR slot provides the opportunity to install a flexible and cost reduced method of implementing LAN, home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". Onboard Audio Features •... - Page 9 Introduction Introduction WOL (Wake-On-Lan) Port (optional) One WOL connector supports Wake-On-LAN functionality. USB Ports The mainboard is equipped with four internal USB connectors. USB allows data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. ( Cable set for two connectors are optional and is sold separately).
-
Page 10: System Intelligence
Introduction Introduction Intelligence Intelligence Dual Function Power Button Depending on the setting in the Soft-Off By Power-Button field of the Power Management Setup, this switch allows the system to enter the Soft-Off or Suspend mode. External Modem Ring-on (optional) The Modem Ring-on feature allows the system that is in the Suspend mode or Soft Power Off mode to wake-up/power-on to respond to incoming calls. -
Page 11: Chapter 2:- Hardware Installation
Hardware Installation Hardware Installation Chapter 2 Hardware Chapter 2 Chapter 2 Hardware Hardware 2.1. Installation Check List 2.1. Installation Check List 2.1. Installation Check List The following is a checklist of all the expansion slots, jumpers and connectors that should be configured on your mainboard before you can run your pc. Installation Checklist Expansion Slots and Sockets CPU Slot... -
Page 12: Installation Steps
Hardware Installation Hardware Installation Installation Checklist (Continued) System Panel Buttons and LED Connectors Power On/Off and Suspend Switch Connector. Turbo LED HDD LED Connector Reset Button LED Connector Speaker, Power LED and Keyboard Lock Connector PWR-LED Power LED Speaker Connector KBLOCK Keyboard Lock Connector Optional Connectors... - Page 13 Hardware Installation Hardware Installation Expansion Cards, Connectors and Jumpers For The 8102T/810E2T...
-
Page 14: Cpu, Memory And Expansion Slots
Hardware Installation Hardware Installation 2.3. CPU, Memory and Expansion Slots 2.3. CPU, Memory and Expansion Slots 2.3. CPU, Memory and Expansion Slots 2.3.1 Installation of Processor (CPU) Before you install the processor, make sure that you have an approved Heat Sink with Cooling Fan. -
Page 15: Pci Slots
Hardware Installation Hardware Installation NOTE: “Out Of Memory” Error Message If you have installed more than 512 MB of RAM and are running Microsoft Windows Millen- nium Edition, Windows 98 Second Edition, Windows 98 or Windows 95 you may experience memory problems. -
Page 16: Ps/2 Mouse Connector
Hardware Installation Hardware Installation Mouse Data 2.4.2 PS/2 Mouse Connector No Connection Ground Connector: CN2 Type: 5 pin +5V DC Mouse Clock This mainboard comes with a single PS/2 mouse connector. PS/2 Mouse Use the ribbon cable that has been provided to connect your Connector mouse. -
Page 17: Floppy Disk Drive (Fdd)
Hardware Installation Hardware Installation 2.4.6. Floppy Disk Drive (FDC) Connector: CN 8 Type: 34 pin block The FDC connector can support two Floppy drives. It is located at the front of the mainboard. To connect, use the ribbon-cable that has been provided. Make sure that the red strip is connected to PIN 1 of the connector. -
Page 18: Cpu And Chassis Fan Connectors
Hardware Installation Hardware Installation Hardware Installation Hardware Installation 2.4.9. CPU Fan and Chassis Fan Connector Connector: CN 13 (CPU Fan 1)/CN 17 (Chassis Fan) Type: 3 pin The cooling fans must be connected to their respective power connectors. Top View of a Fan Connector Front View of a Fan Connector Ground +12V DC... -
Page 19: Wol (Wake-On-Lan) Connector
Hardware Installation Hardware Installation 2.4.12. WOL (Wake On LAN) Connector(Optional) Connector: CN 16 (WOL) Type: 3 pin The WOL connector must be connected to a LAN card that has Wake-On-LAN (WOL) output. This connector powers up the system when a wakeup packet or signal is received through the LAN card. -
Page 20: Cd Audio In Connector
Hardware Installation Hardware Installation 2.4.15. CD Audio-in Connector Connector: CN 21 (un-housed) Type: 4 pin Top View of an Un-housed Front View of an Un-housed CD-Audio In CD-Audio In Connector. Connector. Left Channel Audio In Ground Ground Right Channel Audio In Right Channel Left Channel Ground... -
Page 21: System Panel Buttons And Led Connectors
Hardware Installation Hardware Installation PIN 2: MIC-IN PIN 4: No Con- PIN 6: LINE-IN PIN 8: EAR- PIN 10: Ground nection Left PHONE Left Top View of the Front Audio Connector PIN 1: Ground PIN 3: PIN 5: LINE-IN PIN 7: Ground PIN 9: Ear- MIC_RCH Right... -
Page 22: Tl: Turbo Led Connector
Hardware Installation Hardware Installation Mode 2: Press and hold the Power ON button for more than 4 seconds, the sys- tem will be completely powered off. Option 2: If you choose “Instant OFF.” In the BIOS CMOS Setup, the power switch will operate like a normal ON / OFF Power button. -
Page 23: Jumper Settings
Hardware Installation Hardware Installation 2.7. Jumper Settings 2.7. Jumper Settings 2.7. Jumper Settings Jumpers are built on the mainboard to allow the user flexibility to configure the mainboard settings to meet their specific requirements. The 810T mainboard se- ries come with three jumpers. All the jumpers have three 3-pins. When there is a jumper cap inserted on pins 1 and 2 we say PIN 1 and PIN 2 are SHORT. -
Page 24: Jp2: Clear Cmos
Hardware Installation Hardware Installation 2.7.2. JP2: Clear CMOS Default: PIN 1 and PIN 2 Short (Normal) Short: PIN 1— PIN 2 Normal Short: PIN 2— PIN 3 Clear CMOS Data If you have made an improper setting in the BIOS setup and your computer is not functioning, or if you have forgotten your password, you can use this jumper, JP2, to clear the CMOS memory and to reconfigure your system. -
Page 25: Chapter 3:- Managing The Pc Bios
BIOS Setup BIOS Setup Chapter 3 Chapter 3 Managing the PC BIOS Managing the PC BIOS Chapter 3 Managing the PC BIOS 3.1. Award BIOS CMOS Setup Utility 3.1. Award BIOS CMOS Setup Utility 3.1. Award BIOS CMOS Setup Utility The EEPROM on the mainboard stores the AWARD BIOS CMOS Setup Utility to allow you to configure your system. -
Page 26: Main Menu
BIOS Setup BIOS Setup MAIN MENU MAIN MENU MAIN MENU Once you have called up the BIOS CMOS Setup Utility, the following screen will appear: CMOS Setup Utility – Copyright ( C ) 1984 - 2001 Award Software Frequency / Voltage Control Standard CMOS Features Advanced BIOS Features Load Optimized Defaults... -
Page 27: Standard Cmos Setup
BIOS Setup BIOS Setup 3.3. STANDARD CMOS SETUP 3.3. STANDARD CMOS SETUP CMOS Setup Utility - Copyright ( C ) 1984 - 2001 Award Software. Standard CMOS Setup Item Help Date (mm : dd : yy) : Tue, July 24 2001 Time (hh : mm : ss) : 14 : 52 : 45 Menu Level ! ! ! ! - Page 28 BIOS Setup BIOS Setup CYLS. Number of cylinders HEADS Number of heads PRECOMP Write precomp LANDZONE Landing zone SECTORS Number of sectors The information should be provided in the documentation form your hard disk vendor or the system manufacturer. If a hard disk has not been installed select NONE and press <Enter>.
-
Page 29: Advanced Bios Features
BIOS Setup BIOS Setup Base Memory : Indicates the memory installed below the conventional 1MB space. Extended Memory : Indicates the memory installed above the 1MB space. Total Memory : Indicates the total memory installed in the PC system. 3.4. ADVANCED BIOS FEATURES 3.4. -
Page 30: Virus Warning
BIOS Setup BIOS Setup Virus Warning Virus Warning Virus Warning When enabled, you receive a warning message if a program (specifically, a virus) attempts to write to the boot sector or the partition table of the hard disk drive. You should then run an anti-virus program. Keep in mind that this feature protects only the boot sector, not the entire hard drive. -
Page 31: Typematic Rate Setting
BIOS Setup BIOS Setup Boot Up Floppy Seek Boot Up Floppy Seek Boot Up Floppy Seek When enabled, the BIOS tests (seeks) floppy drives to determine whether they have 40 or 80 tracks. Only 360-KB floppy drives have 40 tracks; drives with 720 KB, 1.2 MB, and 1.44 MB capacity all have 80 tracks. -
Page 32: Advanced Chipset Features
BIOS Setup BIOS Setup PS/2 mouse function control PS/2 mouse function control PS/2 mouse function control This mainboard has a built-in PS/2™ mouse port. If you are using the PS/2™ mouse, please leave this field as “Enabled”. In case you prefer to connect a serial mouse to the serial port instead of using the PS/2™... - Page 33 BIOS Setup BIOS Setup CMOS Setup Utility—Copyright © 1984—2001 Award Software Advanced Chipset Features SDRAM CAS Latency Item Help SDRAM Cycle Time Tras/Trc [6/8] Menu Level SDRAM RAS - to - CAS Delay SDRAM RAS Precharge Time System BIOS Cacheable [Disabled] Video BIOS Cacheable [Disabled]...
-
Page 34: Integrated Peripherals
BIOS Setup BIOS Setup memory to store 3D texture mapping data to increase the video display perform- ance. The field allows you to define the memory size which you prefer to use for the AGP Port. The memory size selectable is either "Disable" or 32MB or 64MB DVMT. - Page 35 BIOS Setup BIOS Setup CMOS Setup Utility - Copyright (C) 1984 - 2000 Award Software Integrated Peripherals Item Help On-Chip Primary PCI IDE [Enabled] On-Chip Secondary PCI IDE [Enabled] IDE Primary Master PIO [Auto] Menu Level ! ! ! ! IDE Primary Slave PIO [Auto] IDE Secondary Master PIO...
- Page 36 BIOS Setup BIOS Setup C97 Audio C97 Audio C97 Audio There is the Audio interface built in the system chipset. You can use this field to configure the onboard Audio interface or disable the audio interface. AC97 Modem AC97 Modem AC97 Modem Set this field to “Auto”...
- Page 37 BIOS Setup BIOS Setup UART Mode Select UART Mode Select UART Mode Select This field allows you to determine the mode of the UART port. RxD, TxD Active RxD, TxD Active RxD, TxD Active This item allows you to determine the active of RxD, TxD IR Transmission delay IR Transmission delay IR Transmission delay...
-
Page 38: Power Management Setup
BIOS Setup BIOS Setup 3.7 Power Management Setup 3.7 Power Management Setup 3.7 Power Management Setup CMOS Setup Utility - Copyright (C) 1984 - 2000 Award Software Power Management Setup Item Help ACPI Function [Enabled] ACPI Suspend Type [S1 (POS)] Power Management [User Define] Menu Level ! ! ! ! ... -
Page 39: Power Management
BIOS Setup BIOS Setup According to what was defined by the ACPI in Windows 98, the PW switch can be either the "Standby switch" or "shutdown switch". When "Standby switch" is selected, the first click on the PW switch will have the PC system turn into standby mode. -
Page 40: Video Off In Suspend
BIOS Setup BIOS Setup This selection will cause the system to turn off the V/H SYNC+Blank vertical and horizontal synchronization ports and write blanks to the video buffer. Blank Screen This option only writes blanks to the video buffer. DPMS Initial display power management signaling. -
Page 41: Pnp/Pci Configuration
BIOS Setup BIOS Setup Power On by Ring / LAN Power On by Ring / LAN Power On by Ring / LAN When “Enabled”, you can use the Modem Ring signal or the LAN wake up signal to power on the PC system. CPU Thermal CPU Thermal Throttling... - Page 42 BIOS Setup BIOS Setup CMOS Setup Utility - Copyright (C) 1984 - 2001 Award Software PnP/PCI Configuration Item Help PNP OS Installed [No] Reset Configuration [Disabled] Menu Level" " " " " " " " ! ! ! ! Resources Controlled [Auto (ESCD)] X IRQ Resources...
-
Page 43: Frequency/Voltage Control
BIOS Setup BIOS Setup 3.9 Frequency/Voltage Control 3.9 Frequency/Voltage Control 3.9 Frequency/Voltage Control CMOS Setup Utility - Copyright (C) 1984 - 2000 Award Software Frequency/Voltage Control Item Help Auto Detect DIMM/PCI Clk [Disabled] Spread Spectrum [Disabled] Menu Level CPU Host /SDRAM Clock [66] CPU Clock Ratio [X 3]... -
Page 44: Load Optimized Defaults
BIOS Setup BIOS Setup 3.10 Load Optimized Defaults 3.10 Load Optimized Defaults 3.10 Load Optimized Defaults CMOS Setup Utility – Copyright ( C ) 1984 - 2000 Award Software Standard CMOS Features Frequency / Voltage Control Advanced BIOS Features Load Optimized Defaults Advanced Chipset Features Set Supervisor Password Integrated Peripherals... -
Page 45: Set User Password
BIOS Setup BIOS Setup The “SUPERVISOR PASSWORD” is for you to control unauthorized access to your BIOS CMOS Setup or Booting into the your PC system. The Supervisor Password option is used together with the Security Option in section. When "Setup" is selected in Security Option: When "Setup"... -
Page 46: Save & Exit Setup/Exit Without Saving
BIOS Setup BIOS Setup 2. When "System" is selected in Security Option: When you turn on the PC system, it will request you to enter the Password. With- out the correct password, PC system will stop and the operating system won't be loaded.
