WIRING DIAGRAMS

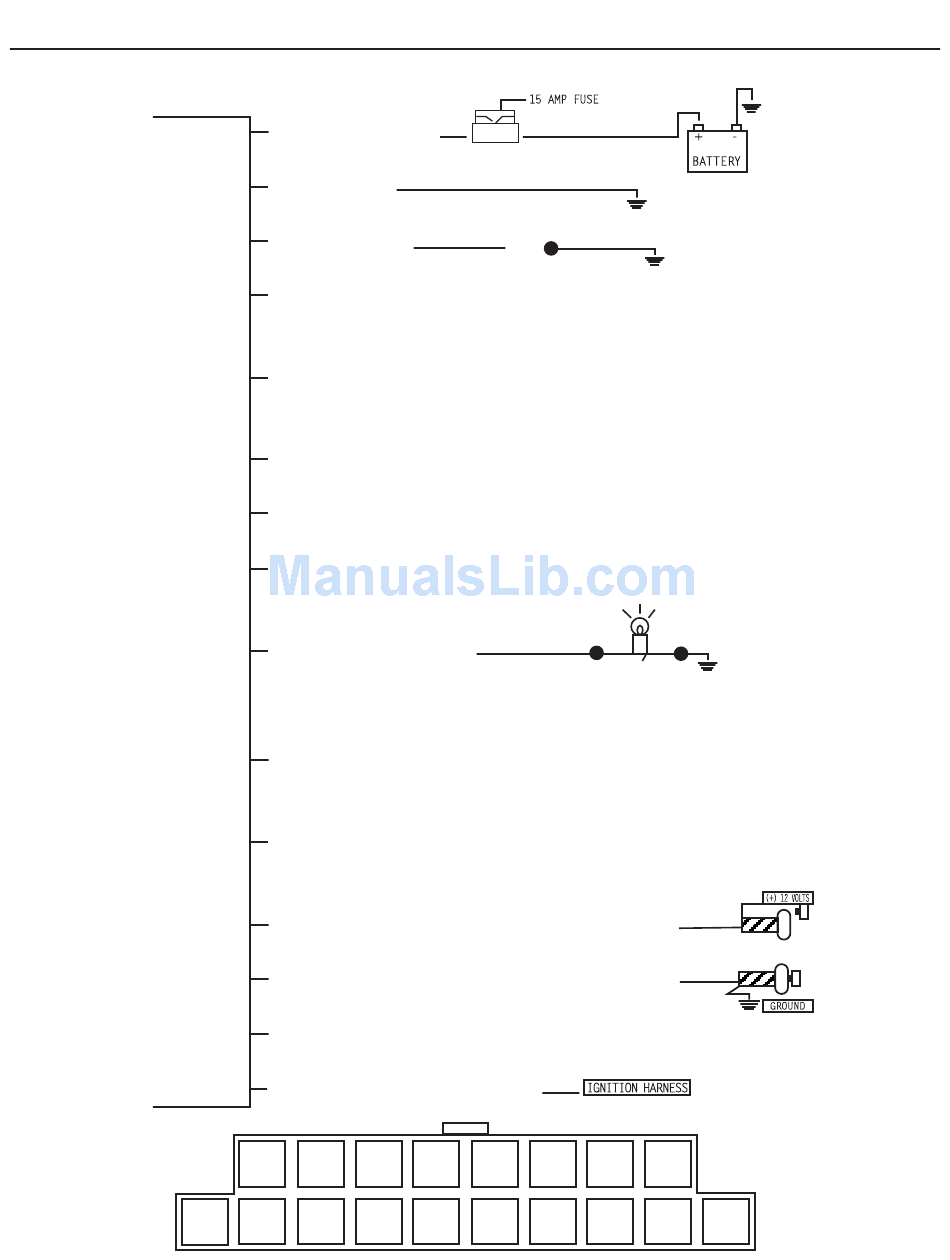

FIGURE 1
1. Red
2. Black
3. Grey
4. White/Red
5. White/Yellow
6. Brown/Black
7. Green/Black
8. Orange
9. Brown
10. Open
11. Green
12. Yellow
13. Black/Blue
14. Black/Yellow
15. Violet
16. Red/Black
(+) 12 volt constant
chassis ground
(+) siren output
button #2 / channel #3 (-) output: trunk
pop, window rollup, etc. 200mA max
button #3 / channel #2 (-) output: remote
start, etc. 200 mA max (see figure 7)
(+) unlock or (-) lock output
(+) lock or (-) unlock output
(-) output when armed: starter disable, etc
(see fig. 9)
(+) parking light output
(-) shock sensor input (minor): warn away /
10 second delay after arming
(+) shock sensor input (major): triggers
alarm / 10 second delay after arming
(+) door pin input / 20 second delay after arming
(-) door pin input / 20 second delay after arming
(-) output dome light supervision 300mA max (see fig. 6)
(+) 12 volt ignition sense input
8 7 6
L 16 15 14
RED
BLACK
5 4 3
13 12 11
2 1
9 R
10
