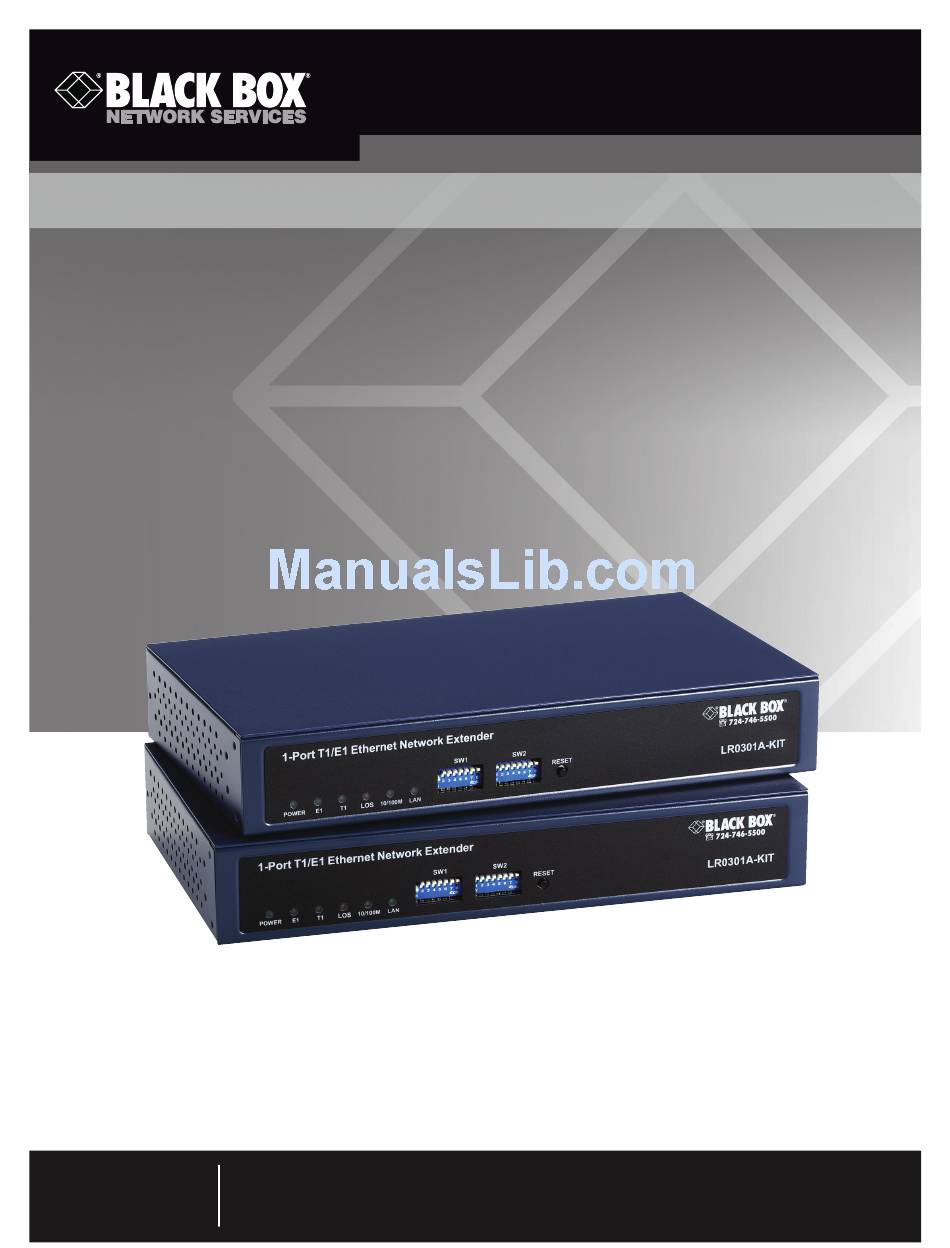

1-Port T1/E1 Ethernet Network Extender Kit
Extend Ethernet with a 1.544-Mbps T1 or
2.048-Mbps E1 connection.
Bridges 10BASE-T/100BASE-TX Ethernet across full or Fractional T1
or E1 in unframed or framed mode.
Ethernet Auto MDI/MDI-X function so no crossover cables are needed.
DIP switches for easy configuration.
•
Customer
Support
Information
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
LR0301A-KIT
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LR0301A-KIT
Summary of Contents for Black Box LR0301A-KIT
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 • Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Information Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 1-Port T1/E1 Ethernet Network Extender Kit Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
- Page 3 FCC and IC RFI Statements Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 4 1-Port T1/E1 Ethernet Network Extender Kit Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
- Page 5 CE Statement European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN61000-3 and the Generic European Immunity Standard EN55024. EMC: EN55022(2003)/CISPR-2 (2002): Class A IEC61000-4-2 (2001): 4 KV CD, 8 KV AD IEC61000-4-3( 2002): 3 V/m IEC61000-4-4(2001): 1 KV (power line), 0.5 KV (signal line) Page 5...
-
Page 6: Table Of Contents
1-Port T1/E1 Ethernet Network Extender Kit 1. Specifications ......................................7 2. Overview ......................................8 2.1 Introduction ....................................8 2.2 Features ......................................8 2.3 What’s Included ..................................... 8 2.4 LED Description ....................................9 2.5 Front and Back Panels ..................................9 3. Installation ......................................10 4. -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications Line Code: T1: AMI B8ZS; E1: AMI HDB3 Line Impedance: T1: 100 ohm; E1: 75, 120 ohm Line Rate: T1: 1.544 Mbps ± 32 ppm; E1: 2.048 Mbps ±50 ppm Frame Format: T1: ESF, SF, Unframed; E1: Framed, Unframed Standards: IEEE 802.3, IEEE 802.3u, EMI, Auto MDI/MDI-X, FCC Class A, CE Mark LAN Interface: Auto detection for 10BASE-T/100BASE-TX and full-/half-duplex... -
Page 8: Overview
2. Overview 2.1 Introduction The LR0301A 1-Port T1/ E1 Network Extender (LR0301A-KIT) is an Ethernet extender that converts protocols and data from Fractional T1/E1 to Ethernet 10BASE-T/100BASE-TX interfaces. It’s a symmetrical broadband solution for Intranet LAN-to-LAN connection with Nx64kbps bandwidth. The pair of extenders included with this kit acts as a bridge, enabling you to link two Ethernet networks across T1/E1. -
Page 9: Led Description
Chapter 2: Overview 2.4 LED Descriptions Table 2-1. Indicators. Color Function POWER Green Lit when power is on. Green Lit when E1 is selected (SW1-1 is OFF). Green Lit when T1 is selected (SW1-1 is ON). Lit when signal is lost for selected E1/T1. 10/100M Green Lit when Ethernet is connected at 100 Mbps. -
Page 10: Installation
1-Port T1/E1 Ethernet Network Extender Kit 3. Installation The 1-Port T1/ E1 Network Extender uses DIP switches for fast and easy configuration, so it can be installed quickly. Follow the steps listed below to complete the installation and configuration. There are two external DIP switches on the front of the unit and four internal DIP switches on the circuit board inside the unit. - Page 11 Chapter 3: Installation Table 3-3. Frame mode configuration. SW1-1 SW1-3 SW1-4 Frame Mode E1 Unframed E1 CRC4 E1 CAS E1 CRC4+CAS T1 Unframed T1 SF T1 ESF Table 3-4. Line code configuration. SW1-1 SW1-5 Line Code HDB3 B8ZS Table 3-5. DS-1 LBO and DSX-1 transmit pulse template. SW1-1 SW1-6 SW1-7...
- Page 12 1-Port T1/E1 Ethernet Network Extender Kit 2. Connect the T1/E1 line to the BNC or RJ-48 connectors on the back panel. Figure 3-2 describes the RJ-48 pin assignment. Pin 4 and Pin 5 (to input of demarc) Pin 1 and Pin 2 (to output of demarc) Figure 3-2.
-
Page 13: Dip Switches
Chapter 4: DIP Switches 4. DIP Switches 4.1 Definition of DIP switches Table 4-1 describes the DIP switches that are located on the extender’s front panel. You will use these switches for either full or Fractional T1/E1. Table 4-1. Description of DIP switches for full or Fractional T1/E1. DIP Switches Function SW1-1... - Page 14 1-Port T1/E1 Ethernet Network Extender Kit The SW4-1–4-8, SW5-1–5-8, SW6-1–6-8, SW7-1–7-8 DIP switches are on the PC board. You need to open the top of the case to configure these DIP switches. Refer to the Figure 4-1 to see the DIP switches’ locations. DIP switch “ON” means selected, and “OFF”...
-
Page 15: Factory Default Dip Switch Configuration
The factory default DIP switches setting are shown in Table 4-4. Before you change any settings, make sure every parameter and all the configurations for both pairs of T1/E1 Ethernet Network Extenders are the same. Call Black Box Tech Support for details. - Page 16 About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
