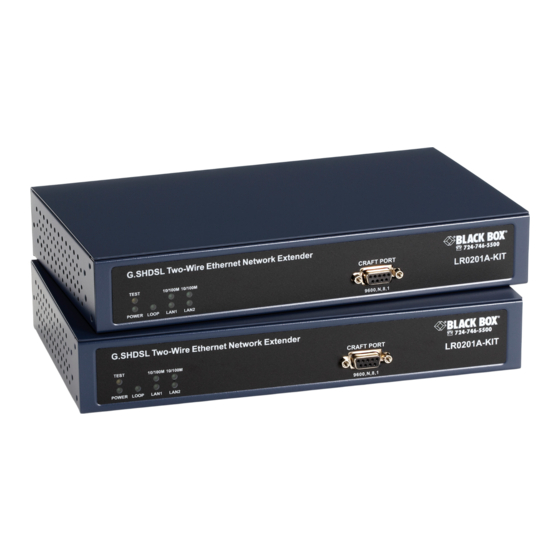

G.SHDSL Two-Wire Ethernet Network Extender
Extend Ethernet with full-duplex transmission
up to 5.696 Mbps—more than four miles—over
a pair of copper wires.
Complies with ITU-T Rec. G.991.2 G.shdsl.bis standards.
Supports adaptive data rates from 4.608 Mbps to 192 kbps for SHDSL line.
Works at distances up to 22,500 feet over 26 AWG twisted-pair cable.
Has two RJ-45 connectors for 10BASE-T/100BASE-TX Ethernet ports
for combining two separate Ethernet data streams over the same G.SHDSL link.
Includes a console port for network management configuration.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Information
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
December 2009
LR0201A-KIT
®
Advertisement
Table of Contents
Related Manuals for Black Box LR0201A-KIT
Summary of Contents for Black Box LR0201A-KIT
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) • Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 • Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Information Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 G.SHDSL Two-Wire Ethernet Network Extender Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.
- Page 3 FCC and IC RFI Statements Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
- Page 4 G.SHDSL Two-Wire Ethernet Network Extender Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
- Page 5 CE Statement European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN61000-3 and the Generic European Immunity Standard EN55024. EMC: EN55022(2003)/CISPR-2( 2002): Class A IEC61000-4-2 (2001): 4 KV CD, 8 KV AD IEC61000-4-3( 2002): 3V/m IEC61000-4-4(2001): 1 KV (power line), 0.5 KV (signal line) Page 5...
-
Page 6: Table Of Contents
G.SHDSL Two-Wire Ethernet Network Extender 1. Specifications ......................................7 2. Overview ....................................... 8 2.1 Introduction ..................................... 8 2.2 Features ......................................8 2.3 Application ...................................... 9 2.4 What’s Included ....................................9 2.5 LED Descriptions ....................................9 2.6 Front and Back Panels ..................................10 3. -
Page 7: Specifications
Chapter 1: Specifications 1. Specifications Data Rate: 64 kbps–5.696 Mbps Distance: On 26 AWG twisted pair: 5696 kbps: 4500 feet (0.9 miles), 4608 kbps: 5500 feet (1 miles), 3088 kbps: 9500 feet (1.8 miles), 2304 kbps: 12,000 feet (2.3 miles), 2048 kbps: 13,000 feet (2.5 miles), 1544 kbps: 13,300 feet (2.5 miles), 1536 kbps: 13,500 feet (2.6 miles),... -
Page 8: Overview
192 kbps. Users can also select a fixed data rate for the copper line ranging from 64 kbps to 5.696 Mbps. Or, use the unit’s rate-adaptive feature, which will choose the best data rate for your link from 192 kbps to 4.608 Mbps. The LR0201A-KIT also pro- vides a console port for users to configure the settings and to monitor the connection status. -
Page 9: Application
Internet Figure 2-1. Typical application. 2.4 What’s Included Your package should include the following items. If anything is missing or damaged, please contact Black Box Technical Support at 724-746-5500. • (2) G.SHDSL Two-Wire Ethernet Network Extenders • (2) Power cords •... -
Page 10: Front And Back Panels
G.SHDSL Two-Wire Ethernet Network Extender 2.6 Front and Back Panels LED Indicators RS-232 Console Port Figure 2-2. Front panel. Power Input RJ-48 Connector RJ-45 Connectors Power Switch Figure 2-3. Rear panel. 724-746-5500 | blackbox.com Page 10... -
Page 11: Installation
6. Both G.SHDSL Two-Wire Ethernet Network Extenders will automatically connect with each other. NOTE: Turn on the power switch, and LR0201A-KIT will then execute self-test routines. There will be two or more handshaking cycles when adaptive rate is selected. The system will automatically adapt to the maximum rate according to the loop distances. -
Page 12: Console Configuration
G.SHDSL Two-Wire Ethernet Network Extender 4. Console Configuration The LR0201A-KIT has an RS-232C console port so users can monitor the OA&M status through a VT100 terminal. This section covers the operating procedures and settings for all screen selections. Connect the RS-232 cable to the COM port of the computer as shown in Figure 4-1. Set the personal computer to VT100 or VT102 type through HyperTerminal. -
Page 13: Main Menu
Chapter 4: Console Configuration 4.1. Main Menu The Main Menu screen enables you to access the LR0201A-KIT’s Configuration or Status screens. For details, refer to Figure 4-2. Welcome to G. Shdsl Ethernet Network Extender User Interface Main Menu 1. Configuration 2. -
Page 14: Configuration Screen
G.SHDSL Two-Wire Ethernet Network Extender 4.2. Configuration Screen The Configuration screen will display the LR0201A-KIT unit’s selection. On this screen, you can choose from three settings selections: DSL Mode, DSL Speed, and Default Configuration. Configuration 1. DSL Mode 2. DSL Speed 3. -
Page 15: Dsl Speed Screen
Extenders, set one unit to STU-C (CO Site) and the other unit to STU-R (Remote Site). 2P/1P: 2P/1P has 2 options: 1 Pair and 2 Pairs. The LR0201A-KIT only supports a 1-pair SHDSL application. To establish a successful con- nection for LR0201A-KIT, set the two units to the same selection. -
Page 16: Default Configuration Screen
4.2.3. Default Configuration Screen When Default Configuration is selected, all the settings of the LR0201A-KIT will go back to default settings. The screen shown in Figure 4-7 indicates that the setting is finished. Press <ESC> key to return to the previous screen. The LR0201A-KIT’s default... -
Page 17: Status Screen
Chapter 4: Console Configuration 4.3 Status Screen The Status screen shows the LR0201A-KIT’s connection status. The screen covers two selections: System Information and System Status. Status 1. System Information 2. System Status Select (1-2): [ENTER] select [ESC] quit Figure 4-8. Status screen. -
Page 18: System Status Screen
G.SHDSL Two-Wire Ethernet Network Extender 4.3.2 System Status Screen DSL mode: Indicates the current DSL mode setting. Speed setting: Indicates the current DSL speed setting. Speed actual (kbps): Indicates the actual DSL speed in kilobits per second. Link status of Pair #1: Indicates the DSL connection status (either up or down) for Pair #1. Link status of Pair #2: Indicates the DSL connection status (either up or down) for Pair #2. - Page 19 About Black Box Black Box Network Services is your source for more than 118,000 networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 20 seconds or less.
