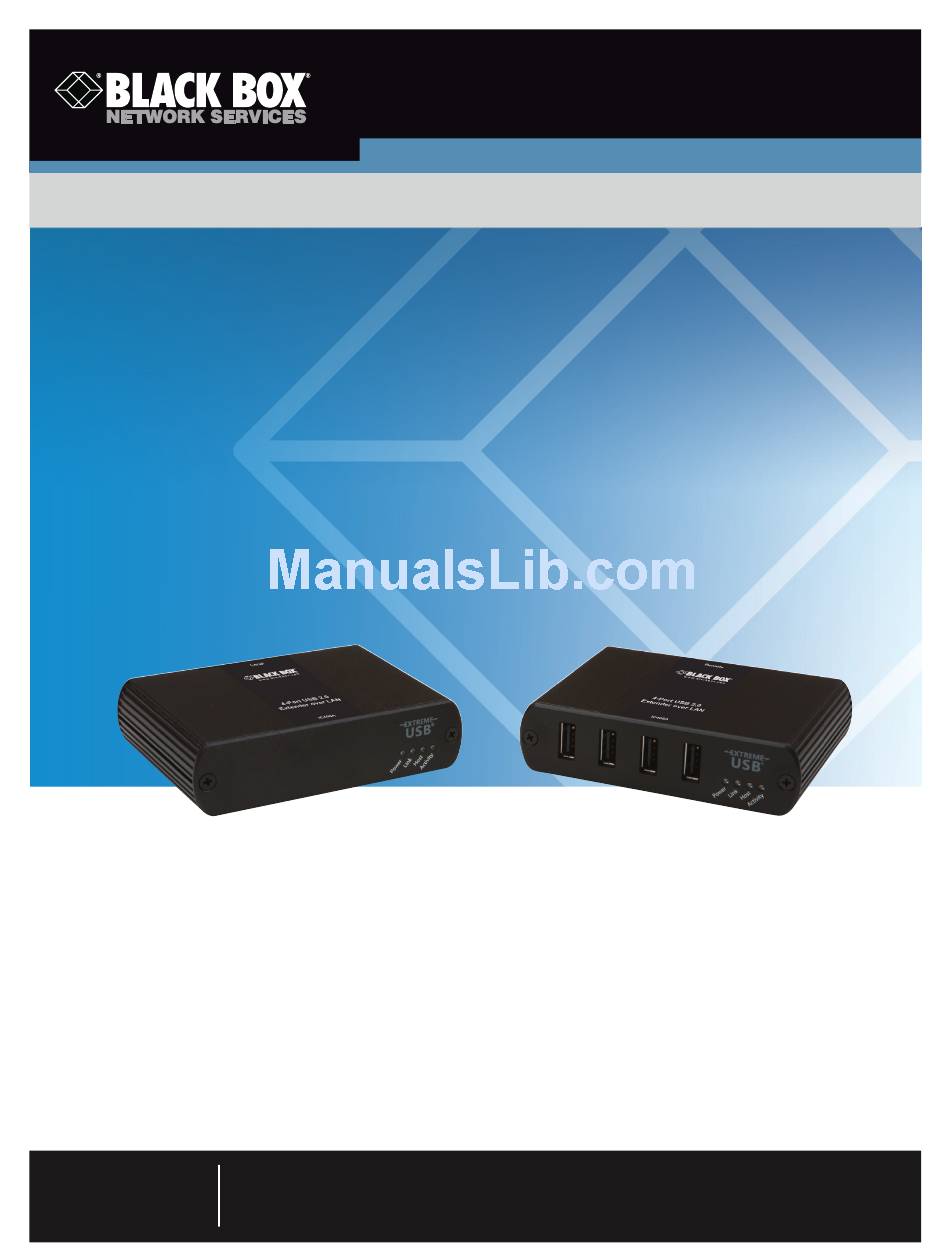

4-Port USB 2.0 Extender over LAN
Easily extend USB 2.0 signals over an IP network
or directly over a CATx link.
Customer
Support
Information
IC408A
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
IC408A
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box IC408A
Summary of Contents for Black Box IC408A
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Information Web site: www.blackbox.com • E-mail: info@blackbox.com IC408A... - Page 2 Trademarks Used in this Manual/FCC and IC RFI Statement Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Mac and OS X are registered trademarks of Apple Computer, Inc. Intel is a registered trademark of Intel Corporation.
-
Page 3: Instrucciones De Seguridad
Objectos han caído o líquido ha sido derramado dentro del aparato; o El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o El aparato ha sido tirado o su cubierta ha sido dañada. IC408A Page 3... -
Page 4: Table Of Contents
2.4 Hardware Description ..............................7 2.4.1 Local Extender ..............................7 2.4.2 Remote Extender ...............................8 Installation ..................................9 3.1 Installing the IC408A on a Local Area Network ......................9 3.1.1 Requirements ..............................9 3.1.2 Preparing Your Network ............................9 3.1.3 Preparing Your Site ............................10 3.1.4 Installing the Local Extender ..........................10 3.1.5 Installing the Remote Extender ........................ -
Page 5: Specifications
Operating: 20 to 80%, noncondensing; Storage: 10 to 90%, noncondensing Power Input: 100–240 VAC, 50–60 Hz; Output: 24 VDC, 1 A Dimensions Each unit (local or remote): 1.0"H x 3.9"W x 3.0"D (2.5 x 9.9 x 7.6 cm) IC408A Page 5... -
Page 6: Overview
® ® ® 2.3 What’s Included Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • (1) Local Extender Unit • (1) Remote Extender Unit • (1) USB 2.0 cable •... -
Page 7: Hardware Description
Blinking when the IC408A is in a suspended state. OFF when there is no link between local and remote extenders. ON when the IC408A system is properly enumerated on the host computer. Host LED (Green) Blinking when IC408A LAN is in a suspended state. -
Page 8: Remote Extender
OFF when there is no link between the local and remote extenders. Fast blinking when the unit unit is attempting to establish a link. ON when the IC408A system is properly enumerated on the host computer. Host LED (Green) Blinking when the IC408A is in a suspended state. -
Page 9: Installation
• Pre-installed and configured Local Area Network. NOTE: USB 2.0 is capable of consuming up to 480 Mbps. The minimum requirement for using the IC408A is a Gigabit (1000BASE-T) network. The performance of the USB network extension will be limited to the slowest link between the Local and the Remote Extender. -
Page 10: Preparing Your Site
Chapter 3: Installation NOTE: Some networks may be configured to block devices that consume a consistently high level of bandwidth. The IC408A may do this when high bandwidth devices are connected. Consult with your network administrator to resolve this. NOTE: Units will be paired with each other if they were sold together in the same box. If they are not paired, follow the instructions provided in the section for pairing a Local and Remote Extender. -
Page 11: Preparing Your Site
Figure 3-2. IC408A installed as direct connect. 3.2.2 Preparing Your Site Before you can install the IC408A, you need to prepare your site: 1. Place the computer where desired and set it up. 2. Ensure that where you want to locate the USB device(s) is within 330 feet (100 m) cable-length of the computer. If not, adjust the location of the devices and/or computer accordingly. -
Page 12: Checking The Installation
(XP, 7, 8), open Device Manager to confirm that the IC408A has installed correctly. To expand the entry ® for Universal Serial Bus controllers, click the “+” sign. If the IC408A has been installed correctly, you should find it listed as a “Generic USB Hub.”... -
Page 13: Connecting A Usb Device
The IC408A complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, there is no guarantee that all USB devices or hosts will be compatible with the IC408A, as there are a number of different characteristics that may impact the operation of USB devices over extended distances. -
Page 14: Troubleshooting
4.1 Troubleshooting Tips The following troubleshooting tips are arranged in the order in which they should be executed (in most situations). If you are unable to resolve the problem after following these instructions, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. - Page 15 4. Reconnect the Local Extender to the computer. 5. Reconnect the Remote Extender to the computer. 6. In the Universal Serial Bus (USB) controllers section of Device Manager, check that the IC408A is recognized as “Generic USB Hub.” Problem: My USB device does not work properly.
-
Page 16: Contacting Black Box
If you determine that your 4-Port USB 2.0 Extender over LAN is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: •... -
Page 17: Technical Glossary
Table 5-1. T568A wiring. Pair Wire Cable Color Pair Wire Cable Color White/Orange White/Green Orange Green White/Green White/Orange Blue Blue White/Blue White/Blue Green Orange White/Brown White/Brown Brown Brown Figure 5-2. T568A connector pinout. Figure 5-3. T568B connector pinout. IC408A Page 17... - Page 18 NOTES 724-746-5500 | blackbox.com IC408A Page 18...
- Page 19 NOTES IC408A Page 19...
- Page 20 About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
