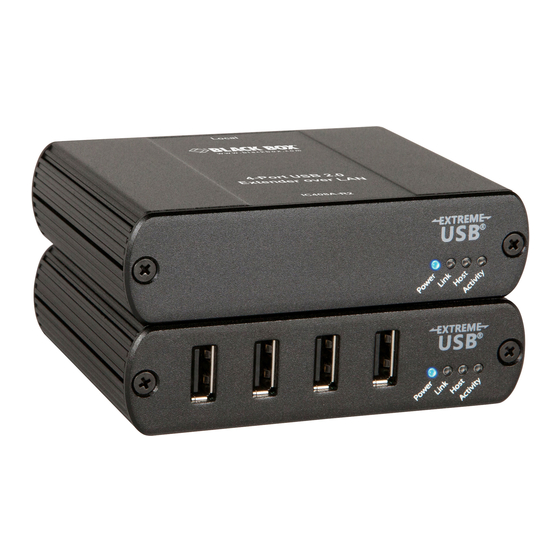

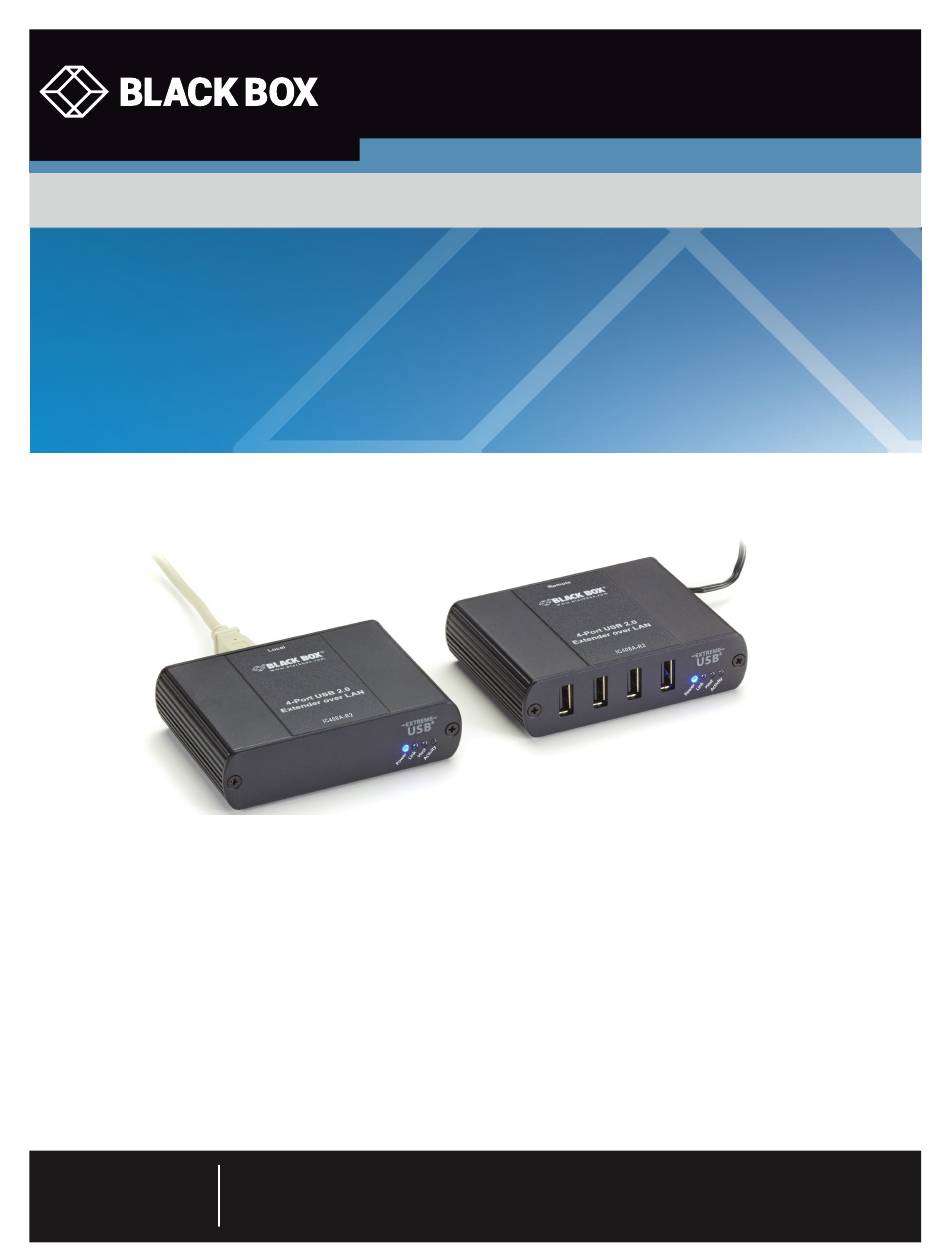

- Page 1 IC408A-R2 4-Port USB 2.0 Extender over LAN Easily extend USB 2.0 signals over an IP network or directly over a CATx link. Order toll-free in the U.S. or for FREE 24/7 technical support: Call 877-877-BBOX Contact (outside U.S. call 724-746-5500) Information blackbox.com •...
- Page 2 Trademarks Used in this Manual/FCC and IC RFI Statement Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Mac and OS X are registered trademarks of Apple Computer, Inc. Intel is a registered trademark of Intel Corporation.
- Page 3 El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o El aparato ha sido tirado o su cubierta ha sido dañada. IC408A-R2 877-877-2269 | blackbox.com Page 3...
-
Page 4: Table Of Contents
2.4 Hardware Description ..............................7 2.4.1 Local Extender ..............................7 2.4.2 Remote Extender ...............................8 Installation ..................................9 3.1 Installing the IC408A-R2 on a Local Area Network ......................9 3.1.1 Requirements ..............................9 3.1.2 Preparing Your Network ............................9 3.1.3 Preparing Your Site ............................10 3.1.4 Installing the Local Extender ..........................10 3.1.5 Installing the Remote Extender ........................ -
Page 5: Specifications
Up to 2.4 A total among the ports, but 1 A max. per port Dimensions Each unit: 3.9"H x 3"W x 1"D (9.9 x 7.6 x 2.5 cm) Weight Shipping: 2.2 lb. (1 kg) IC408A-R2 877-877-2269 | blackbox.com Page 5... -
Page 6: Overview
4. Click on the “Support” tab on the product page, and select the document you wish to download. If you have any trouble accessing the Black Box site to download the manual, you can contact our Technical Support at 877-877-2269 or info@blackbox.com. -
Page 7: Hardware Description
Blinking when the IC408A-R2 is in a suspended state. OFF when there is no link between local and remote extenders. ON when the IC408A-R2 system is properly enumerated on the host computer. Host LED (Green) Blinking when IC408A-R2 LAN is in a suspended state. -
Page 8: Remote Extender
OFF when there is no link between the local and remote extenders. Fast blinking when the unit unit is attempting to establish a link. ON when the IC408A-R2 system is properly enumerated on the host computer. Host LED (Green) Blinking when the IC408A-R2 is in a suspended state. -
Page 9: Installation
• Pre-installed and configured Local Area Network. NOTE: USB 2.0 is capable of consuming up to 480 Mbps. The minimum requirement for using the IC408A-R2 is a Gigabit (1000BASE-T) network. The performance of the USB network extension will be limited to the slowest link between the Local and the Remote Extender. -
Page 10: Preparing Your Site
Chapter 3: Installation 3.1.3 Preparing Your Site Before you can install the IC408A-R2, you need to prepare your site: 1. Place the computer where desired and set it up. 2. Make sure that where you want to locate the USB device(s) is within 330 feet (100 m) of CAT5e cabling of the switch. -
Page 11: Preparing Your Site
Chapter 3: Installation 3.2.2 Preparing Your Site Before you can install the IC408A-R2, you need to prepare your site: 1. Place the computer where desired and set it up. 2. Ensure that where you want to locate the USB device(s) is within 330 feet (100 m) cable-length of the computer. If not, adjust the location of the devices and/or computer accordingly. -
Page 12: Checking The Installation
Device Manager to confirm that the IC408A-R2 has installed correctly. To expand the entry for ® Universal Serial Bus controllers, click the “+” sign. If the IC408A-R2 has been installed correctly, you should find it listed as a “Generic USB Hub.”... -
Page 13: Connecting A Usb Device
The IC408A-R2 complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, there is no guarantee that all USB devices or hosts will be compatible with the IC408A-R2, as there are a number of different characteristics that may impact the operation of USB devices over extended distances. -
Page 14: Usb Extender Mounting Options
Chapter 4: Troubleshooting 4. USB Extender Mounting Options The bottoms of the IC408A-R2 enclosures feature four convenient pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: 1. USB Extender Mounting Kit (part number IC400MK) 2. -
Page 15: Option 2: Usn Extender Direct Surface Mounting
Chapter 4: Troubleshooting OPTION 2: USB Extender Direct Surface Mounting (using your own hardware) The bottoms of the IC408A-R2 enclosures features four pre-drilled holes for optional surface mounting. Distance between the enclosure mounting holes: 42.0 mm x 77. 0 mm Figure 4-2. -
Page 16: Troubleshooting
5.1 Troubleshooting Tips The following troubleshooting tips are arranged in the order in which they should be executed (in most situations). If you are unable to resolve the problem after following these instructions, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com. - Page 17 4. Reconnect the Local Extender to the computer. 5. Reconnect the Remote Extender to the computer. 6. In the Universal Serial Bus (USB) controllers section of Device Manager, check that the IC408A-R2 is recognized as “Generic USB Hub.” Problem: My USB device does not work properly.
-
Page 18: Contacting Black Box
If you determine that your 4-Port USB 2.0 Extender over LAN is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 877-877-2269 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: •... -
Page 19: Technical Glossary
Pair Wire Cable Color Pair Wire Cable Color White/Orange White/Green Orange Green White/Green White/Orange Blue Blue White/Blue White/Blue Green Orange White/Brown White/Brown Brown Brown Figure 5-2. T568A connector pinout. Figure 5-3. T568B connector pinout. IC408A-R2 877-877-2269 | blackbox.com Page 19... - Page 20 About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 60 seconds or less.
