Black Box IC408A-R2 Quick Start Manual

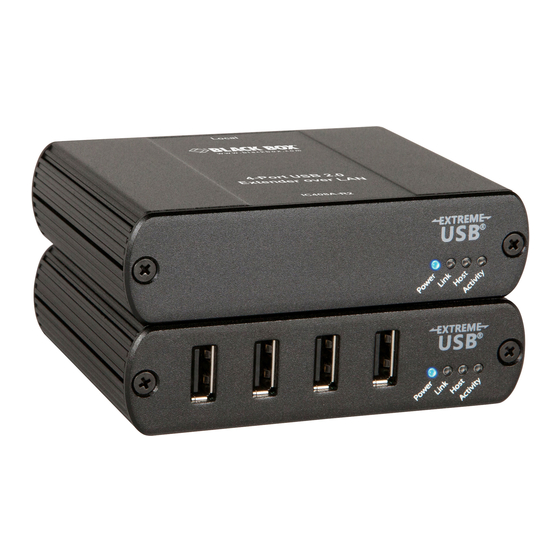

4-Port USB 2.0 Extender over LAN Quick Start Guide
Before you get started, ensure that all the drivers required for your USB device(s) are installed.
1
Place the Local Extender where desired and connect
the CAT5e/6/7 patch cable from the Link port (RJ-45)
to a network switch or wall network port connected
to a switch.
Maximum 330 ft. (100 m)
between devices
3
Place the Remote Extender where desired. Connect
1
the CAT5e/6/7 patch cable from the Link port (RJ-45)
to a network switch or wall network port connected
to a switch and connect the Remote Extender
to a power source.
Maximum 330 ft. (100 m)
between network devices
Contact
Information

Network Connect

Order toll-free in the U.S. or for FREE 24/7 technical support: Call 877-877-BBOX
(outside U.S. call 724-746-5500)
www.blackbox.com • info@blackbox.com
2 Connect the Local Extender to the computer using
the included USB cable.
Computer
4
Attach the USB device(s) to the Remote Extender.
February 2010 IC408A-R2
MT1000A-85-R4
