- Page 1 USER MANUAL IC402A-R2 USB 2.0 CAT5E/6/7 EXTENDER 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM Mode Config...
-
Page 2: Table Of Contents
4.2 Option 2: USB Extender Direct Surface Mounting..........................14 4.3 Option 3: Cable-Tie Mounting ................................15 5. TROUBLESHOOTING ................................... 16 5.1 Troubleshooting Tips .....................................16 5.2 Contacting Black Box Technical Support.............................17 APPENDIX A. REGULATORY INFORMATION ..........................18 A.1 FCC Radio Frequency Interference Statement Warning ........................18 A.2 CE Statement ......................................18 A.3 IC Statement ......................................18... -
Page 3: Product Operation And Storage
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 PRODUCT OPERATION AND STORAGE TECHNICAL SUPPORT 1.877.877.2269 Please read and follow all instructions provided with this product, and operate for intended use only. Do not attempt to open the product casing as this may cause damage and will void warranty. Use only the power supply provided with this product. -
Page 4: Specifications
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-1. SPECIFICATIONS SPECIFICATION DESCRIPTION Range Direct Connect Up to 330 ft. (100 m) over solid-core CAT5e/6/7 cable USB Device Support USB 2.0 Throughputs Up to 480 Mbps USB 1.1 Throughputs Up to 12 Mbps Power... -
Page 5: Overview
, and Linux ® ® ® 2.3 WHAT’S INCLUDED Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com Š (1) Local Extender Š Š (1) Remote Extender Š... -

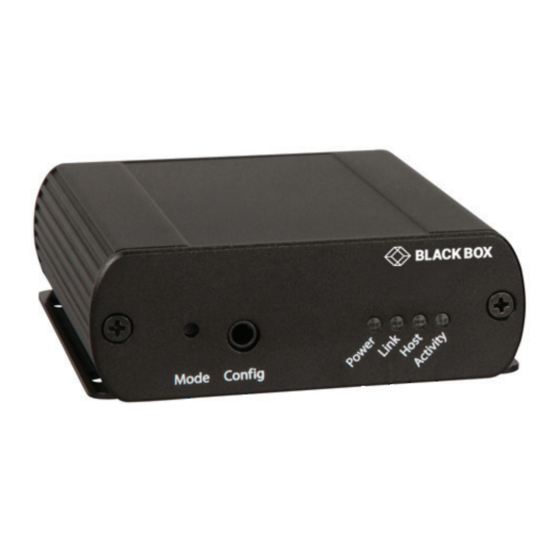

Page 6: Hardware Description
1.877.877.2269 2.5 HARDWARE DESCRIPTION The IC402A-R2 Extender consists of two units: the Local Extender unit and the Remote Extender unit. 2.5.1 LOCAL EXTENDER Figures 2-1 and 2-2 show the front and back panels of the Local Extender. Table 2-1 describes its components. - Page 7 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-1. LOCAL EXTENDER COMPONENTS NUMBER IN FIGURE 2-1 OR 2-2 COMPONENT DESCRIPTION Mode button Reserved for manufacturer use. Config port Reserved for manufacturer use. LED turns on when power is supplied.
-
Page 8: Remote Extender
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 2: OVERVIEW SUPPORT 1.877.877.2269 2.5.2 REMOTE EXTENDER Figures 2-3 and 2-4 show the front and back panels of the Remote Extender. Table 2-2 describes its components. 3 4 5 6 FIGURE 2-3. - Page 9 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-2. REMOTE EXTENDER COMPONENTS NUMBER IN FIGURE 2-3 OR 2-4 COMPONENT DESCRIPTION 1, 2 USB Device Ports Accepts USB device using Type A connector. Power LED (Green) LED turns on when power is supplied.
-
Page 10: Installation
1. Connect the supplied 24-V, 1-A AC power adapter to the local extender or remote extender, based on installation requirements. NOTE: The IC402A-R2 features flexible power, allowing the installer to connect the supplied 24 V, 1 A power adapter to either the local or remote extender for normal extension operation. -
Page 11: Connecting The Local Extender To The Remote Extender
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 3.5 CONNECTING THE LOCAL EXTENDER TO THE REMOTE EXTENDER To ensure proper operation, we recommend that you use only solid core CAT 5e/6/7, Unshielded Twisted Pair (UTP) cabling to connect the local extender to the remote extender. -
Page 12: Compatibility
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 FIGURE 3-2. SELECT DEVICE MANAGER IN WINDOWS 3. For Mac OS users, open the System Profiler to confirm that the Extender Series extender system has installed correctly. In the left- hand column under Hardware, select “USB”... -
Page 13: Usb Extender Mounting Options
SUPPORT 1.877.877.2269 The bottom of the IC402A-R2 enclosure features four convenient pre-drilled holes for optional direct surface mounting and four mounting slots for easy cable-ties. Based on your requirements, choose from three available mounting options: 1. USB Extender Mounting Kit (part number IC401MK, ordered separately) 2. -
Page 14: Option 2: Usb Extender Direct Surface Mounting
4.2 OPTION 2: USB EXTENDER DIRECT SURFACE MOUNTING The bottom of the IC402A-R2 enclosure features four pre-drilled holes for optional direct surface mounting. Using the stencil below, along with your own hardware, you can directly mount your USB Extender on a surface. -
Page 15: Option 3: Cable-Tie Mounting
4.3 OPTION 3: CABLE-TIE MOUNTING The bottom of the IC402A-R2 enclosure also features four convenient slots for cable mounting. Simply thread a cable tie, (also called tie-wrap or zip tie), into the mounting slot and through the cable tie head, and secure it to a pole or other surface by pulling it tight. -
Page 16: Troubleshooting
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: TROUBLESHOOTING TECHNICAL SUPPORT 1.877.877.2269 5.1 TROUBLESHOOTING TIPS The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, contact Black BoxTechnical Support at 877-877-2269 or info@blackbox.com for further assistance. -
Page 17: Contacting Black Box Technical Support
TECHNICAL SUPPORT 1.877.877.2269 5.2 CONTACTING BLACK BOX TECHNICAL SUPPORT If you are experiencing problems not referenced in the Troubleshooting Guide, contact Black BoxTechnical Support at 877-877-2269 or info@blackbox.com for assistance and provide them with the following information: Š Host computer make and mode Š... -
Page 18: Appendix A. Regulatory Information
(2) this device must accept any interference received including interference that may cause undesired operation. A.2 CE STATEMENT We, Black Box Corporation, declare under our sole responsibility that the USB 2.0 IC280A-R2, to which this declaration relates, is in conformity with European Standard EN 55022, EN 61000, and EN 55024. A.3 IC STATEMENT This Class A digital apparatus complies with Canadian ICES-003. -
Page 19: Appendix B. Technical Glossary
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX B: TECHNICAL GLOSSARY TECHNICAL SUPPORT 1.877.877.2269 Category 5e/6/7 (CAT5e/6/7) Network Cabling: Category 5e/6/7 cable is commonly also referred to as CAT5e, CAT6, or CAT7. This cabling is available in either solid or stranded twisted pair copper wire and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). - Page 20 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 APPENDIX B: TECHNICAL GLOSSARY TECHNICAL SUPPORT 1.877.877.2269 TABLE B-2. T568B WIRING PAIR WIRE CABLE COLOR White/Orange Orange White/Green Blue White/Blue Green White/Brown Brown FIGURE B-3. T568B WIRING 1.877.877.2269 BLACKBOX.COM...
-
Page 21: Trademarks/Disclaimer
DISCLAIMER Black Box Network Services shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Network Services may revise this document at any time without notice. - Page 22 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
- Page 23 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________\ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ _________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
- Page 24 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL SUPPORT 1.877.877.2269 © COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
