NETWORK SERVICES

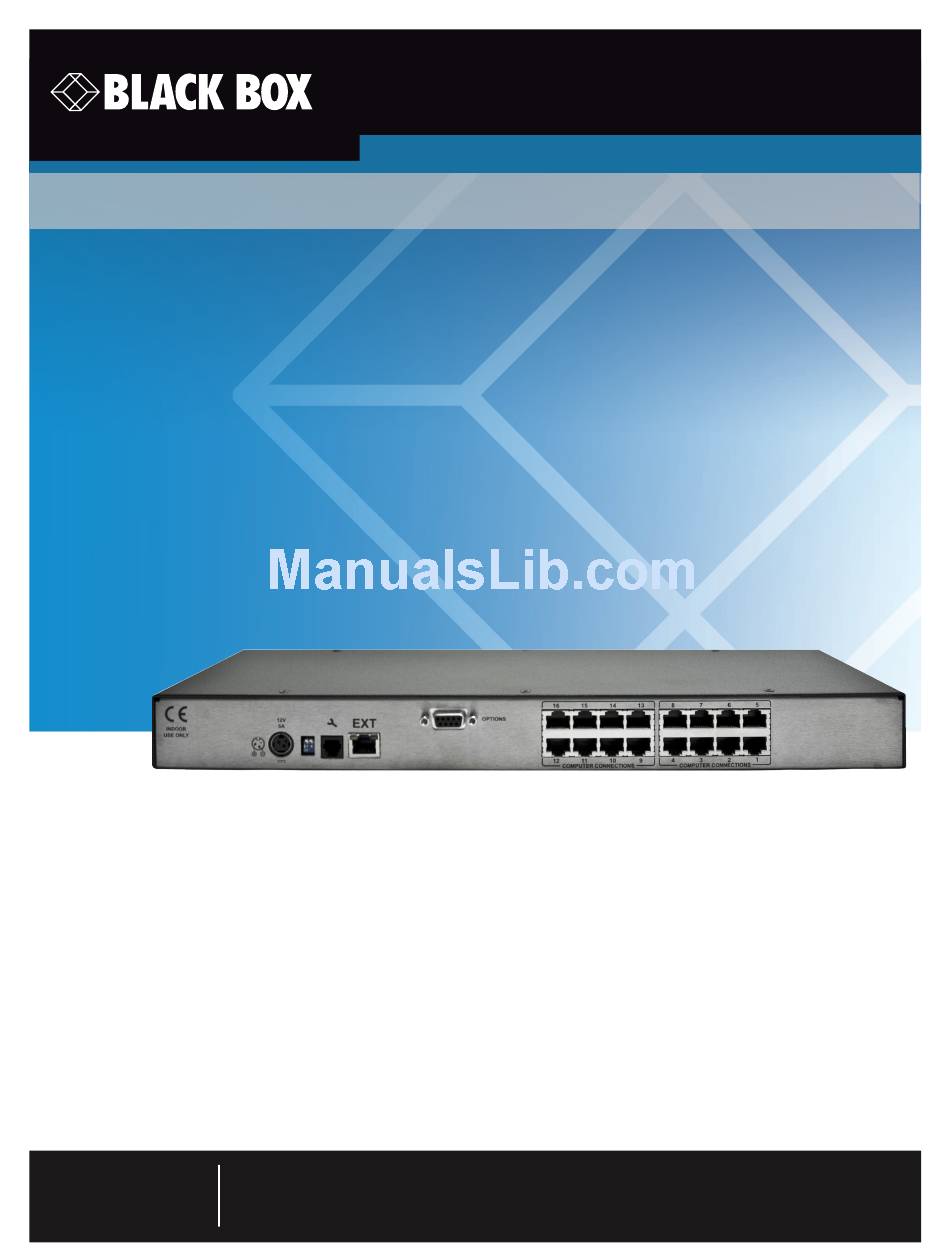

KVM Modules for ServView Rack Tray
High specification KVM switches that interface
precisely with the Black Box ServView Rack Tray
series.
Sophisticated KVM switching that use Server Access Module technology to simplify cabling and
avoid occupying a further rack slot
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Support
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Information
Web site: www.blackbox.com • E-mail: info@ blackbox.com
®

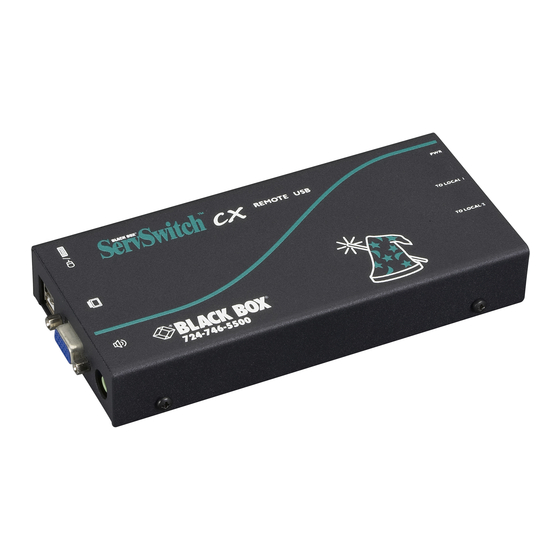

KVT8CATUV
KVT16CATUV
KVT1IP8CATUV
KVT1IP16CATUV
KVT4IP16CATUV
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box KVT8CATUV
Summary of Contents for Black Box KVT8CATUV
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Information Web site: www.blackbox.com • E-mail: info@ blackbox.com...
- Page 2 ServView KVM Module Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks, and ServView is a trademark, of BB Technologies, Inc. Mac is a registered trademark of Apple Computer, Inc. Linux is registered trademark of Linus Torvalds.
- Page 3 FCC and IC RFI Statements Federal Communications Commission and Industry Canada Radio Frequency Interference Statements This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.
-
Page 4: Instrucciones De Seguridad
ServView KVM Module Instrucciones de Seguridad (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3. -
Page 5: Table Of Contents
Table of Contents Contents 1. Power Adapter Specifications ..............................6 2. Introduction ....................................7 2.1 What‘s Included ................................8 2.2 Additional Items You May Need ............................8 3. Installation ....................................10 3.1 Mounting ..................................10 3.2 Connections ..................................11 3.2.1 EXTernal link (Network or Remote User) ......................11 3.2.2 Server Access Module Links ..........................12 3.2.3 Power Connection ..............................13 4. -
Page 6: Power Adapter Specifications
ServView KVM Module 1. Power Adapter Specifications Power: DC jack (power adapter included) Input: 100–240 VAC, 50/60 Hz Output: 12VDC, 60W 724-746-5500 | blackbox.com Page 6... -
Page 7: Introduction
Thank you for choosing this KVM module which provides full function 8 or 16 port KVM switching without occupying a further rack slot. The module is designed to fit at the rear of the Black Box ServView Rack Tray so that all circuitry is concealed behind the slide out screen and keyboard. -
Page 8: What's Included
ServView KVM Module 2.1 What‘s Included Your package should include the following items. If anything is missing or damaged, contact Black Box at 724-746-5500 or info@blackbox.com. • KVM module • Power adapter and power cord • CD-ROM containing this user manual in PDF format •... - Page 9 Chapter 2: Overview 724-746-5500 | blackbox.com Page 9...
-
Page 10: Installation
ServView KVM Module 3. Installation 3.1 Mounting The KVM module is designed to interlock precisely with the rear of the ServView rack tray. 1 If the ServView rack tray is already fitted, either remove it or carefully gain access to the rear of the rack mount unit. 2 Locate the connection plate at the rear of the rack tray and orientate the KVM module so that its universal Centronics 36-pin ®... -
Page 11: Connections
Chapter 3: Installation 3.2 Connections Connections to the rack tray video display, keyboard and trackpad are all handled by the single link that is made when the KVM module is attached to the tray. Therefore, all server, network and power connections are located at the rear of the unit. 3.2.1 EXTernal link (Network or Remote User) The single RJ-45 socket labeled as EXT is used to allow either global or remote users to login and control connected servers. -
Page 12: Server Access Module Links
CAT 5, 5e or 6 link to an individual server system. Note: The maximum length of the cable can be up to 10 metres (32 feet), however, for KVM modules KVT8CATUV and KVT16CATUV ensure that the overall distance between a remote user (connected to a remote extender) and any server must not exceed 300 metres (980 feet). -
Page 13: Power Connection
Chapter 3: Installation 3.2.3 Power Connection The KVM module is provided with a power adapter capable of supplying the display monitor, keyboard and KVM module. IMPORTANT: You must only use the manufacturer approved power adapter with the KVM module. IMPORTANT: Due to the length of the power cable, if the rack tray is mounted high in the rack it may not be possible to place the power adapter at floor level. -
Page 14: Configuration
The precise details for configuration of the KVM module will depend on the model being used. For more information, please refer to the Configuration section of the appropriate ServSwitch user guide as appropriate to the KVM module being used: • KVT8CATUV or KVT16CATUV ---> use KV0081A/KV0161A (ServSwitch CX Uno) user guide, •... -
Page 15: Operation
For more information about the on screen menu and keyboard hotkey methods, please refer to the Operation section of the appropriate ServSwitch user guide as appropriate to the KVM module being used: • KVT8CATUV or KVT16CATUV ---> use KV0081A/KV0161A (ServSwitch CX Uno) user guide, •... -
Page 16: Appendix A. Safety Information
ServView KVM Module Appendix A. Safety Information • You must only use the manufacturer approved power adapter with the KVM module. • For use in dry, oil free indoor environments only. • The module and its power supply generate heat when in operation and will become warm to the touch. Do not enclose them or place them locations where air cannot circulate to cool the equipment. - Page 17 Appendices 724-746-5500 | blackbox.com Page 17...
-
Page 18: Network Services
About Black Box Black Box Network Services is your source for more than 118,000 networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
