Power connector cable

Description
Power connector cable
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see
5. Remove the battery (see
Remove the power connector cable:

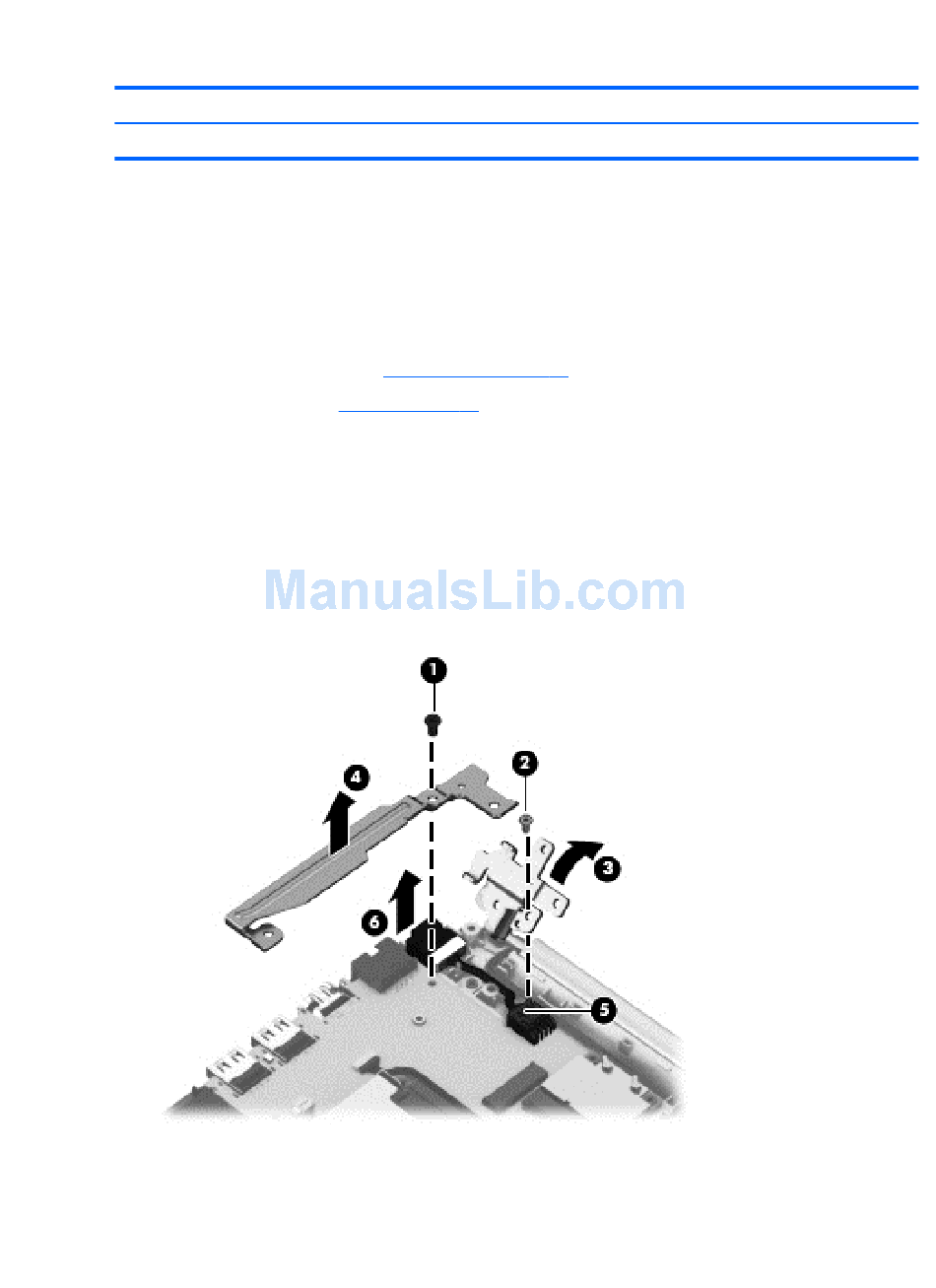

1. Remove the black Phillips PM2.5×6.0 screw (1) that secures the bracket to the computer and the silver
Phillips PM3.0×5.0 screw (2) that secures the right display hinge.
2. Open the display assembly right hinge (3) as far as it will open.
3. Remove the bracket from the computer (4).
4. Disconnect the power connector cable (5) from the system board.
5. Remove the power connector (6) from the computer.
6. Remove the power connector cable.
Reverse this procedure to install the power connector cable.
Bottom cover on page
Battery on page 49).
28).
Component replacement procedures
Spare part number
755727-001
