T1/E1 Interface Module - Cisco ASR 903 Hardware Installation Manual

Chapter 1 Cisco ASR 903 Router Overview

T1/E1 Interface Module

The T1/E1 interface module provides connectivity for up to 16 T1/E1 ports through a 100-pin Amplimite
connector. The T1/E1 interface module requires the use of a patch panel to provide RJ48 (T1) or BNC
(E1) connectors.
Figure 1-7
For more information about installing a T1/E1 interface module, see the
section on page
OL-25178-04

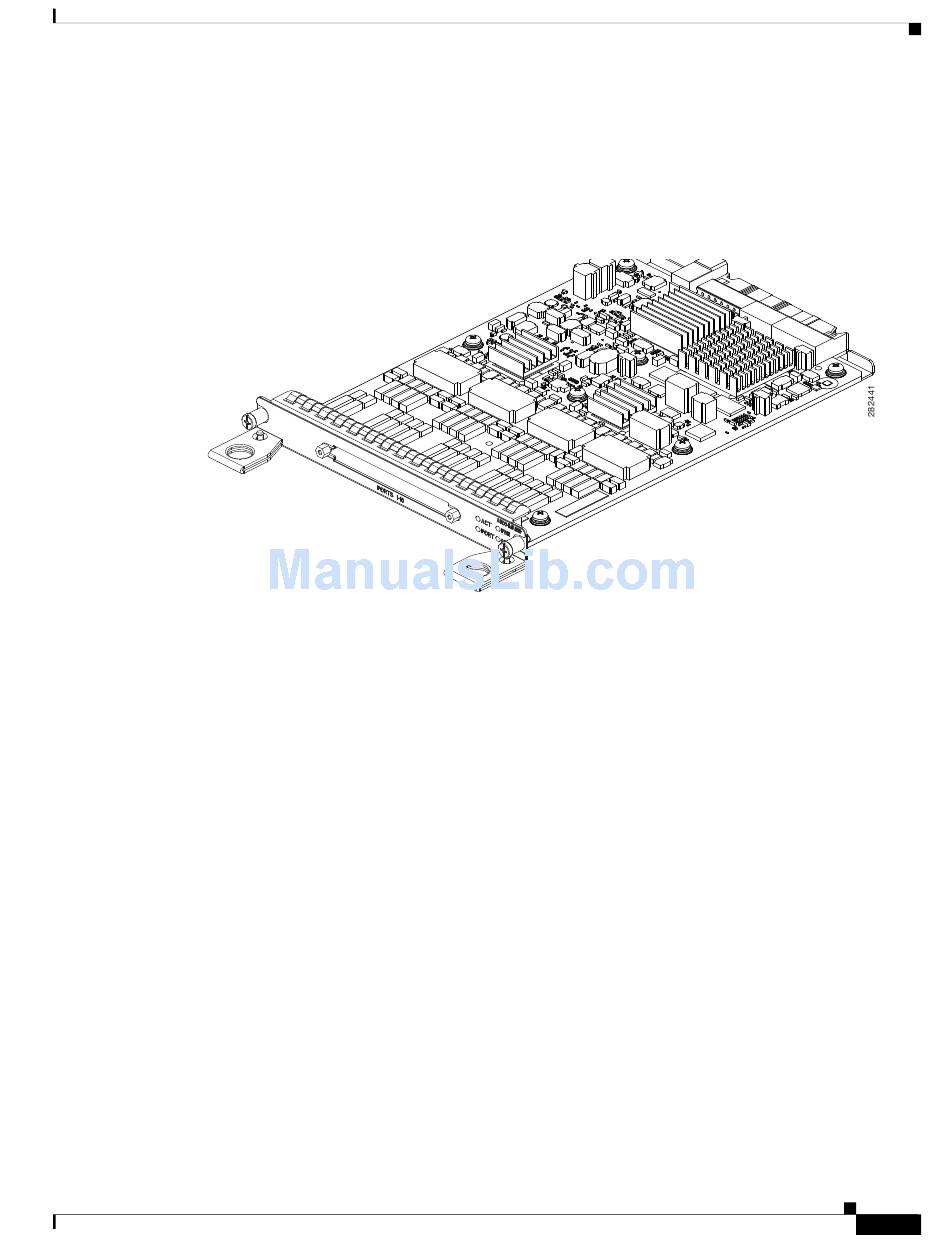

Figure 1-7 shows the interface module.
16 x T1/E1 Interface Module
3-14.
