EverFocus EZ-PLATECAM-002 Operation Manual

EverFocus EZ-PLATECAM-002 Operation Manual

High contrast license plate capture camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

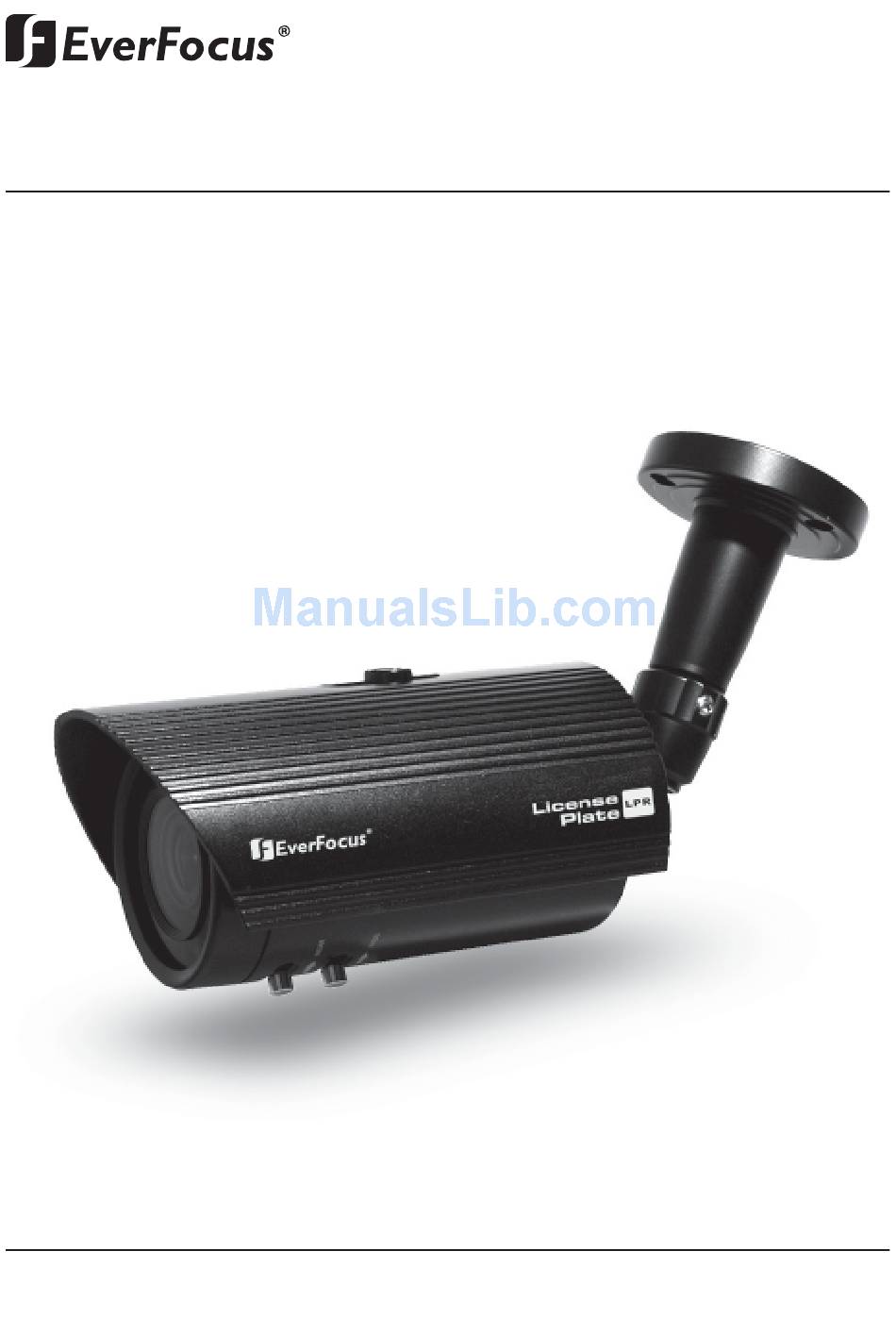

EZ - PL AT E C A M- 0 0 2
High Contrast
License Plate Capture Camera
INSTA LL AT ION & OPE RATI ON M A NU AL
Before attempting to connect or operate, please read and follow these instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ-PLATECAM-002 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EZ-PLATECAM-002

Summary of Contents for EverFocus EZ-PLATECAM-002

  • Page 1 EZ - PL AT E C A M- 0 0 2 High Contrast License Plate Capture Camera INSTA LL AT ION & OPE RATI ON M A NU AL Before attempting to connect or operate, please read and follow these instructions.

  • Page 2: Names And Functions

    Cont e nts 1 . C AU T I O N S 2 . F EAT UR ES 3 . I T E M S P R O V I D E D I N T H E B OX 4 .
  • Page 3 1. Ca u tions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1 . Th is d ev ice may no t c a u s e ha r m f ul in te r fe re nce. 2.
  • Page 4 1. Ca u tions Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
  • Page 5 2. F e a t u r es Ⅱ • 1/3" Sony Super-HAD CCD • OSD Menu system customizes performance to match application • High Resolution 600TV Lines • Special filter and IR LEDs provide maximum readability despite headlight glare •...

  • Page 6: Camera Body

    C o m p o n e n t a n d Co n t r o l N a me s a n d F u n c t io n s ⑥ ① ② ① ③ ⑧ ⑦ ④...

  • Page 7: Installation

    5 . I ns t allation • ADJUSTING CAMERA POSITION 360 ˚ 90 ˚ 360 ˚ Loosen socket head allen screws to change angle and/or rotate body about base. Loosen this lock ring to rotate camera body. Af ter adjusting zoom and focus, to prevent water infiltration, firmly tighten the zoom and focus levers.
  • Page 8 5. I ns t allation • CONNECTIONS DUAL(DC12V/AC24V) Power Supply 24VAC 300 mA min ; 500 mA Recommended 12VDC 600 mA min ; 1A Recommended DC12V/AC24V VIDEO IN BNC FEMALE DVR OR OTHER CCTV WHITE: TRIGGER SIGNAL EQUIPMENT BLACK: TRIGGER GROUND OSD CONTROL VIDEO TEST POINT CONNECTION...

  • Page 9: Osd Functions

    6. O SD Fun ctions OSD Menu Structure • OS D Acces s To access OSD menu unscrew cover plate on rear SETUP of camera, press “in” on joystick to access OSD Menu • M O DE ▶ MODE LICENSE-PLATE - INSTALLATION SHUTTER 1/250...

  • Page 10: Camera Height

    7. I ns t allation Gui de l i n e s Camera Height • Consider camera height in distance calculation. • Sharper angles will alter the appearance of the plate. Shallow angles are recommended) 20˚ Camera Height (ft) Horizontal Distance (ft) Capture Distance (ft) 2.74 7.52...

  • Page 11: Camera Angles

    7. I ns t allation Gui de l i n e s Camera Angles • Vertical and horizontal angle must not exceed 20 degrees to achieve proper view of the license plate. H-angle < 20˚ V-angle < 20˚ V-angle less than 20˚correct H-angle less than 20˚correct •...
  • Page 12 7. I ns t allation Gui de l i n e s L a n e Wi d th • Narrow lanes = less variation in plate location. • Wider lanes = more variation in plate location. • Lens should cover entire width of the lane. •...
  • Page 13 7. I ns t allation Gui de l i n e s Tr i g g er • Camera provides a trigger input is for freezing the video screen. • Connect to external sensor e.g. Parking Gate Sensor. • Trigger input should be pulled-up 3.3V DC in normal condition. •...

  • Page 14: Specifications

    8. Sp e c i fications Signal Format NTSC Image Device 1/3" Sony Super HAD CCDⅡ Total Pixels 811(H) x 508(V) 795(H) x 596(V) Eff ective Pixels 768(H) x 494(V) 752(H) x 582(V) Inter. H/V 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) H.Resolution 600TV Lines Minimum illumination 0 Lux (IR LED ON)
  • Page 15 9. Di m ension s unit: mm(inch) 82 (3.23) 145 (4.92) 120 (4.72) 224 (8.82) M12 XP 1.0 Ф3.5(Ф0.14) Bottom of Bracket Ф65 (Ф2.56)
  • Page 16 ME M O...
  • Page 17 Mou nt G uide 3-ø5.3...

  • Page 18: Eve Rf Ocus E Lectr On I C S C O Rp

    Telford: 0845 430 8888 www.everfocus.in Fax: 020 8649 9907 uk.support@EverFocus.com Ihr EverFocus Produkt wurde Your EverFocus product is designed entwickelt und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can be recycled and reused.
