(PP-7000-III / PP-7000U-III)
THERMAL PRINTER
TECHNICAL INFORMATION
A.
Peripheral interface
1.
The connector for peripheral control is a 6P6C RJ11 jack with
the following pin assignment. The best recommended cash drawers to
this connector are Posiflex CR3100, CR3200, CR4000 and CR4100.
Using the cable 20863018001 (CCBLA-180-1) delivered with the
cash drawer, the Aura series can control one dedicated cash drawer.
However, by using an optional split cable 20867023800 (CCBLA-
238), Aura series controls two cash drawers through this connector.
Please connect the CR1 plug to the cash drawer (CRA) to be opened
by command Esc p 1 n1 n2 and the CR2 plug to the cash drawer
(CRB) to be opened by command Esc p 0 n1 n2

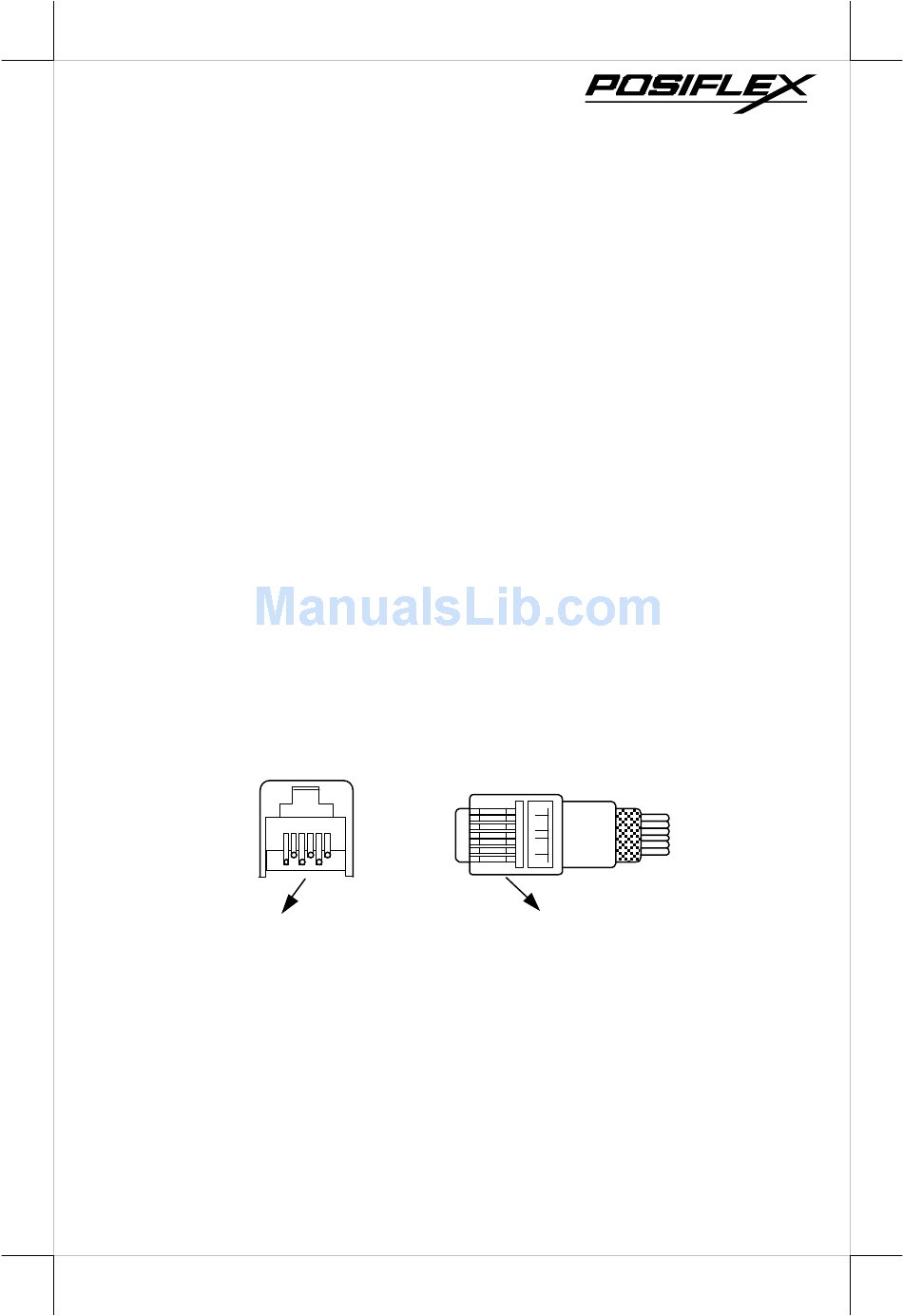

6P6C RJ11 jack
Aura Series
INTERFACES
6
1
6
1
6 pin plug
Part 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX Aura PP-7000-III
Summary of Contents for POSIFLEX Aura PP-7000-III
-
Page 1: Technical Information
Aura Series (PP-7000-III / PP-7000U-III) THERMAL PRINTER TECHNICAL INFORMATION INTERFACES Peripheral interface The connector for peripheral control is a 6P6C RJ11 jack with the following pin assignment. The best recommended cash drawers to this connector are Posiflex CR3100, CR3200, CR4000 and CR4100. - Page 2 PIN # Definition Description Frame ground Drawer kick for cash drawer controlled by software command Esc p 0 n1 n2 SENSE Input peripheral status + 24 V DC supply Drawer kick for cash drawer controlled by software command Esc p 1 n1 n2 Signal ground SETUP WINDOW On bottom cover of the Aura series thermal printer, there is...
- Page 3 Effect of posit ions 1 & 2 on baud rate is defined as in table below with parity check set according to position 3, number of data bits always set to 8, and stop bit set to 1. When the parallel interface is used, please set both positions to ON.
- Page 4 ON OFF OFF OFF OFF OFF OFF w/ auto cutter INTERNAL SWITCH There is an extra internal 4 position DIP switch in PP-7000-III series for more technical settings. To access these setup, please first turn off the printer power and disconnect every cable from the printer.
- Page 5 description of the supported commands if required. Paper out alarm When Paper End signal is detected, the printer keeps on intensive beeping and stops receiving data till the signal is neutralized. When Paper Near End signal is detected, the printer gives a beep every 3 seconds and stops receiving data.
- Page 6 Any value of the parameters outside the defined range will cause the entire command ignored. CHARACTER CODE PAGES Aura PP-7000-III & PP-7000U-III series support all code pages and international character sets applicable to Epson printer TM-T88. There are five models for character sets application as standard model,...
- Page 7 Page 19 (PC858: Euro Dollar Sign included in PC850 for European / Greek model) Page 253 (Greek437 as Default setting for Greek model) Page 255 (Thai for Standard model) Page 255 (Greek for European / Greek model) Page 255 (PC864: Arabic as Default setting for Arabic model) Page 255 (Lithuanian as Default setting for Lithuanian Model) Further support to some double byte language systems can be achieved by adding each relevant font chip in standard model:...
