POSIFLEX PP-7900EK User Manual

POSIFLEX PP-7900EK User Manual

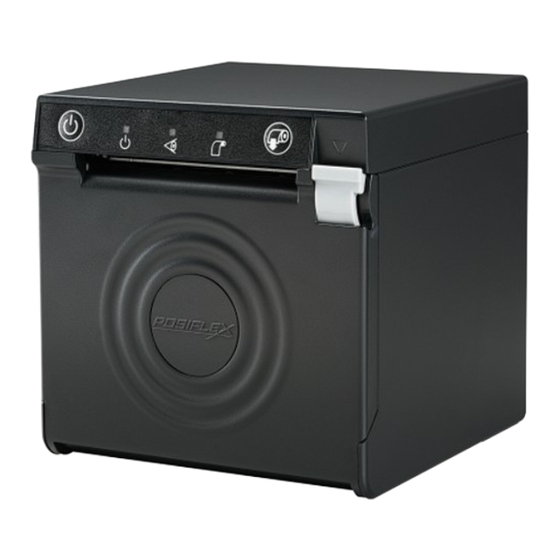

Open frame thermal printer

Advertisement

PP-7900EK
Open Frame Thermal Printer
User Manual
Package Contents
 PP-7900EK Thermal Printer....................................................(x1)
 Thermal Paper Roll..............................................................(x1)
 5-Pin Connector to USB Type A Cable.......................................(x1)
 Power Cable......................................................................(x1)
 Power Cord........................................................................(x1)
 Power Adapter.....................................................................(x1)
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet
équipement peut provoquer des interférences radio.
警告使用者
為避免電磁干擾,本產品不應安裝或使用於住宅環境。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be present.
CONSIGNES DE SÉ CURITÉ
Cet équipement ne convient pas à une utilisation dans des endroits où des enfants sont susceptibles
d'être presents.
PP-7900EK Ver. A0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP-7900EK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX PP-7900EK

  • Page 1 PP-7900EK Open Frame Thermal Printer User Manual Package Contents  PP-7900EK Thermal Printer…………………………………………..(x1)  Thermal Paper Roll……………………………………………………..(x1)  5-Pin Connector to USB Type A Cable………………………………...(x1)  Power Cable…………………………………………………………….(x1)  Power Cord…………………………………………………………..….(x1)  Power Adapter………………………………………………………..(x1) FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 2 WARNING Power cord shall be connected to a socket-outlet with earthing connection. ATTENTION Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Views of PP-7900EK Overview Paper-out LED Indicator Power LED Indicator...
  • Page 3 Wedge Groove Paper Near End Sensor Part Names Description Power LED Indicator This indicator turns on when the printer is on. Error LED Indicator This indicator works when the printer has something wrong. For more details, refer to the Status LED Indicators section given below. Paper-out LED This indicator turns on when the paper-out issue Indicator...
  • Page 4 Connecting Power Adapter and I/O Cables CAUTION: On doing insertion or extraction of a cable connector, please always hold the connector head itself instead of pulling the cable wire. Doing this could damage the cables, which is considered as an artificial damage and is not covered by the warranty.
  • Page 5 Installing PP-7900EK to EK Series Kiosk Unlock and open the front door. Install the 24V adapter with one hex nut. 24V power adapter for printer module...
  • Page 6 There are four small sliding rails in the kiosk. Align the PP-7900EK with the four small sliding rails and place the PP-7900EK into the kiosk. Please refer to the below pictures.
  • Page 7 Pull the printer forward. Open the front door of the pedestal by loosening the thumbscrew on the top side of the pedestal. Thumbscrew...
  • Page 8 Fix the PP-7900EK with one #6/32 screw. 1) Lift the lever on the left side of the touch monitor, and then 2) gently tilt the touch monitor up. 3) Then use the touch monitor support bracket to support the touch monitor. Please refer to the images below.
  • Page 9 2) While lifting the lever, gently tilt the touch monitor up. 3) Use the touch monitor support bracket to support the touch monitor.
  • Page 10 Connect the USB cable to the system main board with the cable tie.
  • Page 11 Connect the power cable to the power cord with the cable tie.
  • Page 12: Loading A Paper Roll

    Loading a Paper Roll Before loading a paper roll, make sure you use a specified paper type. Follow the steps below to load a paper roll. Press down the cover open lever to release the paper cover. The paper cover ejects. Then, open the paper cover manually.
  • Page 13: Setting Up The Printer

    Software Switch Utility for Windows. The software switch utility can be downloaded from the Posiflex’ global website: https://download.posiflex.com/en-global/Download/index/driver/POS- Printer/AURA_PP-7900. To get more detailed information on the paper width jumper setting, contact directly the Posiflex’ technical service team. To avoid the paper cover not being locked completely, push the central portion of the paper cover to close.
  • Page 14: Status Led Indicators

    Status LED Indicators After powering ON the printer, you can read the printer operation status from the power LED indicator on the printer. The LED status is described below. Status Description Power LED Solid blue Printer powered on Flash red + several beeps Cutter abnormal Solid red Cover open...
  • Page 15 LAN Interface Information for Factory Default IP Address 192.168.192.168 NETMASK 255.255.255.0 GATEWAY 192.168.192.1 LINK STATUS DISCONNECT Performing a Self-Test of the Printer 1. Power off the printer. 2. Press and hold the feed button of the printer. 3. Power on the printer. The printer will emit one short beep sound. 4.
  • Page 16: Specifications

    Error LED indicator is flashing Power off the printer; after 10 seconds, power it back on. If the error LED indicator turns on again even after turning the power back on, malfunction may occurs. Contact your dealer or Posiflex’ technical service team. Specifications General...
  • Page 17 24V DC (3-pin) power cable Operating System OS support Android / Windows / Linux ※ The product information and specifications are subject to change without prior notice. To get the detailed information on PP-7900EK, please check this model from Posiflex Global Website.
