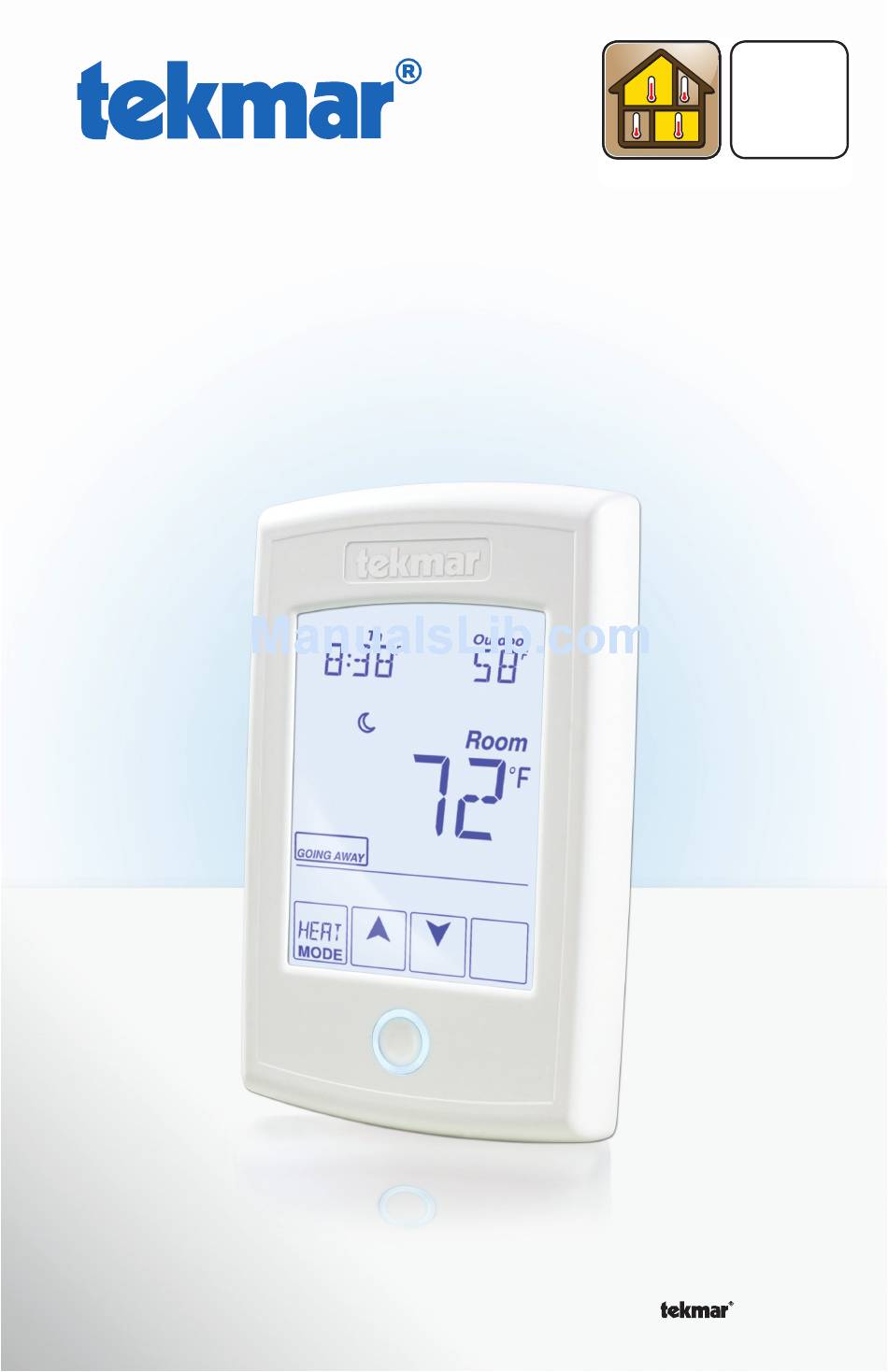

Page 1: User Manual

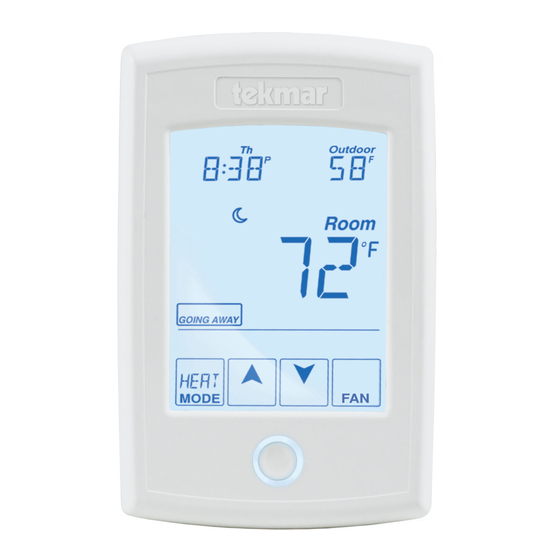

U552 08/11 ® tekmarNet Thermostat 552 Zoning Replaces: New User Manual 1 of 12 © 2011 U 552 - 08/11... - Page 2 Please visit www.tekmarcontrols.com for more detailed information on this or any other tekmar product. This thermostat provides heating for one zone in your building. It will maintain your air temperature with an on board room sensor. Floor temperature control may also be enabled in this thermostat when a floor sensor is installed.
-
Page 3: Warning Symbol
Display Symbols This thermostat will display symbols on its screen in order to indicate what mode it is in, what temperature it is operating at, or what equipment it is trying to turn on. This section describes each of those symbols. HEAT ON Heat is turned on. -
Page 4: Adjust The Temperature
Adjust the Temperature To change the set temperature, touch the arrows to select a preferred temperature setting. Press the home button to accept the setting or leave the screen untouched for several seconds. This thermostat is capable of controlling the floor or air temperature. -
Page 5: Secondary Temperature Display
Mode Heat or Off Heating operation can easily be turned off by selecting the “Off” mode. Touch the Mode key on the screen to change between Heat and Off. The temperature is not adjustable while the thermostat is off. Note: If near freezing temperatures are detected the system will operate to maintain 40°F (4.5°C), even in the Off mode. -
Page 6: Access Levels
Programmable Schedule - Day and Night This thermostat is capable of running at a lower temperature setting when you are asleep or out of the building. When the schedule setting is on, day and night temperature settings will display on the screen. If you adjust the temperature while the sun is displayed, the day setting changes. - Page 7 Program Menu Settings To Enter the Programming Menus - - - - - - - - - - - - -- -- -- - -- - - -- - -- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Press and hold the Home button for 3 seconds to enter the programming menus.
-
Page 8: Set Temp Menu
Screen Clean Menu Entering the Screen Clean menu gives you 30 seconds to clean the thermostat and display with a moist cloth. Do not use solvents to clean the thermostat. Set Temp Menu Entering the Set Temp menu allows you to permanently change both the day and night temperature settings for the room and / or floor. - Page 9 Time Menu Settings Set date, month and year Required for daylight savings time. Daylight Save Automatic daylight saving time update for the spring and fall. Time Mode Select either 12 or 24 hour time format. Clock Select on to display the time clock in the Home menu (available when schedules are not used).
- Page 10 Schedule Menu Settings (Continued) The schedules can be repeated every: • 24 hours • 7 days (week) A 7 day schedule allows a unique time to be set to change the temperature for each day of the week. The schedule also includes a “SKIP” option that allows the programmable schedule to skip a temperature change and remain at the previous temperature setting.
-
Page 11: Monitor Menu
Monitor Menu The monitor menu allows you to view the following temperatures and running hours: • Outdoor temperature highs and lows • Room temperature highs and lows • Floor temperature highs and lows (requires floor sensor to be installed) • Heat W1 = Number of hours the thermostat is actively heating the room •... -
Page 12: Frequently Asked Questions
Control Systems, Inc., U.S.A. are Copyright © 2011 by: Head Office: 5100 Silver Star Road Vernon, B.C. Canada V1B 3K4 tekmar Control Systems Ltd. and tekmar (250) 545-7749 Fax. (250) 545-0650 Control Systems, Inc. Web Site: www.tekmarcontrols.com All specifications are subject 12 of 12 U 552 - 08/11.
