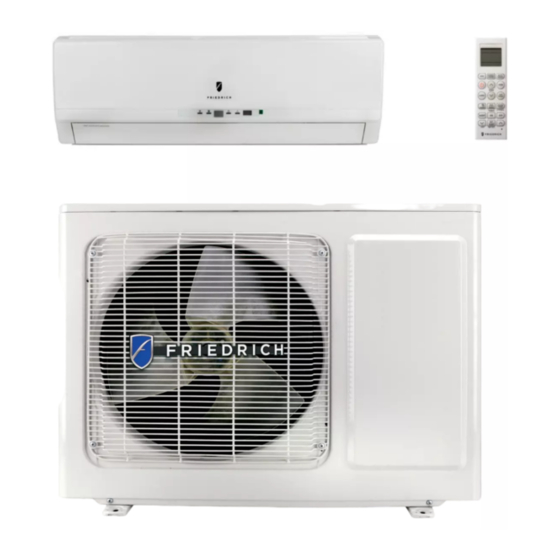

Summary of Contents for Friedrich Breeze BRO412W1A
-

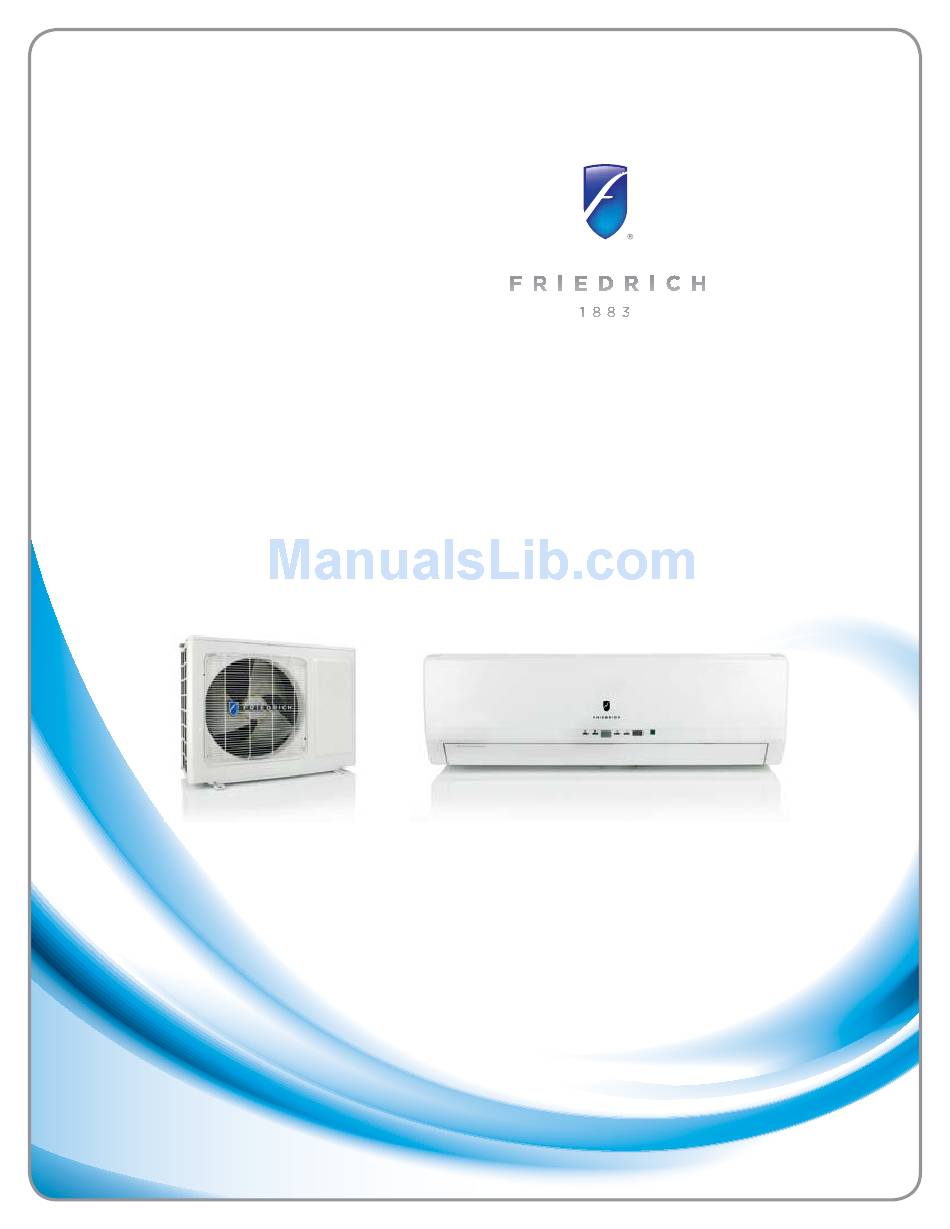

Page 1: Installation Instructions
Service Questions: Contact Friedrich at (800) 541-6645 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Breeze ™ A revolution in room cooling Installation Instructions for BRO412W1A 4000 - 12000 Btu Friedrich Part No. 96091000 (Rev. 01) -
Page 2: Before Getting Started
What’s in the carton? Accessories ITEM DESCRIPTION 1. Breeze indoor module with 25 ft. connecting line attached CONTROL BOX COVER DOOR CONTROL BOX COVER 2. Wall mounting template and bracket for in- WIRE TIE door module CONNECTING LINE BENDING GUIDE 3. - Page 3 There are two options available: OPTION 1 is to drill a 3” hole through the wall to pass OPTION 2 is to use the Friedrich SimpleSill™ kit to pass the connecting line through. the connecting pipe through the window. The Simple- Sill™...
- Page 4 Now that you have determined where the modules will be placed, it is time to install the Breeze air conditioning system. STEP 2 – Hang wall mount bracket Using the paper template as a guide, locate two studs behind screw hole locations in the template. It is preferable to mount the hanging plate on studs.
-
Page 5: Step 4 - Line Set Installation
Option 2: Window Installation Using Friedrich SimpleSill™ 1. Be sure window sill is clean and free of dirt and debris. With the window raised, place bottom seal gasket (trimmed to window width) firmly against window sill (adhesive side down). Expand the SimpleSill™ 1” greater than the width of the win- dow and install the securing pin. - Page 6 STEP 6 - Place the mounting pad. STEP 6 Position the mounting pad so that the mounting holes are away from the house. Set the outdoor module on the mounting pad so that the module feet align with the mounting holes. Screw the outdoor module to the mounting pad with the 4 condenser pad installation washers and screws provided (Items #7 and #8 in the Accessories List).
-
Page 7: Step 10 - Final Preparation
The outer cover of the Breeze indoor module can be cleaned with a damp cloth. Cleaning the outdoor module can be done by rinsing the module with low pressure water. Refer to friedrich.com for approved coil cleaning agents. Cleaning the filter: The indoor module of the Breeze system has a washable filter that should be inspected and cleaned periodically. -
Page 8: Remote Control Operation
Service Questions: Contact Friedrich at (800) 541-6645 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Remote Control Operation START / STOP Turns the Breeze unit on or off. ▼/▲ Arrow Press to raise or lower the temperature setting. Temperature setting range is between 61�F –...
