CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT

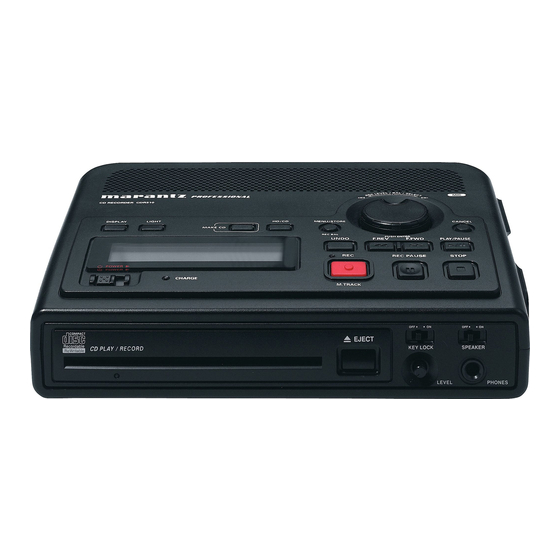

Model CDR310 User Guide
CD Recorder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDR310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marantz CDR310

Summary of Contents for Marantz CDR310

  • Page 1 Model CDR310 User Guide CD Recorder CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT...

  • Page 2: Laser Safety

    CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality 11. Only use attachments/accessories specified by the and safety standards. There are, however, some installation and manufacturer. operation precautions which you should be particularly aware of. 12.
  • Page 4 SI DICHIARA CHE L'APPARECCHIO SINTO-AMPLIFACATORE SR-39 RISPONDE ALLE PRESCRIZIONI DELL'ART. 2 COMMA 1 DEL D.M. 28 AGOSTO 1995 N° 548. FATTO A EINDHOVEN, IL 1/1/1997. MARANTZ EUROPE B.V. 5600 EINDHOVEN THE NETHERLANDS "Este aparato lleva elementos antiparasitarios necesarios para cumplir...

  • Page 5: Table Of Contents

    Table of Contents Package contents ......3 3. AllMkErase (How to erase all EDL marks) Introduction ........4 4. Format (How to format a CF card) ..28 Features ............ 4 Virtual Track and Copy Segment 29 Preparation ........6 Virtual Track ..........

  • Page 6: Introduction

    Recording level and LR balance adjustment ( Introduction • Automatic recording level control (ALC) • Manual control Thank you for purchasing this CDR310 CD Recorder. Before using the CD recorder, make sure that you read ● You can record and playback audio in stereo (2 channel) through this instruction manual carefully to fully understand or monaural (1 channel).

  • Page 7: Package Contents

    Package contents • CDR310 • AC power pack • Power cord • Battery holder (AA type) • User Guide • Customer Registration Document...

  • Page 8: Quick Start Guide

    Quick Start Guide Before using the CDR310, please read through the following section which explains the basic flow of operation. ☞ 1. Setup the power supply ( P.XX) • Use either the provided AC adaptor or batteries. POWER • You can use any one of the 3 types of batteries:...

  • Page 9: About Discs

    ADDITIONAL INFORMATION About Discs The glossy side shining like a rainbow is the front side of the disc, and the side on which the label is printed is the back. Playable discs Unlike conventional turntables for playing analog discs, the unit reads the information recorded on the disc from underneath without contacting it using a beam of laser light.

  • Page 10: Top Side

    Names and Functions Top side q Power switch • Track selection Slide this switch to switch the power on/off. You can select the track you wish to play back by rotating the JOG while playback is paused, stopped, or during w DISPLAY button playback.
  • Page 11 !5 PLAY/PAUSE button Press this button when the recorder is stopped to start playback. Press this button during playback to pause playback. Also, if this button is pressed when playback is paused, playback restarts. !6 STOP button Press this button during recording to stop the recording and save the recorded track (file).

  • Page 12: Front Side

    Front side z CD slot b Headphone (PHONES) jack Insert the stereo headphones plug here. x EJECT button n LEVEL volume Press this button to eject the CD that is inside the CD slot. Turn this knob to adjust the internal speaker volume or c KEYLOCK switch volume output from the headphone jack.

  • Page 13: Left / Right Side

    Right side A MIC IN jacks (L/R) (XLR balanced input) E LINE IN jacks (L/R) Insert an external microphone plug. Insert RCA audio cable plugs connected to an external For monaural recording, plug into either the L side or R audio device into these jacks to input the signals output side jack.

  • Page 14: Display

    Display d f g h j ¡0 ¡1 ¡2 ¡3 ¡4 ¡5 ¡6 ¡7 a Upper character display section l M.TRACK icon Displays the remaining time, etc. Lights when “ManualTR” is set to ON in the preset menu. s TOTAL/TRACK/TIME/REC/REMAIN icon ¡0 A.TRACK icon The following types of details are displayed in the upper Lights when “Auto TRK”...
  • Page 15 Using batteries Preparations Before Use If you wish to run the recorder on battery power, follow the procedure below to install batteries into the provided battery AC adaptor connection holder, and insert the holder into the recorder. When using the recorder with the provided AC adaptor, follow The following types of battery can be used.
  • Page 16 • Select Ni-Cd in the battery type menu. ( P.XX) before the recorder shuts down. • Power the CDR310 on, then off for the charging cycle to When burning data from the HD to a CD-R, the CD ● begin.

  • Page 17: Basic Operation

    Battery type settings Basic Operations Set the battery type for the recorder to match the type of batteries you are using. Power on/off Slide the power switch to the ON side to switch the < Default value > Alkaline power ON. While the recorder is stopped, press the MENU/STORE Notes button.
  • Page 18 Battery remaining indicator The recorder operates using commercially available AA size alkaline batteries, the optional Nickel-Cadmium battery, or the optional Nickel-Metal Hydride battery. During operation, the battery remaining indicator is as follows. Remaining Display explanation indicator Nothing is displayed when the AC adaptor is being No display used.
  • Page 19 Setting the clock Turn the JOG to select [Year (2006 to 2099)], and press the JOG. Set the current time (year, month, date, hour, minute). Notes The setting order is different depending on the “DateForm” settings in the menu. Check the “Date form settings” ☞...
  • Page 20 Date form settings Time form settings There are 3 types of date form. You can set the form to your There are 2 types of time form. You can set the form to your own preference. own preference. Form type Form subjects Form example Form type...

  • Page 21: Menu Settings

    Menu Settings The recorder uses 8 menus to set the various functions. There is a menu for basic settings such as time (display method), alarm, automatic power off, and battery type, and a menu for formatting the internal HD. These menus are displayed by pressing the MENU/STORE button once to enter the menu mode. You can also perform detailed settings for the recording and playback conditions, and register up to 3 of these settings in the preset menu.

  • Page 22: Preset Menu

    Preset menu You can register up to 3 detailed setting on the recorder for such settings as recording input, recording conditions, recording format, playback mode, remote control, etc. There are 17 setting items in the preset menu, and 3 presets can be set with the desired conditions.

  • Page 23: Menu Operation

    Menu operation Turn the JOG to select the menu settings, then press the ☞ JOG to choose the selected settings. The recorder uses menus to set various functions. ( P.XX) You can alter the basic settings and use a wide range Second level of recording and playback functions by changing the menu Input...

  • Page 24: Recording To The Hd

    Recording to the HD Press the REC PAUSE button to pause recording. • The recording mark flashes in the display while recording is paused. Schematics REC PAUSE • Press the REC button when recording is paused to start MIC IN LINE DIGITAL recording again.

  • Page 25: Recording

    Erasing recordings Formatting the HD You can erase data (tracks) recorded to the HD after stopping Formats all of the tracks recorded onto the HD. recording. Notes After stopping recording, press the UNDO button to If the HD is formatted, all contents of the HD are erased. switch to the erase mode of the recorded track.

  • Page 26: Detailed Settings For Hd Recording

    Detailed Settings for HD Recording Turn the JOG to select the type of input source (“MIC”, “Line”, “Int.Mic”, “Dig-In”), and press the JOG. Input source settings Set the input source (internal microphone, external microphone, line input, digital input) for recording. <...

  • Page 27: Recording Format Parameters

    Recording format settings Set the recording format (compression format and channel) for recording. < Default value > Preset1 : Stereo/CD-DA Preset2 : Mono/MP3 Preset3 : Stereo/MP3 Notes The recording format can only be changed when there are no tracks saved on the HD. There is only one HD recording format on the recorder.
  • Page 28 Set the recording format (compression format and channel) Turn the JOG to select the channel (“Stereo”, “Mono”) using the procedure shown below. and press the JOG. While the recorder is stopped, press the MENU/STORE button. Turn the JOG to select “Preset” and press the JOG. Press the MENU/STORE button to register the settings.

  • Page 29: Recording Level Control

    Recording level control settings Turn the JOG to select “RecLevel” and press the JOG. Set the recording level control and operating method (ALC, Manual) for recording. • Automatic level control (ALC) If the recording level control or operating method is set to ALC, the recording level for external microphone input or internal microphone input is automatically set.
  • Page 30 [Operations when manual control is set] When the recording level control or operating method is set to Manual, use the JOG as shown below to set the recording level. • Recording level settings Turn the JOG while recording is paused or during recording, and the manual level control screen is displayed.

  • Page 31: Microphone Attenuator

    Microphone attenuator Turn the JOG to select the microphone attenuator item (“MIC-ATT-L”, “MIC-ATT-R”, “IntMicATT”) that you want to Set the attenuator function for external microphone input and set in the preset menu, and press the JOG. internal microphone input. For external microphone input, set this function when using microphones directly that have different sensitivity levels.
  • Page 32 Phantom power settings Turn the JOG to select function On/Off, and press the JOG. The recorder has DC+48V (P48) phantom power, and the phantom power can be set On/Off. Set to On when a condenser microphone that requires the external power source is used. When set to On, the “PHANTOM”...

  • Page 33: Prerecord

    Prerecord Turn the JOG to select the temporary save time (1 to 10 seconds), and press the JOG. Set the PreRecord function. When the PreRecord function is set to On, sounds from the input source are always saved only for a set period of time (1 to 10 seconds) in modes other than CD playback mode, Make CD mode, during playback, or during playback pause.

  • Page 34: Background Recording

    Background recording Turn the JOG to select the preset number that you wish to set, and press the JOG. Set background recording. When background recording is set to On, recording is continued inside the recorder while recording is paused. This can be used to recover data after pausing a recording, so that nothing is missed even if important contents are lost while the recording is paused.

  • Page 35: Silent Skip (Automatic Pause Recording)

    Silent skip Turn the JOG to select the preset number that you wish to set, and press the JOG. Set the silent skip function. • Silent skip The silent skip function automatically pauses the recording if there is a period of no signal during recording. Recording automatically starts again when an input signal is received.

  • Page 36: Manual Track

    If you activate this function, turn the JOG to select the no Turn the JOG to select the preset number that you wish to signal status judgment time (1 to 5 seconds) and press set, and press the JOG. the JOG. Turn the JOG to select “ManTrack”...
  • Page 37 Auto track Turn the JOG to select the preset number that you wish to set, and press the JOG. Set auto track. When auto track is set to On, new tracks are automatically created and recorded at the set time interval. Auto track can be set to increase the number of tracks every 1, 5, 10, 15, 30 minutes, or every 1, 2, 6, 8, 12, 24 hours, or every 640 Mbytes or 700 Mbytes.
  • Page 38 CD Burning When CD burning is completed, the CD-R disc is automatically ejected from the CD slot. You can easily burn all of the data recorded on the HD onto If all of the HD data did not fit onto 1 CD-R disc, “Insert a CD-R with this recorder.
  • Page 39 To burn the data again onto a different CD-R disc, turn the JOG to select “Yes”, and press the JOG. If you have finished burning to CD-R, select “No” and press the JOG. • If you selected “Yes”, CD creation starts again. •...
  • Page 40 CD Split While the recorder is stopped, press the MENU/STORE button. When copying the HD data to CD-R disc, the recording method for the final track when all of the data will not fit onto 1 CD is set in the CD Split function. •...

  • Page 41: Playback

    Basic operations for playback Playing Back HD Data Press the PLAY/PAUSE button while the recorder is Schematics stopped to play back. • The following information is displayed during playback. LINE DIGITAL During playback, press the PLAY/PAUSE button to pause playback. Press the STOP button to stop playback.

  • Page 42: Track Access

    Track access [Fast reverse] You can select the track that you wish to play back while the You can search at high speed in the reverse direction by holding down the 5 button while playback is paused or recorder is stopped, during playback, or while playback is paused.

  • Page 43: Playback Mode Settings

    Playback mode settings Turn the JOG to select the playback mode and press the JOG. You can select the playback mode from the following 4 modes. Mode Mode explanation Play back the tracks in numerical order, and Normal playback stops when the final track playback is completed.
  • Page 44 Playing Back CDs Schematics Insert a CD into the recorder’s CD slot. Press the PLAY/PAUSE button while the recorder is stopped to restart playback. • The following information is displayed during playback. LINE DIGITAL Press the PLAY/PAUSE button to pause playback. CD Playback Press the STOP button to stop playback.

  • Page 45: Battery

    Beep sound (alarm) setting Other Functions If there are no operations performed for the set amount of time for auto power off while the recorder is stopped or Auto power off settings playback is paused, the beep sound can be heard. If there are no operations for the set amount of time while The beep sound can be heard through the speakers or the recorder is stopped or playback is paused, the power is...
  • Page 46 Switching the display mode [When CD is stopped] Depending on the status of the recorder, you can switch the CD total time and total number of tracks information in the display by pressing the DISPLAY button. (Default display) [When the HD is stopped] Remaining recordable time on the HD (Default display) Current time...
  • Page 47 [When in HD/CD playback or playback paused status] The following display screens are for HD playback. The following display screens are for CD playback. Playback elapsed time for the track Playback elapsed time for the track currently being played back currently being played back (Default display) (Default display)

  • Page 48: Key Lock

    Stop Monitor settings Turn the JOG to select function On/Off, and press the JOG. This function constantly monitors the input signal from the selected input source while the recorder is stopped. When the Stop Monitor function is set to On, the level and level margin of the currently connected input signal is displayed in the display.

  • Page 49: Various Remote Functions

    REC PAUSE, and MARK, which perform the same set, and press the JOG. functions as the buttons on the recorder. However, as the CDR310 does not have a marking function, the MARK button cannot be used. • The microphone remote has 1 LED that serves as the REC indicator and peak indicator.
  • Page 50 (Peak indicator) Initialization of preset settings Lights orange when the source level becomes the same Returns the settings of the selected preset number to default. level as [OVER] on the level meter during recording or recording pause. While the recorder is stopped, press the MENU/STORE button.

  • Page 51: Phantom Power

    There is no signal from the microphone input. Troubleshooting ☞ • Check the input source settings. ( P.XX) ☞ • Check the recording level settings. ( P.XX) If you think a malfunction has occurred, there may be no ☞ • Check if the microphone requires Phantom power. ( need to contact the dealer or the repair service counter.

  • Page 52: Display

    Error Messages Display Description Error messages Full_HD There is no space remaining on the HD. Full_999 The track number on the HD has reached the maximum number, track 999. No Track No track files detected. No Disc No disc in the CD slot. Blank Disc No files detected on the CD.

  • Page 53: Specifications

    Output Specifications LINE OUT L/R Digital audio system Type ............... RCA terminal Standard level ........2 Vrms max./2 kohms System ..............HD recorder DIGITAL OUT Recording media ..........1-inch 4G HD Type ............... RCA terminal Writing CD media ............CD-R Output impedance ..........

  • Page 54: Limited Warranty - Usa

    Manufacturer shall not be liable for damage to other products caused by any defects in Marantz products, damages based period of one year parts and labor. on inconvenience or loss of use of the product, or any other damages, whether incidental, consequential, or otherwise.
  • Page 55 M Holdings Inc. & PROFESSIONAL BUSINESS COMPANY Printed in Japan 08/ 2006 00M28BS851250 ecmf-e...
