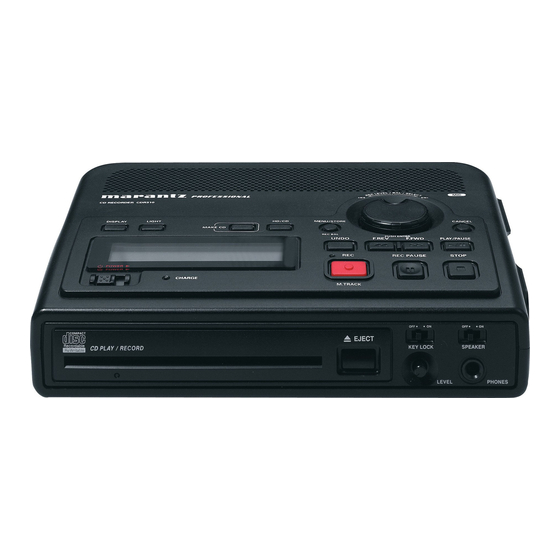

Marantz CDR310 Professional User Manual
Hide thumbs
Also See for CDR310 Professional:
- Brochure (2 pages) ,
- User manual (55 pages) ,
- Service manual (47 pages)
Related Manuals for Marantz CDR310 Professional
Summary of Contents for Marantz CDR310 Professional
- Page 1 Model CDR310 User Guide CD Recorder CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT...
-
Page 2: Laser Safety
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ BEFORE OPERATING EQUIPMENT This product was designed and manufactured to meet strict quality 11. Only use attachments/accessories specified by the and safety standards. There are, however, some installation and manufacturer. operation precautions which you should be particularly aware of. 12. - Page 4 SI DICHIARA CHE L'APPARECCHIO SINTO-AMPLIFACATORE SR-39 RISPONDE ALLE PRESCRIZIONI DELL'ART. 2 COMMA 1 DEL D.M. 28 AGOSTO 1995 N° 548. FATTO A EINDHOVEN, IL 1/1/1997. MARANTZ EUROPE B.V. 5600 EINDHOVEN THE NETHERLANDS "Este aparato lleva elementos antiparasitarios necesarios para cumplir...
- Page 5 English WARNINGS Do not handle the AC adaptor with wet hands. Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc. No naked flame sources, such as lighted candles, should be placed on the equipment. When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area.
- Page 6 Italiano AVVERTENZE Non maneggiare l’adattatore CA con le mani umide. Non coprire le fessure di ventilazione con tovaglie, giornali, tendeod oggetti analoghi. Non posare sull'apparecchio sorgenti di fiamme scoperte qualicandele accese. Smaltire le pile usate in conformità alle norme governative odisposizioni ambientali vigenti nel proprio paese o zona. Lasciare 0,1 metro liberi tutto intorno l'unità.
- Page 7 CAUTION English To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. When setting up this product, make sure that the AC outlet you are using is easily acceptable. PRECAUTION Français Pour déconnecter complètement ce produit du courant secteur, débranchez la prise de la prise murale. Lors de l’installation de ce produit, assurez-vous que la prise CA que vous utilisez est compatible.
- Page 8 A NOTE ABOUT RECYCLING: English This product's packaging materials are recyclable and can be reused. Please dispose of anymaterials in accordance with the local recycling regulations. When discarding the unit, comply with local rules or regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with thelocal regulations concerning chemical waste.
-
Page 9: Table Of Contents
Table of Contents Introduction ........2 Detailed Settings for HD Recording ..22 Features ............. 2 Input source settings ......... 22 Recording format settings ......23 Package contents ......3 Recording level control settings ....25 Quick Start Guide ......4 Microphone attenuator ......27 Phantom power settings ...... -
Page 10: Introduction
☞ ● Recording level and LR balance adjustment ( P.25) Introduction • Automatic recording level control (ALC) • Manual control Thank you for purchasing this CDR310 CD Recorder. Before using the CD recorder, make sure that you read ● You can record and playback audio in stereo (2 channel) through this instruction manual carefully to fully understand or monaural (1 channel). -
Page 11: Package Contents
Package contents • CDR310 • AC power pack • Power cord Europe models include 2 power cords • Battery holder (AA type) • User Guide • User Guide (CD-ROM) • Customer Registration Document... -
Page 12: Quick Start Guide
Quick Start Guide Before using the CDR310, please read through the following section which explains the basic flow of operation. ☞ 1. Setup the power supply ( P.11) • Use either the provided AC adaptor or batteries. • You can use any one of the 3 types of batteries: Alkaline, optional Nickel-Cadmium, or optional Nickel- Metal Hydride. -
Page 13: About Discs
ADDITIONAL INFORMATION About Discs The glossy side shining like a rainbow is the front side of the disc, and the side on which the label is printed is the back. Playable discs Unlike conventional turntables for playing analog discs, the unit reads the information recorded on the disc from underneath without contacting it using a beam of laser light. -
Page 14: Names And Functions
Names and Functions Top side q Power switch • Track selection Slide this switch to switch the power on/off. You can select the track you wish to play back by rotating the JOG while playback is paused, stopped, or during w DISPLAY button playback. - Page 15 !5 PLAY/PAUSE button Press this button when the recorder is stopped to start playback. Press this button during playback to pause playback. Also, if this button is pressed when playback is paused, playback restarts. !6 STOP button Press this button during recording to stop the recording and save the recorded track (file).
-
Page 16: Front Side
Front side z CD slot b Headphone (PHONES) jack Insert the stereo headphones plug here. x EJECT button n LEVEL volume Press this button to eject the CD that is inside the CD slot. Turn this knob to adjust the internal speaker volume or c KEYLOCK switch volume output from the headphone jack. -
Page 17: Right Side
Right side A MIC IN jacks (L/R) (XLR balanced input) E LINE IN jacks (L/R) Insert an external microphone plug. Insert RCA audio cable plugs connected to an external For monaural recording, plug into either the L side or R audio device into these jacks to input the signals output side jack. -
Page 18: Display
Display d f g h j ¡0 ¡1 ¡2 ¡3 ¡4 ¡5 ¡6 ¡7 a Upper character display section l M.TRACK icon Displays the remaining time, etc. Lights when “ManualTR” is set to ON in the preset menu. s TOTAL/TRACK/TIME/REC/REMAIN icon ¡0 A.TRACK icon The following types of details are displayed in the upper Lights when “Auto TRK”... -
Page 19: Preparations Before Use
Using batteries Preparations Before Use If you wish to run the recorder on battery power, follow the procedure below to install batteries into the provided battery AC adaptor connection holder, and insert the holder into the recorder. When using the recorder with the provided AC adaptor, follow The following types of battery can be used. -
Page 20: Safety Cautions On Handling Batteries
Installing an optional Ni-Cd or Ni-MH battery Insert the battery holder into the battery case of the recorder correctly as shown in the diagram below, while paying attention to the polarity displays (+: plus, and -: Optional battery minus) on the case. Battery holder ribbon ribbon... -
Page 21: Basic Operations
Battery type settings Basic Operations Set the battery type for the recorder to match the type of batteries you are using. Power on/off Slide the power switch to switch the power ON. < Default value > Alkaline Notes While the recorder is stopped, press the MENU/STORE The factory-preset settings are set to record sound using button. -
Page 22: Battery Remaining Indicator
Battery remaining indicator The recorder operates using commercially available AA size alkaline batteries, the optional Nickel-Cadmium battery, or the optional Nickel-Metal Hydride battery. During operation, the battery remaining indicator is as follows. Remaining Display explanation indicator Nothing is displayed when the AC adaptor is being No display used. -
Page 23: Setting The Clock
Setting the clock Turn the JOG to select [Year (2006 to 2099)], and press the JOG. Set the current time (year, month, date, hour, minute). Notes The setting order is different depending on the “DateForm” settings in the menu. Check the “Date form settings” ☞... -
Page 24: Date Form Settings
Date form settings Time form settings There are 3 types of date form. You can set the form to your There are 2 types of time form. You can set the form to your own preference. own preference. Form type Form subjects Form example Form type... -
Page 25: Menu Settings
Menu Settings The recorder uses 8 menus to set the various functions. There is a menu for basic settings such as time (display method), alarm, automatic power off, and battery type, and a menu for formatting the internal HD. These menus are displayed by pressing the MENU/STORE button once to enter the menu mode. You can also perform detailed settings for the recording and playback conditions, and register up to 3 of these settings in the preset menu. -
Page 26: Preset Menu
Preset menu You can store to 3 detailed preset on the recorder for such settings as recording input, recording format, playback mode, remote control, etc. There are 17 setting items in the preset menu, and 3 presets can be set with the desired conditions. The contents of the preset menu are explained below. -
Page 27: Menu Operation
Menu operation Turn the JOG to select the menu settings, then press the ☞ JOG to choose the selected settings. The recorder uses menus to set various functions. ( P.18) You can alter the basic settings and use a wide range Second level of recording and playback functions by changing the menu Input... -
Page 28: Recording To The Hd
Recording to the HD Press the REC PAUSE button to pause recording. • The recording mark flashes in the display while recording is paused. Schematics REC PAUSE • Press the REC button when recording is paused to start MIC IN LINE DIGITAL recording again. -
Page 29: Erasing Recordings
Erasing recordings Formatting the HD You can erase data (tracks) recorded to the HD after stopping Formats all of the tracks recorded onto the HD. recording. Notes After stopping recording, press the UNDO button to switch If the HD is formatted, all contents of the HD are erased. to the erase mode of the recorded track. -
Page 30: Detailed Settings For Hd Recording
Detailed Settings for HD Recording Turn the JOG to select the type of input source (“MIC”, “Line”, “Int.Mic”, “Dig-In”), and press the JOG. Input source settings Set the input source (internal microphone, external microphone, line input, digital input) for recording. <... -
Page 31: Recording Format Settings
Recording format settings Set the recording format (compression format and channel) for recording. < Default value > Preset1 : Stereo/CD-DA Preset2 : Mono/MP3 Preset3 : Stereo/MP3 Notes The recording format can only be changed when there are no tracks saved on the HD. There is only one HD recording format available at onetime on the recorder. - Page 32 Set the recording format (compression format and channel) Turn the JOG to select the channel (“Stereo”, “Mono”) and using the procedure shown below. press the JOG. While the recorder is stopped, press the MENU/STORE button. Turn the JOG to select “Preset” and press the JOG. Press the MENU/STORE button to register the settings.
-
Page 33: Recording Level Control Settings
Recording level control settings Turn the JOG to select “RecLevel” and press the JOG. Set the recording level menu (ALC, Manual) for recording. • Automatic level control (ALC) If the recording level menu is set to ALC, the recording level for external microphone input or internal microphone input is automatically set. - Page 34 [Operations when manual control is set] When the recording level menu is set to Manual, use the JOG as shown below to set the recording level. • Recording level settings Turn the JOG while recording is paused or during recording, and the manual level control screen is displayed.
-
Page 35: Microphone Attenuator
Microphone attenuator Turn the JOG to select the microphone attenuator selection (“MIC-ATT-L”, “MIC-ATT-R”, “IntMicATT”) that Set the attenuator function for external microphone input and you want to set in the preset menu, and press the JOG. internal microphone input. For external microphone input, set this function when using microphones that have different sensitivity levels. -
Page 36: Phantom Power Settings
Phantom power settings Turn the JOG to select function On/Off, and press the JOG. The recorder has DC+48V (P49) phantom power, and the phantom power can be set On/Off. Set to On when a condenser microphone that requires an external power source is used. When set to On, the “PHANTOM”... -
Page 37: Prerecord
Prerecord Turn the JOG to select the temporary save time (1 to 10 seconds), and press the JOG. Set the PreRecord function. When the PreRecord function is set to On, sounds from the input source are saved for a set period of time (1 to 10 seconds) in stop or rec pause mode. -
Page 38: Background Recording
Background recording Turn the JOG to select the preset number that you wish to set, and press the JOG. Set background recording. When background recording is set to On, recording is continued inside the recorder while recording is paused. This can be used to recover data after pausing a recording, so that nothing is missed even if important contents are lost while the recording is paused. -
Page 39: Silent Skip
Silent skip Turn the JOG to select the preset number that you wish to set, and press the JOG. Set the silent skip function. • Silent skip The silent skip function automatically pauses the recording if there is a period of no signal during recording. Recording automatically starts again when an input signal is received. -
Page 40: Manual Track
If you activate this function, turn the JOG to select the no Turn the JOG to select the preset number that you wish to signal time (1 to 5 seconds) and press the JOG. set, and press the JOG. Press the MENU/STORE button to register the settings. Turn the JOG to select “ManTrack”... -
Page 41: Auto Track
Auto track Turn the JOG to select the preset number that you wish to set, and press the JOG. Set auto track. When auto track is set to On, new tracks are automatically created and recorded at the set time interval. Auto track can be set to make a new track every 1, 5, 10, 15, 30 minutes, or every 1, 2, 6, 8, 12, 24 hours, or every 640 Mbytes or 700 Mbytes. -
Page 42: Cd Burning
CD Burning When CD burning is completed, the CD-R disc is automatically ejected from the CD slot. You can easily burn all of the data recorded on the HD onto If all of the HD data did not fit onto 1 CD-R disc, “Insert a CD-R with this recorder. - Page 43 To burn the data again onto a different CD-R disc, turn the JOG to select “Yes”, and press the JOG. If you have finished burning to CD-R, select “No” and press the JOG. • If you selected “Yes”, CD creation starts again. •...
-
Page 44: Cd Split
CD Split While the recorder is stopped, press the MENU/STORE button. When copying the HD data to CD-R disc, the copy method for the final track when all of the data will not fit onto 1 CD is set in the CD Split function. •... -
Page 45: Playing Back Hd Data
Basic operations for playback Playing Back HD Data Press the PLAY/PAUSE button while the recorder is Schematics stopped to play back. • The following information is displayed during playback. LINE DIGITAL During playback, press the PLAY/PAUSE button to pause playback. Press the STOP button to stop playback. -
Page 46: Track Access
[Fast reverse] Track access You can search at high speed in the reverse direction by You can select the track that you wish to play back while the holding down the 5 button while playback is paused or recorder is stopped, during playback, or while playback is stopped. -
Page 47: Playback Mode Settings
Playback mode settings Turn the JOG to select the playback mode and press the JOG. You can select the playback mode from the following 4 modes. Mode Mode explanation Play back the tracks in numerical order, and Normal playback stops when the final track playback is completed. -
Page 48: Playing Back Cds
Playing Back CDs Insert a CD into the recorder’s CD slot. Press the PLAY/PAUSE button while the recorder is Schematics stopped to restart playback. • The following information is displayed during playback. LINE DIGITAL Press the PLAY/PAUSE button to pause playback. Press the STOP button to stop playback. -
Page 49: Other Functions
Beep sound (alarm) setting Other Functions If there is no operation performed for a set amount of time for auto power off while the recorder is stopped or playback is Auto power off settings paused, the beep sound can be heard. If there is no operation for a set amount of time while the The beep sound can be heard through the speakers or recorder is stopped or playback is paused, the power is... -
Page 50: Switching The Display Mode
[When CD is stopped] Switching the display mode Depending on the status of the recorder, you can switch the CD total time and total number of tracks information in the display by pressing the DISPLAY button. (Default display) [When the HD is stopped] Remaining recordable time on the HD (Default display) Current time... - Page 51 [When in HD/CD playback or playback paused status] The following display screens are for HD playback. The following display screens are for CD playback. Playback elapsed time for the track Playback elapsed time for the track currently being played back currently being played back (Default display) (Default display)
-
Page 52: Stop Monitor Settings
Stop Monitor settings Turn the JOG to select function On/Off, and press the JOG. This function constantly monitors the input signal from the selected input source while the recorder is stopped. When the Stop Monitor function is set to On, the level and level margin of the currently connected input signal is displayed in the display. -
Page 53: Various Remote Functions
Various remote functions Turn the JOG to select “Remote” and press the JOG. 1. Using a contact remote (contact closure) and setting the operating mode Set the operating mode for the switch contact connected to the REMOTE1 jack. There are the following 3 operating modes for when the switch contact is opened and closed. -
Page 54: Margin Display
(REC indicator) Initialization of preset settings Lights red during recording, and flashes red while Returns the settings of the selected preset number to default. recording is paused. While the recorder is stopped, press the MENU/STORE (Peak indicator) button. Lights orange when the source level becomes the same level as [OVER] on the level meter during recording or recording pause. -
Page 55: Troubleshooting
There is no signal from the microphone input. Troubleshooting ☞ • Check the input source settings. ( P.22) ☞ • Check the recording level settings. ( P.25) If you think a malfunction has occurred, there may be no ☞ • Check if the microphone requires Phantom power. ( need to contact the dealer or the repair service counter. -
Page 56: Error Messages
Error Messages Display Description Error messages Full_HD There is no space remaining on the HD. Full_999 The track number on the HD has reached the maximum number, track 999. No Track No track files detected. No Disc No disc in the CD slot. Blank Disc No files detected on the CD. -
Page 57: Specifications
Outputs Specifications LINE OUT L/R Digital Audio System Type ................RCA jack Standard output level .......2 Vrms max. / 2k ohms System ..............CD Recorder DIGITAL OUT Temporary recording media ....1-inch HDD (4 GByte) Type ............RCA jack, Coaxial Writeable CD disc media ....CD-R (CD-DA, ISO9660) Output impedance ...........75 ohms Channels ...........2 (stereo), 1 (mono) Standard output level .......... -
Page 58: Limited Warranty
Manufacturer shall not be liable for damage to other products period of one year parts and labor. caused by any defects in Marantz products, damages based on inconvenience or loss of use of the product, or any other Except as specified below, this warranty covers defects in damages, whether incidental, consequential, or otherwise. - Page 59 M Holdings Inc. & PROFESSIONAL BUSINESS COMPANY TOKYO, JAPAN http://www.dm-pro.jp Printed in Japan 08/ 2006 00M28BS851310 ecmf-e...
