Summary of Contents for GE Interlogix Kalatel DVSe

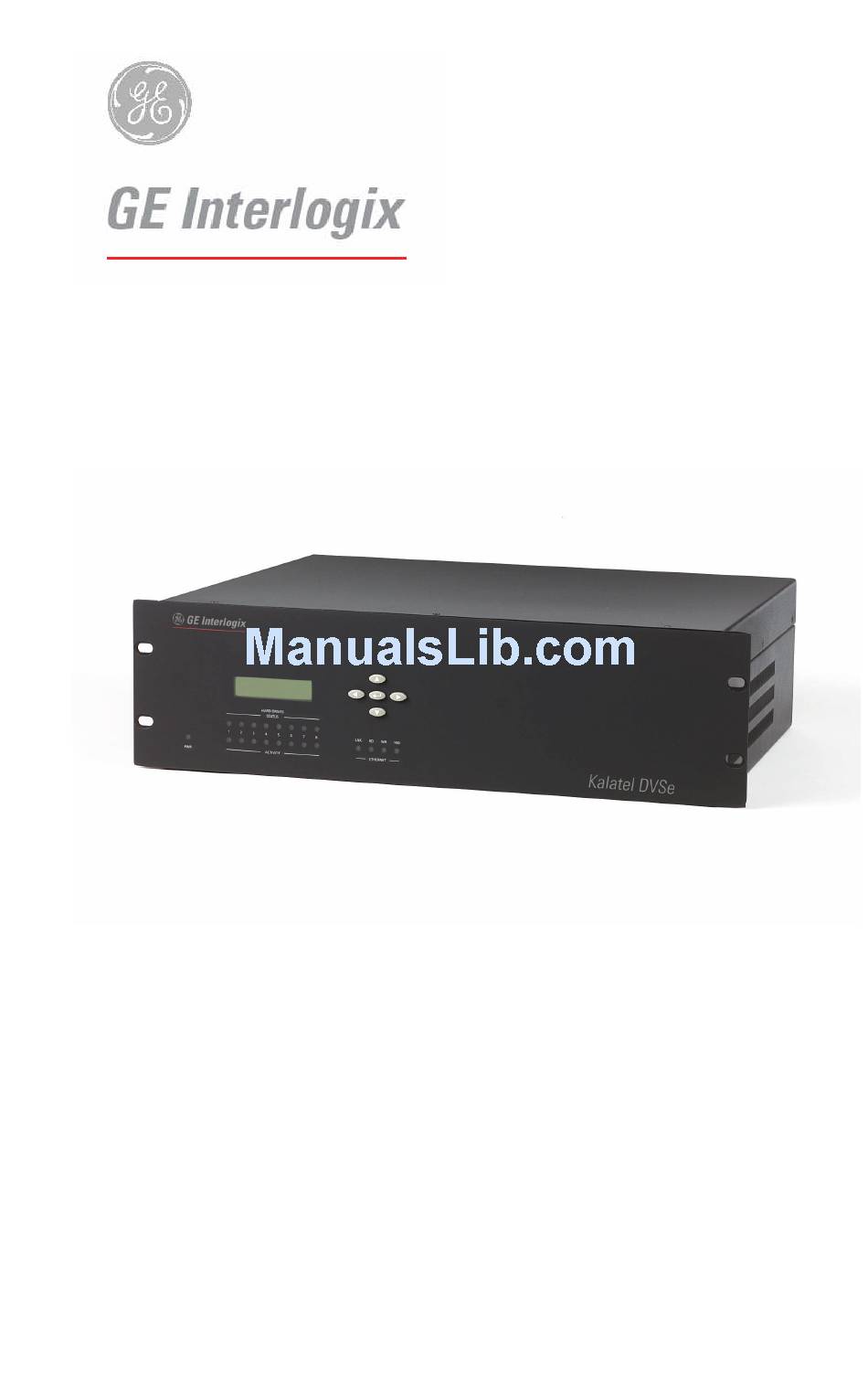

- Page 1 Installation and Users Manual...
- Page 2 All information and specifications furnished by GE Interlogix are believed to be accurate and reliable. No responsibility is assumed by GE Interlogix for neither its use nor any infringements of rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent or patent rights of GE Interlogix.
-
Page 3: Table Of Contents
DVSe Setup ..............13 Connecting by SCSI or 1394 ............13 Power-Up ..................14 Setup Menu ..................14 Supervisor Menus ................16 Upgrading the DVSe ............... 17 Warranty and Service ..........19 Factory Service................19 Warranty..................20 0150-0178F Kalatel DVSe... -
Page 4: Introduction
If the unit must be returned, it must be shipped in the original packaging. Package Contents • The DVSe. • US & EU Power Cables. • The Kalatel DVSe Installation and Users Manual. • The Kalatel DVSe Release Note. • The Archiving Addendum Manual. • WaveReader Software and Manual. •... -
Page 5: The Back Panel
(SW1) on the back panel. Set SCSI SCSI ID: 0. Termination and SCSI Power to On and use the Bus Select menu option to enable this feature. The unit does not currently support multiple SCSI device connections. 0150-0178F Kalatel DVSe... - Page 6 DB-9 Pin Configuration For RS-232 Port Not Connected Not Connected Not Connected Ground To receive serial debug data from the DVSe’s RS-232 port, set up the NOTE receiving serial port at 57600 bps, No Parity, 8 data bits, and 1 stop bit. Kalatel DVSe 0150-0178F...
-
Page 7: Front Panel Indicators
1.6 Front Panel Indicators HARD DRIVES STATUS Kalatel DVSe ACTIVITY ETHERNET 2 2 2 Power LED. Hard Drive Status Indicators. Ethernet Indicators. LCD Display. Key Pad buttons. Hard Drive Status Indicators (Green LEDs) LED On: Drive present and operating normally. - Page 8 Up Arrow: Change field data (ascending). • Left Arrow: Move field selection to left. • Enter Button: Press to access setup menu. Toggles through menu screens. • Right Arrow: Move field selection to right. • Down Arrow: Change field data (descending). Kalatel DVSe 0150-0178F...
-
Page 9: Hard Drive Installation
Save the screws and use them to refasten the lid when finished. 2.2 Identifying The Components Complete Internal Overview Power Supply Mother Board Drive Support Bracket Disk Drives 0150-0178F Kalatel DVSe... -
Page 10: Configuring Master/Slave
Populate the drive array in order, starting from the left. Fasten the drive in place using the supplied screws. Fasten each drive using two screws through the bottom of the chassis and one screw in the Hard Drive Support Bracket. Kalatel DVSe 0150-0178F... -
Page 11: Connecting The Hard Drives
Pin 1 indicator Pin 1 Indicator on the motherboard. Connecting To The Hard Drive The red stripe on the connection ribbon Pin 1 Near Jumpers should connect near the jumpers on the hard drive. 0150-0178F Kalatel DVSe... -
Page 12: Compatible Hard Drives
The DVSe is designed to be compatible with Maxtor D540X series hard drives. Hard drives in this series up to 250 GB may be used. Refer to www.maxtor.com for details. GE Interlogix cannot provide technical support for DVSe units using NOTE hard drives other than those described above. Using drives other than those described above may result in failure or intermittent data errors. -
Page 13: Dvse Setup
SCSI Power to OFF. Select 1394 as the type of Bus in the Setup Menu under Bus Select. Caution! Power must be shut down to all devices before connecting 1394 cables between the 1394 device and the DVSe. 0150-0178F Kalatel DVSe... -
Page 14: Power-Up
DVSe is not presently archiving or connected via ethernet. Press the Enter Button to access the first menu. Ethernet Enable Select ethernet enable, yes or no. Default setting is no. Bus Select Select from SCSI or 1394 to enable. Default setting is 1394. Kalatel DVSe 0150-0178F... -
Page 15: Subnet Mask
Date/Time Enter the current date and time by using the left/right arrows to select the field and the up/down arrows to change the values. Required only when Auto Delete Mode is set to yes. 0150-0178F Kalatel DVSe... -
Page 16: Supervisor Menus
The letters on the Disk Status screen represent Disk 1 (left) thru Disk 8 (right). NOTE Do not attempt to reset a disk with read/write errors (a R or W status). This could lead to more disk errors and data loss. Disks with read/write errors should be replaced. Kalatel DVSe 0150-0178F... -
Page 17: Upgrading The Dvse
Upgrading the software for the DVSe is accomplished via the ethernet port and a PC/Laptop equipped with a web browser. To properly upgrade the Kalatel DVSe the following preconditions must exist: The Flash upgrade file and path. This file is obtained by calling Kalatel Technical Support at 1-800-469-1676. - Page 18 WAIT FOR THE PROGRESS BAR TO FINISH, THEN WAIT FOR CONFIRMATION! Step 6. Click on the Reboot button to restart the unit for changes to take effect. If unsuccessful, download the flash file again and retry the steps 1-6. Kalatel DVSe 0150-0178F...
-
Page 19: Warranty And Service
3197-C Airport Loop Drive Costa Mesa, CA 92626 United States of America Telephone: 800-343-3358 (7:00 AM to 4:30 PM, Pacific Time) In Oregon: 541-754-9133 Fax: 541-754-7162 (24 hours a day) For warranty information, see the following page. 0150-0178F Kalatel DVSe... -
Page 20: Warranty
4.2 Warranty GE Interlogix warrants all of its equipment for three years from the date of purchase. This warranty covers any defects in materials and workmanship. Equipment failures that are due to improper installation, modification, abuse, or acts of nature will not be covered by this warranty.
