BCM QS750 User Manual

Amd slot-a agp/pci/isa motherboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

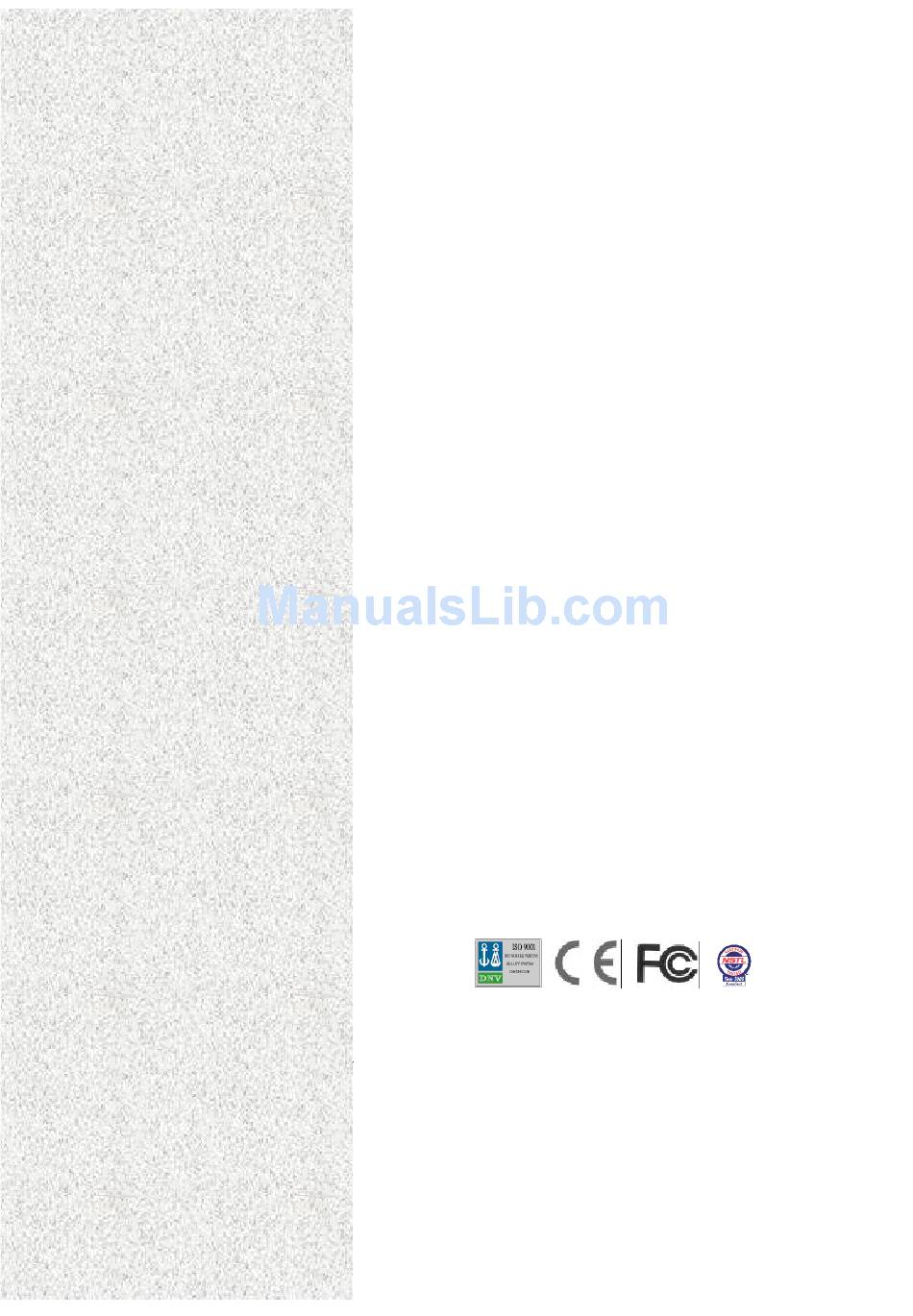

AMD Slot-A
AGP/PCI/ISA
Motherboard
QS750
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QS750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BCM QS750

Summary of Contents for BCM QS750

  • Page 1 AMD Slot-A AGP/PCI/ISA Motherboard QS750 User’s Manual...

  • Page 2: Declaration

    Declaration Rights: No part of this manual, including but not limited to the products and software described in it, may be reproduced, transmitted, transcribes, stored in a retrieval system, or translated in any form or by any means without the expressed written permission of the manufacture. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies and are used only for identification or explanation purposes without intent to infringe.

  • Page 3: Compliance & Certificate

    Compliance & Certificate & & ISO 9001 Certificate: This device was produced in our plant with advanced quality system certified by DNV QA Ltd. in according to ISO 9001. This Certificate is valid for: DESIGN & MANUFACTURE OF MOTHER BOARDS AND PERSONAL COMPUTERS. CE Declaration: CE marking is a visible declaration by the manufacturer or his authorized representatives that the electrical equipment to which it relates satisfies all the provisions of the 1994...

  • Page 4: Easy Installation

    Easy Installation Easy Installation Steps The following “Easy Installation” steps are for users accustomed to the assembly of a computer system. For those individuals requiring more specific information, please refer to the more detailed descriptions located within the latter chapters of this manual.

  • Page 5: Table Of Contents

    Contents Declaration ......................2 Compliance & Certificate ..................3 Easy Installation....................4 1. Introduction.....................9 1.1 How To Use This Manual ................9 1.2 Check Your Device Items................9 2. Features ......................11 2.1 Features Of The Motherboard ..............11 3. INSTALLATION....................13 3.1 Motherboard Layout & Main Parts ..............13 Significant Parts List ..................14 Static Electricity Damage: ................15 Misplaced Jumper Damage:................15...
  • Page 6 Contents 3.6.17 WOL (Wake On LAN, J16/J17)............26 3.6.18 CPU Fan (J9, 3-pin) ................26 4. BIOS Setup ....................29 4.1 BIOS Setup....................29 4.1.1 Setup Keys...................29 4.1.2 Getting Help ..................30 4.1.3 In Case of Problems................30 4.2 Main Setup Menu ..................30 4.3 Standard CMOS Setup Menu ..............32 4.3.1 Date .....................32 4.3.2 Time.....................32 4.3.3 Hard Disks ...................33...
  • Page 7 Contents 4.5.6 SDRAM CAS Latency ................41 4.6 Integrated Peripherals ................41 4.6.1 IDE Read/Write Prefetch ..............41 4.6.2 IDE Primary/Secondary Master/Slave PIO..........41 4.6.3 IDE Primary/Secondary Master/Slave UDMA ........42 4.6.4 On-chip Primary PCI IDE..............42 4.6.5 On-Chip Secondary PCI IDE ..............42 4.6.6 USB Keyboard Support ................42 4.6.7 Init Display First..................42 4.6.8 IDE HDD Block Mode ................42 4.6.9 Onboard FDC Controller...............42...
  • Page 8 Contents 4.10.2 Spread Spectrum Modulated ..............49 4.10.3 CPU Host/PCI Clock................49 4.11 Load Optimized Defaults ................49 4.12 Set Supervisor Password .................50 4.13 Set User Password ...................50 4.14 Save & Exit Setup ..................50 4.15 Exit Without Saving..................50...

  • Page 9: Introduction

    The standard package should contain the following items. If you find any of these items be missing or damaged, please contact your retailer. Ø The QS750 motherboard Ø Universal Retention Mechanism(Support AMD Athlon) Ø 1 IDE ribbon cable Ø 1 floppy ribbon cable Ø...
  • Page 10 1. Introduction...

  • Page 11: Features

    The QS750 motherboard integrates the AMD Athlon microprocessor, memory, I/O and AGP, and is designed to fit into a ATX form factor chassis. Page 14 illustrates the Layout for the QS750 motherboard. Below lists the key features provided by this motherboard: Processor Ø...
  • Page 12 2. Features Ø 2 Serial Ports (16C550 Fast UART Compatible) Ø 1 PS/2 Mouse Connector, 1 PS/2 Keyboard connector Ø 2 Standard USB Connector (48MHz) System BIOS Ø 2MB flash EPROM. Award PCI BIOS Ø PC98 and PnP compatible. ACPI, APM, Y2K and DMI support Ø...

  • Page 13: Installation

    3. Installation 3.1 Motherboard Layout & Main Parts FRONT PANEL CONNECTORS FLOPPY SECONDARY IDE PRIMARY IDE SYSTEM FAN AGP SLOT DIMM1 DIMM2 DIMM3 POWER EISA SLOT PRINTER ISA BUS COM1/COM2 PCI EXPANSION SLOT KEYBOARD/MOUSE CPU FAN...

  • Page 14: Significant Parts List

    3. Installation Significant Parts List Front Panel Connectors Power Switch Refer to Sec. 3.6.9 Power LED Refer to Sec. 3.6.10 Speaker Refer to Sec. 3.6.11 Reset Refer to Sec. 3.6.6 Sleep Refer to Sec. 3.6.8 HDD LED Refer to Sec. 3.6.7 Back Panel Connectors PS/2-style keyboard and mouse connectors Refer to Sec.

  • Page 15: Static Electricity Damage

    3. Installation Precaution Before Start Static Electricity Damage: Static electricity can easily damage your motherboard. Observing a few basic precautions can help safeguard against damage that could result in expensive repairs. Follow the simple measures below to protect your equipment from static electricity damage. Keep the motherboard and other system components in their anti-static packaging until you are ready to install them.

  • Page 16: Slots And Connectors

    3. Installation 3.2 Slots And Connectors This motherboard requires jumper setting for making some change. PIN 1 PIN 1 Note: In the following pages, the triangle s mark stands for pin 1 of connectors. Slots/Connectors List J11: PCI 1 J27: COM 1 J12: PCI 2 J27: COM2 J13: PCI 3...

  • Page 17: Cpu (Central Processing Unit)

    3. Installation 3.3 CPU (Central Processing Unit) This motherboard provides a Single Edge Contact (SEC) slot and a Bridges on the board for the AMD Athlon processor packaged in a SEC cartridge. This cartridge includes the processor core, second-level cache, thermal plate and black cover. When mounted in Slot-A, the processor is secured by two retention mechanism attached to the motherboard.
  • Page 18 3. Installation 1. Unfold the Retention Mechanism. 2. Place the Retention Mechanism over CPU Slot 3. Push 4 lock pins into holes to fix 4. Insert CPU. Push two lock pins inward Retention and press CPU dowm gently. Mechanism on motherboard. Step 1: Place the Universal Retention Mechanisms over the CPU slot (SEC slot) on motherboard.

  • Page 19: System Memory (Dram)

    3.4 System Memory (DRAM) 3.4.1 DIMM (Dual Inline Memory Module) The QS750 features three 168-pin DIMM sockets. You can configure the system memory size from 16MB to 768MB in a variety of ways by using different combinations of the three 168-pin DIMM.

  • Page 20: Dimm Module Combinations

    3. Installation 3.4.3 DIMM Module Combinations Each DIMM socket can be inserted with 8MB, 16MB, 32MB, 64MB, 128MB, 256MB, 512MB DIMM. For example, the following figure shows you one way to insert your DIMM. Select 128MB Empty 16MB 32MB 64MB 256MB DIMM 1 Empty...

  • Page 21: Connectors

    3. Installation The Accelerated Graphics Port (AGP or A.G.P.) is a high performance interconnect targeted at 3D graphical display applications and is based on a set of performance extensions or enhancements to the PCI bus. (AGP interface specification Rev. 1.0 compliant) To install expansion cards, please read the expansion card’s documentation for instructions and cautions.

  • Page 22: Floppy Drive Connector (33-Pin Block)

    3. Installation Warning: When you connect a ribbon cable to these ports, you must orient the cable connector so that the PIN 1 edge of the cable is at the PIN 1 edge of the onboard connector. 3.6.3 Floppy Drive Connector (33-pin block) The FDC sub-system can control three types of floppy drives (1.2, 1.44 and 2.88MB) or compatible tape drives.

  • Page 23: Front Panel Connectors (J20, 15-Pin)

    3. Installation 3.6.5 Front Panel connectors (J20, 15-pin) Front Panel includes headers for the following six I/O connectors: Power Switch, Power LED, Speaker, Reset, Sleep and HDD LED. Keylock Sleep Button HDD-LED Speaker Out Power LED Power Button Reset 3.6.6 Keylock Switch (2-pin) This header allows you to lock the keyboard with a button or a key manually.

  • Page 24: Power Switch (2-Pin)

    3. Installation 3.6.10 Power Switch (2-pin) This connector supports the ATX case-mounted Power Switch, which in turn supports System Suspend function. When the BIOS sets the Power Button function to “Delay 4 sec.”, the system can be set to the suspended mode once you push the power switch for no longer then 4 seconds.

  • Page 25: Ps/2 Keyboard And Mouse Ports (J25)

    3. Installation 3.6.13 PS/2 Keyboard and Mouse Ports (J25) The motherboard offers 1 PS/2 Keyboard and 1 PS/2 Mouse port. Mouse Keyboard 3.6.14 Universal Serial Bus (USB) Ports (J26) The motherboard has two USB connectors. USB devices provide a more convenient operating environment and improve data transferring capacity.

  • Page 26: Wol (Wake On Lan, J16/J17)

    3. Installation characteristics are compliant with the EIA-232-D Serial Communications Specifications. The serial ports may be remapped over other installable serial ports or disabled through the BIOS. COM1 COM2 This product integrate the AGP function via a VGA port beside the COM1. The Accelerated Graphics Port (AGP or A.G.P.) is a high performance interconnect targeted at 3D graphical display applications.

  • Page 27: Ready To Turn On Power

    3. Installation Ready To Turn On Power Check Again Is the CPU installed exactly and firmly into the socket (Sec. 3.3)? Are all the DRAM modules installed properly (Sec. 3.4)? Did you insert the expansion card (VGA, Sound… etc.) already (Sec. 3.5)? Are you sure that all the connectors (described in Sec 3.6) have been connected to their variable devices (Sec.
  • Page 28 3. Installation...

  • Page 29: Bios Setup

    4. BIOS Setup The QS750 motherboard uses AWARD BIOS, which is stored in a Flash EEPROM and can be upgraded by a floppy disk-based program. The BIOS has a built-in Setup Program that allows users to modify the basic system configuration settings.

  • Page 30: Getting Help

    The best advice is to alter only settings that you thoroughly understand. In particular, do not change settings in the Chipset screen without a good reason. BCM Advanced Research Inc. or your system manufacturer for the best performance and reliability has carefully chosen the Chipset defaults.
  • Page 31 4. BIOS Setup A brief description of each highlighted selection appears at the bottom of the screen. CMOS Setup Utility – Copyright © 1984-1999 Award Software Standard CMOS Features Standard CMOS Features Frequency/Voltage Control Advanced BIOS Features Load Fail-Safe Defaults Advanced Chipset Features Load Optimized Defaults Integrated Peripherals...

  • Page 32: Standard Cmos Setup Menu

    4. BIOS Setup Load Setup Defaults Setup defaults are factory settings for optimal-performance system operations. Save & Exit Setup Save settings in nonvolatile CMOS RAM and exit Setup. Exit Without Save Abandon all changes and exit Setup. 4.3 Standard CMOS Setup Menu In the Standard CMOS Menu (Figure 2) you can set the system clock and calendar, record disk drive parameters and the video subsystem type, and select the type of errors that stop the BIOS POST.

  • Page 33: Hard Disks

    4. BIOS Setup 4.3.3 Hard Disks The BIOS supports up to four IDE drives. This section does not show information about other IDE devices, such as a CD-ROM drive, or about other hard drive types, such as SCSI drives. NOTE: We recommend that you select type AUTO for all drives. The BIOS can automatically detect the specifications and optimal operating mode of almost all IDE hard drives.

  • Page 34: Drive A/B Type

    4. BIOS Setup Ø LBA (Logical Block Addressing): During drive accesses, the IDE controller Ø Transforms the data address described by sector, head, and cylinder number Ø into a physical block address, significantly improving data transfer rates. For drives with greater than 1024 cylinders. 4.3.4 Drive A/B type Select the correct specifications for the diskette drive(s) installed in the computer.

  • Page 35: Memory

    4. BIOS Setup No errors POST does not stop for any errors. All errors If the BIOS detect any non-fatal error, POST stops and prompts you to take corrective action. All, But Keyboard POST does not stop for a keyboard error, but stops for all other errors.

  • Page 36: Advanced Bios Features Setup Menu

    4. BIOS Setup 4.4 Advanced BIOS Features Setup Menu This screen (Figure 3) contains industry-standard options additional to the core PC AT BIOS. This section describes all fields offered by Award Software in this screen. Some fields may vary from those in your Setup program. Your system board designer may omit or modify some fields.

  • Page 37: External Cache

    4. BIOS Setup 4.4.3 External Cache Cache memory is an additional memory that is much faster than conventional DRAM(system memory). When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. The External Cache field may not appear if your system does not have external cache memory.

  • Page 38: Boot Up Numlock Status

    4. BIOS Setup 4.4.11 Boot Up NumLock Status Toggle between On or off to control the state of the NumLock key when the system boots. When toggled on, the numeric keypad generates numbers instead of controlling cursor operations. 4.4.12 Gate A20 Option This entry allows you to select how the gate A20 is handled.
  • Page 39 4. BIOS Setup Shadowing copies firmware from ROM into system RAM, where the CPU can read it through the 16-bit or 32-bit DRAM bus. Firmware not shadowed must be read by the system through the 8-bit X-bus. Shadowing improves the performance of the system BIOS and similar ROM firmware for expansion peripherals, but it also reduces the amount of high memory (640 KB to 1 MB) available for loading device drivers, etc.

  • Page 40: Advanced Chipset Features Setup Menu

    4. BIOS Setup 4.5 Advanced Chipset Features Setup Menu CMOS Setup Utility – Copyright © 1984-1999 Award Software. Advanced Chipset Features Enabled Item Help System BIOS Cacheable Enter Sub- Move to items Enabled Video RAM Cacheable Menu Level Menu Disabled Memory Hole At 15M-16M AGP Aperture Size (MB) Enabled...

  • Page 41: Sdram Ecc Setting

    4. BIOS Setup 4.5.5 SDRAM ECC Setting This item allows you to select among three methods of memory error checking: Auto, Enabled and Disabled. 4.5.6 SDRAM CAS Latency The choices are 2 and 3 (default). This feature appears only when SDRAM DIMMs are installed (BIOS auto detection).

  • Page 42: Ide Primary/Secondary Master/Slave Udma

    4. BIOS Setup 4.6.3 IDE Primary/Secondary Master/Slave UDMA Ultra DMA 33/66 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA 33/66, select Auto to enable BIOS support.

  • Page 43: Onboard Parallel Port

    4. BIOS Setup I/O address. The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto. 4.6.11 Onboard Parallel Port This item allows you to determine access onboard parallel port controller with which I/O address. The choice: 378H/IRQ7, 278H/IRQ5, 3BC/IRQ7, Disabled. 4.6.12 Parallel Port Mode (Activated by Onboard Parallel Port) Select an operating mode for the onboard parallel (printer) port.

  • Page 44: Power Management Setup Menu

    4. BIOS Setup 4.7 Power Management Setup Menu CMOS Setup Utility – Copyright © 1984-1999 Award Software. Power Management ACPI function Enabled Item Help Enter Sub- Move to items Power Management User Define Menu Level Menu Video Off Method DPMS Support Suspend Type PwrOn Suspend Standby Mode...

  • Page 45: Video Off Method

    4. BIOS Setup Min Saving Minimum power savings. Inactivity period is 1 hour in each mode (except the hard drive). 4.7.3 Video Off Method Determines the manner in which the monitor is blanked. System turns off vertical and horizontal synchronization ports and V/H SYNC+Blank writes blanks to the video buffer.

  • Page 46: Modem Use Irq

    4. BIOS Setup an incoming call or not. It requires a PCI add-in network interface card with remote wakeup capabilities. Please set this option to enable RI resume and WOL. 4.7.10 Modem Use IRQ This determines the IRQ in which the MODEM can use. The choices are: 3, 4, 5, 7, 9, 10, 11, NA.

  • Page 47: Pnp/Pci Configuration Setup Menu

    4. BIOS Setup 4.8 PnP/PCI Configuration Setup Menu CMOS Setup Utility – Copyright © 1984-1999 Award Software. Pnp/PCI Configuration PnP OS Installed Item Help Enter Sub- Move to items Reset Configuration Data Disabled Menu Level Menu Resources Controlled By Auto (ESCD) Select Yes if you are IRQ Resources Press Enter...

  • Page 48: Pc Health Status Menu

    4. BIOS Setup 4.9 PC Health Status Menu CMOS Setup Utility – Copyright © 1984-1999 Award Software. PC Health Status Menu CPU Warning Temperature 60°C/140°F Item Help Enter Sub- Move to items Current System Temp. 40°C/104°F Menu Level Current CPU1 Temperature 24°C/93°F Menu Current CPUFAN1 Speed...

  • Page 49: Frequency/Voltage Control Setup Menu

    4. BIOS Setup 4.10 Frequency/Voltage Control Setup Menu CMOS Setup Utility – Copyright © 1984-1999 Award Software. Frequency/Voltage Control Autu Detect DIMM/PCI Clk Enabled Item Help Enter Sub- Move to items Spread Spectrum Modulated 1.0%(Down) Menu Level CPU Host/PCI Clock 133/33MHz Menu Exit to Main...

  • Page 50: Set Supervisor Password

    4. BIOS Setup 4.12 Set Supervisor Password The BIOS Setup will not be accessible unless you enter the correct password. Select this function and press “Enter”, the screen will display a start symbol instead of the characters entered. After the new password is entered, type the new password as prompted and press “Enter”...
