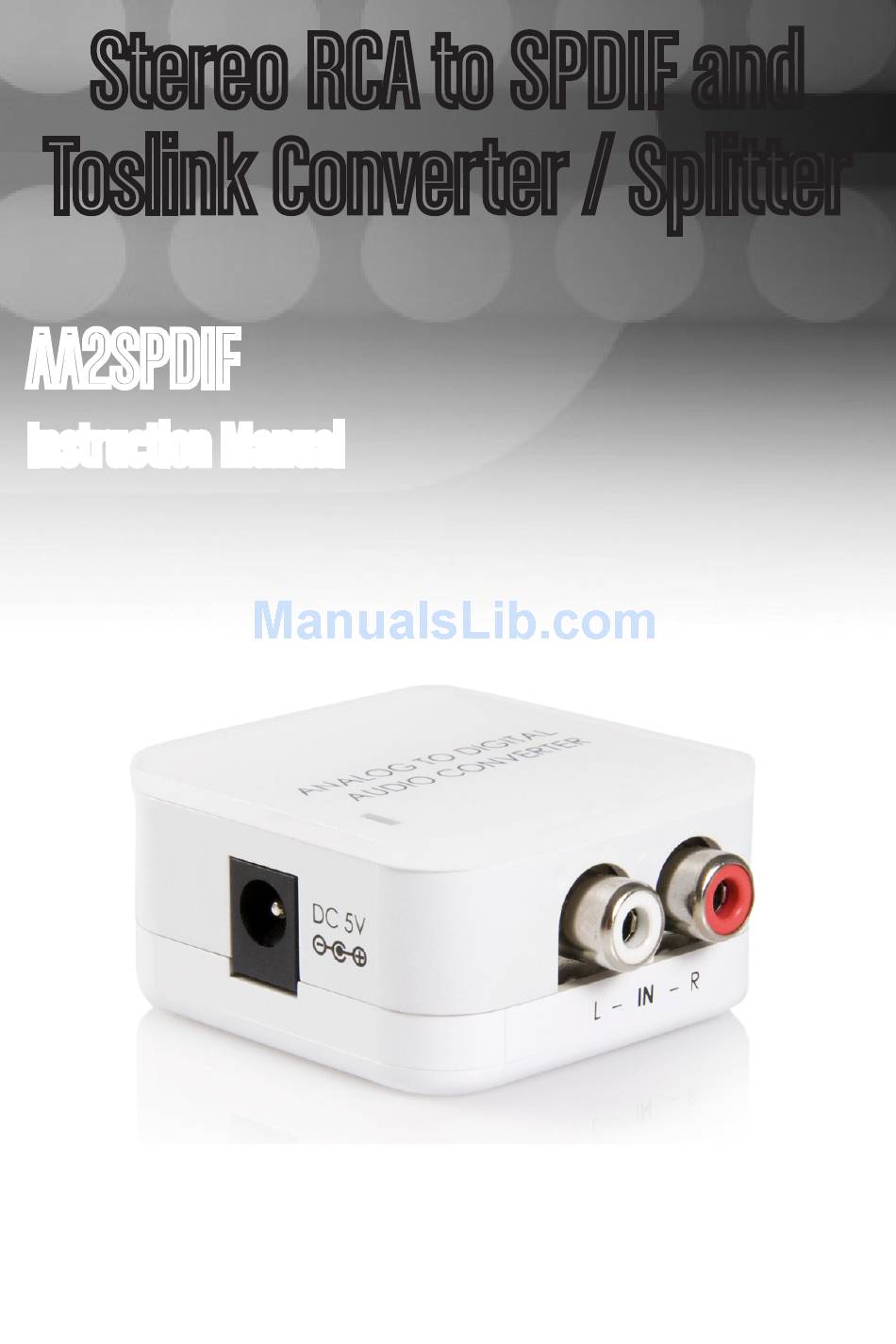

- Page 1 Stereo RCA to SPDIF and Toslink Converter / Splitter AA2SPDIF Instruction Manual...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Features..................1 Package Contents ..............1 Hardware Guide ............... 2 Front View...................2 Rear View ..................2 Side View ..................3 Installation ............... 3 Specifications ..............4 Technical Support ............5 Warranty Information ............5... -
Page 4: Introduction

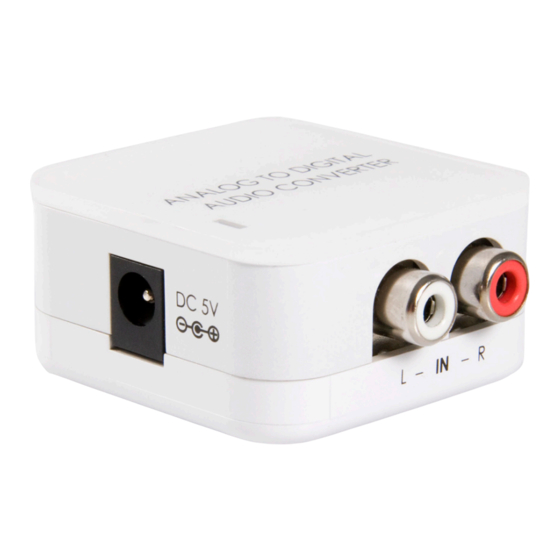

Instruction Manual Introduction Thank you for purchasing a StarTech.com AA2SPDIF Analog to Digital Audio Converter. This Analog to Digital Audio Converter is designed to convert analog stereo audio signals from L/R input to Coaxial S/PDIF and Toslink Optical outputs, simultaneously. The output digital audio signal created is a 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. -
Page 5: Hardware Guide
Instruction Manual Hardware Guide Front View L/R Analog Audio Input Ports Rear View Coaxial Audio Output Port Toslink (Optical Fiber) Output Port... -
Page 6: Side View
Instruction Manual Side View Power Input Port Installation Amplifier A/V Receiver Coaxial Optical DVD Player... -
Page 7: Specifications
Instruction Manual Specifications Specification AA2SPDIF Input Ports Stereo R/L Output Ports 1 x TOSlink (Optical Fiber) 1 x Coaxial Power Supply 5V/0.36~0.5A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 57(W) x 45.5(D) x 23.5(H) Weight (g) Operating Temperature Operating from 0°C ~ 48°C... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 9 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
