10BaseT Connecting Cable
The 10BaseT port terminates with an RJ45 connector which can be
connected to the 10BaseT port on another device. The table below

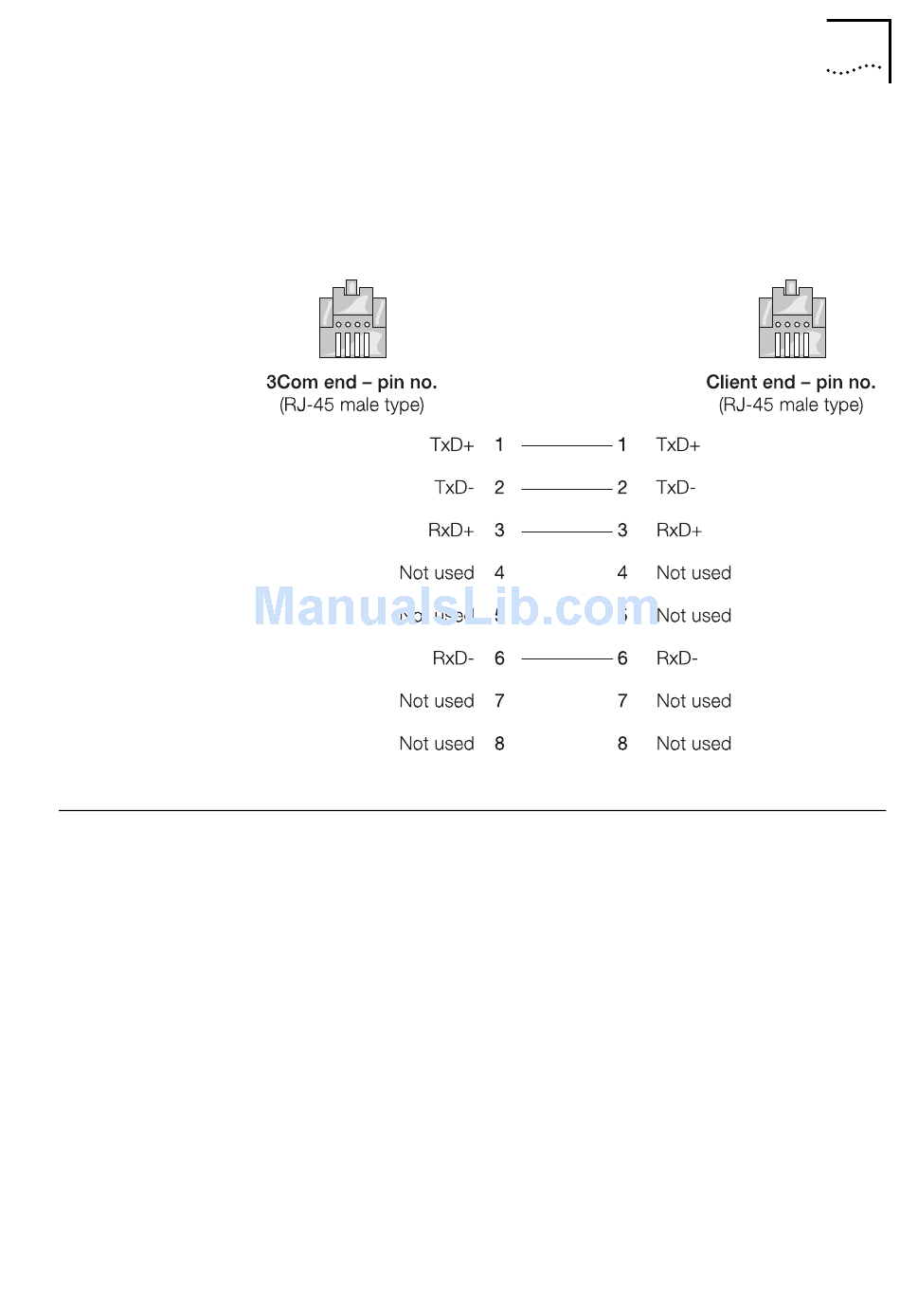

shows the pin-outs for a straight through cable.
ISDN Port Cable Pin Assignments
Basic Rate ISDN connections use the same cable as 10BaseT
connections. For information on Primary Rate ISDN connections, see
the AccessBuilder 7000 PRI Interface Module User Guide.
ISDN Port Cable Pin Assignments
A-5
