Installing the Front Card

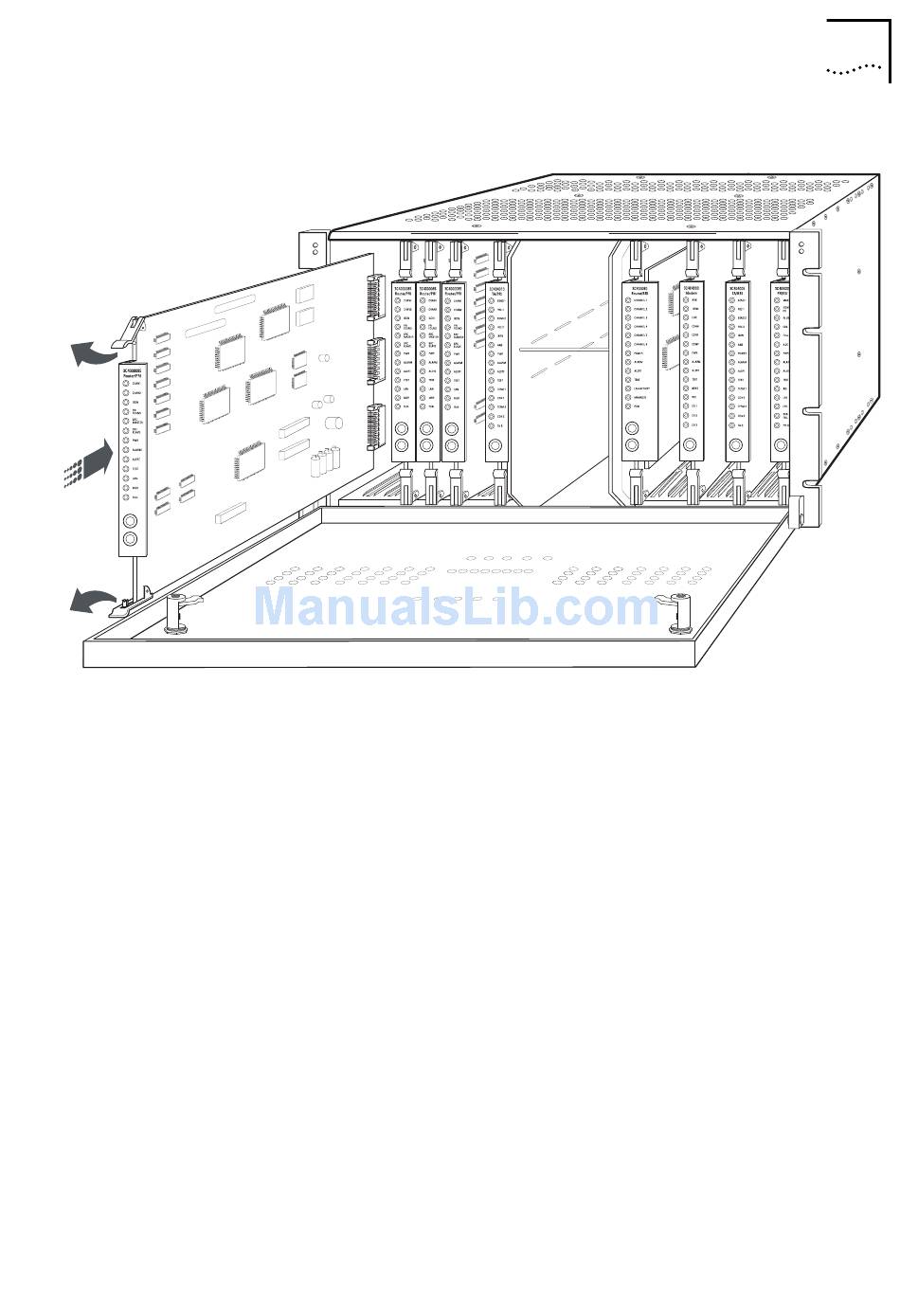

Figure 2-2 Example Of Installing A Front Card

1 Locate the front slot in the AccessBuilder 7000 chassis equivalent to the

rear slot in which you have already installed the rear card.

2 Insert the front card into the slot ensuring that it is centered along the

guide rails.

3 Use the module's handles to push the card gently but firmly home into

the chassis and lock it into place.

4 Close and lock the chassis door.

To remove the card, unlatch the handles to free the card from the back

plane and pull the front card free from the chassis using the handles.
