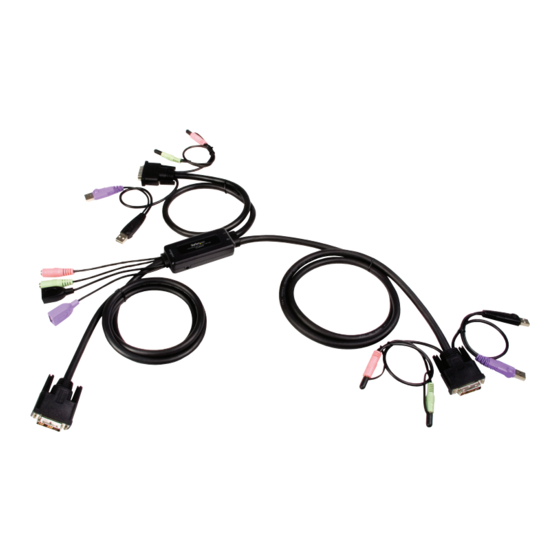

2 Port USB DVI Cable KVM Switch with Audio
SV215MICDVIA
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/31/2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com SV215MICDVIA
Summary of Contents for StarTech.com SV215MICDVIA
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/31/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ...................1 Package Contents ............................. 1 System Requirements ................1 Console Requirements ..........................1 Computer Requirements ........................1 Hardware Guide ..................2 Hardware Review ...................3 Keyboard Emulation Mapping ......................3 Installation ....................4 Operation ....................5 Manual Port Selection ..........................5 Invoking Hotkey Mode .......................... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com SV215MICDVIA 2 Port DVI + USB Cable KVM Switch with Audio. Supporting superior video quality with resolutions of up to 1920x1200, this KVM On-a-Cable switch is an ideal solution to access and control two desktop computers, while eliminating wasted deskspace. -
Page 5: Hardware Guide
* The cable connecting the Master unit to Host 1 is 24”, while the cable connecting the Console unit to Host 2 is 47”. To link the SV215MICDVIA to the console display unit, use a Male-Male DVI cable to connect the Console display connector to the DVI port on the display device being used. -
Page 6: Hardware Review
Hardware Review Keyboard Emulation Mapping Mac Keyboard To initialize Mac keyboard mapping, please execute the following hotkey sequence: [scroll],[scroll], [F2], [Enter] [ctrl] [ctrl] [F2] [Enter] Once this has been done, the following keyboard mapping will apply: PC Keyboard Mac Keyboard PC Keyboard Mac Keyboard [Shift]... -
Page 7: Installation
Installation Before you begin, ensure that the power to all the devices you will be connecting has been turned off. You must unplug the power cords of any computers that have the Keyboard Power On function. Otherwise, the switch will receive power from the computer. -
Page 8: Operation
Operation Manual Port Selection Port Selection Button Press the port selection button to toggle the KVM and Audio focus between the two computers. The Port LED will illuminate indicating that the corresponding port is currently selected. Note: Do not switch ports while a USB device (printer, external drive, etc.) is in progress. Switching ports will terminate the operation. -
Page 9: Hotkey Summary Table
Hotkey Summary Table Hotkey Sequence Action Toggles the KVM and Audio focus between the two ports. [Scroll Lock] [Scroll Lock] [Enter] Note: If the KVM and Audio focus are on different ports, only the KVM focus switches. [Scroll Lock] [Scroll Lock] Toggles the hotkey invocation key between the [x] [Enter] Scroll Lock key and the Control key... -
Page 10: Specifications
Specifications Function Specification Computer Connections Keyboard 1 x USB Type A Female (Purple) Video 1 x DVI Male (Black) Console Mouse 1 x USB Type A Female (Black) Ports Speaker 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Connectors Keyboard 2 x USB Type A Male (Purple) -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
