Installation, cont'd

Installation instructions

For optional rack mounting, mount the SW VGArs / Ars Series
on an optional RSU 129 1U Universal Rack Shelf
(part #60-190-01) or RSB 129 1U Basic Rack Shelf
(part #60-604-01) (figure 2-1). The switcher mounts either to the
right or to the left at the front of the rack.
RSU 129 1U Universal Rack Shelf
Front false
faceplate
uses 2
screws.
Use 2 mounting holes on
opposite corners.

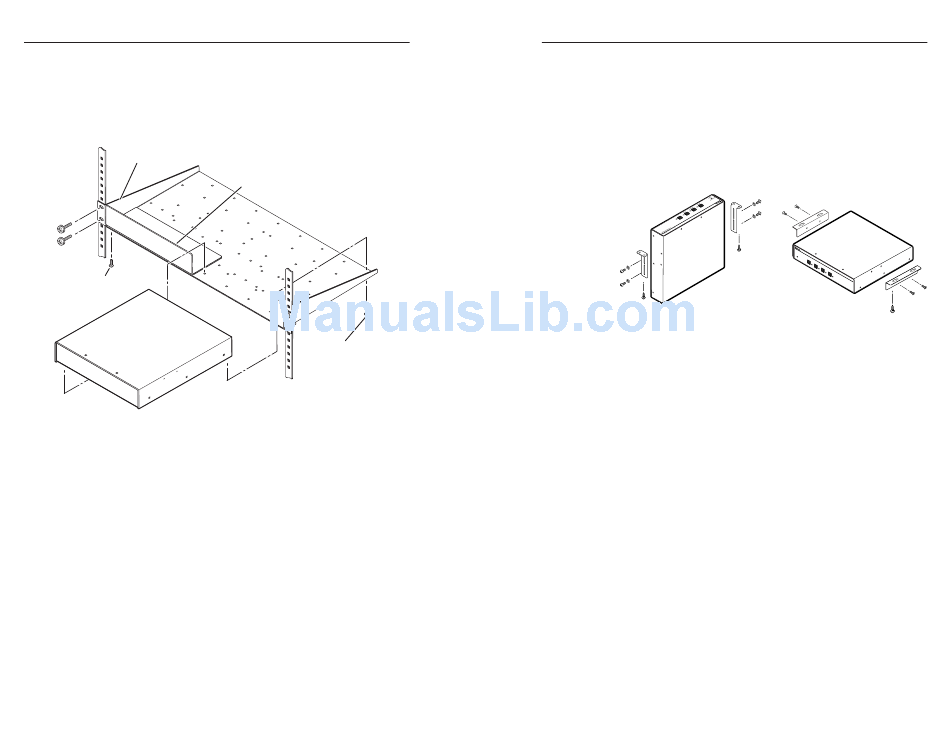

Figure 2-1 — Rack-mounting the switcher
If rubber feet were previously installed on the bottom of the
1.
switcher, remove them.
Mount the SW VGArs / Ars Switcher on the rack shelf,
2.
using two 4-40 x 3/16-inch screws in opposite (diagonal)
corners to secure the switcher to the shelf (figure 2-1).
Attach a blank panel or other unit(s) to the rack shelf.
3.
Insert the shelf into the rack, aligning the holes in the shelf
4.
with those of the rack.
Secure the shelf to the rack using the supplied machine
5.
screws.
2-4 SW VGArs / Ars Series Switchers • Installation
1/2 Rack Width Front False
Faceplate
(2) 4-40 x 3/16"
Screws
NOTE:
Using screws longer
than 3/16" will damage the
unit and void the warranty.

Furniture mounting

All of the switcher models can be mounted under furniture,
such as a table or podium surface, using optional MBU 125
under-desk mounting brackets (#70-077-01). All models can
also be mounted through a table or podium, using optional
MBD 129 through-desk mounting brackets (#70-077-02).
Furniture mount the switcher as follows:
Attach the mounting brackets to the switcher with the
1.
provided machine screws (figure 2-2).
Through Desk Kit
Figure 2-2 — Under surface or through surface
mounting
For through-surface mounting, cut the proper sized hole in
2.
the mounting surface.
For through-surface mounting, hold the switcher with the
3.
attached brackets against the underside of the table or other
furniture. Mark the location of the screw holes of the
bracket on the mounting surface.
For through-surface mounting, drill four 3/32-inch (2 mm)
4.
diameter pilot holes, 1/4 inch (6.3 mm) deep in the
mounting surface at the marked screw locations.
For through-surface mounting, insert four #8 wood screws
5.
through the bracket and into the four pilot holes. Tighten
all four screws to secure the switcher in place.
For under-surface mounting, insert #8 wood screws into
6.
the four pilot holes. Tighten each screw into the mounting
surface until just less than 1/4 inch of the screw head
protrudes.
For under-surface mounting, align the mounting screws
7.
with the slots in the brackets and place the switcher against
the surface, with the screws through the bracket slots.
For under-surface mounting, slide the switcher slightly
8.
forward or back, then tighten all four screws to secure the
switcher in place.
SW VGArs / Ars Series Switchers • Installation
AU
TO SW
ICH
AC TIV
E
1
MO 2
DE
NO 3
RM
AL
AU 4
TO
SW
VG
A /A
VG rs
A/A SE
UD R IE
IO SW S
ITC
HE
R
Under Desk Kit
2-5
