Installation, cont'd

Configuring the switcher

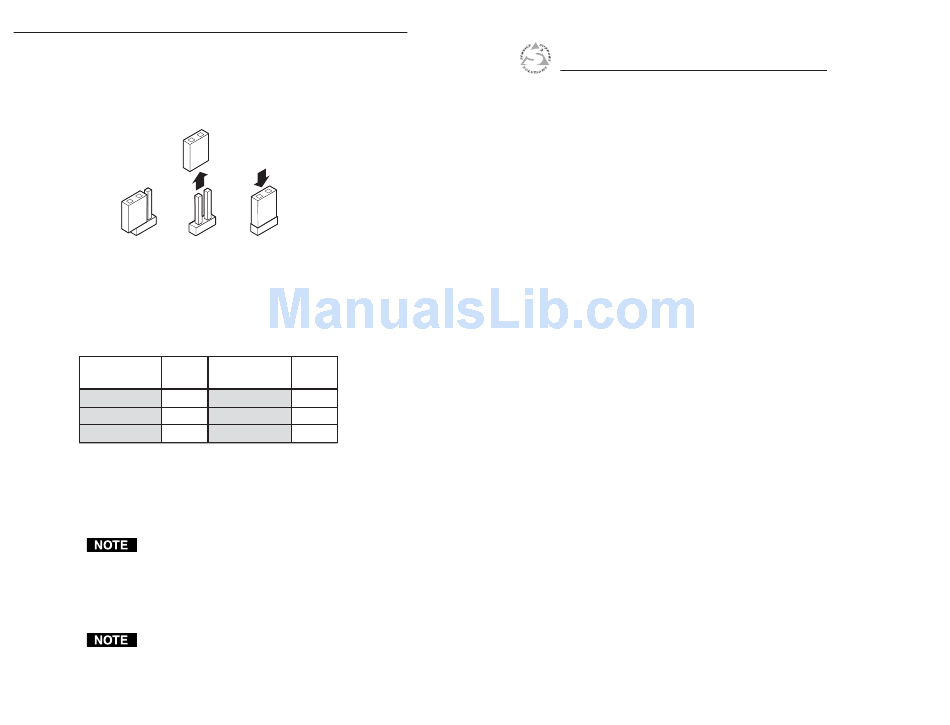

There are six jumpers on the circuit board, numbered JMP5,
JMP7, JMP9, JMP11, JMP 13, and JMP15, that control connection
with one or more VSW I AAP control panels (figure 2-9 and
figure 2-10).
OPEN
All jumpers are set open (removed) by default.
The jumpers in the table below must be set closed
(installed) when a VSW I AAP is connected to the
associated input.
Close the indicated jumpers in the table below
to adjust the appropriate settings.
VSW I AAP
connected to: Jumper
Input 1
JMP5
Input 2
JMP7
Input 3
JMP9
Figure 2-10 — Jumper positions vs. VSW I AAP
input connections
These jumpers enable/disable VGA connector pin 5 (control) for
each input. Close (install) the jumper for a specific VGA input
to allow the VSW I AAP's "show me" signal to select that input.
When an input is not connected via a VSW I AAP, that
input's jumper should be in the default (open) position.
Each jumper, when closed (installed) allows the switcher to
receive the "show me" signal from the VSW I AAP on that
input's VGA connector. When a jumper is open (removed) that
input cannot receive the signal.
Auto switch mode must be disabled when using the
switcher with one or more VSW I AAP remote controls.
If the auto switch mode is enabled, the input cannot be
selected using the "show me" function.
SW VGArs / Ars Series Switchers • Installation
2-12
CLOSED
VSW I AAP
connected to: Jumper
Input 4
JMP11
Input 5
JMP13
Input 6
JMP15
SW VGArs / Ars Series Switchers
Chapter Three
Front Panel Controls and Indicators
3
Operation
Front Panel Operations
