Modem); Network) - HP Compaq 6910p Maintenance And Service Manual

Hide thumbs Also See for Compaq 6910p:
Table of Contents

Advertisement

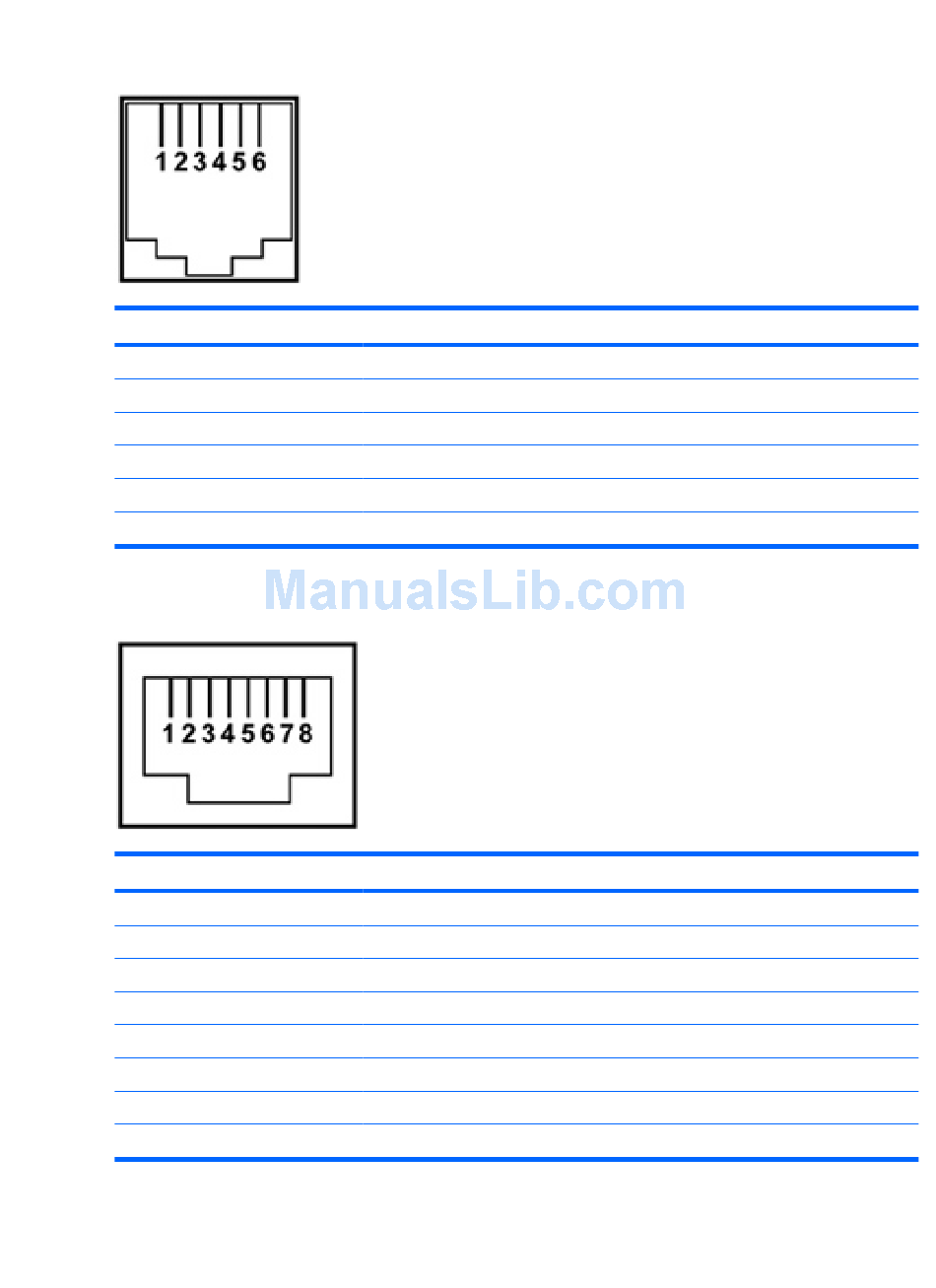

RJ-11 (modem)
Pin
1
2
3
4
5
6
RJ-45 (network)
Pin
1
2
3
4
5
6
7
8
Signal
Unused
Tip
Ring
Unused
Unused
Unused
Signal
Transmit +
Transmit -
Receive +
Unused
Unused
Receive -
Unused
Unused
RJ-11 (modem) 143
