HP Compaq 6910p Quickspecs

Notebook pc
Hide thumbs Also See for Compaq 6910p:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs

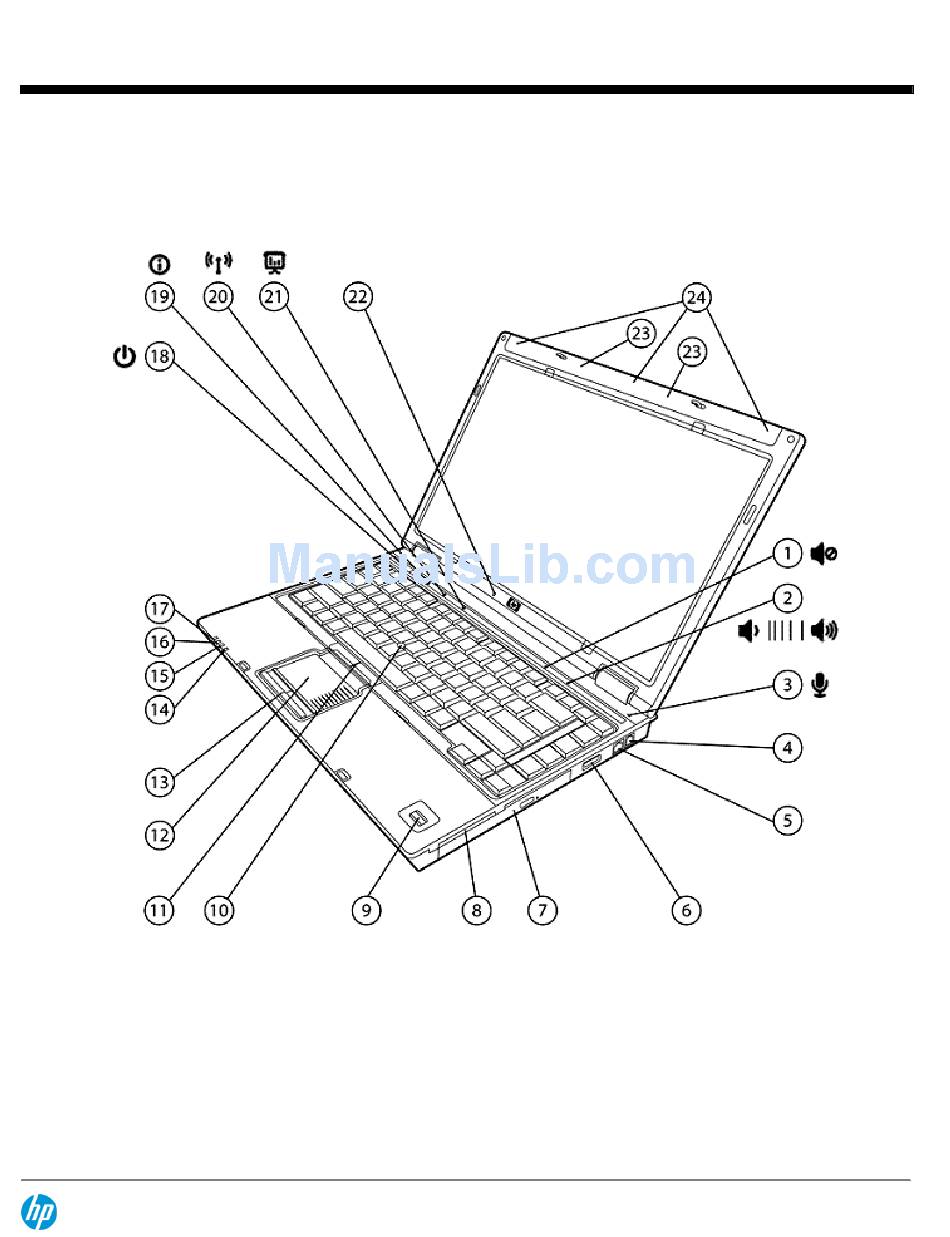

Overview
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Integrated microphone
4.
RJ-11/modem port
5.
RJ-45/Ethernet port
6.
USB 2.0 port
7.
Optical drive
8.
Integrated Smart Card Reader
9.
HP Fingerprint Sensor
10.
Pointstick
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
DA - 12699 EMEA — Version 17 — March 17, 2008
HP Compaq 6910p Notebook PC
HP recommends Windows Vista
Business
Touchpad buttons
Hard drive activity / HP 3D DriveGuard LED
Battery charging LED
Power/standby LED
Wireless on/off LED
Power button with LED
HP Info / HP QuickLook button with LED indicator
Wireless on/off button with LED indicator
HP Presentation button with LED indicator
Ambient Light Sensor
®
Page 1

Advertisement

loading

Related Manuals for HP Compaq 6910p

Summary of Contents for HP Compaq 6910p

  • Page 1 Wireless on/off LED USB 2.0 port Power button with LED Optical drive HP Info / HP QuickLook button with LED indicator Integrated Smart Card Reader Wireless on/off button with LED indicator HP Fingerprint Sensor HP Presentation button with LED indicator...
  • Page 2 12. Secure Digital (SD) slot Type I/II PC Card slot 13. Fast Infrared port PC Card eject button 14. Hard drive activity / HP 3D DriveGuard LED VGA/external monitor connector 15. Battery charging LED S-Video TV out 16. Power/standby LED 17.
  • Page 3 Up to 160-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Enhanced reliability with HP DuraKeys and HP DuraFinish Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, external volume up, volume down, and mute...

  • Page 4: Standard Features

    QuickSpecs HP Compaq 6910p Notebook PC Standard Features Processors Intel Core 2 Duo Processor T9300 (2.50 GHz, 6 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T8300 (2.40 GHz, 3 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T8100 (2.10 GHz, 3 MB L2 cache, 800 MHz FSB)* Intel Core 2 Duo Processor T7700 (2.40 GHz, 4 MB L2 cache, 800 MHz FSB)*...
  • Page 5 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 6 QuickSpecs HP Compaq 6910p Notebook PC Standard Features Wireless Devices Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Wireless LAN is factory configurable or available as an option to be added later.
  • Page 7 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, and comfort-dished keycaps. HP DuraKeys is a clear coating applied over the notebook keyboard that helps protect the finish and the printed characters on the keys. HP DuraFinish helps protect the finish on the keyboard deck, graphics, and icons from normal wear and tear.
  • Page 8 QuickSpecs HP Compaq 6910p Notebook PC Standard Features Interfaces PC Card slot One Type I/II PC Card slot Smart Card Reader External monitor One – VGA 1394a Stereo microphone in Stereo headphone/line Power connector RJ-11/modem RJ-45/Ethernet Fast Infrared Port One (4-Mb/s support) IrDA 4-MB compliant;...
  • Page 9 HP Backup and Recovery Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes Manager corrupted or if important information is accidentally deleted.
  • Page 10 Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries.
  • Page 11 ** HP Advanced Docking Station only Service and Support HP Services includes a three year standard parts and labor warranty; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available. For HP Care Pack services see http://www.hp.com/go/lookuptool.

  • Page 12: Warranty

    QuickSpecs HP Compaq 6910p Notebook PC Standard Features Power External 90W adapter Warranty 3/3/0 * Intel's numbering system is not a measurement of higher performance. ** At initial boot, either 32- or 64-bit can be selected. This is a one time selection and the other version will be deleted.
  • Page 13 QuickSpecs HP Compaq 6910p Notebook PC Standard Features 6910p Processor Intel Core 2 Duo Processor T7500* (2.20-GHz, 800-FSB, 4-MB L2 cache) SKU Part# GH719AW#XXX Intel Centrino with vPro Enabled (may vary based on local technology regulatory requirements) Operating System Genuine Windows Vista Business**...
  • Page 14 MultiBay II Storage HP MultiBay II DVD-ROM Drive PA849A (9.5-mm) HP MultiBay II DVD/CD-RW Combo Drive PA850A HP MultiBay II DVD+/-RW SuperMulti DL Drive PA851A HP 80-GB 5400rpm MultiBay II Hard Drive PH357A Other Storage HP 120-GB 5400rpm Primary SATA Hard Drive...
  • Page 15 QuickSpecs HP Compaq 6910p Notebook PC Options Security HP PC Card Smart Card Reader with 1 Java Card EL347AA HP ProtectTools Java Card – 10 units EL348AA HP/Kensington MicroSaver Security Lock PC766A Input/Output Devices HP PS/2 Keyboard (EMEA) DT527A#xxx HP USB Keyboard (EMEA)
  • Page 16 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

  • Page 17: Internal Storage Device

    Drive* MultiBay II DVD+/-RW SuperMulti DL MultiBay II Drive* * MultiBay II drives supported in the internal MultiBay II are also supported in the optional HP Advanced Docking Station, or HP External MultiBay II. Internal Storage Device Quantity Supported Drive Bay...

  • Page 18: Technical Specifications

    QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications System Unit Dimensions (HxWxD) 1.1 in (at front) x 13.0 in x 9.4 in 29 mm (at front) x 330 mm x 239 mm Weight with MultiBay II weight-saver and 4- 4.5 lb (2.0 kg)
  • Page 19 BNCI or BELUS GOST Saudi Arabian Compliance (ICCP) SABS UKRSERTCOMPUTER For accessibility information on HP products, please visit http://www.hp.com/accessibility. HP 90W Smart AC Adapter Dimensions 5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm) Weight 0.86 lb (390 g)
  • Page 20 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Optional HP Ultra- Dimensions (H x W x L) 1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm) Capacity Battery Weight 1.77 lb (0.803 kg) Cells/Type 12-cell Lithium-Ion Energy...
  • Page 21 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications 4-Cell (37WHr) Lithium- Dimensions (H x W x L) 0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm) Ion battery Weight 0.55 lb (0.249 kg) Cells/Type 4-cell Lithium-Ion Energy...
  • Page 22 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications 14.1-inch WXGA+ anti- Active Area (W x H) 11.9 x 7.5 in (30.3 x 19.0 cm) glare Diagonal Size 14.1 in (35.7 cm) Surface Treatment Anti-glare Contrast Ratio 300:1 (typical) Refresh Rate...
  • Page 23 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications 120-GB 7200 rpm SATA Drive Weight Capacity Height Width Interface Transfer Rate Synchronous (maximum) Seek Time Single Track (typical reads, including Average settling) Maximum Rotational Speed Logical Blocks Operating Temperature Features 80-GB 7200 rpm SATA Drive Weight 0.25 lb (113 g)
  • Page 24 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications 160-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 25 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications 80-GB 5400 rpm SATA Drive Weight 0.22 lb (101 g) Capacity 80 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-7 / SATA 1.0a Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
  • Page 26 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications DVD/CD-RW Combo Drive Dimensions 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm) Weight 0.45 lb (205 g) Access Times Random <120 ms CD <155 ms DVD Max Data Transfer Rate...
  • Page 27 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Max Media Capacity 8.5 GB (write) Transport Tray Loading 80-GB 5400 rpm MultiBay MultiBay II Drive Adapter Dimensions (H x W x D) 0.37 x 5.51 x 5.04 in (0.95 x 14.0 x 12.8 cm)
  • Page 28 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Hardware Implementation ADI1981HD High Definition CODEC Touch-Sensitive Volume Volume up, volume down, and mute Controls Full Duplex Sound Blaster Pro compatible Microphone In Stereo Headphone/Line Out Stereo Integrated Microphone Audio Output Quality Frequency Response 20 Hz –...
  • Page 29 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Intel Advanced Management Technology (iAMT) Interface PCI Express x1 NIC Device Driver Name Intel 82566MM Gigabit Network Connection Drivers Available Microsoft Windows Vista Microsoft Windows XP V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard...
  • Page 30 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications HP hs2300 HSDPA Frequency Bands and 850/1900/2100MHz WCDMA Power class 3 (+24dBm) Broadband Wireless Power Class 850MHz GSM/GPRS/EDGE Module 900MHz GSM/GPRS/EDGE, 1800MHz GSM/GPRS/EDGE 1900MHz GSM/GPRS/EDGE EDGE E2 power GPRS/EDGE Multislot Class 12...

  • Page 31: Configuration Utilities

    QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications LED Activity LED Off – Radio Off; Solid LED On – Radio On Configuration Utilities Varies per country and mobile network operator Intel PRO/Wireless Wireless LAN Standards IEEE 802.11b IEEE 802.11g 3945BG Network...
  • Page 32 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Dimensions 0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm) Operating Voltage 3.3V +/- 9%, 1.5V +/- 5% Temperature Operating 32° to 176° F (0° to 80° C) Non-operating –40°...
  • Page 33 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points Output Power (for CKK) 15 dBm Output Power (for OFDM;...

  • Page 34: Configuration Utility

    QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
  • Page 35 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points Output Power (for CKK) 15 dBm Output Power (for OFDM; 15 dBm power varies by data rate) Power Consumption Transmit: 2.3 Watts (average, with two spatial streams)
  • Page 36 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
  • Page 37 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Power Consumption Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode : 390 mW (nominal) Sleep mode: 20 mW (max) Power Management ACPI compliant power management 802.11 compliant power saving mode...
  • Page 38 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications 802.11b/g WiFi Adapter Interoperability Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
  • Page 39 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Altitude Operating 0 to 10,000 ft (3,048 m) Non-operating 0 to 50,000 ft (15,240 m) Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager...
  • Page 40 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Sub-channels Multinational support with frequency bands and channels compliant to local regulations. Media Access Protocol CSMA/CA (Collision Avoidance) with ACK Network Architecture Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Models Roaming IEEE 802.11 compliant roaming between access points...
  • Page 41 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Configuration Utility Microsoft Windows 2000 or XP Choice of Configuration Utility: Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support) Microsoft Windows Vista Microsoft Windows Vista Wireless Network Connection Manager LED Activity LED Off –...
  • Page 42 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Power Management Microsoft Windows ACPI, and USB Bus Support Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff Certifications All necessary regulatory approvals for supported countries, including: FCC (47 CFR) Part 15C, Section 15.247 &...
  • Page 43 QuickSpecs HP Compaq 6910p Notebook PC Technical Specifications Environmental Data Eco-Label Certifications This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks: ENERGY STAR 4.0...
  • Page 44 HP Compaq 6910p Notebook PC Technical Specifications Substances (RoHS) Directive – 2002/95/EC. information: This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Keyboard complies with ISO standard: ISO 9995, EN 29241-4, and ISO/IEC 15412 Input devices of this product comply with ISO 9241, part 9.
  • Page 45 Please go to: http://www.hp.com/recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. Hewlett-Packard For more information about HP's commitment to the environment:...
  • Page 46 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
