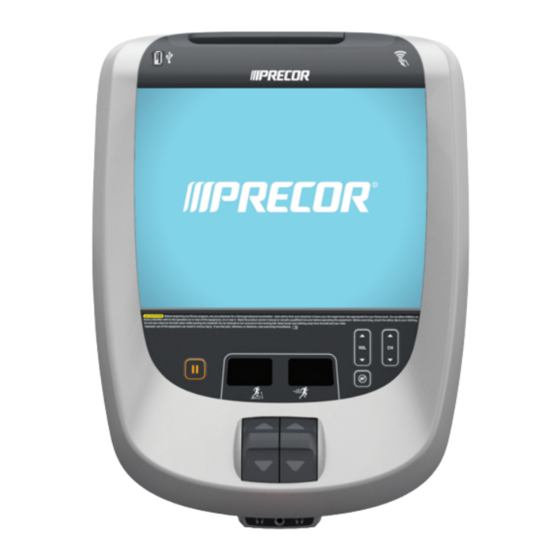

To reset the Precor P80 treadmill screen, try the following steps:

1. Unplug the treadmill from the power source.
2. Wait for a few minutes.
3. Plug the treadmill back in.
4. Try resetting it by toggling the stop button.

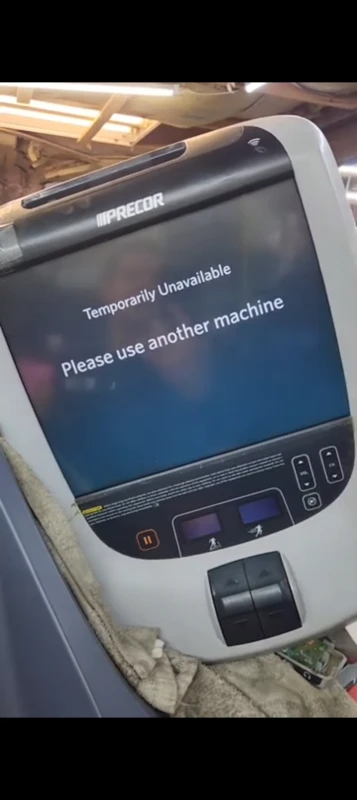

If the screen still displays "please use another treadmill," further troubleshooting may be needed.

This answer is automatically generated

Summary of Contents for Precor P80

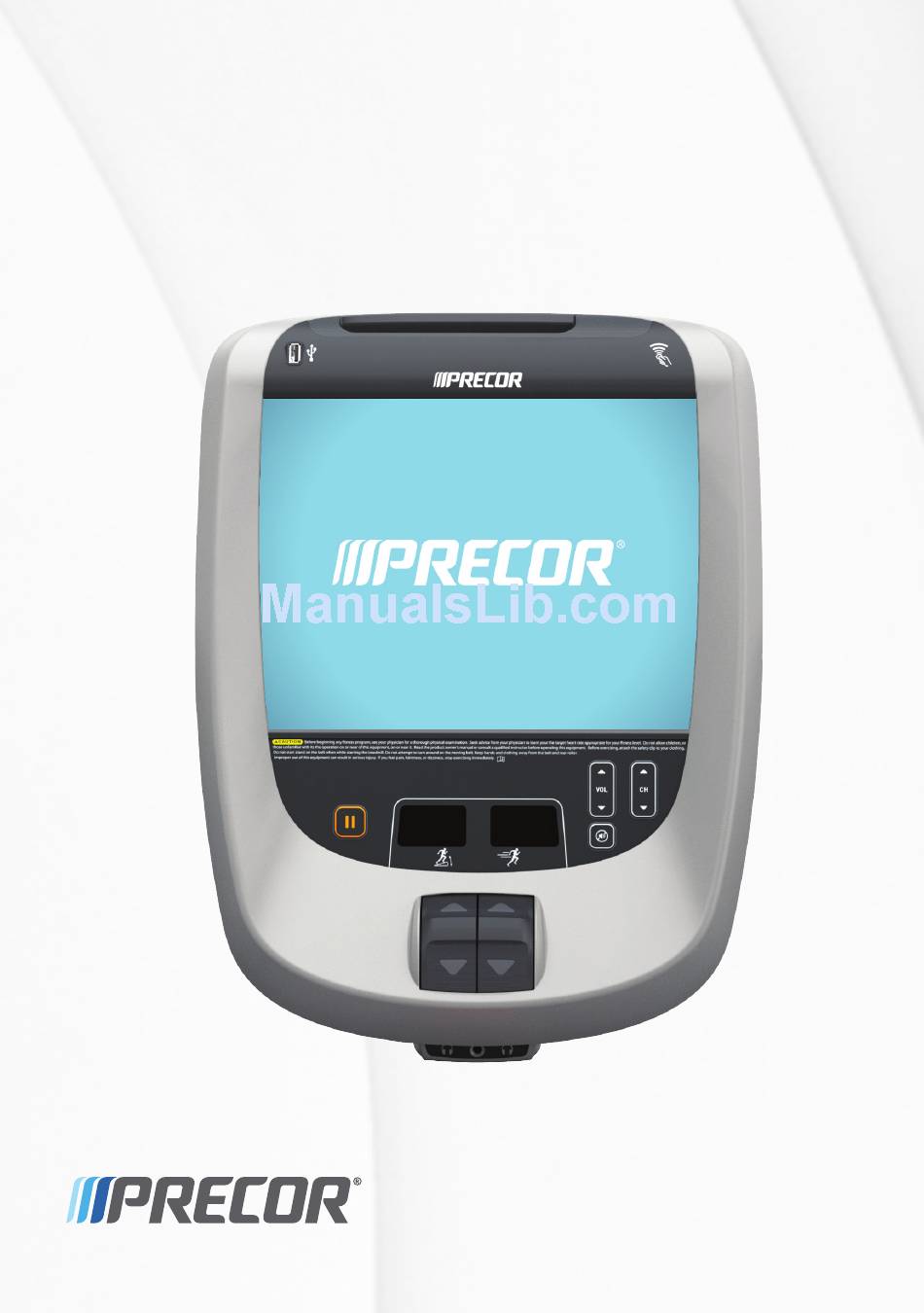

Page 1 Operating and Maintaining the P80 Console...
Page 2 ...
Page 4 P/N 303135-112 rev B Copyright © April 2014 Precor Incorporated. All rights reserved. Specifications subject to change without notice. This document applies to Preva version 4.0 and P80 console software version 4.0. Trademark Note Precor, AMT, EFX, and Preva are registered trademarks of Precor Incorporated.
Page 5 Preva Business Suite, the accompanying printed materials, any copies of such software, and all data collected via the Preva Business Suite, are exclusively owned by Precor or its suppliers, as the case may be. Precor is widely recognized for its innovative, award-winning designs of exercise equipment.
Page 7: Important Safety Instructions
Note: This product is intended for commercial use. The display apparatus (hereinafter referred to as the console) is intended to be shipped with new Precor exercise equipment (hereinafter referred to as the base unit). It is not packaged for individual sale.
Page 8: Safety Precautions
Operating and Maintaining the P80 Console Safety Precautions Always follow basic safety precautions when using this equipment to reduce the chance of injury, fire, or damage. Other sections in this manual provide more details of safety features. Be sure to read these sections and observe all safety notices.
Page 9 Important Safety Instructions  Care should be taken when mounting or dismounting the equipment. For Treadmills: Do not use typing or web surfing features  while walking at speeds that exceed a slow and relaxed leisurely pace. Always stabilize yourself by holding a stationary handle bar while using typing or web surfing features.
Page 10 Operating and Maintaining the P80 Console  SPACING—The below minimum spacing recommendations are based on a combination of the ASTM (U.S.) voluntary standards and EN (European) regulations as of October 1, 2012, for access, passage around, and emergency dismount: –...
Page 11 350 pounds (160 kg). Use the equipment only for its intended purpose as  described in this manual. Do not use accessory attachments that are not recommended by Precor. Such attachments may cause injuries. Do not operate the equipment where aerosol (spray) ...
Page 12: Hazardous Materials And Proper Disposal
The batteries within self-powered equipment contain materials that are considered hazardous to the environment. Federal law requires proper disposal of these batteries. If you plan to dispose of your equipment, contact Precor Commercial Products Customer Support for information regarding battery removal. Refer to Obtaining Service.
Page 13: Regulatory Notices For The Rfid Module
Important Safety Instructions Regulatory Notices for the RFID Module When equipped with a control console as described in this document, this equipment may include a radio-frequency identification (RFID) module. The RFID module has been certified to operate at temperatures between -20°C and 85°C (-4°F and 185°F).
Page 14: European Applications
Operating and Maintaining the P80 Console Industry Canada This device complies with RSS-210:2007 of the Spectrum Management & Telecommunications Radio Standards Specification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 15: Regulatory Notices For Cardiovascular Exercise Equipment
The regulatory information in this section applies to the exercise equipment and its control console. Safety Approvals for Cardiovascular Equipment Precor equipment has been tested and found to comply with the following applicable safety standards. Cardiovascular Type Equipment: CAN/CSA, IEC, EN 60335-1 (Household and similar ...
Page 16 Operating and Maintaining the P80 Console Industry Canada This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. ATTENTION: Haute Tension Débranchez avant de réparer European Applications...
Page 17: Electrical Recommendations: 120 V And 240 V Treadmills
You should have received a power cable that meets your local electrical code requirements along with the equipment. Precor treadmills must be connected to a 20 amp individual branch circuit that can be shared only with one PVS. If you need additional help with the power connections contact your Precor authorized dealer.
Page 18: Electrical Recommendations: All Equipment Excluding Treadmills
Code) guidelines or local region electric codes must be followed. For equipment fitted with a P80 console or Personal Viewing System (PVS) screen a separate power connection is required. For a 20 amp branch circuit up to 10 screens can be connected.
Page 19: Table Of Contents
Equipment Usage ................29 Maintenance (Treadmills Only) ............. 30 System Settings ................... 33 Introducing Users to the P80 Console ........43 Changing the Display Language ............ 44 Using the Touch Heart Rate Feature ..........44 Using a Chest Strap Transmitter ............ 46 Using Different Screen Views ............
Page 20 Operating and Maintaining the P80 Console Beginning Your Workout ............55 Starting a QuickStart™ Workout ............55 Starting a Featured Workout ............56 Starting a Preset Workout ............... 56 Ending a Workout ................58 Introducing Preva® Accounts to Your Users ......63 Maintenance ................
Page 21: Getting Started
Chapter Getting Started The P80 console offers administrators and users the ability to set default settings that meet their specific needs. To accomplish this, the console supports settings for different classes of users depending on their administrative rights. A guest user exercises on a piece of equipment without ...
Page 22: Identifying Parts Of The Console
The following figure provides information about the console keys. The number and actions of the console keys may differ slightly depending on the type of equipment. Figure 4: P80 console keys Table 1. Key descriptions for the P80 console Number Key Name Function Pause Stops the equipment Incline/CrossRamp®...
Page 23: Using The Treadmill Safety Clip
Getting Started Using the Treadmill Safety Clip The treadmill is equipped with three different stop functions, which behave as follows: If the user … Then the And the console … treadmill belt … Pulls on the lanyard Slows to a Shows the words PUSH THE attached to the safety stop...
Page 24 Operating and Maintaining the P80 Console Instruct users on how important it is to use the safety clip while exercising on the treadmill, and demonstrate how they should attach it to their clothing near the waistline. If the restart switch trips during exercise, perform the following steps: Reattach the safety clip if necessary.
Page 25 Getting Started Tip: The small, flexible tab underneath the restart switch is designed for storage of the safety clip. When the treadmill is not in use, attach the safety clip to the tab as shown in the following figure. Figure 7: Safety clip storage...
Page 26: Treadmill Auto Stop™ (Automatic Stop) Function
Operating and Maintaining the P80 Console Treadmill Auto Stop™ (Automatic Stop) Function Important: The default setting for this feature is ON. An administrator can turn off this feature in the System Settings; however, Precor recommends it remain ON. The Auto Stop™ (Automatic Stop) feature is designed to bring the treadmill to a gradual stop when it is not in use.
Page 27 Chapter Configuring the System Settings Use the System mode to configure settings in ways that benefit your users and your facility. The System menu is visible only to administrators and registered service technicians. Changes made to these settings are saved to the fitness equipment.
Page 28 Operating and Maintaining the P80 Console 2. While holding Pause, press each of the following keys once in the order presented. Referring to the diagram below, press: 1 2 3 4 Channel Up Volume Down Volume Up Channel Down Figure 9: Settings security code 3.
Page 29: Configuring The System Settings
Location Admin/Tech: Entered on console at time of View registration. Modify Release Only Precor service Shows current version and a Bundle technicians can list of past software updates. Version modify this setting. Automatically updates as part of each software upgrade.
Page 30 Operating and Maintaining the P80 Console Setting Access Detail Heartbeat Only Precor service Determines how often the Interval technicians can console communicates with modify this setting. the server. Minimum Only Precor service Minimum number of times Heartbeat technicians can that the console Interval modify this setting.
Page 31: Equipment Usage
Configuring the System Settings Equipment Usage The Equipment Usage settings provide information on individual usage as well as cumulative equipment usage. This information and these settings are accessible only to administrators and registered service technicians. To view the Usage settings: Use the administrator code and password to view the equipment settings.
Page 32: Maintenance (Treadmills Only)
Operating and Maintaining the P80 Console Maintenance (Treadmills Only) Experience Series treadmills manufactured after June 2014 include many improvements in design, function, and usability. One of those improvements is the status indicator light at the front of the treadmill hood, which gives a club owner or technician an easy way to check up on the condition of all of their treadmills.
Page 33 Pulsing blue The treadmill is due for Perform the needed scheduled maintenance, then reset the maintenance (P80 status light. console only), or the treadmill belt needs to be replaced (except for 230 V models). Steady The treadmill has Refer to the console’s event...
Page 34 Operating and Maintaining the P80 Console To change the Maintenance settings and view the treadmill’s current status: Use the administrator code and password to view the equipment settings. Note: A text message to the right of the Maintenance command provides additional information about the service the treadmill currently needs.
Page 35: System Settings
  Manage Settings Precor recommends that you configure the P80 consoles in your facility by sharing setting files. Configure one P80 console by hand for each type of fitness equipment. For example, configure one treadmill console, one EFX console, one AMT console, and so on.
Page 36 Operating and Maintaining the P80 Console Connectivity Configuring your audio, video, and network infrastructure requires expertise. Precor strongly recommends that you work with a qualified contractor to set up this infrastructure. To view connectivity information: Use the administrator code and password to view the equipment settings.
Page 37 Configuring the System Settings Display Use the Display settings to personalize language and time zone settings for your facility. To view and change the Display settings: Use the administrator code and password to view the equipment settings. 2. Touch System Settings, then Display. Table 6.
Page 38 2. Touch System Settings, then TV Settings. Channel Configurations To set up the TV channel configurations on the P80 console, scan for available channels and use the Channel Guide to edit their displayed names. Precor recommends that you set up one P80 console per...
Page 39 Configuring the System Settings To run an extensive scan: Touch System Settings. 2. On the System Settings menu, touch TV Settings. 3. Touch Extensive Scan. Note: This scan may take up to two hours to complete. 4. Touch On, then OK. 5.
Page 40 Operating and Maintaining the P80 Console To clear the Channel Guide completely: On the Channel Guide screen, touch Delete All. 2. When asked "Delete All Channels?", verify that you want to proceed, then touch Delete All again. Table 7. TV Settings...
Page 41 To edit the file and reload it: Note: You will need a utility called the Precor Channel Editor to open and modify the channel-guide.json file. To obtain a copy of the Precor Channel Editor, along with its user guide and sample files, contact Precor Customer Support (refer to Obtaining Service).
Page 42 Operating and Maintaining the P80 Console Workout Limits The Workout Limit settings give you control over how the equipment is used. Use these settings to create reasonable limitations for equipment usage including speed, incline, resistance, and duration. In general, fitness equipment use is based on its popularity with users and its availability during a site’s busiest times of...
Page 43 Precor recommends that you configure the P80 consoles in your facility by sharing settings files. The easiest way to do this is to configure one P80 console by hand for each type of fitness equipment. For example, configure one treadmill console, one EFX console, one AMT console, and so on.
Page 44 Important: You must return to the Welcome screen before you remove the USB drive. Once you have exported these settings, remove your USB drive from the console, and insert it into P80 consoles installed on similar equipment types to upload your personalized settings.
Page 45: Introducing Users To The P80 Console
Chapter Introducing Users to the P80 Console The P80 console offers clear visuals and a touch-screen layout that encourages program exploration. Multiple preset workouts are designed to help individual users meet their fitness goals, and the console keys and durable motion controls are responsive and easy to use.
Page 46: Changing The Display Language
Operating and Maintaining the P80 Console Changing the Display Language The Welcome screen appears in the default language selected for your region. If you want the display to use a different language for your workout, you can select the language you want. After your workout is complete, the screen will return to the default language.
Page 47  If the touch heart rate feature does not work for you, Precor recommends that you use a chest transmitter strap. Figure 12: Heart rate target zones CAUTION: Your heart rate should never exceed 85% of your maximum aerobic heart rate.
Page 48: Using A Chest Strap Transmitter
Operating and Maintaining the P80 Console Using a Chest Strap Transmitter WARNING Signals used by the chest strap transmitter (or heart rate strap) may interfere with pacemakers or other implanted devices. Consult your physician and the manufacturers of your chest strap transmitter and implanted device before using a chest strap transmitter.
Page 49: Using Different Screen Views
Introducing Users to the P80 Console Using Different Screen Views Important: Some Preva features are available only at facilities that subscribe to Preva. Contact Precor to update your subscription if needed. During your workout, you can switch between different types of information and entertainment on the console screen.
Page 50 Operating and Maintaining the P80 Console Changing the Media View While you are watching either a TV channel or a video clip, you can always switch to Preva Net to read a web article.The Media View button at the bottom of the screen helps you...
Page 51: Using The Workout Progress Panel
Introducing Users to the P80 Console Using the Workout Progress Panel Use the Workout Progress panel to customize your workout. This is the first panel that displays once you select a workout or touch GO. If you are on the Media panel, there are two ways to return to the Workout Progress panel.
Page 52: Using The Media Panel
Operating and Maintaining the P80 Console Using the Media Panel The Now Playing Media panel displays available media sources. Select a media source such as TV, iPod, or on-demand web video, and then use the browsing feature to listen to that media while you browse Preva Net.
Page 53 Introducing Users to the P80 Console Connecting and Using Your iPod® You can listen to your favorite music and control your iPod directly from the console. To connect your iPod: Insert the iPod into the connector at the top of the console and place your iPod securely in the pocket provided.
Page 54: Watching On-Demand Web Videos
Operating and Maintaining the P80 Console Watching On-Demand Web Videos While you work out, you can browse through a variety of fitness, music, and entertainment videos selected for you by the fitness facility and Precor. To watch on-demand web videos during your workout: Touch the Media icon at the bottom of the console screen.
Page 55: Using The Preva Net Panel
Internet browser access. You can enable or disable this function in your facility system settings. Important: Some Preva features are available only at facilities that subscribe to Preva. Contact Precor to update your subscription if needed. To open Preva Net: On the Welcome screen, touch Workouts or QuickStart to begin a workout.
Page 56 Operating and Maintaining the P80 Console 3. On the Preva Net panel, select an option. Table 11. Preva Net panel Button Action Featured Displays feeds of specific interest during a workout. Preva Displays feeds selected by the management of your Feeds facility.
Page 57: Beginning Your Workout
CAUTION: If you are using a treadmill, be sure to attach the security clip to your clothing before starting your workout. The P80 console offers many different workout options. The following sections explain the type of workouts available and how to get started using them.
Page 58: Starting A Featured Workout
Operating and Maintaining the P80 Console Starting a Featured Workout The Featured Workout appears in a panel on the Welcome Screen. Use Featured Workouts to explore the fitness benefits of preset programs and to add variety to your workout. To begin a Featured Workout, touch Go on the Featured Workout panel.
Page 59 Beginning Your Workout 4. Anytime during a workout, you can touch Pause. When touched, the workout pauses and you can choose to Resume or Finish your workout. To continue your workout, touch Resume. If you choose to finish a workout, the Workout Summary screen displays your workout status for that session.
Page 60: Ending A Workout
Operating and Maintaining the P80 Console Ending a Workout Some preset workouts have a five minute cool down period added to the end of the workout. . Cooling down is an important aspect of your workout because it helps reduce muscle stiffness and soreness by transporting excess lactic acid out of the working muscles.
Page 61 Beginning Your Workout Table 13. Examples of Personal Information settings Setting Setting Default Access Detail Options Value Over 85 Admin/ Enter age as a value • Tech: or a range. 75 - 84 • None 65 - 74 • 55 - 64 •...
Page 62 Operating and Maintaining the P80 Console Adjusting the Workout Intensity To adjust the equipment incline, speed, and/or resistance, use the motion controls located just below the console keys. Figure 18: Motion controls Adjust the motion controls, upward or downward, to change the incline, speed, or resistance.
Page 63 Beginning Your Workout Viewing Your Workout Status While Exercising The Status Bar contains status measurements and is visible across the top of the viewing screen. Information displayed in the Status Bar helps you measure how your body is responding to the exercise session. The default status measurements displayed are: Total Distance ...
Page 64 Operating and Maintaining the P80 Console Scoring Your Fitness Workout This information helps you interpret your score for the Test Your Fitness workout. The score for this test is determined by this formula: Rate of oxygen (O ) consumption, in ml per minute, modified for the user’s maximum heart rate (220 - age), divided by the user’s...
Page 65: Introducing Preva® Accounts To Your Users
Beginning Your Workout Introducing Preva® Accounts to Your Users Important: Some Preva features are available only at facilities that subscribe to Preva. Contact Precor to update your subscription if needed. Creating a Preva Account Preva is a personalized fitness experience specifically designed and built to help your users achieve their goals.
Page 66 Operating and Maintaining the P80 Console Next time you sign in on Preva-equipped fitness equipment, your Preva account information will load and you can begin your workout immediately. In addition, the Sign In key on the Welcome screen becomes a Favorites key. Use this function to save your favorite workouts so you can use them again at another time.
Page 67 Beginning Your Workout Creating a Goal Important: Some Preva features are available only at facilities that subscribe to Preva. Contact Precor to update your subscription if needed. Use the Weekly Goal panel to create a workout goal. When you set up your goal, you commit to: A target value (distance, duration, or calories) for each ...
Page 68 Operating and Maintaining the P80 Console 4. Enter the values required to meet your fitness goal, then touch Next. Table 16. Target Values Target Minimum and Maximum Values Default Distance Maximum - 50 miles / 80 km 3 miles/ Minimum - 1 mile / 1 km...
Page 69 Beginning Your Workout Tracking Your Progress Toward Your Goal Use the Weekly Goal panel to update your weekly goal, track your progress, and view your lifetime totals. The Goal Compass is a graphic summary of your weekly progress toward your goal. Figure 20: Weekly Goal progress...
Page 70 Operating and Maintaining the P80 Console Table 18. Interpreting the Weekly Progress Panel Number Setting Definition This Week’s Days remaining to reach your goal. A Progress workout week begins on Monday and ends on Sunday. When you set up your goal, you commit to...
Page 71 Beginning Your Workout Number Setting Definition Target The target marker shows how much Marker exercise you committed to completing in (blue) each workout to reach your weekly goal. Suggested If you are off pace for the week, the Target Suggested Target Marker shows how much Marker additional exercise you should complete in (yellow)
Page 72 Operating and Maintaining the P80 Console Preva Tokens Once you create a Preva account on a P80 console, you can use a Preva token to sign into that personal account. Contact Precor for more information on Preva tokens. To sign into your personal account, hold your Preva token to the token icon in the upper right corner of the console.
Page 73: Maintenance
Cleaning the Console and Display The console and screen require little maintenance once installed. Precor recommends that you clean the console and screen before and after each exercise session. To remove dust and dirt from the console: Wipe all exposed surfaces with a soft cloth that you have ...
Page 74: Changing The Belt (Amt Only)
Material Safety Data Sheet and product label. Important: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and void the Precor Limited Warranty. Never pour water or spray liquids directly on the console or console’s screen.
Page 75 ...
Page 76 P80 Getting Started Guide 303135-112 rev B Precor Incorporated April 2014 20031 142nd Avenue NE P.O. Box 7202 Woodinville, WA USA 98072-4002...
Page 77 Assembling and Maintaining TRM 800-Series Treadmills...
Page 78 ...
Page 79 Assembling and Maintaining TRM 800-Series Treadmills...
Page 80 Preva Business Suite, the accompanying printed materials, any copies of such software, and all data collected via the Preva Business Suite, are exclusively owned by Precor or its suppliers, as the case may be. Precor is widely recognized for its innovative, award-winning designs of exercise equipment.
Page 81 Note: This product is intended for commercial use. The display apparatus (hereinafter referred to as the console) is intended to be shipped with new Precor exercise equipment (hereinafter referred to as the base unit). It is not packaged for individual sale.
Page 82 Assembling and Maintaining TRM 800-Series Treadmills Safety Precautions Always follow basic safety precautions when using this equipment to reduce the chance of injury, fire, or damage. Other sections in this manual provide more details of safety features. Be sure to read these sections and observe all safety notices.
Page 83 Important Safety Instructions  Never leave the equipment unattended when it is plugged in. Unplug the equipment from its power source when it is not in use, before cleaning it, and before providing authorized service. Note: The optional power adapter is considered a power source for self-powered equipment.
Page 84 Assembling and Maintaining TRM 800-Series Treadmills  SPACING—The below minimum spacing recommendations are based on a combination of the ASTM (U.S.) voluntary standards and EN (European) regulations as of October 1, 2012, for access, passage around, and emergency dismount: – Treadmills—a minimum of 0.5 m (19.7 in.) on each side of the treadmill and 2 m (78 in.) behind the machine.
Page 85 350 pounds (160 kg). Use the equipment only for its intended purpose as  described in this manual. Do not use accessory attachments that are not recommended by Precor. Such attachments may cause injuries. Do not operate the equipment where aerosol (spray) ...
Page 86: Safety Code
The batteries within self-powered equipment contain materials that are considered hazardous to the environment. Federal law requires proper disposal of these batteries. If you plan to dispose of your equipment, contact Precor Commercial Products Customer Support for information regarding battery removal. Refer to Obtaining Service.
Page 87 Important Safety Instructions Product Recycling and Disposal This equipment must be recycled or discarded according to applicable local and national regulations. Product labels, in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE), determine the framework for the return and recycling of used equipment as applicable throughout the European Union.
Page 88 Assembling and Maintaining TRM 800-Series Treadmills Regulatory Notices for the RFID Module When equipped with a control console as described in this document, this equipment may include a radio-frequency identification (RFID) module. The RFID module has been certified to operate at temperatures between -20°C and 85°C (-4°F and 185°F).
Page 89 Important Safety Instructions Industry Canada This device complies with RSS-210:2007 of the Spectrum Management & Telecommunications Radio Standards Specification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 90: Exercise Equipment
Exercise Equipment The regulatory information in this section applies to the exercise equipment and its control console. Safety Approvals for Cardiovascular Equipment Precor equipment has been tested and found to comply with the following applicable safety standards. Cardiovascular Type Equipment: ...
Page 91: Treadmill Grounding Instructions
This plug must be inserted into an outlet that is properly installed and grounded in accordance with all local codes and ordinances. Failure to ground the treadmill properly may void the Precor Limited Warranty. DANGER Improper connection of the grounding conductor can result in a risk of electric shock.
Page 92 You should have received a power cable that meets your local electrical code requirements along with the equipment. Precor treadmills must be connected to a 20 amp individual branch circuit that can be shared only with one PVS. If you need additional help with the power connections contact your Precor authorized dealer.
Page 93 Do not attempt to service the equipment except for maintenance tasks. If any items are missing, contact your dealer. For more information regarding customer support numbers or a list of Precor authorized service centers, visit the Precor web site at http://www.precor.com.
Page 94: Obtaining Updated Documentation
Assembling and Maintaining TRM 800-Series Treadmills Obtaining Updated Documentation Current Precor product documentation is available at http://www.precor.com/productmanuals. You may want to check in for updated information from time to time.
Page 95 Installing the Console ............... 39 Positioning the Console (P80) ............40 Connecting Cables (P80) ..............42 Completing the Console Installation (P80) ......... 48 Positioning the Console (P30 and P10) ........49 Connecting Cables (P30 and P10) ..........51 Completing the Console Installation (P30 and P10) ....53 Reassembling the Treadmill Fairing ..........
Page 96 Assembling and Maintaining TRM 800-Series Treadmills Maintenance ................61 Daily Cleaning ..................61 Daily Inspection .................. 62 Weekly Maintenance ................ 65 Monthly Maintenance ..............66 Checking the Alignment of the Running Belt ......67 Adjusting the Running Belt .............. 68 Storing the Chest Strap ..............
Page 97: Assembling The Treadmill
Chapter Assembling the Treadmill Important: The instructions in the following procedures are described from the perspective of a person standing directly in front of the equipment (that is, on the opposite side of the control console from a person using the equipment). These descriptions may not match the names of certain parts in the parts list, because such parts are named relative to the back of the equipment.
Page 98: Installation Requirements
CAUTION: Do not use a non-grounded outlet or transformer. Do not remove or otherwise bypass the plug with an adapter. Electrical damage can occur and void the Precor Limited Warranty if the treadmill is connected to an improper power source.
Page 99 The hardware kit shipped with this equipment contains the fasteners and other hardware components shown in the following table. Before you begin assembly, make sure that your hardware kit is complete. If not, please contact Precor Customer Support. Fasteners Quantity ³...
Page 100 Assembling and Maintaining TRM 800-Series Treadmills Fasteners Quantity ³ ₈-inch narrow flat washers ¹ ₄-inch × ³ ₈-inch shoulder bolt Square plastic grommet Corner cover (2) Access cover (2) Note: Retrieve the cables and other hardware shipped with the console before you begin installation.
Page 101: Unpacking The Cables
 Power (P80 only)  Base unit data The first three of these cables are shipped with the P80 console. The base unit data cable is shipped inside the treadmill fairing. To unpack the cables: Open the box containing the P80 console. Retrieve the Ethernet, television, and power cables.
Page 102: Assembling The Frame
Assembling and Maintaining TRM 800-Series Treadmills Assembling the Frame DANGER Make sure that the treadmill is not connected to any power source before you begin the following procedures. Each of the upright supports on this treadmill has two internal channels: one to provide structural support and one to contain the cables.
Page 103 Assembling the Treadmill To begin assembly of the frame: Gently flex the bottom front edge of the treadmill hood forward and around the bracket at the front of the treadmill base. Lift the hood off of the treadmill base and set it aside.
Page 104 ⁷ ₃₂-inch hex wrench. If the treadmill is equipped with a P80 console, you will need to replace the power harness in the treadmill base with the replacement power harness packed with the console. The replacement harness includes an additional connection to supply power to the console’s DC power supply.
Page 105 Assembling the Treadmill 2. Connect the new power harness as shown in the following figure and table. Figure 7: P80 power harness connection points Table 1. P80 power harness connections Location Connector Drive input connector Brown lead with quick-connect terminal...
Page 106 Assembling and Maintaining TRM 800-Series Treadmills In addition to the television and Ethernet cables, the P80 console packaging also includes an accessory jack panel that you must install on the treadmill. This jack panel provides a connection point between these two cables and the networks at your facility.
Page 107 Assembling the Treadmill 3. Pass the lower end of the television cable through the right-hand grommet and attach its F-type connector to the connector on the inward side of the jack panel. Using a ⁷ ₁₆-inch torque wrench, tighten the connectors to 30 in-lb.
Page 108 Assembling and Maintaining TRM 800-Series Treadmills To attach the treadmill fairing and finish installing the cables: Detach the six ¹ ₄-inch × ³ ₄-inch self-tapping panhead screws securing the back cover on the treadmill fairing, then remove the back cover. Set the back cover and the six screws aside to be reinstalled later.
Page 109 Assembling the Treadmill 3. Route the upper end of the base unit data cable from the top of the upright support on your left (shown as position 1 in the following figure) through the spacing ring (position 2) and up through the cable channel on your left (position 3).
Page 110 The Precor Limited Warranty does not cover cables damaged by improper installation. 5. Secure the fairing assembly using six ³ ₈-inch × 1-inch buttonhead screws and six ³...
Page 111: Completing Assembly
Assembling the Treadmill Completing Assembly After the upright supports and the fairing are in place, tighten the upright support fasteners and replace the hood as described in the following procedures. WARNING Before you finish assembling the treadmill base, examine the electrical bleed line between the belt motor and the frame.
Page 112 Assembling and Maintaining TRM 800-Series Treadmills CAUTION: Be aware of the handrail extensions when you are working around the front of the unit. It is easy to bump your head or sustain other injuries if you ignore the location of the handrail extensions.
Page 113 Assembling the Treadmill To complete assembly of the treadmill base: Insert a square grommet into the square opening in each corner cover, making sure that the grommet is completely seated. Figure 16: Corner cover grommet attachment 2. Attach a corner cover to each of the lower front corners of the treadmill.
Page 114 Assembling and Maintaining TRM 800-Series Treadmills 3. Secure each corner cover in place using a ¹ ₄-inch × ¹ ₂-inch panhead self-tapping screw and tighten both screws using a #3 Phillips screwdriver. Figure 18: Corner cover attachment 4. Position the hood between the upright supports. 5.
Page 115: Leveling The Unit
Assembling the Treadmill 7. Insert one ¹ ₄-inch × ³ ₄-inch panhead self-tapping screw into each of the two side holes. Partially tighten both screws. 8. Insert one ¹ ₄-inch × 1¹ ₂-inch panhead self-tapping screw into each of the two outer holes on the front of the hood. Partially tighten both screws.
Page 116 Assembling and Maintaining TRM 800-Series Treadmills To level the treadmill: Place a bubble level across the running belt to see whether the treadmill is level. Figure 20: Bubble level placement on running belt If the Then … treadmill … Is level Make sure the jam nuts on the adjustable feet are tightened securely, then skip to the next procedure.
Page 117: Installing The Console
Chapter Installing the Console To make installation easier, all Precor Experience Series consoles use the same mounting hardware and connector locations whenever possible. The installation sequence for any of them is as follows:  Threading the console cable assembly ...
Page 118: Positioning The Console (P80)
To remove the cover, use your fingernails to pry the lower edge loose, then swing the cover up and out as shown in the following illustration. Figure 21: Removing the access cover from the P80 console...
Page 119 Installing the Console To position the console: Make sure that as much of each cable as possible passes through the opening in the middle of the console mount on the base unit. 2. Place the console over the console mount. 3.
Page 120: Connecting Cables (P80)
Refer to the following diagram and table to identify the cables and connectors. Important: All cables must pass through the opening in the center of the console mount. Figure 23: Cable connections, P80 console...
Page 121 Installing the Console Table 2. P80 internal cable connections Cable Connector Type Circuit Connector Location Ethernet (LAN) Eight-contact modular, on round black cable TV in F-type coaxial Power Two-contact plug, polarized and latched Data from base Eight-contact modular, on unit...
Page 122 Assembling and Maintaining TRM 800-Series Treadmills Connecting the Television Cable The console’s television tuner is mounted inside the console’s back plate. The tuner includes a short cable adapter that allows the television cable to be connected outside the back plate. To connect the television cable: Pull the cable out through the lower right corner of the back plate.
Page 123 Installing the Console Connecting the Ethernet and Base Unit Data Cables Both the Ethernet and base unit data cables pass through the cutaway opening at the upper right corner of the back plate and connect to nearby modular jacks in the console. Because of this, it is important to exercise caution when connecting the cables.
Page 124 Assembling and Maintaining TRM 800-Series Treadmills Connecting the Heart Rate Sensor Cable The heart rate sensor cable passes through the cutaway opening at the upper left corner of the back plate, then down to the small circuit board at the lower left of the console. The following illustration shows how the cable should look once it is installed.
Page 125 Installing the Console Connecting the Power Cable Route the power cable through the cutaway opening at the upper left corner of the back plate. In the nearby opening within the steel console framework, locate the socket that matches the power cable plug and connect the power cable to it.
Page 126: Completing The Console Installation (P80)
Assembling and Maintaining TRM 800-Series Treadmills Completing the Console Installation (P80) Before you complete the final installation steps, double-check the connections you have made. Make sure that all cables are fully and securely connected, and that any unneeded cables are tied back properly.
Page 127: Positioning The Console (P30 And P10)
Installing the Console Positioning the Console (P30 and P10) Earlier in the installation, you threaded the necessary cables through the frame of the base unit and out the passthrough opening in the console mount. As you line up the back plate on the console with the console mount, you must make sure that the console cable assembly passes correctly through the openings in both components.
Page 128 Assembling and Maintaining TRM 800-Series Treadmills 3. Rest the console on the console mount so that the notch on the bottom of the console’s back plate rests on the rectangular hook at the bottom of the console mount, as shown in the following figure. Figure 29: Console positioning for connection 4.
Page 129: Connecting Cables (P30 And P10)
Installing the Console Connecting Cables (P30 and P10) Important: Pass all cables through the semicircular opening just above the console mount, as shown in the following figure. Do not attempt to route any cables through other openings or through the steel channel above the mount.
Page 130 Assembling and Maintaining TRM 800-Series Treadmills Important: All cables must pass through the opening in the center of the console mount. Figure 31: Cable connections, P30 and P10 consoles Table 3. P30 and P10 internal cable connections Cable Connector Type Circuit Connector Location Safety key...
Page 131: Completing The Console Installation (P30 And P10)
Installing the Console Completing the Console Installation (P30 and P10) Before you complete the final installation steps, double-check the connections you have made. Make sure that all cables are fully and securely connected, and that any unneeded cables are tied back properly. To complete the installation: Feed any extra cable back into the treadmill fairing.
Page 132 Assembling and Maintaining TRM 800-Series Treadmills 4. Line up the two small tabs at the bottom of the console’s back cover with the slots at the bottom of the console case. Insert the tabs into the slots. 5. Insert the two #8–32 × ¹ ₂-inch Phillips-head screws that you removed earlier into the holes at the top edge of the console’s back cover.
Page 133: Reassembling The Treadmill Fairing
Installing the Console Reassembling the Treadmill Fairing After the console is in place, reattach the two cover panels of the treadmill fairing. Important: In the following procedure, do not allow the fasteners to break or pinch any cables. To reassemble the fairing: Verify that all cables are secure inside the cable ties.
Page 134 Assembling and Maintaining TRM 800-Series Treadmills 4. Repeat steps 2 and 3 to install the other access cover, then tighten all four screws securely using a ⁵ ₃₂-inch hex wrench. Figure 34: Access panel attachment 5. Insert the edge of the rear cover into the lower edge of the fairing.
Page 135 Installing the Console 6. Fit the rear cover into place. Secure it using four ¹ ₄-inch × ³ ₄-inch self-tapping panhead screws. Figure 36: Rear cover attachment Important: Make sure that all of the edges of the rear cover are seated correctly and are flush with the surrounding panels before you tighten the cover’s mounting screws.
Page 136: Plugging In The Power Cord
Do not plug the unit into a power transformer in an attempt to adjust the voltage requirements. Failure to follow these instructions might damage the unit and void the Precor Limited Warranty. After assembly is complete, plug the power cord into an appropriate outlet.
Page 137: Breaking In The Equipment
Installing the Console Breaking In the Equipment Precor equipment does not require an actual break-in period. However, moving components such as belts, gears, and bearings can settle while the equipment is being stored or shipped. This can cause the equipment to operate with a small amount of roughness or noise when it starts up for the first time.
Page 138: Testing Safety Features
Assembling and Maintaining TRM 800-Series Treadmills Testing Safety Features Before any exerciser uses the treadmill, verify that the stop switch, the STOP button, and the Auto Stop feature are all working correctly. To test the restart switch: Start any workout on the treadmill. 2.
Page 139: Maintenance
To keep the equipment functioning properly, perform the minor maintenance tasks in this section at the intervals shown on the maintenance checklist. Failure to maintain the equipment as described in this section could void the Precor Limited Warranty. DANGER To reduce the risk of electrical shock, always...
Page 140: Daily Inspection
CAUTION: Read and follow the manufacturer’s instructions, particularly dilution instructions, before using any cleaner on Precor fitness equipment. Do not use concentrated cleaners at full strength, or acidic cleaners of any kind; such cleaners weaken the protective finish on the equipment and void the Precor Limited Warranty.
Page 141 Maintenance Reading the Active Status Light The active status light is located at the front edge of the treadmill hood, as shown in the following figure. The light is large enough and bright enough to allow you to check the condition of all your treadmills at a distance.
Page 142 Pulsing blue The treadmill is due for Perform the needed scheduled maintenance, then reset the maintenance (P80 status light. console only), or the treadmill belt needs to be replaced (except for 230 V models). Steady The treadmill has Refer to the console’s event...
Page 143: Weekly Maintenance
Maintenance Weekly Maintenance Perform the following maintenance tasks every week: Elevate the tread to maximum incline, then turn off the power switch or circuit breaker and unplug the unit from the wall outlet. 2. Clean the floor under the equipment using a vacuum cleaner or a damp mop.
Page 144: Monthly Maintenance
Assembling and Maintaining TRM 800-Series Treadmills Monthly Maintenance Perform the following maintenance tasks every month: Turn off the power switch or circuit breaker, then unplug the unit from the wall outlet. 2. Inspect the running bed and belt for wear. 3.
Page 145: Checking The Alignment Of The Running Belt
Adjusting the Running Belt). Important: Failure to align the belt may cause the belt to tear or fray, which is not covered by the Precor Limited Warranty. 7. Press the red STOP button to stop the belt. 8. Turn the treadmill off.
Page 146: Adjusting The Running Belt
Assembling and Maintaining TRM 800-Series Treadmills Adjusting the Running Belt If you are unsure about adjusting the running belt, call Precor Customer Support (refer to Obtaining Service). CAUTION: Take special care when aligning the running belt. Turn OFF the treadmill while adjusting or working near the rear roller.
Page 147: Storing The Chest Strap
Important: The plastic end caps on Precor treadmills are designed specifically for lifting. Working with your assistant, place a hand under each side of the end cap. Then, using proper lifting techniques, lift the rear of the treadmill so that it rolls on its front wheels.
Page 148: Long-Term Storage
Assembling and Maintaining TRM 800-Series Treadmills Long-Term Storage If you do not expect anyone to use the equipment for a long time, perform the following tasks to prepare it for storage:  Turn it OFF.  If it has a power cord, disconnect the cord. ...
Page 149: Treadmill Safety Features
Chapter Treadmill Safety Features Before allowing users on Precor equipment, review the in this manual. You should also teach your patrons how to use the equipment safely, according to the guidelines on. Entering the Safety Code When the equipment is shipped from the factory, safety code protection is not active.
Page 150: Using The Treadmill Safety Clip
Assembling and Maintaining TRM 800-Series Treadmills Using the Treadmill Safety Clip The treadmill is equipped with three different stop functions, which behave as follows: If the user … Then the And the console … treadmill belt … Pulls on the lanyard Slows to a Shows the words PUSH THE attached to the safety...
Page 151 Treadmill Safety Features Instruct users on how important it is to use the safety clip while exercising on the treadmill, and demonstrate how they should attach it to their clothing near the waistline. If the restart switch trips during exercise, perform the following steps: Reattach the safety clip if necessary.
Page 152 Assembling and Maintaining TRM 800-Series Treadmills Tip: The small, flexible tab underneath the restart switch is designed for storage of the safety clip. When the treadmill is not in use, attach the safety clip to the tab as shown in the following figure.
Page 153: Turning The Treadmill On And Off
Treadmill Safety Features Turning the Treadmill On and Off To turn the treadmill ON and OFF, use the power switch located beneath the hood, near the power cord receptacle. Important: When the treadmill is not being used, turn it OFF. Weight Limit Do not use the treadmill if you weigh more than 400 pounds (180 kg).
Page 154: Location
Assembling and Maintaining TRM 800-Series Treadmills Location The area around the treadmill must remain open, and free of interference from objects such as other equipment, at all times. In addition, for user safety and proper maintenance, an area three feet (one meter) wide by six feet (two meters) long must remain open and free of interference directly behind the running belt.
Page 155: Commercial Cardiovascular Equipment Limited Warranty
CONDITIONS. Limited Warranty. Precor Incorporated warrants all new Precor products to be free from defects in materials and manufacture for the warranty periods set forth below. The warranty periods commence on the invoice date of the original purchase. This warranty applies only against defects discovered within the warranty period and extends only to the original purchaser of the product.
Page 156 Internet connectivity, such as Ethernet cabling, routers, servers and switches. Precor is not responsible for the quality of television, video, audio, or other media supplied to its products. This restriction applies to services, such as those provided by a cable or satellite television provider;...
Page 157 GIVEN ABOVE FOR THOSE SAME PARTS. PRECOR HEREBY DISCLAIMS AND EXCLUDES THOSE WARRANTIES THEREAFTER. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. PRECOR ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER OBLIGATIONS OR LIABILITIES,...
Page 158 Assembling and Maintaining TRM 800-Series Treadmills Exclusive Remedies. For any product described above that fails to conform to its warranty, Precor will provide, at their option, one of the following: (1) repair; (2) replacement; or (3) refund of the purchase price. Precor Limited Warranty service may be obtained by contacting the authorized Precor office or Distributor from whom you purchased the item.
Page 159 ...
Page 160 Precor Incorporated TRM 800-Series PAG/OM 303175-110 rev A 20031 142nd Avenue NE Warranty #36286-115 P.O. Box 7202 May 2014 Woodinville, WA USA 98072-4002...

Precor P80 Operating And Maintaining

Table of Contents

Important Safety Instructions

Getting Started

Configuring the System Settings

Introducing Users to the P80 Console

Beginning Your Workout

Maintenance

Table of Contents

Assembling the Treadmill

Installing the Console

Maintenance

Treadmill Safety Features

Commercial Cardiovascular Equipment Limited Warranty

Quick Links

Chapters

Need help?

Questions and answers

Related Manuals for Precor P80

Summary of Contents for Precor P80

Table of Contents
