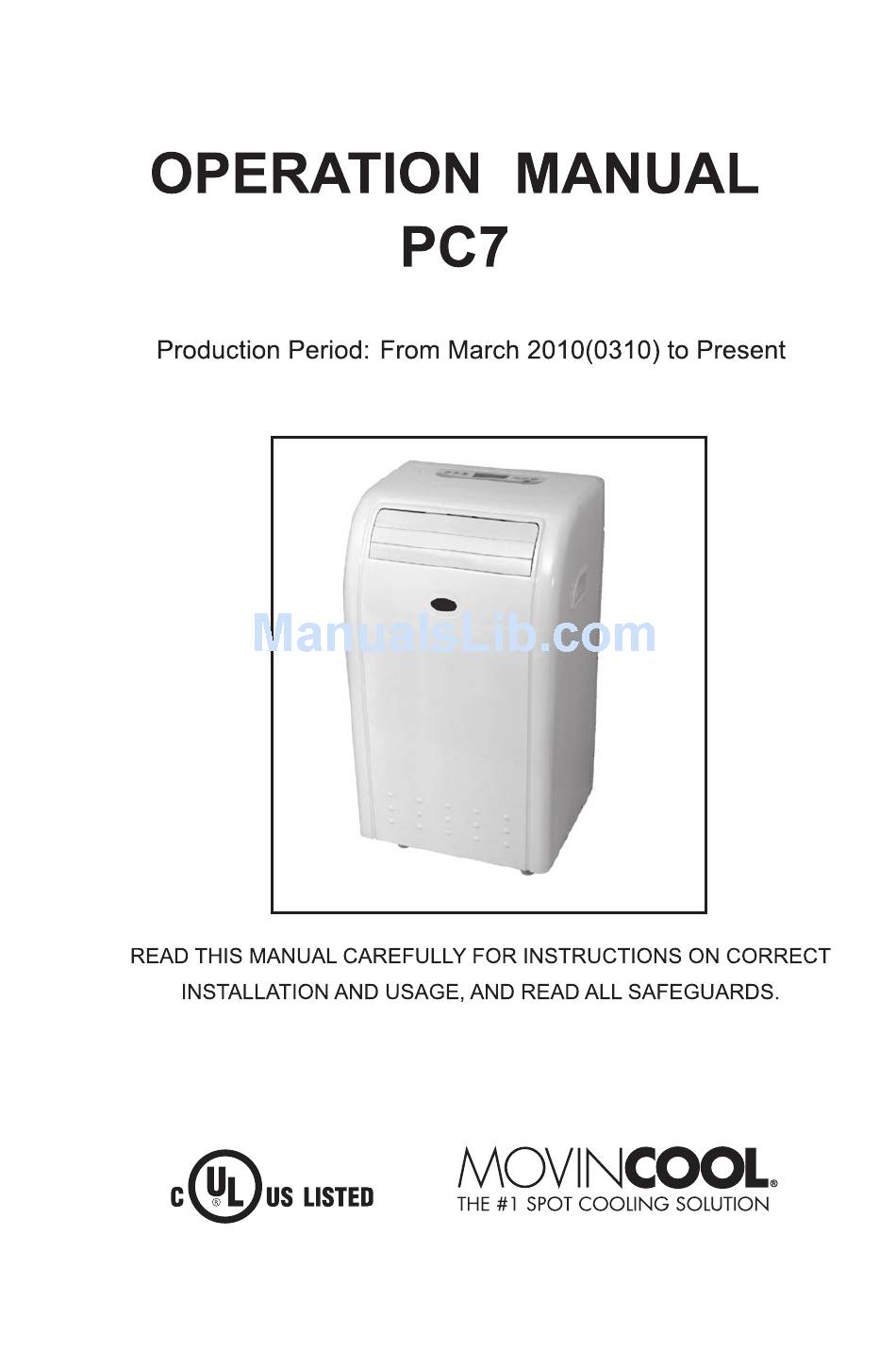

- Page 1 1-800-934-9194 SECCIÓN EN ESPAÑOL SECTION EN FRANÇAIS AVAILABLE AT WWW.MOVINCOOL.COM...
- Page 2 www.sylvane.com 1-800-934-9194...
- Page 3 www.sylvane.com 1-800-934-9194...
-
Page 4: Table Of Contents
(5) Please wait 3 minutes before restarting the unit. (6) Do not sit or stand on the unit. (7) The proper electrical outlet for MovinCool unit must be equipped with a UL approved ground fault breaker to prevent electrical shock from the unit. -
Page 5: Introduction
1-800-934-9194 INTRODUCTION Mobile Air Conditioner The PC7 is a small unit, which can adjust the temperature and humidity in a room making it easy to use in different occasions. It also has multiple functions, included Cooling, Dehumidifying, and Fan Modes. -
Page 6: Unit Description And Function
www.sylvane.com 1-800-934-9194 UNIT DESCRIPTION AND FUNCTION FRONT Control panel Left/right air swinging fins Up/down air louver Air outlet Handle Left/right air direction control tab Caster Note: Open the up/down air louver to the highest position before the unit is turned on. BACK Air-return grill Air inlet... - Page 7 www.sylvane.com 1-800-934-9194 DESCRIPTION AND FUNCTION (cont.) UNIT CONTROL PANEL MODE Button TIMER Button TEMP Button FAN SPEED Button Press this button to select Press this button to Press this button to set the Press these buttons to the modes of cooling, time for switch-on, switch-off choose high, medium or change the set point...
-
Page 8: Operation And Indicators Or Remote Control
www.sylvane.com 1-800-934-9194 OPERATON AND INDICATORS OF REMOTE CONTROL Remote Control Install the supplied batteries (type AAA 1.5V) to the remote controller. Fan speed indicator Set temperature indicator Cooling indicator Drying indicator Lock key indicator Fan Mode indicator Air flow indicator Timer time or present time indicator Temperature setting button Each presing of the button, the... -
Page 9: Present Time Setting Procedure
www.sylvane.com 1-800-934-9194 OPERATION AND INDICATORS OF REMOTE CONTROL (cont.) Present Time Setting Procedure When batteries are inserted,time is automatically set to 00:00. Set the present time as follows. Example:Set time to 10:30 Continuously press the HOUR button for 2 seconds . The time indicator is blinking and can set the HOUR time. -
Page 10: Use Of Control Panel
www.sylvane.com 1-800-934-9194 USE OF CONTROL PANEL Dehumidifying and Cooling Operation The operating ranges for cooling operation and dehumidifying are 63ºF-88ºF(17ºC-31ºC). Power Source WARNING The AC outlet (115 VAC,Single Phase,60Hz) must be rated at 15A or higher. The AC socket must be firm and reliable. Do not connect the unit to a multiple socket outlet which is also being used for other electrical appliances. -
Page 11: Water Drainage Methods
www.sylvane.com 1-800-934-9194 USE OF CONTROL PANEL (cont.) Timer Set Function To set time to start the unit with the unit off (stand by power), press Timer button, the LCD window shows" , repeatedly press the HOUR button, set the time to start as you like. -
Page 12: Maintenance/Service
www.sylvane.com 1-800-934-9194 MAINTENANCE/SERVICE Pull the power plug out of the socket before cleaning. Make sure there is no power to the unit before maintenance or repair to prevent accident caused by electrical shock. CLEANING OF AIR FILTER If the air filter is blocked with a lot of dust, the air flow volume will reduce. Clean the air filter once every two weeks. -
Page 13: Safety Cautions
Do not topple over or incline the unit. If the unit is toppled over, unplug the unit and contact your MovinCool reseller or a qualified technician for advice. Do not spray insecticide or other chemicals to the unit as the plastic case may be... -
Page 14: Troubleshooting
1-800-934-9194 TROUBLESHOOTING Check the following items before calling your MovinCool reseller or a qualified technician. Condition Check Area Remedy Is there power? Plug into the wall socket. Is it plugged in? Is the fuse or circuit breaker switch turned off? Change the fuse or turn switch on. -
Page 15: Installation
www.sylvane.com 1-800-934-9194 INSTALLATION Selection of Installation Location Put the unit on a flat location where the air outlets are not covered up, place the unit no less than 20 inch (500 mm) away from a wall or other obstacle. Power cord holder installation Install the supplied power cord holders with the supplied two self-tapping screws to the unit. - Page 16 www.sylvane.com 1-800-934-9194 INSTALLATION (cont.) Mounting through the wall 1) Shrink the exhaust air duct. 2) Insert the duct into the square adapter. Rotate the duct (2-3 rounds). 3) Insert the other end of the duct into the window exhaust adapter 1. Rotate the duct (2-3 rounds).
- Page 17 www.sylvane.com 1-800-934-9194 INSTALLATION (cont.) If the exhaust air duct requires bending, see figures below. Incorrect duct mounting Fig. 4 (Bending the duct sharply can easily cause malfunction.)
-
Page 18: Window Slider Kit Installation
www.sylvane.com 1-800-934-9194 INSTALLATION (cont.) Window Slider Kit Installation The window slider kit is designed to fit most standard "vertical" and "horizontal" widow applications.However, It may be necessary for you to improve/modify some aspects of the installation procedures for certain types of windows. Please refer to Fig.5 & Fig. - Page 19 www.sylvane.com 1-800-934-9194 INSTALLATION (cont.) Installation Accessories Fig. 7 Description Exhaust air duct with adapters...4/set Stretches from 19-1/2" (500 mm) up to 78-3/4" (2000 mm) Adjustable window slider kit......2/set Stretches from 26-5/8" (675 mm) up to 48-3/8" (1230 mm) Power cord holder..2/set Screw......2 pcs Self-tapping screw..4 pcs (2 pcs are extra.) Nut......2 pcs...
-
Page 20: Lcdi Power Cord
www.sylvane.com 1-800-934-9194 LCDI POWER CORD WARNING The LCDI device is a non-serviceable part. Attempting to open the device may expose the user to hazardous electric shock, and voids any warranties and performance claims. Manufacturer’s liability is limited to the replacement of the device. CAUTION 1. -
Page 21: Warranty
1-800-934-9194 DENSO SALES CALIFORNIA, INC.( “DENSO”) warrants its MOVINCOOL Products only to the extent stated in its official written warranties. Unless otherwise specifically provided in writing by DENSO, DENSO warrants to end-user that the Products shall be free of defects in materials or workmanship and will function in accordance with DENSO’s published specifications under... - Page 22 1-800-934-9194 DENSO SALES CALIFORNIA, INC. Long Beach CA,90810 www.movincool.com P/N: 484007- 3290EN First lssue: March 2010...
