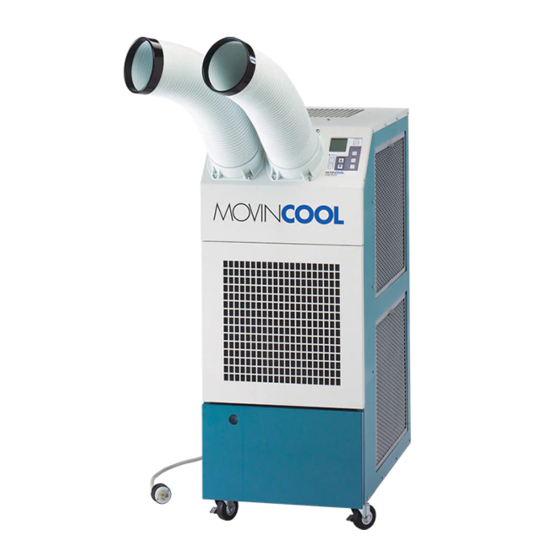

Movincool CLASSIC PLUS 14 Operation Manual
Hide thumbs
Also See for CLASSIC PLUS 14:
- Operation manual (71 pages) ,
- Service manual (46 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Movincool CLASSIC PLUS 14
Summary of Contents for Movincool CLASSIC PLUS 14

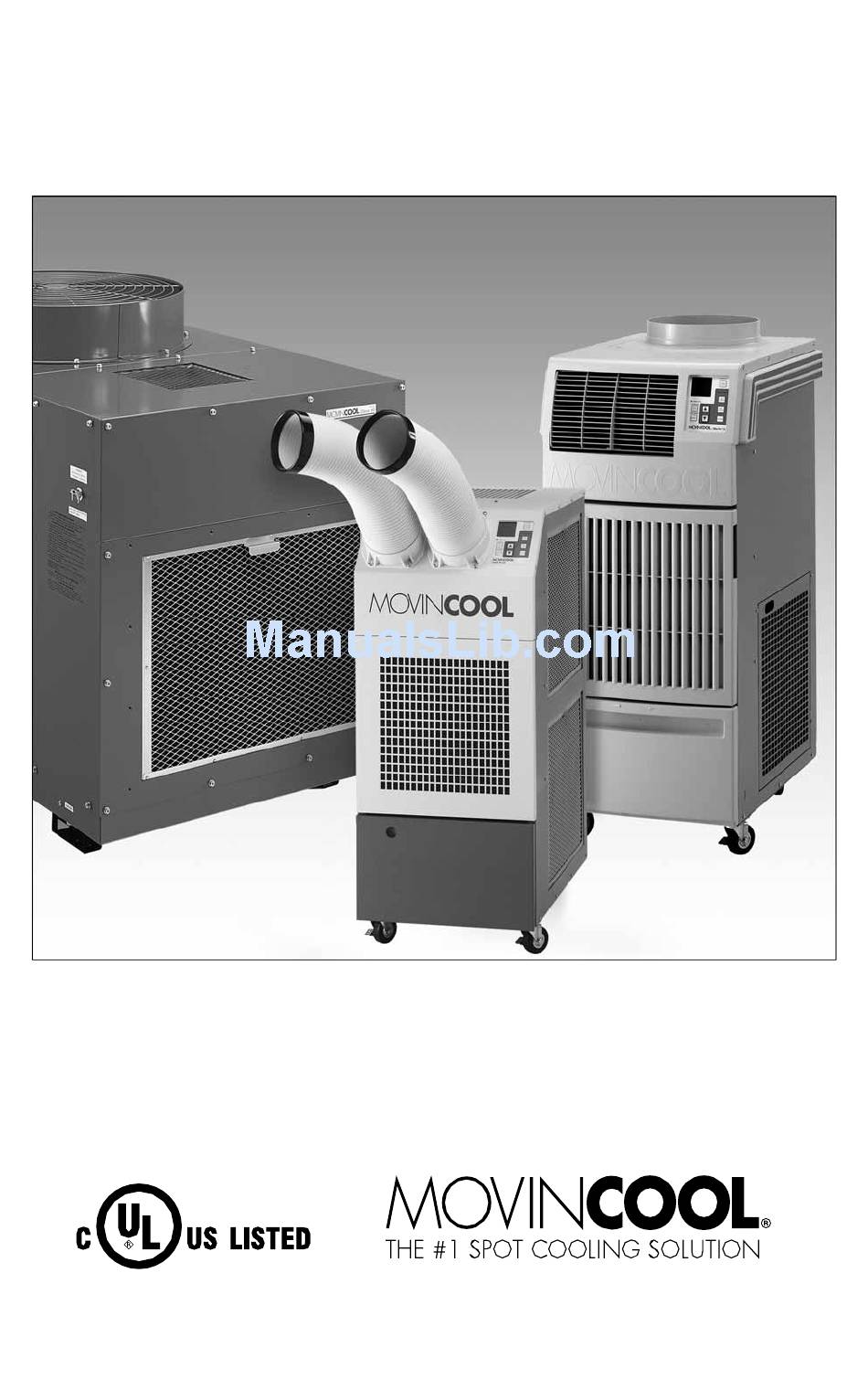

- Page 1 OPERATION MANUAL CLASSIC PLUS 14 and CLASSIC PLUS 26 SERIAL NUMBER FROM JANUARY 2009 (0109) TO JUNE 2011 (0611) READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT INSTALLATION AND USAGE, AND READ ALL SAFEGUARDS SECCIÓN EN ESPAÑOL SECTION EN FRANÇAIS...
- Page 2 All rights reserved. This book may not be reproduced or copied, in whole or in part, without the written permission of the publisher. DENSO SALES CALIFORNIA, INC. reserves the right to make changes without prior notice. MovinCool is a registered trademark of DENSO Corporation.
- Page 3 OPERATION MANUAL CLASSIC PLUS 14 and CLASSIC PLUS 26...
-
Page 4: Table Of Contents
Operating Modes ................. 24 Self-Diagnostic Codes ................ 25 Empty the Drain Tank ................. 26 Condensate Pump Kit (Optional for Classic Plus 14) ...... 27 Condensate Pump Kit (Optional for Classic Plus 26) ...... 28 DAILY INSPECTION & MAINTENANCE............29 Empty the Drain Tank ................. 29 Clean the Air Filters ................ -
Page 5: Foreword
FOREWORD Congratulations on purchasing the MovinCool portable air conditioner. This manual explains how to install and operate the MovinCool Classic Plus 14, and Classic Plus 26 portable air conditioning units. Please read this operation manual thoroughly to familiarize yourself with the features of the unit and to ensure years of reliable operation. -
Page 6: General Warnings & Cautions
14, and 230 V, 20 A for Classic Plus 26 or equivalent. 4. The Classic Plus 14 is equipped with a 10 ft (3.0 m) UL approved LCDI power cords. The Classic Plus 26 is equipped with a 6 ft (1.8 m) UL approved LCDI power cord. -
Page 7: Inventory & Assembly
INVENTORY & ASSEMBLY Inventory After unpacking your MovinCool unit, please check to make sure you have the following items: 1. Classic Plus 14 or Classic Plus 26 MovinCool Unit (1) 2. Cool Air Outlet Ducts (2) 3. Screws (8) 4. Operation Manual/Product Registration (1) Note: If any of these items were not included in the box or appear damaged, please contact your MovinCool reseller for replacement. -
Page 8: Assembly
CAUTION: Before assembling make sure the unit is on a flat, level surface and the casters are in the LOCKED position. (Both the Classic Plus 14 and Classic Plus 26 MovinCool units have locking swivel casters in the front only.) -
Page 9: Installation
INSTALLATION Choosing an Installation Site CAUTION: Following are some precautions to consider before choosing your installation site. Please review carefully as improper installation may result in personal injury or damage to the unit. 1. Do not use the unit in areas where leakage of flammable gas may occur. 2. -
Page 10: Moving The Unit
INSTALLATION (cont.) Moving the Unit Unlock the casters and push the MovinCool unit to a flat level surface and set the casters back to the LOCKED position. UNLOCKED LOCKED... -
Page 11: Plugging In The Unit
1. Make sure the AC outlet is free of dirt, dust, oil, water, or any other foreign matter. 2. The Classic Plus 14 is equipped with a UL approved LCDI cord and an approved NEMA plug configuration (5-15). The appropriate outlet must be used for this plug type. -
Page 12: Warning Signal Connection
INSTALLATION (cont.) Warning Signal Connection (Output Signal Terminal L+ and L-) The controller is equipped with a warning signal output relay type (Form C, normal open dry contact) which can be used to monitor the failure condition. Relay contactor is closed when the following condition has occurred: a. -
Page 13: Fire Alarm Control Panel Connection
INSTALLATION (cont.) Fire Alarm Control Panel Connection (Input Signal Terminal E+ and E-) The controller is equipped with a normal open input signal, which can be connected directly from the fire alarm control panel. This input signal terminal should only be connected to a close or open dry contact signal. When receiving the signal from the fire alarm control panel, the unit turns off and does not turn back on until it has been RESET. -
Page 14: Lcdi Power Cord Instruction
INSTALLATION (cont.) LCDI Power Cord Instruction WARNING The LCDI device is a non-serviceable device. Attempting to open the device may expose the user to the hazards of electric shock, and could void warranties of this product. Manufacturer’s liability is limited to the replacement of the device. CAUTION 1. -
Page 15: Features
FEATURES 1. A digital electronic control panel, which allows the user to easily control the unit's operation. 2. Dual fan speeds (either HIGH or LOW) in both COOL and FAN ONLY modes. 3. Digital LCD display with blue backlight that indicates: a. -
Page 16: Operation
OPERATION Control Panel Before operating the unit, it is important to familiarize yourself with the basic controls located on the control panel. 1. COOL Mode Button Activates/deactivates the COOL mode/ turns the unit off. 2. FAN Mode Button Activates/deactivates the high, low, and off fan speed. - Page 17 OPERATION (cont.) Control Panel (cont.) 5. SET CLOCK Button Press to set clock (day and time). 6. SET PROG Button Press to set or view program. 7. RUN/STOP Button Activates/deactivates program(s). 8. TANK FULL LED Flashes when the drain tank is full.
-
Page 18: Lcd Indicators
OPERATION (cont.) Control Panel (cont.) LCD Indicators 9. MO...SU Illuminates to indicate selected day of the week. 10. °C or °F Temperature displayed in either Fahrenheit or Celsius (see Note). 11. AM/PM Illuminates to indicate AM or PM time of day. - Page 19 OPERATION (cont.) Control Panel (cont.) LCD Indicators (cont.) 15. STOP Illuminates to indicate program stop time. 16. CLOCK Illuminates to indicate clock status. 17. FAN HI/LO Illuminates to indicate selected fan speed. 18. COOL ON/OFF Illuminates to indicate cool on or off. 19.
-
Page 20: Set Clock
OPERATION (cont.) Set Clock Prior to operating the Classic Plus 14 or Classic Plus 26 users should set the clock of the controller to the correct time as shown in the following steps: 1. Press and hold the SET CLOCK button for 3 sec or until beep. -
Page 21: Operating In Fan Only Mode
OPERATION (cont.) Operating in FAN ONLY Mode 1. The unit can also be operated in FAN ONLY mode by pressing FAN HI/LO button (LCD indicates “FAN HI/LO” and “COOL OFF”). 2. The unit can only be turned off by pressing the FAN HI/LO button until fan turns off (FAN ONLY mode speed sequences are High →... -
Page 22: How To Set A Program
OPERATION (cont.) How to Set a Program SET START TIME 1. Press and hold the SET PROG button for 3 sec or until beep. 2. Press SET TEMP buttons to scroll day of the week. 3. Press ENTER button. Step 1 & 18 4. -
Page 23: How To View And Delete Program
OPERATION (cont.) How to View and Delete Program 1. Press and hold the SET PROG button for 3 sec until beep. 2. To view edited program - While pressing and holding the SET PROG button, press SET TEMP buttons ( ) to scroll the program sequence. -
Page 24: Operating Modes
OPERATION (cont.) Operating Modes The Classic Plus 14 and Classic Plus 26 can be operated in two modes, FAN ONLY and COOL. When in FAN ONLY mode, the unit circulates the surrounding air. When in COOL mode, the compressor is operated and cool air is circulated. -
Page 25: Self-Diagnostic Codes
“OPEN RT” or “SHRT RT” and cool mode operation is off. Display and cool mode operation are returned to normal operation after room thermistor is fixed. Contact your MovinCool reseller or a qualified technician if problem persists. When freeze thermistor becomes open or shorted, display shows “OPEN FT”... -
Page 26: Empty The Drain Tank
OPERATION (cont.) Empty the Drain Tank During COOL mode, condensate water accumulates in the drain tank. When the drain tank becomes full, the “TANK FULL” LED flashes and the LCD displays “TANK FL” and the unit turns off automatically. Note: If you want to empty the drain tank, while the unit is in operation, press the COOL ON/OFF button to turn the unit off. -
Page 27: Condensate Pump Kit (Optional For Classic Plus 14)
OPERATION (cont.) Condensate Pump Kit (Optional for Classic Plus 14) A condensate pump kit is available to allow continuous operation and to eliminate the need for a drain tank. When the water collects to level (A) in the pump reservoir, the condensate pump begins to operate and discharge the water. -
Page 28: Condensate Pump Kit (Optional For Classic Plus 26)
OPERATION (cont.) Condensate Pump Kit (Optional for Classic Plus 26) A condensate pump kit is available to allow continuous operation and to eliminate the need for a drain tank. When the water collects to level (A) in the pump reservoir, the condensate pump begins to operate and discharge the water. -
Page 29: Daily Inspection & Maintenance
DAILY INSPECTION & MAINTENANCE Empty the Drain Tank To empty the drain tank, refer to instructions on page 26. Clean the Air Filters Clean the air filters once a week. If the unit is used in a dusty environment, more frequent cleaning may be required. -
Page 30: In-Season/Off-Season Inspection & Maintenance
2. Check the power cord, plug and prongs for damage or excess play. If any damage or excess play is found, contact your MovinCool reseller or qualified technician for repair. -
Page 31: Troubleshooting
2. Air inlet/outlet blocked. Clean air inlet/outlet. 3. Improper temperature Adjust temperature setting. setting. If symptoms persist after the above actions have been taken, turn the unit off, disconnect the power cord plug and contact your MovinCool reseller or a qualified technician. -
Page 32: Technical Specificatons
TECHNICAL SPECIFICATONS ITEMS/FEATURES Classic Plus 14 Classic Plus 26 Rating Conditions Dry bulb 95 °F (35 °C) 95 °F (35 °C) Wet bulb 83 °F (28 °C) 83 °F (28 °C) Humidity 60 %RH 60 %RH Specifications Power frequency 60 Hz... - Page 33 TECHNICAL SPECIFICATONS (cont.) ITEMS/FEATURES Classic Plus 14 Classic Plus 26 Safety Devices Compressor overload protector Included Included Fan motor protector Included Included Anti-freezing thermistor Included Included Full drain tank switch Included Included Automatic restart (power Included Included interruption) Compressor time delay...
-
Page 34: Limited Warranty
LIMITED WARRANTY DENSO SALES CALIFORNIA, INC. (“DENSO”) warrants its MOVINCOOL Products only to the extent stated in its official written warranties. Unless otherwise specifically provided in writing by DENSO, DENSO warrants to end-user that the Products shall be free of defects in materials or workmanship and will function in accordance with DENSO’s published... - Page 35 DENSO SALES CALIFORNIA, INC. Long Beach, CA 90810 www.movincool.com P/N: 484007- 2941EN Second Issue: July 2011...
