Gefen EXT-DVI-841DL User Manual

8x1 dvi dl/sl switcher
Hide thumbs Also See for EXT-DVI-841DL:

Advertisement

Quick Links

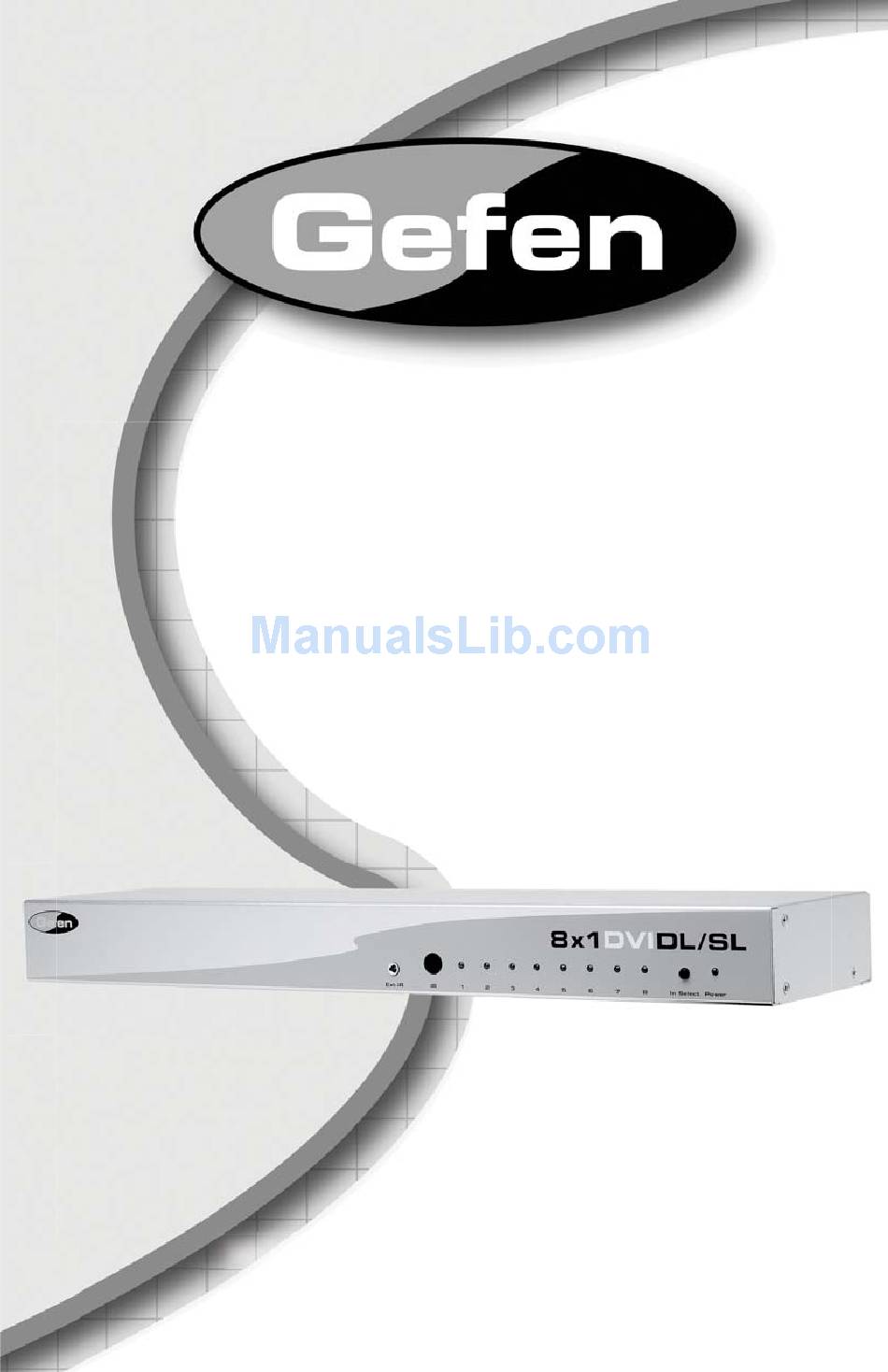

8x1 DVI DL/SL
Switcher
EXT-DVI-841DL
User Manual
www.gefen.com
f

Advertisement

loading

Summary of Contents for Gefen EXT-DVI-841DL

  • Page 1 8x1 DVI DL/SL Switcher EXT-DVI-841DL User Manual www.gefen.com...
  • Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 8x1 DVI DL/SL is a trademark of Gefen Inc. © 2008 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    CONTENTS Introduction Operation Notes Features / Package Includes Panel Descriptions Panel Descriptions, Continued Connecting and Operating the 8x1 DVI DL/SL Switcher RMT-8IR Remote Description RMT-8IR Remote Installation IR Remote Control and 8x1 Switcher Confi guration RS-232 Serial Communication Interface Rack Mount Installation Specifi...
  • Page 4: Introduction

    Congratulations on your purchase of the 8x1 DVI DL/SL Switcher. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.
  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFEN 8X1 DVI DL/SL SWITCHER • The 8x1 DVI DL/SL Switcher will take any of up to eight (8) DVI dual-link or single-link resolution inputs and switch them, one at a time, to a DVI output device such as a display/monitor or projector.
  • Page 6: Features / Package Includes

    FEATURES Features • Switches easily between any eight DVI-SL or DVI-DL sources • Maintains highest resolution dual link DVI • Supports resolutions up through 3840x2400 • Extends the range of DVI video up to 50 feet • Discrete IR remote control included •...
  • Page 7: Panel Layout

    PANEL LAYOUT Front Panel Back Panel...
  • Page 8: Panel Descriptions

    PANEL DESCRIPTIONS External IR Port For connection of external IR extension device such as the Gefen IR Extender (part # EXT-RMT-EXTIR). IR Receiver Receives IR signal from the handheld Infrared remote control unit included with the product. DVI Signal Status LEDs 1-8 Provide visual confi...
  • Page 9: Connecting And Operating The 8X1 Dvi Dl/Sl Switcher

    CONNECTING AND OPERATING THE 8X1 DVI DL/SL How to Connect the 8x1 DVI DL/SL Switcher to your devices: Connect the supplied DVI cables from the DVI sources into the 8x1 DVI Switcher’s Inputs. Connect the cable from your display (monitor or projector) into the DVI Out of the 8x1 DVI DL/SL Switcher.
  • Page 10 8X1 DVI DL/SL REMOTE DESCRIPTION LED Indicator Input Selection Buttons The RMT-8IR remote control will allow the user to select which of 8 DVI sources will be displayed. Please use the information below when selecting the desired source for output to a display or other DVI video receiving device. RMT-8IR Button DVI Source...
  • Page 11 8X1 DVI DL/SL REMOTE INSTALLATION To use the RMT-8IR remote, remove the battery cover on the back of the remote to reveal the battery compartment. Insert the included battery into the open battery slot. The positive (+) side should be facing up. Ensure that both DIP (Dual Inline Package) switches are in the OFF position.
  • Page 12 The other DIP switch (8-switch) is reserved for Gefen use only. DIP Switches 1 and 2 on the RMT-8IR directly correspond to DIP Switches 1 and 2 on the 8x1 DVI DL/SL Switcher.
  • Page 13 RS-232 SERIAL CONTROL INTERFACE 1 2 3 4 5 1 2 3 4 5 6 7 8 9 6 7 8 9 Only Pins 2 (RX), 3 (TX), and 5 (Ground) are used on the RS-232 serial interface Binary Table ASCII Corresponding Binary...
  • Page 14: Rack Mount Installation

    RACK MOUNT INSTALLATION Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit.
  • Page 15: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth:..............165 MHz x 2 Input Video Signal:................1.2 Volts p-p Input DDC Signal:................5 Volts p-p (TTL) Single Link Range:................1920 x 1200 Dual Link Range :................3840 x 2400 DVI Connector:............ DVI-I 29-pin female (digital only) Power Supply:....................5V DC Power Consumption:................20 Watts (max) Dimensions:..............17”...
