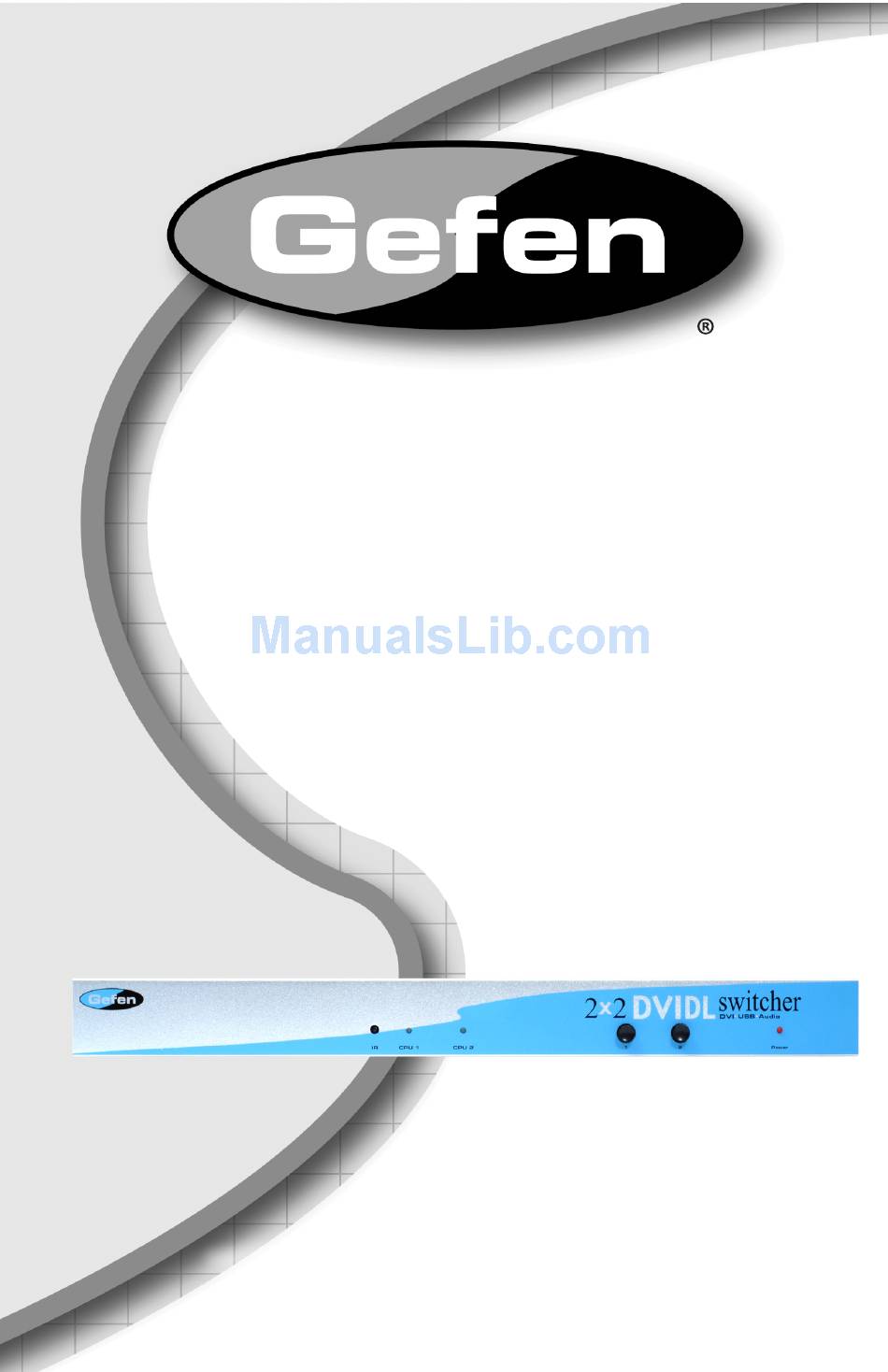

- Page 1 2X2 DVI DL Switcher EXT-DVI-422DL User Manual www.gefen.com...
- Page 3 Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. The 2x2 DVI DL Switcher is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Front Panel Descriptions Back Panel Descriptions How To Connect The 2x2 DVI Switcher System Specifications Warranty... -
Page 5: Introduction
INTRODUCTION Thank you for purchasing Gefen’ s 2x2 DVI DL Switcher. The 2x2 DVI DL Switcher switches DVI, USB 2.0 and Audio between any combination of two computers. The 2x2 DVI DL DVI Switcher allows you to easily switch between two cross-platform extended desktop dual link DVI computers using just two dual link DVI displays, USB 2.0 keyboard and mouse. -

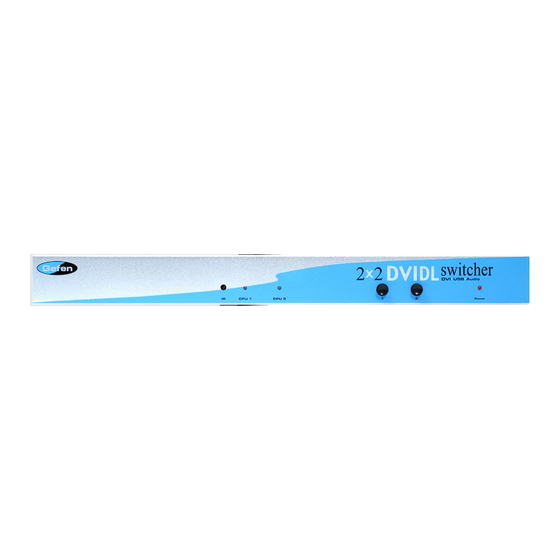

Page 6: Front Panel Descriptions
FRONT PANEL DESCRIPTIONS... -
Page 7: Back Panel Descriptions
BACK PANEL DESCRIPTIONS... -
Page 8: How To Connect The 2X2 Dvi Switcher
HOW TO CONNECT THE 2x2 DVI DL SWITCHER 1. 1 Connect the cables from your first computer into the DVI 1.1, DVI 1.2, USB and Audio inputs in the back of the 2x2 DVI DL Switcher. 2. Connect the cable from your second computer into the DVI 2.1, DVI 2.2, USB, and Audio inputs in the back of the 2x2 DVI DL Switcher. -
Page 9: Specifications
SPECIFICATIONS Video Amplifier Bandwidth..............2 x 165 MHz Input Video Signal..................1.2V p-p Input DDC Signal.................5V p-p (TTL) Dual Link Range..................3840 x 2400 DVI Connector............DVI-I 29 pin female (digital only) Audio Connector............mini-phone stereo jack 3.5mm USB 2.0 Input Connection................Type “B” USB 2.0 Output Connection................Type “A” Power Supply....................5V DC Power Consumption................20W (max) Dimensions..............17”... -
Page 10: Warranty
If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 12 Rev A3 This product uses UL listed power supplies.
