Electro-Voice Mb200 Quick Manual page 2

Wall Mounting Instructions
CAUTION: Due to the weight of System
TM
200 speakers, it is imperative that the
M 200 bracket be properly secured to the
b
wall or ceiling. The choice of fastener (not
provided with this kit) will be determined
by the material and construction of the
mounting surface.
1. Refer to Figure 1 for the following steps.
2. Remove the paper backing from one of
the friction pads (F) and, making sure the
holes are aligned, attach to the U-bracket (A)
as shown. Attach the second friction pad in
a similar manner.
3. Attach the U-bracket to the wall or ceil-
ing using fasteners (not supplied) that are
suitable for the construction material.
4. Remove the hole plugs from the ends of
TM
the System 200 speaker by gently prying
with a small screwdriver.
5. Place one of the smaller lock washers
(C) on each of the two M8 bolts (B).
6. Place the speaker into the U-bracket and
finger tighten the M8 bolts.
7. Rotate the speaker so that the input
panel is accessible and attach the wires to
the input panel.
8. Position the speaker for the desired cov-
erage and gently tighten the M8 bolts until
the speaker will no longer rotate. DO NOT
OVERTIGHTEN.
3
Note: The / -24 bolts (D) are used to
8
lock the speaker parallel to the bracket and
prevent it from being rotated. This is needed
when arraying the speaker for proper align-
ment and when flying in the vertical posi-
tion.
Flying Instructions
NOTE: A maximum of two speakers can
be suspended together vertically using the
M 200 installation bracket.
b
1. Refer to Figure 1 for the following steps.
2. Remove the paper backing from one of
the friction pads (F) and, making sure the
holes are aligned, attach to the U-bracket (A)
as shown. Attach the second friction pad in
a similar manner.
3. Remove the hole plugs from the ends of
2
Mb200/Mb200W Installation Kit
M 200 SPECIFICATION GRAPHICS
b

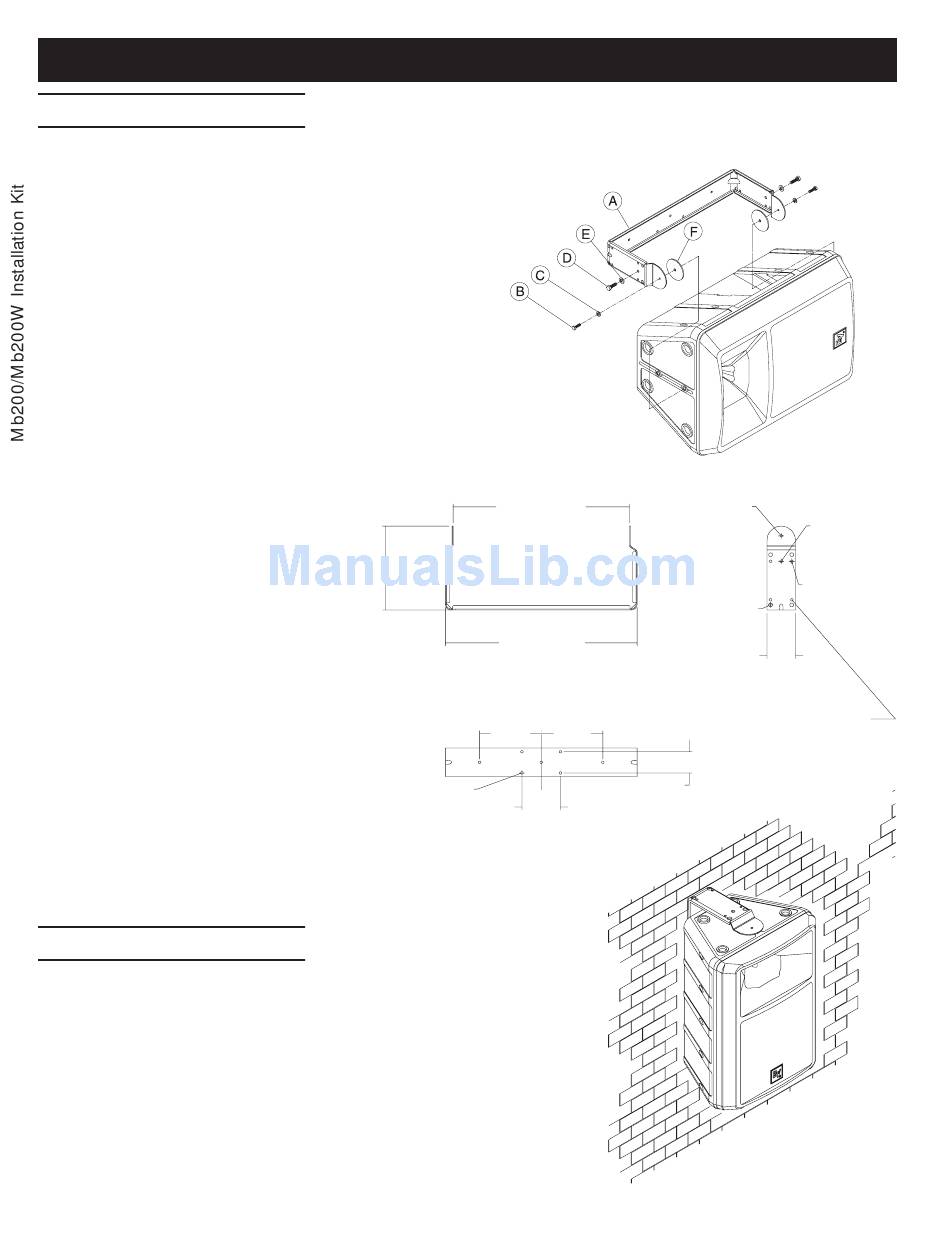

FIGURE 1 —Attaching M
to System 200 TM Speaker (exploded view)
FIGURE 2 — M 200 Installation Kit Dimensions
b
10.87 in. (276 mm)
0.33 in. (8 mm)
FIGURE 3 — Wall-Mounting a System 200
Using the M
1. OmniMount is a registered trademark of OmniMount
Systems, Inc.
200 Bracket
b
22.90 in. (582 mm)
24.90 in. (632 mm)
8.0 in. 8.0 in.
(203 mm) (203 mm)
1
2.75 in. (70 mm)
5.0 in. (127 mm)
TM
Speaker
200 Installation Kit
b
0.33 in. (8 mm)
3/8–24
0.33 in. (8 mm)
0.5 in. (13 mm)
3.69 in. (94 mm)
®
HOLE PATTERN FOR OmniMount
LOCATED ON BOTH SIDES AND BACK
