Electro-Voice MP1-B User Instructions

MP1-B (P/N 301916-001)

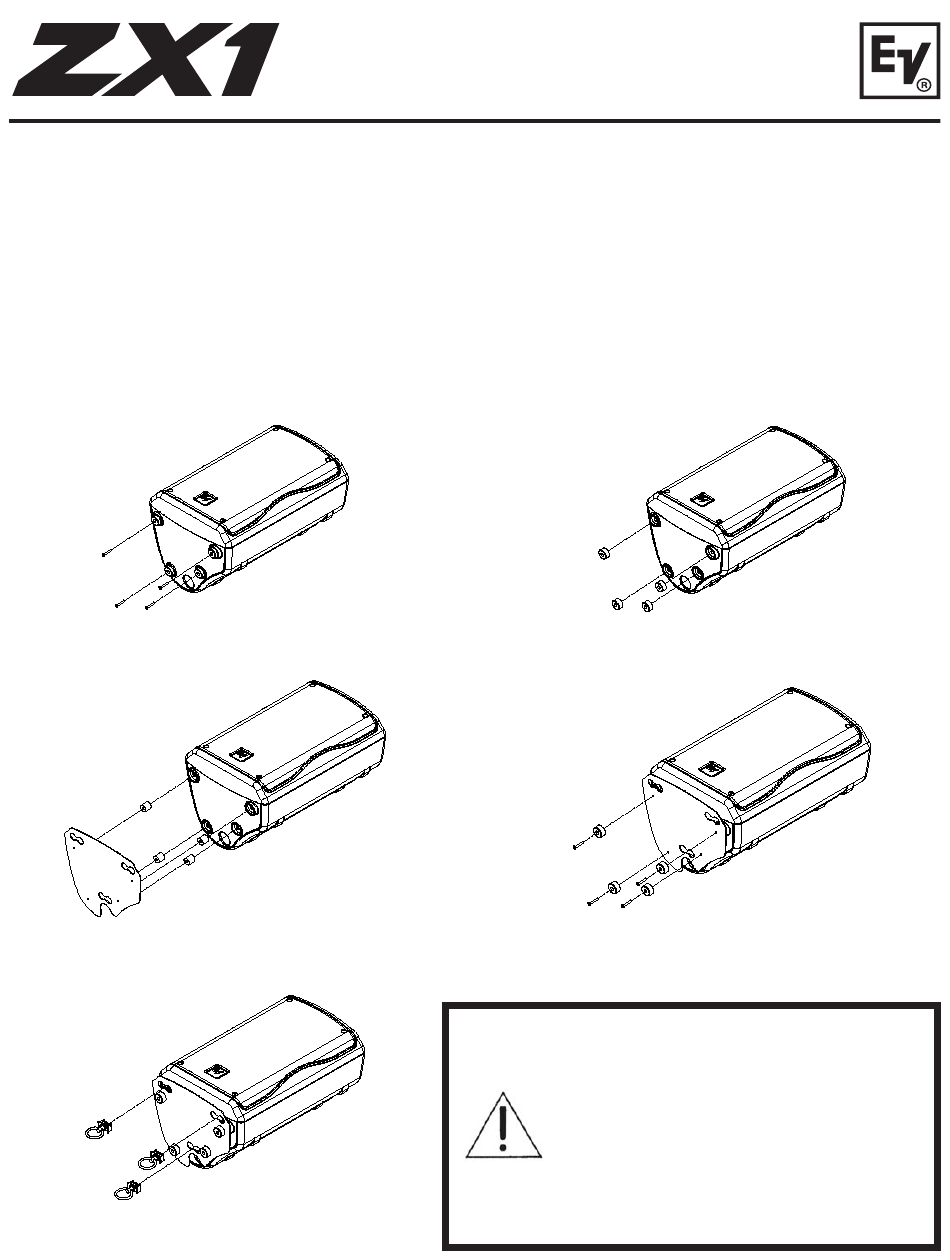

1. Turn the ZX1-90 enclosure upside down, and remove the four #8 screws that attach the rubber feet to the bottom of
the ZX1-90 enclosure with a Phillips screwdriver (Figure 1). The screws will not be needed for the kit, but they will be
needed if you ever want to return the ZX1-90 to its original condition.
2. Remove the four rubber feet from the bottom of the ZX1-90 enclosure (Figure 2).
3. Place the four plastic spacers on the bottom of the ZX1-90 enclosure, and place the steel plate on the plastic spacers
(Figure 3).
4. Place the four rubber feet on the steel plate. Use the four #8 screws supplied with the kit to attach the plastic spacers
and plate to the enclosure (Figure 4). Apply enough torque to each screw so that the rubber foot is bulging slightly.
Do not apply too much torque, as it will damage the rubber foot.
5. Attach the single stud fittings by pressing down on the button, and placing the button through the "dog bone"
openings on the plate (Figure 5). Slide the fittings toward the center of the dog bone until it snaps in place.
Figure 1:
Removing Screws from Bottom of
Enclosure
Figure 3:
Attaching Spacers and Plate to Bottom
of Enclosure
Figure 5:
Attaching Stud Fittings to Steel Plate
ZX1 Portable Accessories
MP1-B and CA-ZX
User Instructions
Figure 2:
Removing Feet from Bottom of
Enclosure
Figure 4:
Attaching Feet to Steel Plate
WARNING: Suspending any object is potentially
dangerous and should
individuals who have a thorough knowledge of the
techniques and regulations
overhead. Electro-Voice® strongly recommends that
ZX1 speakers be suspended taking into account all
current national, federal, state and local regulations. It
is the responsibility of the installer to ensure that ZX1
speakers are safely installed in accordance with all
such regulations. If ZX1 speakers are suspended,
Electro-Voice® strongly recommends that the system
be inspected at least once a year. If any sign of
weakness or damage is detected, remedial action
should be taken immediately.
only be attempted by
of rigging objects
