Electro-Voice Wall/Ceiling Mounting Bracket MB3 Installation Instructions

Wall/ceiling mounting bracket

Download this manual

MB3

Wall/Ceiling

Mounting Bracket

Installation Instructions

MB3 Wall/Ceiling Mounting Bracket Kit

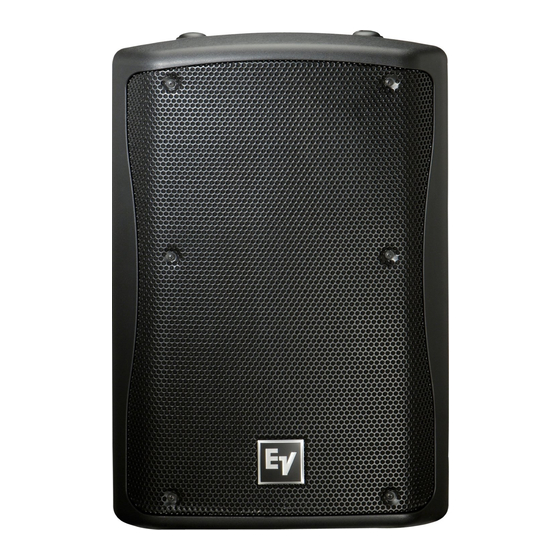

The MB3 Wall/Ceiling Mounting Bracket Kit features robust brackets and hardware that allow for a Zx3 loudspeaker

to be quickly and easily mounted to a wall or ceiling in almost any position to obtain the desired sound coverage.

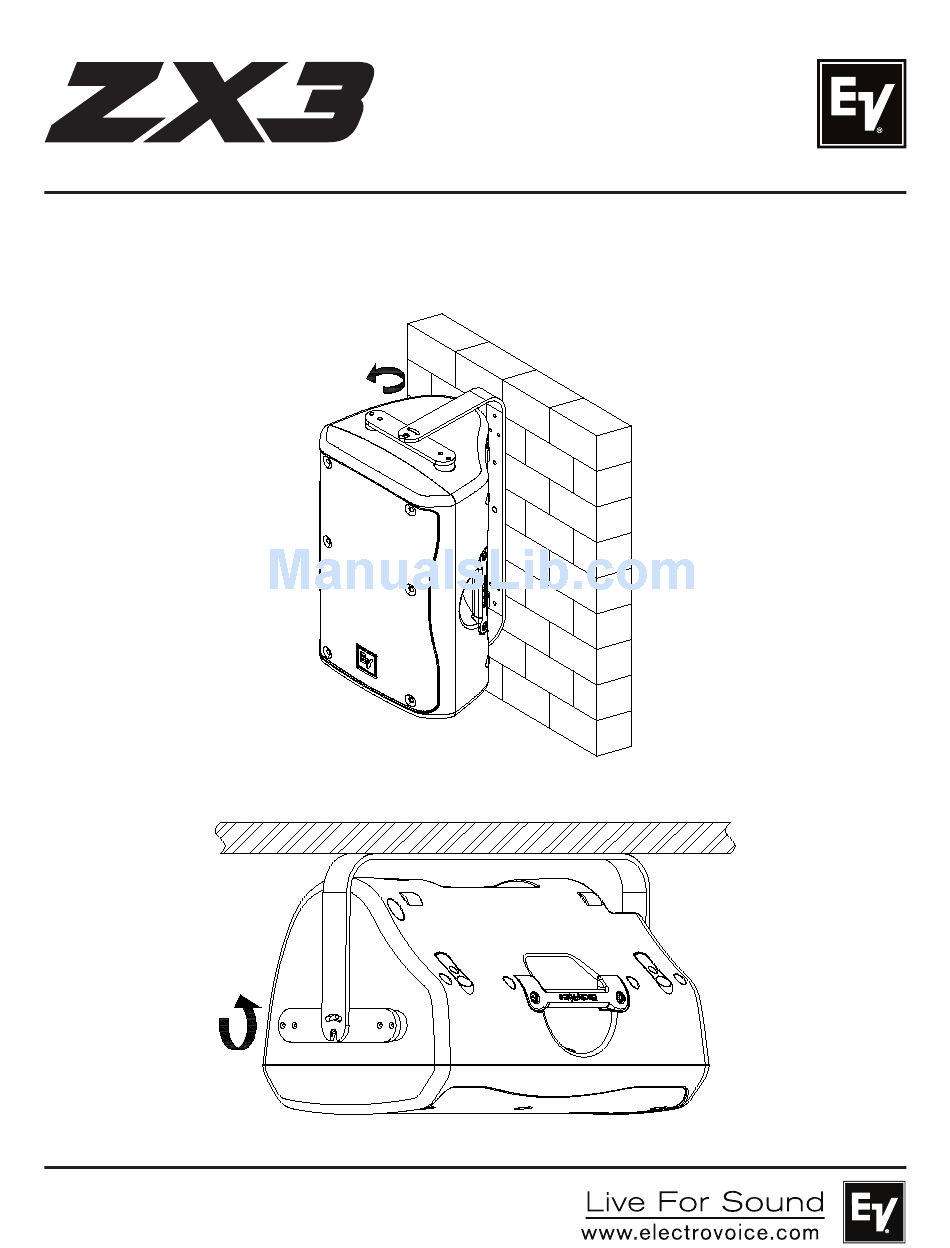

Figure 1: Suspending the Zx3 from a wall using the MB3

Figure 2: Suspending the Zx3 from a ceiling using the MB3

Need help?

Do you have a question about the Wall/Ceiling Mounting Bracket MB3 and is the answer not in the manual?

Page 1 Wall/Ceiling Mounting Bracket Installation Instructions MB3 Wall/Ceiling Mounting Bracket Kit The MB3 Wall/Ceiling Mounting Bracket Kit features robust brackets and hardware that allow for a Zx3 loudspeaker to be quickly and easily mounted to a wall or ceiling in almost any position to obtain the desired sound coverage. Figure 1: Suspending the Zx3 from a wall using the MB3 Figure 2: Suspending the Zx3 from a ceiling using the MB3...
Page 2 Figure 3: Removing hardware on the Zx3 Step 1: Attach Spanning Brackets Remove the single-stud fittings on the top of the enclosure by removing the four screws, and remove the two decals on the bottom of the en- closure by using a knife or razor blade (Figure 3). Install the four spacers (Item D) and two spanning brackets (Item B), using the eight flat head screws (Item C).
Page 3 Front Slot (Top and Bottom) 4 Medium Holes for Ceiling Mount/Wall Mount (Vertical Orientation) 4 Small Holes for Ceiling Mount/Wall Mount (Horizontal Orientation) Rear Slot (Top and Bottom) Figure 5: MB3 U-Bracket Features Step 2: Mount the U-Bracket Mount the U-bracket (Item A) to a wall or ceiling using the appropriate holes (Figure 5).
Page 4 When speakers are suspended, Electro-Voice® strongly recommends that the system be inspected at least once a year. If any sign of weakness or damage is detected, remedial action should be taken immediately.
