Electro-Voice External Wall-Mount Kit for EVIDTM SE-42 Installation Instructions

SE-42/SE-62 External Wall-Mounting Kit

The Electro-Voice® SE-42 and SE-62 External Wall-Mounting Kits feature a supportive attachment shell that al-
lows for an EVID FM4.2 or FM6.2 (normally flush-mounted) loudspeaker to be externally mounted to a wall to
TM
obtain desired mounting location and sound coverage.
Enclosure
Shell
Mounting
Brackets (x2)
Mounting
Screws (x4)

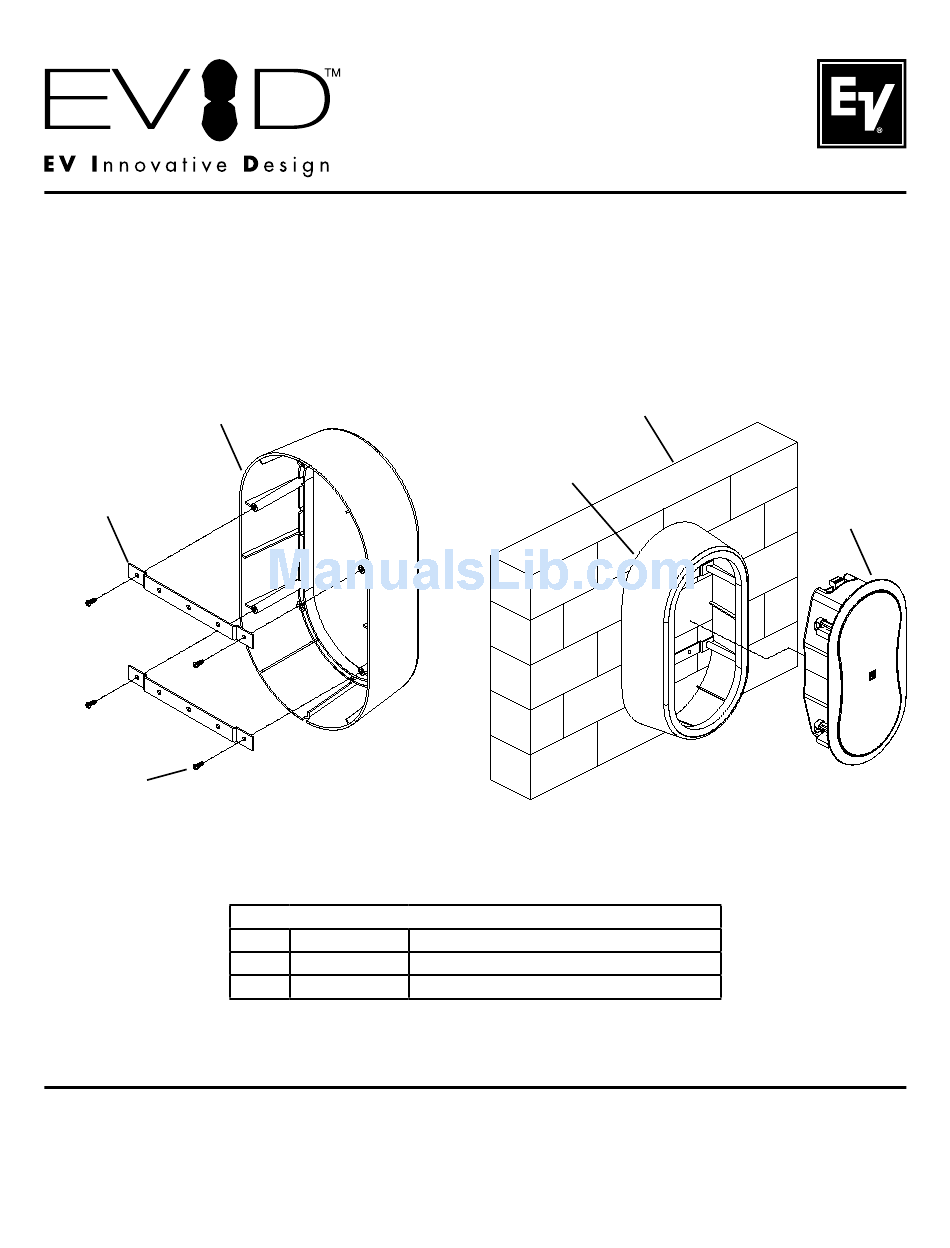

Step 1: Attach Mounting Bracket to Shell

* Note - All hardware to mount Loudspeaker System to Enclosure Shell is included with kit. However, the end customer must
Electro-Voice
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Bosch Communications Systems
Part Number LIT000232 Rev 1
EVID FM Series External Wall Mount Kits
TM

Model

Part No.

Description

SE-42 ACC000037-000 Kit for Externally Wall-Mounting FM4.2 Loudspeaker
SE-62 ACC000038-000 Kit for Externally Wall-Mounting FM6.2 Loudspeaker
supply all hardware to mount Enclosure Shell to Wall.
®
02/2008
SE-42/SE-62
External Wall-Mount Kit
for EVID

Installation Instructions

Wall
Enclosure
Shell

Step 2: Attach Shell to Wall and Mount Loudspeaker
