- Page 1 EVOLVE Wall mount kit EVOLVE‑WMK‑PB, EVOLVE‑WMK‑PW, EVOLVE‑WMK‑NB, EVOLVE‑WMK‑NW, EVOLVE‑TM‑B Installation Manual...
-
Page 3: Table Of Contents
Mounting the wall bracket 4.3.4 Attaching the cosmetic cover set Attaching the EVOLVE column to the truss mount bracket Wiring the subwoofer Installing the subwoofer amplifier input cover Troubleshooting Technical data Additional pin-out tables Dimensions Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... -
Page 4: Safety
Electro-Voice is the responsibility of others. Safety point As an added safety measure, Electro-Voice recommends the user install and secure the secondary auxiliary support cable to a different structural support point. This safety point should have as little slack as possible (less than 25 mm/1 in. is preferable). - Page 5 For information on getting permission for reprints and excerpts, contact Electro-Voice. All content including specifications, data, and illustrations in this manual are subject to change without prior notice.
-
Page 6: Short Information
The following table lists products in a family, with CTN (Commercial Type Number) and identifying product name DESCRIPTION. Part number Description F.01U.392.641 EVOLVE-WMK-PB EVOLVE Wall mount kit, Phoenix, black F.01U.392.642 EVOLVE-WMK-PW EVOLVE Wall mount kit, Phoenix, white F.01U.392.643 EVOLVE-WMK-NB EVOLVE Wall mount kit, NL4, black F.01U.392.644 EVOLVE-WMK-NW EVOLVE Wall mount kit, NL4, white... -
Page 7: Introduction
Introduction | en Introduction Thank you for choosing an Electro-Voice wall mount kit for your EVOLVE column speaker system. Please take time to consult this manual to understand all the features and requirements of the EVOLVE Wall Mount Kit. This is necessary to ensure proper use of the wall mount kit and to provide the highest level of acoustic performance, reliability and safety. - Page 8 Compatible with EVOLVE 30M , EVOLVE 50 and EVOLVE 50M column speakers, available in black. – Suggested to use correctly rated speaker cable for installation: wire gauges 1.5 mm - 2.5 mm (AWG16-AWG14). – For use with truss clamps rated for WLL= 20 kg (44 lb) SF = 5:1. 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
-
Page 9: Packing List

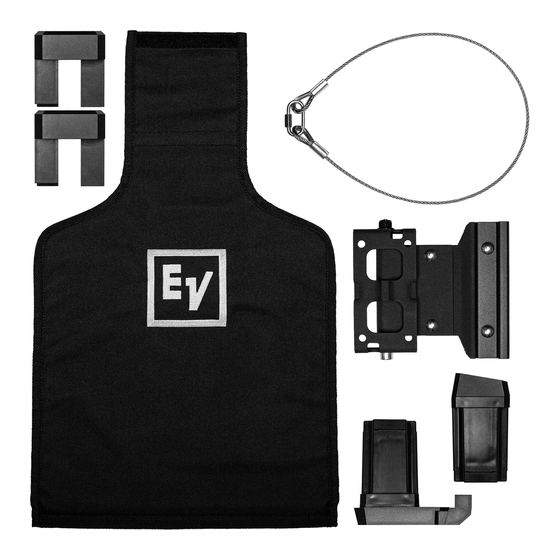

EVOLVE Wall mount kit Introduction | en Packing list EVOLVE-WMK-PB / EVOLVE-WMK-PW Item Quantity Component Wall mount bracket Subwoofer amplifier input cover Column speaker adapter Subwoofer adapter Secondary auxiliary support cable Installation manual Rubber grommets Table 3.1: Components list for EVOLVE-WMK with Phoenix-style connector... - Page 10 EVOLVE Wall mount kit EVOLVE-TM-B Item Quantity Component Truss mount, EVOLVE, black Subwoofer amplifier input cover Column speaker adapter Subwoofer adapter Secondary auxiliary support cable Installation manual Table 3.3: Components list for EVOLVE-TM-B 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
-
Page 11: Wiring And Installation
It is the installer's responsibility to determine and use properly rated truss clamps with truss system. Disregarding this caution could result in damage to the product and personal injuries may occur. Notice! If the loudspeaker installation will be delayed, cover it with the paint shield/dust shield. Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... -
Page 12: Wiring The Evolve Column
Connect the cable using an NL4 connector to the corresponding NL4 connector on the column speaker adapter. SUB+ SUB- n.c. n.c. EVOLVE-WMK-PB / EVOLVE-WMK-PW Remove the four screws that attach the upper housing of the column speaker adapter to the lower housing. 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual... - Page 13 Plug the connector into the lower housing of the column speaker adapter. 6 - 8 mm 1,5mm² - 2,5mm² (AWG16-AWG14) Attach the strain relief clamp using TR20 screws. Replace the upper housing of the column speaker adapter onto the set. Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual...
- Page 14 Attach the upper housing of the column speaker adapter to the lower housing with the supplied screws. If you’re connecting a Phoenix to an NL4, refer to Additional pin-out tables, page 28 . Refer to – Additional pin-out tables, page 28 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
-
Page 15: Attaching The Column Speaker Adapter To The Evolve Column
Attach the column speaker adapter to the EVOLVE column with the supplied TR20 screws. EVOLVE-WMK-NB / EVOLVE-WMK-NW / EVOLVE-WMK-PB / EVOLVE-WMK-PW EVOLVE-TM-B Attaching the EVOLVE column to the wall bracket The wall bracket is composed of two pieces: the wall part and the handle part. -
Page 16: Installing The Wall Part
It is the installer's responsibility to determine and use the proper mounting hardware for the wall construction type. Disregarding this caution could result in damage to the product and personal injuries may occur. 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual... -
Page 17: Attaching The Handle Part To The Evolve Column
Notice! Safety point As an added safety measure, Electro-Voice recommends the user install and secure the secondary auxiliary support cable to a different structural support point. This safety point should have as little slack as possible (less than 25 mm/1 in. is preferable). -
Page 18: Mounting The Wall Bracket
(40 - 55 lb-in) When the speaker is in the proper pan angle (1) position, tighten the wall mount screw (2) to lock it in place. 10 - 15 Nm (90 - 130 lb-in) 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual... -
Page 19: Attaching The Cosmetic Cover Set
Cut out one or two slots on the cosmetic cover set to route the cable, as needed. The area to be cut out will be of a thinner material. Install the supplied rubber grommets. Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... -
Page 20: Attaching The Evolve Column To The Truss Mount Bracket
Screw the truss mount bracket to the truss mount clamps using the top and bottom screw holes. Notice! Use two truss mount clamps with M10 threaded studs rated for 20 kg (44 lb) working load limit (WLL) or greater and 5:1 safety factor (SF). 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual... - Page 21 Notice! Safety point As an added safety measure, Electro-Voice recommends the user install and secure the secondary auxiliary support cable to a different structural support point. This safety point should have as little slack as possible (less than 25 mm/1 in. is preferable).
- Page 22 Install the screw at the bottom of the clips. 4.5 - 6 Nm (40 - 55 lb-in) Attach the EVOLVE column to the truss mount bracket and join both pieces by reinstalling the two bolts. 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
-
Page 23: Wiring The Subwoofer
Connect the cable using an NL4 connector to the corresponding NL4 connector on the subwoofer adapter. Plug the subwoofer adapter by inserting it in the slot on the upper part of the subwoofer. SUB+ SUB- n.c. n.c. Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... - Page 24 | Wiring and installation EVOLVE Wall mount kit EVOLVE-WMK-PB / EVOLVE-WMK-PW Follow the steps described in Wiring the EVOLVE column, page 12 . 6 - 8 mm 1,5mm² - 2,5mm² (AWG16-AWG14) n.c. n.c. 2022-03 | 02 | F.01U.401.529 Electro-Voice...
-
Page 25: Installing The Subwoofer Amplifier Input Cover
Do not use the subwoofer amplifier input cover outdoors in wet or damp environments. The cover does not protect the amplifier from rain. To install the subwoofer amplifier input cover: Wrap the cloth around the handle of the subwoofer. Attach the hook and loop. Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... - Page 26 | Wiring and installation EVOLVE Wall mount kit 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
-
Page 27: Troubleshooting
Poor System Check and correct the system grounding, as required. Grounding or Ground Loop If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor. Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... -
Page 28: Technical Data
| Technical data EVOLVE Wall mount kit Technical data EVOLVE-WMK-PB/PW EVOLVE-WMK-NB/NW EVOLVE-TM-B Connectors: Phoenix style Environmental: Indoor Color: Black or white Black Dimensions 80 mm x 400 mm x 400 mm (3.1 in. x 15.75 in. x 15.75 in) (H x W x D): WLL: 5 kg (11.0 lbs) Net weight: 1.35 kg (3.0 lbs) -
Page 29: Dimensions
EVOLVE Wall mount kit Technical data | en Dimensions [5.8] 138.25 [5.4] 88 [3.5] mm [in] Figure 6.1: Wall mount bracket [5.6] 138 [5.4] 60 [2.4] mm [in] Figure 6.2: Wall mount bracket without covers Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual... - Page 30 103 [4] 55 [2.2] 48.4 [1.9] mm [in] Figure 6.4: Subwoofer adapter for EVOLVE-WMK with Phoenix-style connector [5.08] 77 [3.03] 85 [3.34] mm [in] Figure 6.5: Column speaker adapter for EVOLVE-WMK with NL4 connector 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
- Page 31 EVOLVE Wall mount kit Technical data | en 130 [5.1] 55 [2.2] mm [in] 48.4 [1.9] Figure 6.6: Subwoofer adapter for EVOLVE-WMK with NL4 connector [109] 45 [17.7] 72 [28] mm [in] Figure 6.7: Truss mount bracket Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual...
- Page 32 | Technical data EVOLVE Wall mount kit 7 [0.28] 90 [3.5] 44 [1.7] mm [in] Figure 6.8: 1:1 template for drilling holes 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
- Page 33 EVOLVE Wall mount kit Technical data | Electro-Voice 2022-03 | 02 | F.01U.401.529 Installation Manual...
- Page 34 | Technical data EVOLVE Wall mount kit 2022-03 | 02 | F.01U.401.529 Electro-Voice Installation Manual...
