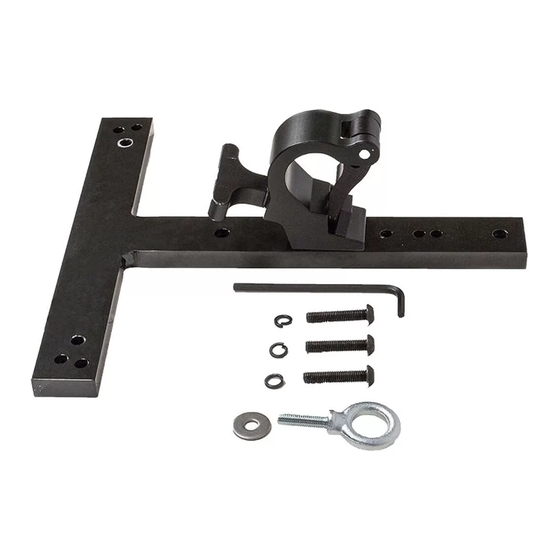

TMK Series
The Electro-Voice® TMK Truss Mount Kits are acces-
sories that are designed to suspend Electro-Voice loud-
speakers to a truss. The bracket allows the speaker to
be rotated in both the horizontal and vertical planes for
maximum versatility (see Figure 1). There are different
suspension kits, depending on the loudspeaker that is
being suspended, as shown in the table below:
TMK-PX Kit (Part Number KIT000006-001)
Used With: PX1122M, PX1152M, Plasma P1
Includes Model
TCA-1 Truss Clamp Adaptor
VSA-1 Vertical Strong-Arm Mount
TMK-ZX Kit (Part Number KIT000007-001)
Used With: ZX4, ZX5
Includes Model
TCA-1 Truss Clamp Adaptor
VSA-1 Vertical Strong-Arm Mount
HA-5 Handle Mount Adapter
TMK-ZX3 Kit (Part Number KIT000023-001)
Used With: ZX3
Includes Model
TCA-1 Truss Clamp Adaptor
VSA-1 Vertical Strong-Arm Mount
HA-3 Handle Mount Adapter
Assembling TCA-1 to VSA-1 (all Speakers)
Remove the short 1/2" bolt and washer from TCA-1.
The short bolt and washer are not needed for installa-
tion. Mount the TCA-1 to VSA-1 in the desired horizon-
tal position, using the long 1/2" bolt, flat washer, and
lockwasher (see Figure 2).
WARNING: Suspending any object is potentially danger-
ous and should only be attempted by individuals who
have a thorough knowledge of the techniques and regula-
tions of rigging objects overhead. Electro-Voice® strongly
recommends that all speakers be suspended taking into
account all current national, federal, state and local regu-
lations. It is the responsibility of the installer to ensure that all speak-
ers are safely installed in accordance with all such regulations. When
speakers are suspended, Electro-Voice® strongly recommends that
the system be inspected at least once a year. If any sign of weakness
or damage is detected, remedial action should be taken immediately.
The user is responsible for making sure that the truss, and any addi-
tional hardware used, is capable of supporting the loudspeaker. Any
hardware used to suspend a loudspeaker that is not associated with
Electro-Voice® is the responsibility of others.
Part Number
Quantity
ACC000012-001
1
ACC000007-001
1
Part Number
Quantity
ACC000012-001
1
ACC000007-001
1
301811-001
1
Part Number
Quantity
ACC000012-001
1
ACC000007-001
1
ACC000033-001
1
TMK Series
Truss Mount Kits
User Instructions
Washer
Lock Washer
Bolt
VSA-1 Vertical
Strong-Arm
Mount
VSA-1 Handle
Attachment
Point for all 12"
Loudspeakers
Attachment
Point for all 15"
Loudspeakers
Friction Pad

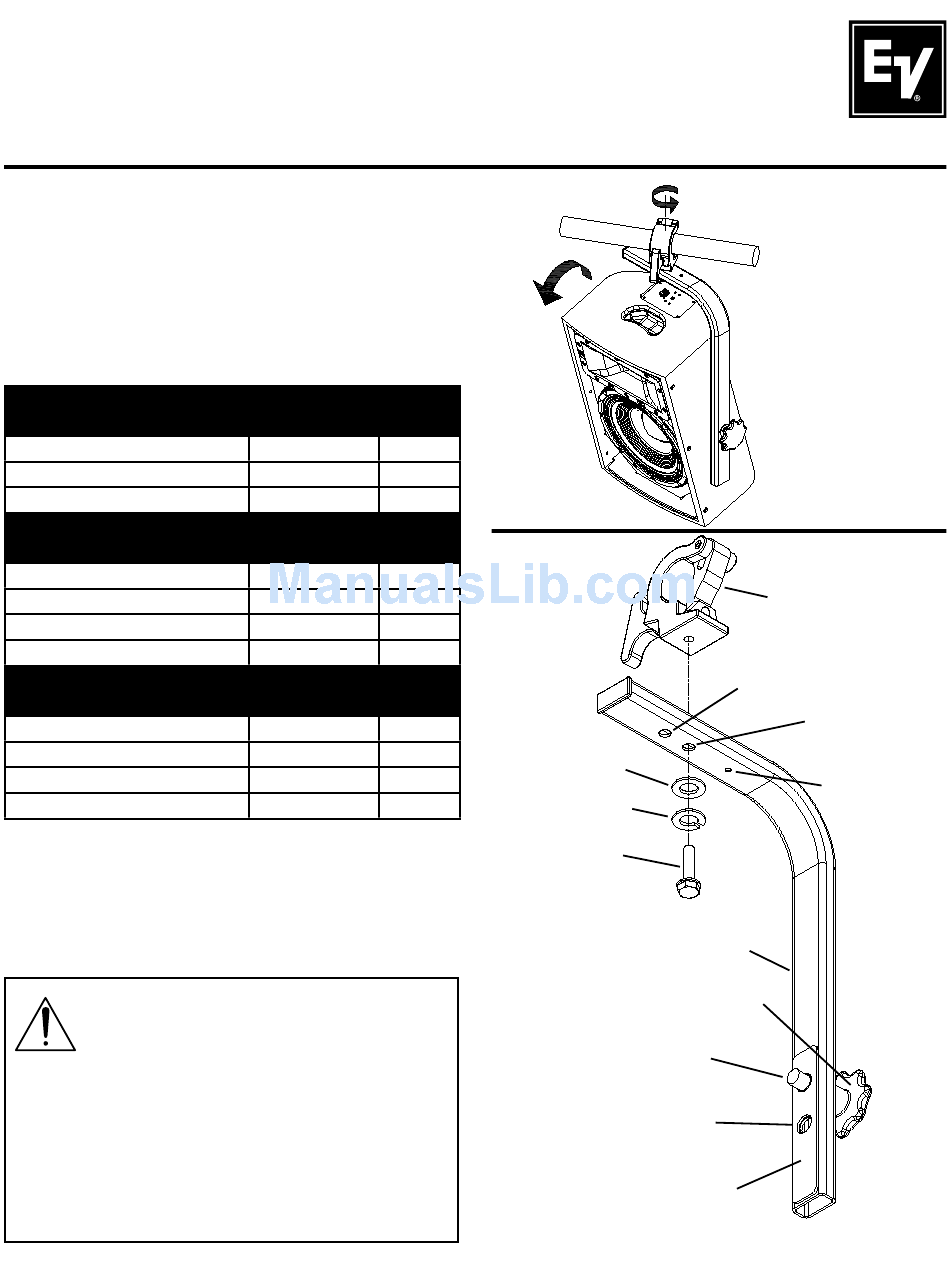

Figure 2: Assembling the TCA-1 to the VSA-1
Figure 1: Rotating and
Tilting Features of the
TMK Series Kits
TCA-1
Truss Clamp
Adaptor
Attachment
Point for all 15"
Loudspeakers
Attachment
Point for all 12"
Loudspeakers
Optional Safety
Point for M10
Eyebolt
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Electro-Voice TCA-1
Summary of Contents for Electro-Voice TCA-1
- Page 1 Remove the short 1/2” bolt and washer from TCA-1. The short bolt and washer are not needed for installa- tion. Mount the TCA-1 to VSA-1 in the desired horizon- VSA-1 Vertical tal position, using the long 1/2” bolt, flat washer, and Strong-Arm lockwasher (see Figure 2).
- Page 2 Adjusting the Loudspeaker Attachment Point (all Speakers) Move the threaded shaft to the correct hole by pulling back on the handle and sliding the shaft in the steel frame. The upper point is used for 12” Loudspeakers and the lower point is used for 15” Loudspeakers (see Figure 3). *Note: For ZX Series loudspeakers, attach the HA-3 or HA-5 adaptor to the loudspeaker before proceeding.
- Page 3 Attaching Truss Mount and Speaker Assembly to Truss (all Speakers) Loosen the clamping fixture on the TCA-1 and open the clamp. Attach the TCA-1 (including the strong arm and loudspeaker) to the truss by sliding it past the clamping fixture. Adjust the clamp so it is behind the clamping fixture, and tighten the handle (see Figure 6).
- Page 4 Loudspeaker Figure 9: Attaching a Safety Point to a ZX Series Loudspeaker (VSA-1 Not Shown for Clarity) Electro-Voice ® U.S.A. and Canada only. For customer orders, contact Customer Service at: 800/392-3497 Fax: 800/955-6831 Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:...
