DIRECTV Wireless Cinema Connection Kit
What is a Wireless Cinema Connection Kit

A Closer Look - Product Spec Sheet

Size and Weight
Without Base:
Height: 6.38 Inches (162 mm)
Width: 7.72 Inches (196 mm)
Depth: 1.46 Inches (37 mm)
Weight: 12.76 Ounces
With Base:
Height: 6.77 Inches (172 mm)
Width: 7.72 Inches (196 mm)
Depth: 3.3 Inches (37 mm)
Weight: 13.74 Ounces
Packaging
Depth: 2.6 Inches
Width: 7.99 Inches
Height: 11.89 Inches
Weight: 3.3 Pounds
What's in the
Box
Power Adapter
Ethernet Cable
Coaxial Cable
Base/Wall Mount Kit
Manual
So what do some of these specs mean to you?
On the next few pages, we will take a closer look at what these
things mean, and how they apply to you.
6
System Wireless Router
Requirements Compatibility
2.4 GHz
HD DVR
802.11a/b/g/n
WPS Capable (Optional)

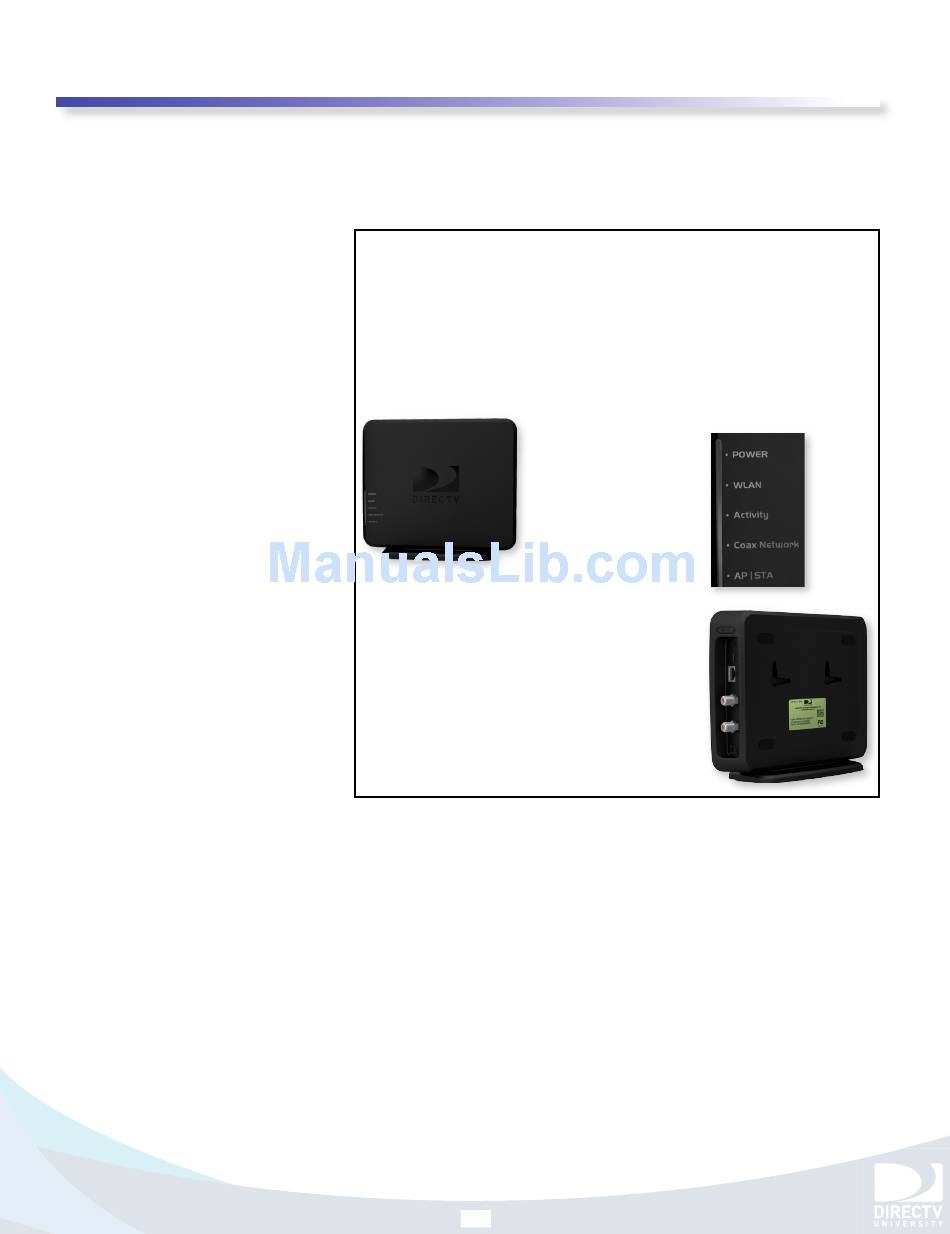

Ports and Interfaces
LED Indicators
AP/STA (Future Functionality)
Ethernet
Power
Towards LNB (Coax)
WLAN
SAT Rcvr (Coax w/ Cap)
Activity
Reset Button
Coax Network
WPS Button
AP/STA
External Power
External 18-Watt Power Supply
Input: 120V @ .8A, 60Hz
Output: 12V @ 1.5A
Dimensions: 4.25 x 2.05 x
1.34 Inches
Environmental
Requirements
Operating Temperature: 32º -
122º Fahrenheit
Storage Temperature: -49º -
158º Fahrenheit
Relative Humidity: 5-85% non-
condensing
Part Number
DECAW1MR0-01
TM
