The DIRECTV CINEMA™ Connection Kit (DCCK) unit should be placed on the baseplate (Figure 1) by inserting the baseplate
knobs into knob holes A & B (Figure 2). Shift the baseplate to the left to tighten onto the unit as shown in Figure 3.
Notes

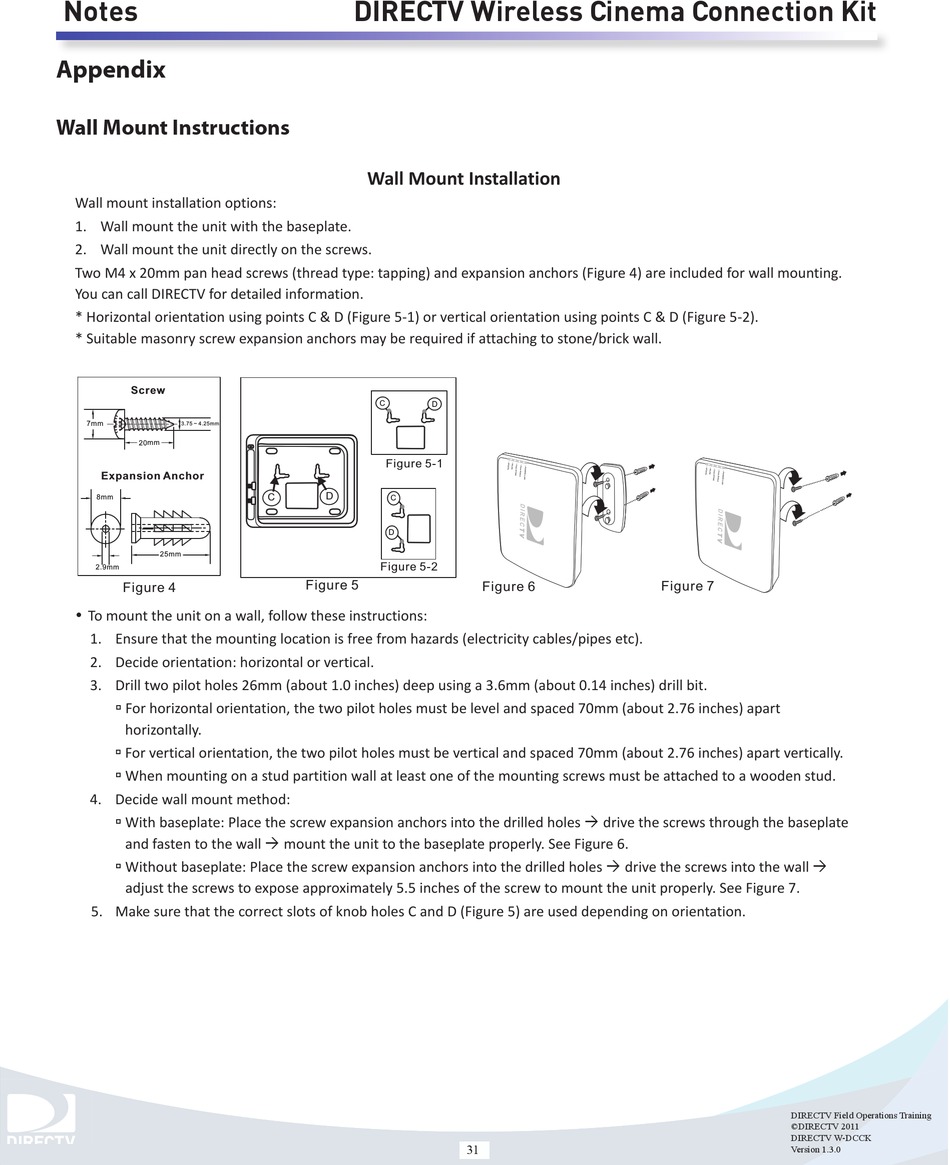

Appendix

Wall Mount Instructions

Wall mount installation options:
1. Wall mount the unit with the baseplate.
2. Wall mount the unit directly on the screws.
Two M4 x 20mm pan head screws (thread type: tapping) and expansion anchors (Figure 4) are included for wall mounting.
You can call DIRECTV for detailed information.
* Horizontal orientation using points C & D (Figure 5‐1) or vertical orientation using points C & D (Figure 5‐2).
* Suitable masonry screw expansion anchors may be required if attaching to stone/brick wall.
Screw
7mm
3.75 ~ 4.25mm
mm
20
Expansion Anchor
8mm
25mm
2.9mm
Figure 4
To mount the unit on a wall, follow these instructions:
1. Ensure that the mounting location is free from hazards (electricity cables/pipes etc).
2. Decide orientation: horizontal or vertical.
3. Drill two pilot holes 26mm (about 1.0 inches) deep using a 3.6mm (about 0.14 inches) drill bit.
For horizontal orientation, the two pilot holes must be level and spaced 70mm (about 2.76 inches) apart
horizontally.
For vertical orientation, the two pilot holes must be vertical and spaced 70mm (about 2.76 inches) apart vertically.
When mounting on a stud partition wall at least one of the mounting screws must be attached to a wooden stud.
4. Decide wall mount method:
With baseplate: Place the screw expansion anchors into the drilled holes drive the screws through the baseplate
and fasten to the wall mount the unit to the baseplate properly. See Figure 6.
Without baseplate: Place the screw expansion anchors into the drilled holes drive the screws into the wall
adjust the screws to expose approximately 5.5 inches of the screw to mount the unit properly. See Figure 7.
5. Make sure that the correct slots of knob holes C and D (Figure 5) are used depending on orientation.
TM
Tabletop Installation
DIRECTV Wireless Cinema Connection Kit
Wall Mount Installation
C
D
Figure 5-1
D
C
C
D
Figure 5-2
Figure 5
POWE R | LAN
�
�Coax Status
�Coax NTWK
�WLA N
�AP|S TA
Figure 3
3
2
Figure 6
31
LAN
POWE R |
�
s
�Coa x Statu
�Coa x NTWK
�WL AN
�AP| STA
1
3
2
Figure 7
