DIRECTV Wireless Cinema Connection Kit
Installing a Wireless Cinema Connection Kit

Whole-Home DVR Service without DECA

This section describes how to connect your W-DCCK device if you
have a DIRECTV Whole-Home DVR service compatible installation.
In this installation, you will be using the enclosed coaxial cable.
The Ethernet cable included with your W-DCCK will not be used.

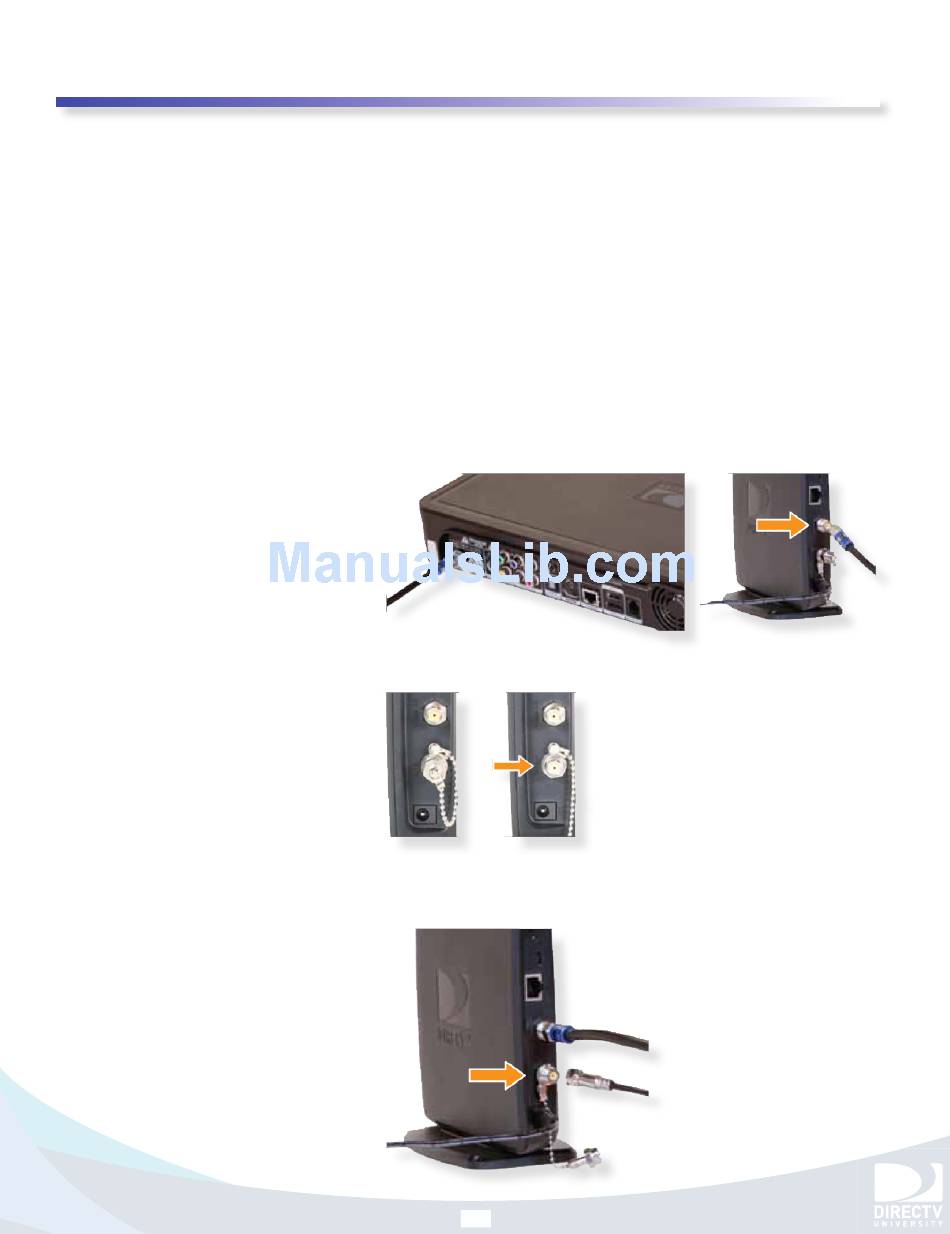

1. Disconnect the coaxial cable from the back of your Receiver,
which should be connected to the port labeled "SATELLITE IN
1" or "SAT IN 1. " and connect it to the coaxial connector on your
W-DCCK device labeled "Towards LNB".
2. Unscrew the cap from the coaxial connector labeled "SAT Rcvr"
on your W-DCCK device.
3. Using the enclosed coaxial cable, connect one end to the co-
axial connector on your W-DCCK device labeled "SAT Rcvr".
14
