DIRECTV Wireless Cinema Connection Kit
Installing a Wireless Cinema Connection Kit

Determining Receiver Connection Type

There are three different options to connect the W-DCCK device to
the receiver, depending on the DIRECTV installation. To properly
install the W-DCCK device, follow the steps in this section.
1. Power on the HD DVR Receiver to be connected.
2. Press the DASH key (lower left key) on the DIRECTV Remote
Control.
3. Note the information displayed on the TV

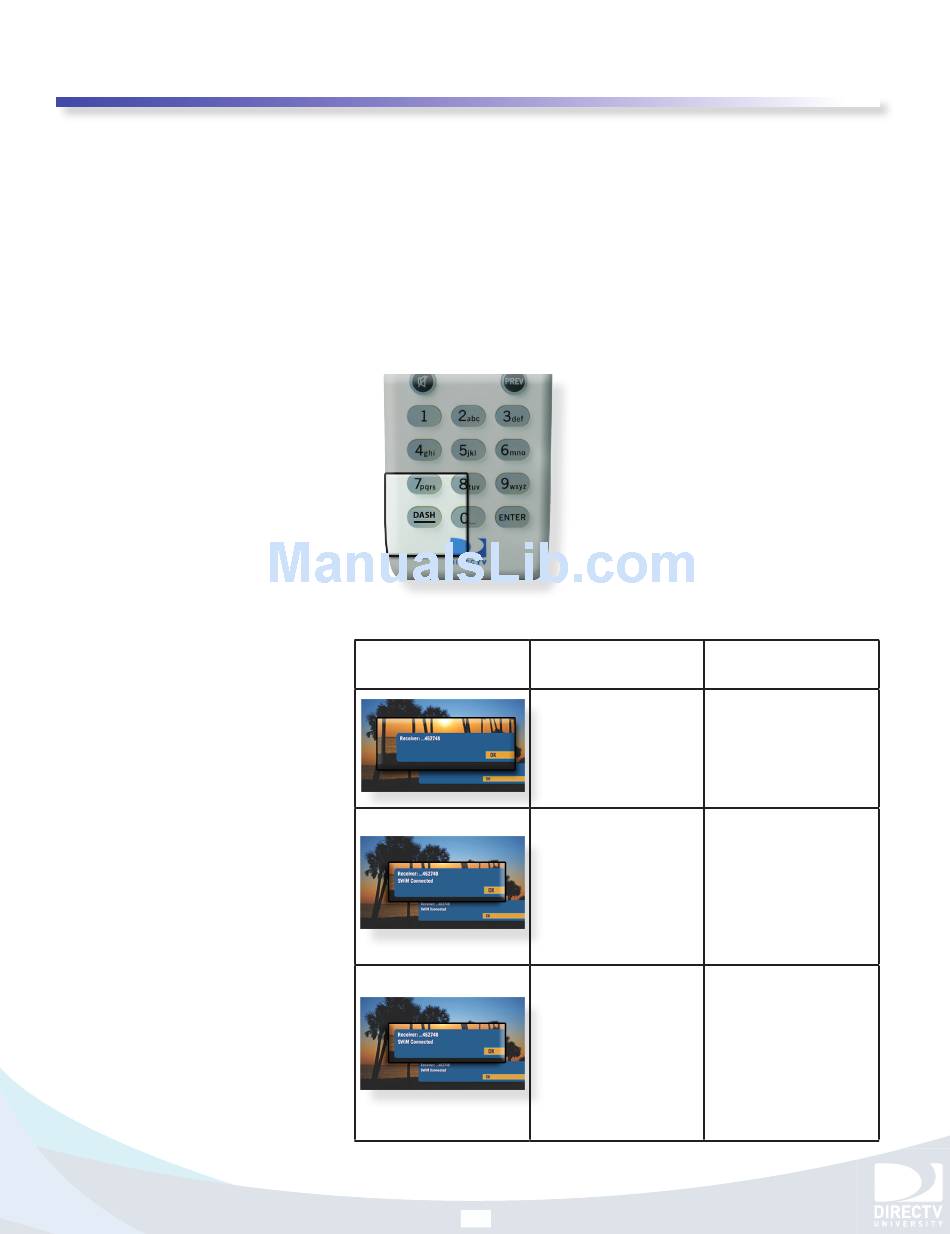

Dash Key Displays
On TV
12
Check Back of Re- Connection
ceiver
No check needed Go to Direct Ethernet
Connection.
DECA Attached to Go to Whole-Home DVR
Receiver Service With DECA .
DECA not Attached to Receiver Models H24,
Receiver HR24 or H25 only: go
to the section below,
Whole-Home DVR Ser-
vice Without DECA .
All Other Receiver Mod-
els: go to the section
below, Direct Ethernet
Connection.
