DIRECTV Wireless Cinema Connection Kit
Installing a Wireless Cinema Connection Kit
DIRECTV Whole-Home DVR Service Compatible with
a Receiver DECA
This section describes how to connect your W-DCCK device if your
installation uses one or more DECA units.
In this installation, you will use the enclosed coaxial cable, along
with an Ethernet cable. The Ethernet cable between the IRD and
the DECA must always be connected.

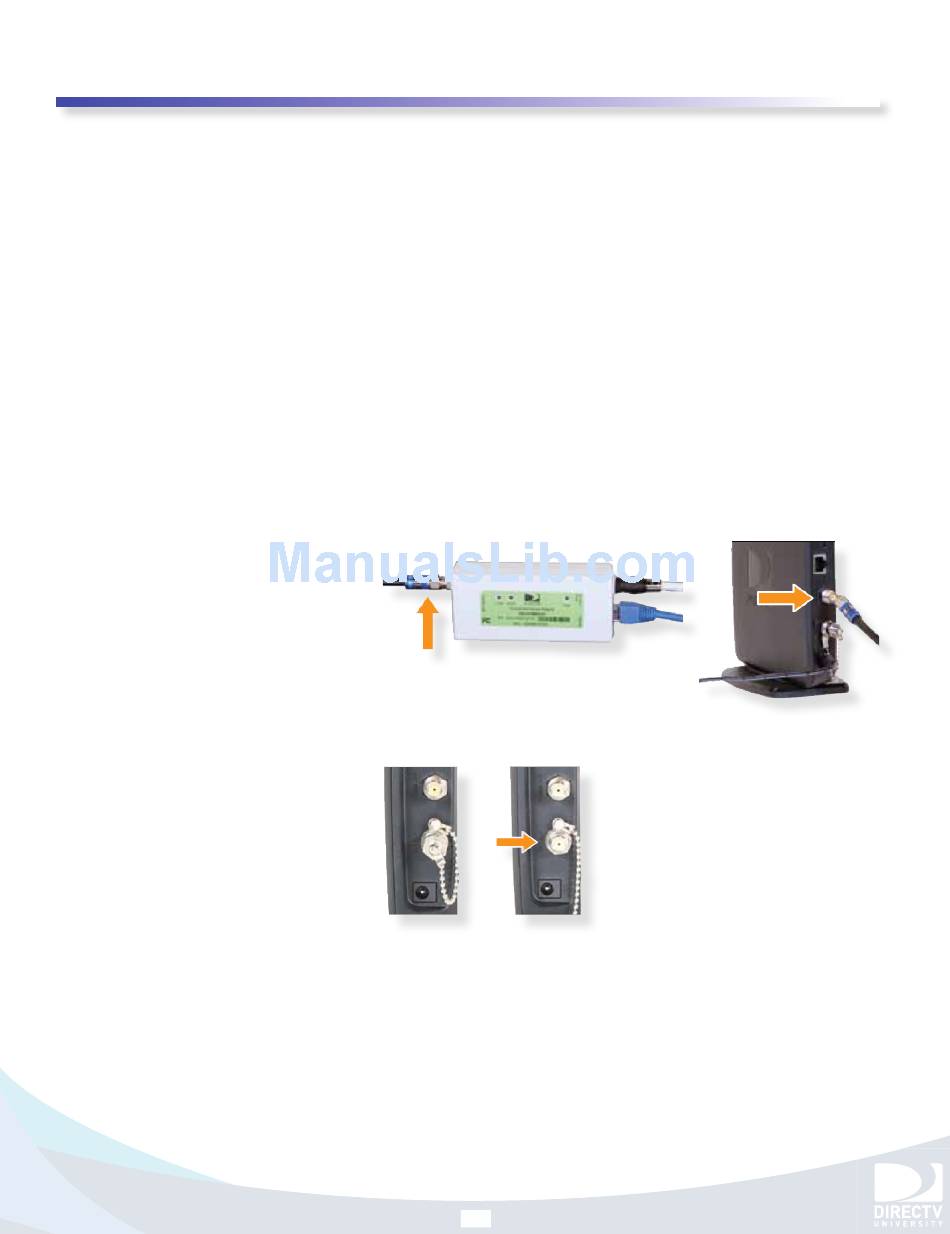

1. Locate the coaxial cable connected on the "Towards LNB" end
of the Connected Home Adapter (see image below). Discon-
nect the coaxial cable from the Connected Home Adapter and
reconnect it to the coaxial connector on your W-DCCK device
labeled "Towards LNB".
2. Unscrew the cap from the coaxial connector labeled "SAT Rcvr"
on your W-DCCK device.
