CYBEX VR3 Back Extension Owner's And Service Manual page 42

ITEM QTY PART NO.
1 1 11040-216
2 1 11040-301
3 2 13000-364
4 1 4700-266
5 1 BH030207
Service
Page 6-10
Cybex VR3 12100 Back Extension Owner's Manual
12400 VR3 Back Extension

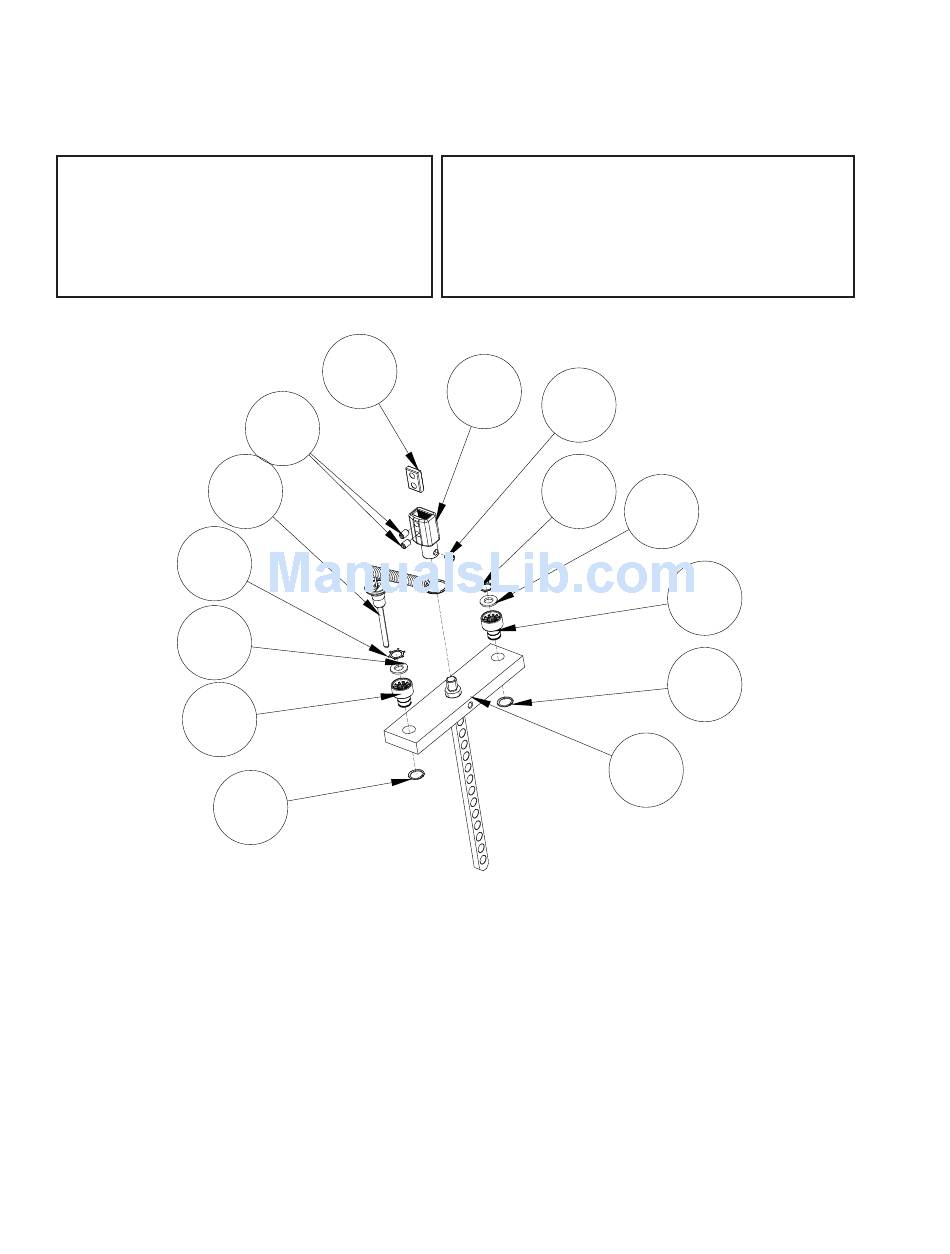

Graduated Stack Assembly Configuration
DESCRIPTION
Belt Clamp
Belt Clamp Insert
Bearing, Flange
Top Weight 15- 3 x 12
Pin, Weight Selector
2
9
5
TORQUE SET SCREWS
7
300-350 IN./LBS
8
3
6
12301-007 Assembly
ITEM QTY PART NO.
6 2 BR030206
7 2 BR030220
8 2 HS720004
9 3 HY740000
10 77" GB000202
1
DESCRIPTION
Ring, Retaining
Retaining Ring 1.250 Internal
Washer, Felt
Set Screw
Weight Stack Belt .95 Wide
(Not Shown)
9
7
8
3
6
4
