Cybex VR3 12100 Back Extension Owner's Manual
8 7 8
6
8
7
8
7
8
7
8
7
8
7
7
2
7
2
7
TOURQUE SET SCREWS
300-350 IN./LBS
12
7
10
3
4
9
5

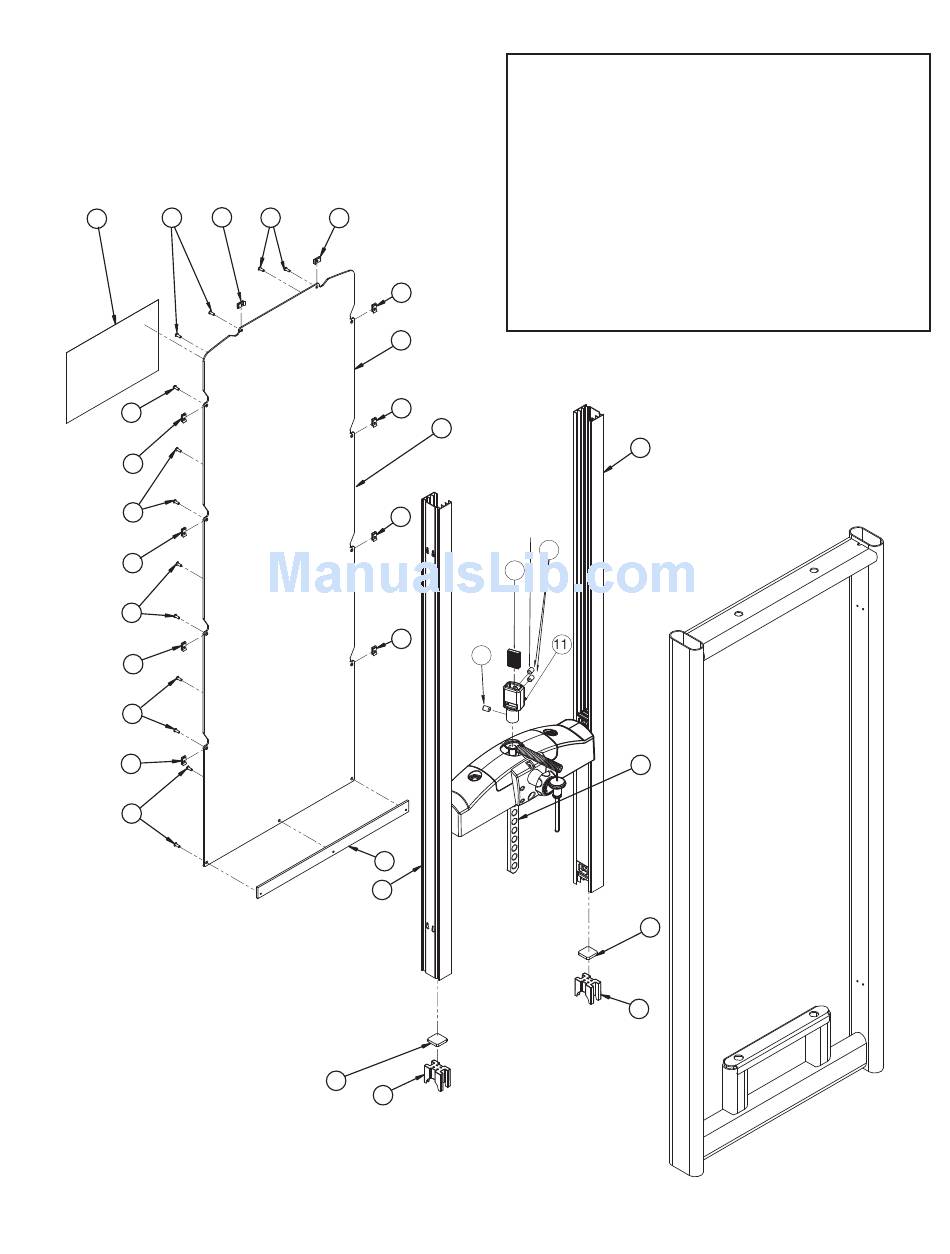

Heavy Stack Assembly Configuration
12070-021
ITEM QTY PART NO.
1 1 11040-006
2 1 12000-375
3 1 12000-378
4 2 12000-387
5 2 12102-330
6 1 3900-441
7 10 HF579000
8 13 HX570412
9 2 11040-409
10 3 HY740000
11 1 11040-216
12 1 11040-301
4
10
1
9
5
DESCRIPTION
Top Weight Assembly 10
Panel, Insert
Support
Extrusion, Inc Wt Channel
Insert, Increment Weight
Decal, Cybex
Panel Fastner,10-24 U Type
BHSCS, 10-24 X .50, SS
Molded Bumper
Set Screw
Belt Clamp
Belt Clamp Insert
Service
Page 6-9
