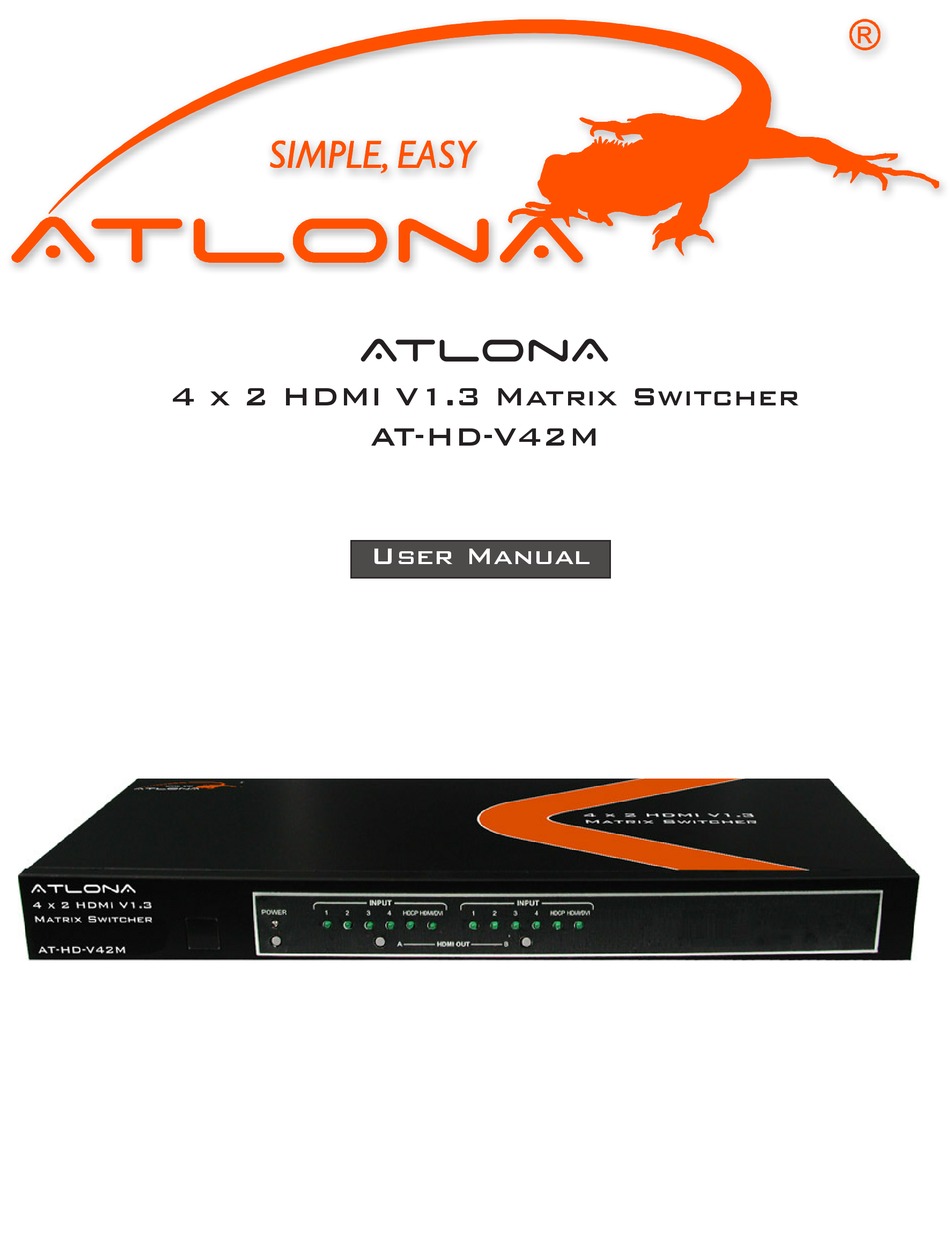

- Page 1 AtlonA 4 x 2 HDMI V1.3 Matrix Switcher AT-HD-V42M User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Application ..........3. Package Contents ..........4. System Requirement ..........5. Features ..........6. Installation ..........7. Front View ..........8. Remote Control ..........9. RS-232 Protocol ..........9.1 Commands ..........10. Connection and Installation .......... -
Page 3: Introduction
We suggest keeping it in a safe place for future reference. Application • High performance Atlona HDMI 1.3 Matrix Switcher with 4 (four) input and 2 (two) output with remote control for you to link with your favor HDMI devices to enjoy movies, music, or games at once. -
Page 4: Features
Features • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant. • Supports digital video formats in Deep Color 12bit and new lossless compressed (Dolby True- HD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. • The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal. -
Page 5: Installation
Installation 1 EDID Control Switcher: Default factory setting is TV, leave as it is when the displays are work- ing properly. Switch to STD to use build-in EDID Detail capability in Note. 2 RS-232 communication port: Connect the COM port of your PC for the distant control over RS- 232 channel. -

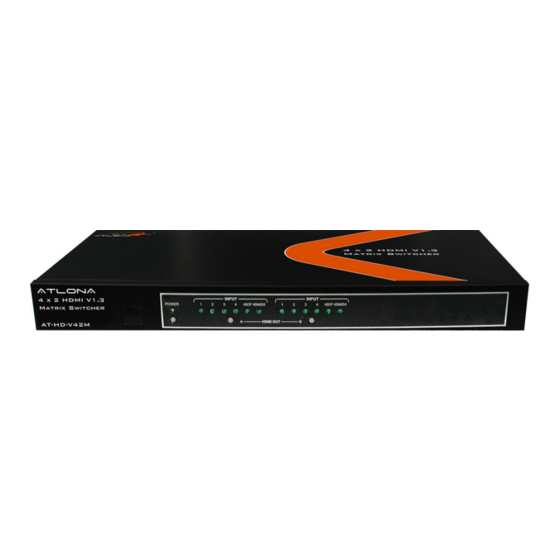

Page 6: Front View
Front View 4 5 6 1 Remote control sensor. 2 Power switch & LED Indicator: The LED will illuminate when the power is turned on. 3 Input Select/Indicators (A): Press the HDMI out “A” button repeatedly to switch to your desired source and the LED will illuminate to indicate which input source is being selected and routed to HDMI A output. -
Page 7: Remote Control
HDMI OUT A. 3. Input Select for HDMI OUT B: Press 1, 2, 3 or 4 to select the desired input source for HDMI OUT B. *Notes: Output C&D are non- functioning RS-232 Protocol Pin Definition AT-HD-V42M Remote Control Console Definition Definition... -
Page 8: Commands
Commands COMMAND ACTION POWER 00 Power Off (standby) POWER 01 Power On PORT 11 Output A select Input1 PORT 12 Output A select Input2 PORT 13 Output A select Input3 PORT 14 Output A select Input4 PORT 21 Output B select Input1 PORT 22 Output B select Input2 PORT 23... -
Page 9: Connection And Installation
Connection and Installation Blu-ray RS-232 computer control port HD TV HD TV... -
Page 10: Specifications
Specifications Frequency bandwidth 2.25Gbps (single link) Input ports 4 x HDMI female ports Output ports 2 x HDMI female ports EDID Standard, TV/Moving Port 1 HDMI Audio output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D- TrueHD, DTS- HDMI Cable in 1080p 8bit (15M), 1080p 12bit (15M) HDMI Cable out 1080p 8bit (15M), 1080p 12bit (6M) -
Page 11: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 12: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
