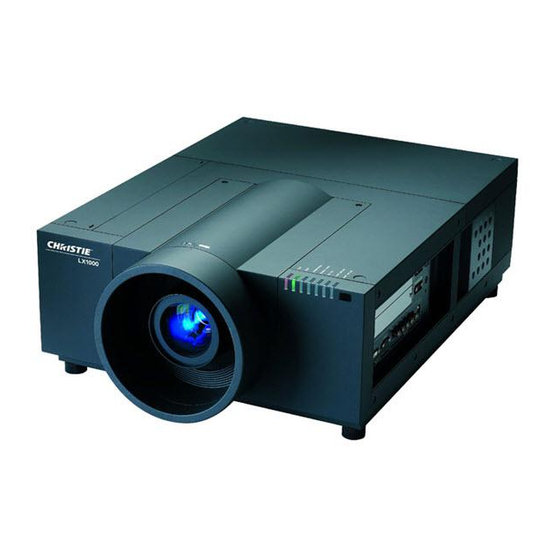

LX1000
U S E R M A N U A L
020-000141-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Christie LX1000

Summary of Contents for Christie LX1000

  • Page 1 LX1000 U S E R M A N U A L 020-000141-01...

  • Page 3: User Manual

    Lens not included. User Manual LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 4: Features And Design

    It can better and proper maintenance of the projector. be controlled and set up the projector remotely. Contact the sales dealer where you purchased this projector for optional parts. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 5: Table Of Contents

    Input Selection ....31 Input Computer Input Source Selection Video Input Source Selection Trademarks Each name of corporations or products in this book is either a registered trademark or a trademark of its respective corporation. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 6: To The Owner

    ANSI/NFPA 75 Standard for Please, help us to conserve the environment we live in! Protection of Electronic Computer/Data Processing READ AND KEEP THIS OWNER'S MANUAL FOR LATER Equipment. USE. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 7: Safety Instructions

    TO LOCAL, STATE OR FEDERAL LAWS. Never spill liquid of any kind on the projector. Do not install the projector near the ventilation duct of air- conditioning equipment. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 8: Air Circulation

    Damages to the projector caused by using an uncleaned filter or improper maintenance will void the warranty on the projector. Top Panel Fig.1 Filter replacement icon AIR INTAKE VENT EXHAUST VENT Fig.2 Filter cartridge replacement icon WARNING FILTER indicator LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 9: Installing The Projector In Proper Directions

    For details, consult your dealer. The warranty on this projector does not cover any damage caused by use of any non-recommended ceiling mount kit or installation of the ceiling mount kit in an improper location. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 10: Moving The Projector

    – Do not put the projector in a case before it is cooled enough. – Do not transport the projector with a replacement lens installed. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 11: Compliance

    Do not try to defeat this safety feature. GROUND Should you be unable to insert the plug into the outlet, contact your electrician. THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 12: Part Names And Functions

    Air Intake Vent Air Filter Cover Kensington Security Slot This slot is for a Kensington lock used to deter theft of the projector. * Kensington is a registered trademark of ACCO Brands Corporation. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 13: Terminals And Connectors

    When using the wired remote control, connect the jacks. (pp.20–21) wired remote control to this jack with a remote control cable (not supplied). S-VIDEO INPUT JACK Connect the S-VIDEO output signal from video equipment to this jack (p.21). RESET button LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 14: Side Control And Indicators

    SHUTTER button Close and open up the built-in shutter. (p.27) INFORMATION button Display the input source information (p.28). AUTO PC ADJ. button Automatically adjust the computer image to its optimum setting. (pp.27 , 35) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 15: Indicators

    Turn orange when the life of the projection lamp2 draws to an end. (pp.61, 73) LAMP 1 REPLACE indicator Turn orange when the life of the projection lamp1 draws to an end. (pp.61, 73) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 16: Configurations Of Terminals

    No Connect Hot Plug Detect T.M.D.S. Clock– USB CONNECTOR (Series B) - Data + Data Ground CONTROL PORT CONNECTOR (D-sub 9 pin) Serial ----- R X D T X D ----- ----- ----- LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 17: Remote Control Battery Installation

    (16.4’/ 5 m). Connect the remote control and the projector with the remote control cable (sold separately). Connected with the remote control cable, the remote control does not emit wireless signal. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 18: Remote Control Code

    Number of Times Remote Control Code Pressing IMAGE ADJ. button Code 1 Code 2 Code 3 Code 4 Code 5 Code 6 Code 7 Code 8 MENU button IMAGE ADJ. button LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 19: Installation

    - When carrying or holding up the projector, be careful not to put your hands on lens part. It may damage lens, cabinet, or mechanical parts. Positioning Projector This projector is designed to project on a flat projection SCREEN surface. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 20: Lens Shift Adjustment

    Keystone from the menu (see pages 14, 30, 40, 44). Do not rotate the adjustable feet when you see the red line on the adjustable feet. The ADJUSTABLE adjustable feet may fall off. FEET LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 21: Terminals Of Projector

    When contacting the sales dealer, tell the Option Control Number (Op.cont.No.) in the menu that is located on the bottom of the information menu. (See page 28) Figure shows Dual-SDI terminal. Plug LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 22: Connecting To Computer

    ( *One cable is supplied; Other cables are not supplied with this projector.) Laptop type Desktop type Monitor Output Monitor Output Monitor Output VGA Cable DVI Cable BNC Cable H/HV ANALOG DIGITAL Terminals of the projector LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 23: Connecting To Video Equipment

    Component Video Output Composite Digital Output RGB SCART S-Video Output (HDCP compatible) Video Output 21-pin Output Pb/Cb Pr/Cr SCART-VGA S-Video Cable Cable DVI Cable Cable Cable S-VIDEO Y-Pb/Cb-Pr/Cr DIGITAL ANALOG VIDEO Terminals of the projector LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 24: Connecting The Ac Power Cord

    AC Outlet side For the U.S.A. and Canada For Continental Europe Ground To POWER CORD CONNECTOR on your To the AC Outlet. To the AC Outlet. projector. (200–240 V AC) (120 V AC) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 25: Basic Operation

    PIN code; write down the number in a column on page 80 of this manual and keep it on hand. Should the PIN code be missing or forgotten, consult your dealer or service center. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 26: Turning Off The Projector

    READY INDICATOR LIGHTS GREEN AGAIN. OTHERWISE IT WILL RESULT IN SHORTENING OF THE LAMP LIFE. DO NOT OPERATE THE PROJECTOR CONTINUOUSLY WITHOUT REST. CONTINUOUS USE MAY RESULT IN SHORTENING THE LAMP LIFE. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 27: How To Operate The On-Screen Menu

    Item SELECT button Press the SELECT button here to display previous items. Item data Press the Point buttons to adjust the value. Press the SELECT button here to display next items. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 28: Menu Bar

    Image Select Menu Used to set the projector’s operating configurations Used to select an image level among Standard, Cinema, and (pp. 48-56). Image 1–10 (p. 42). Information Menu Display the input source information(p. 28). LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 29: Operating With Projector Control

    Press the SHUTTER button to close the shutter inside the projector. To open up the shutter, press the SHUTTER button again. Refer to p.55 for detail of setting for the Shutter function. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 30 INFORMATION button again or Point buttons. The information window can also be selected from the menu. * The H- and V-sync freq. values described in this figure may be different from the actual values. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 31: Operating With Remote Control

    Digital zoom +/– mode. See page 40 for details. INFO. button Press the INFO. button on the remote control to display the information window on the screen. See the previous page for details. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 32: Keystone Button

    The keystone adjustment can be stored input signal. (pp.40, 44). Reduce the upper width with Reduce the lower width Reduce the left part with Reduce the right part with Point button. with Point button. Point button. Point button. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 33: Input Selection

    INPUT 3 or INPUT 4 as you press the INPUT button. Before using the INPUT button on the remote control, you must select a correct input source by On-Screen Menu and the latest input source will be displayed. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 34: Computer Input Source Selection

    When your computer is connected to the INPUT 2 (5 BNC Input 2 INPUT JACKS) terminal, select RGB. Source Select Menu Move the pointer (red arrow) to RGB and press the SELECT button. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 35: Video Input Source Selection

    Source Select Menu When the video input signal is connected to the S-VIDEO Move the pointer (red jack, select S-Video. arrow) to Y, Pb/Cb, Pr/Cr , Video, or S-video and press the SELECT button. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 36: Computer Input

    PC System Menu icon. selected. Custom Mode (1–10) set in PC Adjust Use the Point buttons to move the red arrow pointer Menu. (pp.36-37) to the desired system, and then press SELECT button. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 37: Auto Pc Adjustment

    The adjusted parameters from the Auto PC Adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting Mode in PC SYSTEM Menu (p.34). See MANUAL PC ADJUSTMENT on pages 36-37 . Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 38: Manual Pc Adjustment

    Press the SELECT button at this icon Display area V to display the previous items. Use the Point buttons to adjust the vertical area displayed by this projector. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 39 This Mode has stored parameters. Close this dialog box. Vacant Values of “Total dots, ” “Position H, ” “Position V, ” “Display area H, ” and “Display area V. ” Confirmation box appears and then select [Yes]. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 40: Image Level Selection

    SELECT button. Normal picture level preset on the projector. Real Picture level with improved halftone for graphics. IMAGE 1–10 User preset picture adjustment in the Image Adjust Menu. (p. 47) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 41: Screen Size Adjustment

    When Custom is selected, the saved scale is used. Note: Reset ....Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at “Yes. ” LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 42 You can also enter the Digital zoom – mode by pressing the D.ZOOM button on the remote control. To exit the Digital Zoom +/– mode, press any button except the D.ZOOM , SELECT, and Point buttons. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 43: Video Input

    Move the pointer to the desired system and press the SELECT button. If the projector cannot reproduce proper video image, select a specific component video signal format from among 480i, 575i, 480p, 575p, 720p, 1035i, and 1080i. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 44: Image Level Selection

    SELECT button. Normal picture level preset on the projector. Cinema Picture level adjusted with fine tone. IMAGE 1–10 User preset picture adjustment in the Image Adjust Menu. (p. 47) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 45: Screen Size Adjustment

    When Custom is selected, the saved scale is used. Note: Reset ....Reset the all adjusted values. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at “Yes. ” LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 46 This function returns all adjusted values to the factory default settings. Press the SELECT button at Reset to display a confirmation box. To reset, press the SELECT button at “Yes. ” Quit Exit the Screen Size Adjustment Menu. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 47: Picture Image

    GAMMA for the color and press the SELECT button to accept the setting. After adjusting, press the Note: SELECT button to go to the COLOR MANAGEMENT LIST. COLOR SELECTION MODE LIST Go to the COLOR MANAGEMENT LIST. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 48 L1 ..Auto picture control LEVEL 1 position. L2 ..Auto picture control LEVEL 2 position. Color temp. Use the Point buttons to select the desired Color temp. level (XLow, Low, Mid, or High). LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 49 Move the red frame pointer to an image item to be set and then press Quit the SELECT button. Exit the Image Adjust Menu. Note: Store icon Press the SELECT button at this icon to store the adjustment. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 50: Setting

    The selected background screen will be displayed when no Note: input signal is detected. Blue . . . Blue colored background. User . . . The image you captured. Black. . . Black colored background. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 51 To cancel the Capture function, select [No]. Note: Set the pointer (red arrow) to the item and press the SELECT button. Select [Yes] to capture the projected image. Select [Yes] to stop capturing. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 52 If you lost the number, you could no longer change the Logo FORGOTTEN, THE LOGO PIN CODE SETTING PIN code setting. For details on PIN code setting, refer to “PIN CAN NO LONGER BE CHANGED. code lock” on pages 53–54. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 53 You can also replace the filter by using the remote control (p. 30). Fan control Choose the running speed of cooling fans from the following options. Normal ..Normal speed. Max ... Faster than the normal speed. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 54 Point Off ..Power Management function is off. buttons to set the timer Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 55 If you want to change the PIN code lock setting, press the lock symbol appears SELECT button and the PIN code dialog box appears. Enter a on the menu bar. PIN code by following the steps on the next page. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 56 (Projector ID) when several projectors are connected via the RS-232C terminal (serial port) of the projector. Use the Point buttons to adjust the Projector ID. Projector ID ... 1 - 999. (Factory default setting : Projector ID LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 57 When replacing the projection lamp, reset the lamp counter. See “Resetting the Lamp Counter” on page 62. Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 58 This function returns all setting values except for the user logo, PIN code lock, Logo PIN code lock, lamp counter, filter counter and filter timer to the factory default settings. Quit Select [Yes] to activate it. Exit the Setting Menu. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 59: Maintenance And Care

    The WARNING FILTER indicator blinks fast when the Fig.5 Filter replacement icon and “Please wait... ” message. projector detects an abnormal condition, the filter cartridge is not installed properly, or the filter scroll is not working properly (p.74). Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 60: Replacing The Filter Cartridge

    ORDER REPLACEMENT FILTER CARTRIDGE Replacement filter cartridge can be ordered through your dealer. When ordering, give the following information to the dealer. Model No. of your projector LX1000 Replacement Filter Cartridge Service Parts Code: 003-002003-01 LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 61: Resetting The Filter Counter

    Select Reset and the “Scroll Another confirmation dialog box appears, select [Yes] to counter Reset?” appears. reset the Scroll counter. Select [Yes], then another Note: confirmation box appears. Select [Yes] again to reset the Scroll counter. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 62: Lamp Management

    When either of the 2 lamps is out, the projector operates with 1 lamp. The Lamp Mode can be switched to 2 lamps or 1 lamp manually. Refer to the SETTING section on page 51 When Lamp 1 is burnt out. 1 LAMP MODE 2 LAMP MODE When Lamp 2 is burnt out. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 63: Lamp Replacement

    MALFUNCTIONS, FIRE HAZARD, OR OTHER ACCIDENTS. NOTES ON LAMP REPLACEMENT To maintain quality of picture (better balance of color and brightness in entire screen), we recommend replacing both 2 lamps at a time. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 64: Resetting The Lamp Counter

    Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer. Model No. of your projector LX1000 Replacement Lamp Type No. 003-120479-01 (Service Parts No. 610 341 9497) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 65: Lamp Handling Precautions

    Inappropriate attempts to service the unit by anyone, especially those who are not appropriately trained to do so, may result in an accident or injury caused by pieces of broken glass. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 66: Cleaning The Projection Lens

    When the projector is not in use, put the projector in an appropriate carrying case to protect it from dust and scratches. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 67: Warning Indicators

    CAUTION LAMP indicator lights on DO NOT LEAVE THE PROJECTOR WITH THE and other indicators blink. AC POWER CORD CONNECTED UNDER AN ABNORMAL CONDITION. IT MAY RESULT IN FIRE OR ELECTRIC SHOCK. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 68: Appendix

    – See if the selected system is corresponding with your computer or video equipment. – Select correct input source once again through menu operation (see pages 31, 41-42). – Make sure the temperature is not out of Operating Temperature (41˚F–104˚F [5˚C– 40˚C]). LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 69 Capture function does not –Check the connection to see if there is signal. work. Some menus cannot be –Each of the Video Input and Computer Input has a limit on selectable menus. selected. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 70 Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty, and electrical hazards. The CE Mark is a Directive conformity mark of the European Community (EC). LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 71: Menu Tree

    PIN code lock Remote control High Adj. 0–63 Green 0–63 Blue 0–63 Offset Red/Green/Blue/Quit Sharpness 0–31 Gamma 0–15 Noise reduction Off/On Progressive Off/On/Film Reset Yes / No Store Image 1 Image 10 Quit Quit Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 72 Cinema Wide Scale H / V Image 1 Custom H & V On/Off Position H / V Image 10 Common Reset Quit Keystone Store Reset Ceiling On/Off Rear On/Off Yes/No Reset Quit Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 73 Lamp 1/2 [ ] Hour(s) Yes/No Reset Quit [ ] Hour(s) Filter counter Used time Off/400H/700H/1000H Yes/No Reset Quit Scrolls remaining Scroll(s) Reset Yes/No Quit Quit Test pattern 8 test patterns provided Quit Factory default Yes/No Quit LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 74: Indicators And Projector Condition

    Fig.1 Filter replacement icon and “Please wait... ” (approx. 2 seconds ON, (approx. 1 second ON, 2 seconds OFF) 1 second OFF) Differs according to conditions. (approx. 0.5 seconds ON, 0.5 seconds OFF) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 75 When the LAMP 1 REPLACE indicator and the LAMP 2 REPLACE indicator light orange, replace the projection lamps with new ones promptly. And then reset the Lamp time after replacement of the lamps. See pages 55, 61, and 62. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 76 The shutter is out of control. (The projector is in the cooling mode.) The shutter is out of control. (The projector is in the stand-by mode.) In that case, contact the service station immediately. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 77: Compatible Computer Specifications

    SXGA 4 1280x1024 63.340 59.980 1920x1080 33.750 60.000 (Interlace) SXGA 5 1280x1024 63.740 60.010 1080i 1920x1080 28.125 50.000 (Interlace) “True” cannot be selected when WUXGA1, UXGA2, UXGA3, UXGA4 and UXGA5 are selected (p.39) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 78 1920x1080 33.750 60.000 D-WXGA 10 1280x800 41.200 50.000 D-1080psf/25 1920x1080 28.125 50.000 D-WXGA 11 1280x800 49.702 59.810 D-1080psf/24 1920x1080 27 .000 48.000 D-SXGA 1 1280x1024 63.980 60.020 D-SXGA 2 1280x1024 60.276 58.069 Note: LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 79: Technical Specifications

    Remote Control and Batteries VGA Cable PIN Code Label Lens Attachments (1 type) (For option lens) Light Block Plates (3 types) (For option lens) Spacer (For option lens) Real Color Manager Pro (CD-ROM) Mounting Clamp LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 80: Optional Parts

    The parts listed below are optionally available. When ordering those parts, specify the item name and Model No. to the sales dealer. Optional Interface Board (DVI) Optional Interface Board (5-BNC) Optional Interface Board (D-sub 15) Optional Interface Board (Dual-SDI) For a full list of Optional Interface Boards, please visit: www.ChristieDigital.com LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 81: Configurations Of Terminals

    No Connect Hot Plug Detect T.M.D.S. Clock– USB CONNECTOR (Series B) - Data + Data Ground CONTROL PORT CONNECTOR (D-sub 9 pin) Serial ----- R X D T X D ----- ----- ----- LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 82: Pin Code Number Memo

    While the projector is locked with the PIN code... Put the label below (supplied) on in a prominent place of the projector’s body while it is locked with a PIN code. LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)

  • Page 83: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M8 Depth: 0.393 (10.0) 20.87(530) 8.46(215) 8.66(220) 1.18(30) 200.0 234.0 20.65(524.5) 1.14(29) 9.25(235) 9.25(235) LX1000 User Manual 020-000141-01 Rev. 1 (05-2009)
  • Page 84 Americas Canada Chile Christie Digital Systems USA, Inc. Christie Digital Systems Canada, Inc. Representative Office 10550 Camden Drive 809 Wellington St. N. Christie Digital Systems USA, Inc. Cypress CA 90630 Kitchener, Ontario N2G 4Y7 Av. Pedro Fontova 7619 of 60...
