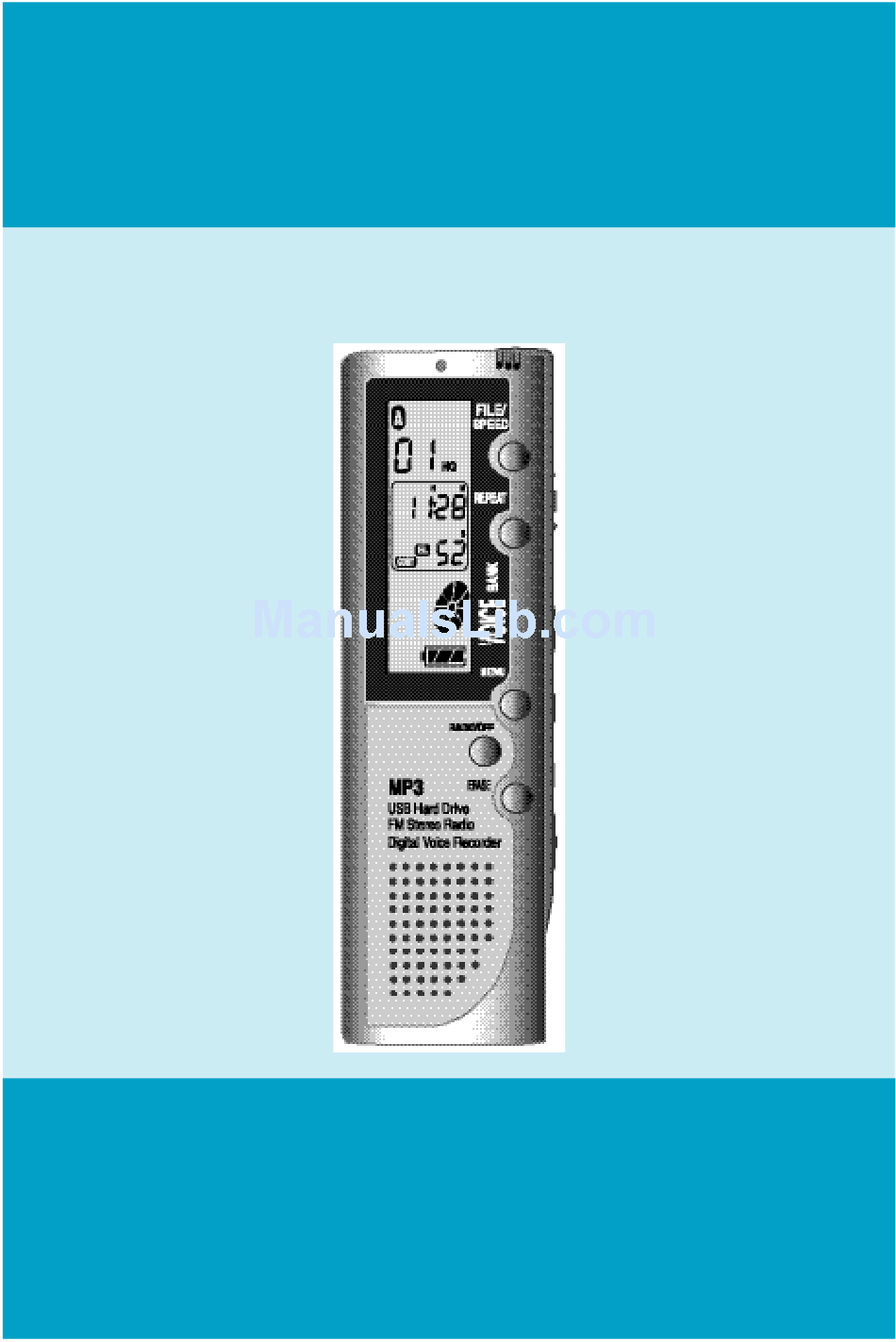

DIGITAL VOICE RECORDER & AUDIO PLAYER
MODEL : D D R - 3 0 3 2 / D D R - 3 0 6 4 / D D R - 3 1 2 8 / D D R - 3 2 5 6
D D R - 3 0 3 2 R / D D R - 3 0 6 4 R / D D R - 3 1 2 8 R / D D R - 3 2 5 6 R
User's Manual
Thank you for choosing our DIGITAL VOICE RECODER & MUSIC
P L AYER from DIASONIC TECHNOLOGY CO. LTD. Before use,
read through the User's Manual carefully. We advise you to keep
this user's manual to avoid possible technical difficulties.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDR-3032 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diasonic DDR-3032

Summary of Contents for Diasonic DDR-3032

  • Page 1 DIGITAL VOICE RECORDER & AUDIO PLAYER MODEL : D D R - 3 0 3 2 / D D R - 3 0 6 4 / D D R - 3 1 2 8 / D D R - 3 2 5 6 D D R - 3 0 3 2 R / D D R - 3 0 6 4 R / D D R - 3 1 2 8 R / D D R - 3 2 5 6 R User's Manual Thank you for choosing our DIGITAL VOICE RECODER &...
  • Page 2 Copyright ®œ 2001, DIASONIC TECHNOLOGY CO. LTD. All rights reserved. No part of this User's Manual may be reproduced, translated or used for profits. It is against copyright law to violate these rules. The content of this User's Guide is produced under the greatest care of our company.

  • Page 3: Table Of Contents

    1. DDR-3000 SERIES 1) Suggestions for Users °§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§ 2) About DDR-3000 SERIES °§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§ 3) Functions and Features °§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§ 4) Names of Each Part/ LCD Screen °§°§°§°§°§°§°§°§°§°§°§°§ 5 5) Use of Battery and Components in Package °§°§°§°§°§°§°§°§ 6 6) Basic Directions for Use °§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§ 7) How to Use Buttons °§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§°§...
  • Page 4 Do not drop or shock the device. It can cause technical trouble. °‹ Please try to avoid such places. - In hot, humid environments, such as in a closed automobile under direct sunlight. (above 60°… ) - Under direct sunlight or next to a heating appliance - Areas of excessive dust or moisture.- Humid places(bathrooms) °‹...

  • Page 5: Ddr-3000 Series

    DDR-3000 SERIES is a digital audio recorder and player offering high quality sound, with the latest in digital technology from Cubig Group. It provides consumers with various record modes / functions (SHQ / HQ / SP / Timer Recorder Function) and various playback modes / functions (Alarm Playback / Speaker Playback / Earphone playback / real time playback.) It can also store and playback MP3 files, which are digitally compressed music files.

  • Page 6: Functions And Features

    Additional DVR-EXPLORER / MAIL MANAGER DDR-3000 SERIES is the player, which is convenient when transmitting recorded data, and MP3 files from one PC to another, and which helps regenerating, managing saved data and sending data through e-mail. °‹ ALARM/PLAY, TIMER/REC, SETTING UP TIMER DDR-3000 SERIES sets up timer or alarm to record or play messages or songs at any time, and it helps recording or playback be processed smoothly.
  • Page 7 TIMER RECORDER FUNCTION: can receive and record radio broadcast automatically -daily, weekly or monthly. °‹ ALARM PLAY FUNCTION: can play messages automatically at requested time after setting time and date. °‹ Repeat & A-B Repeat function: can play as long as you want to, and you choose the intervals between two part that you want to listen.
  • Page 8 USB JACK NECK STRAP EARPHONE JACK Ext C-MIC.JACK C-MIC FILE FF/PLAY/REW REPEAT REC/STOP D.C JACK MENU VOL+/VOL- RADIO ERASE HOLD ON/OFF FILE USE OF PORTABLE SAVING DEVICE MESSAGE NO. REC MODE REC TIME/PLAY TIME/ Mhz/ARS/EL/CONT/TIMER/ VOLUME/TIME REC/PLAY/USB DISK REPEAT/EQ BATTERY HOLD...

  • Page 9: Use Of Battery And Components In Package

    Use of Battery and Components in Package Slide open the battery cover. OPEN 2. Put two LR 03 type batteries in accordance with (+) (-) diagram inside of the device, and slide the cover back on. Battery: LR 03 or similar batteries of same kind (size "AAA" or UM-4) 3.
  • Page 10 4. Lifetime of Battery Playback through earphone Playback through speaker Battery in use Recording (Level of Volume: Medium) (Level of Volume: Medium) Alkaline Battery About 15 hr. About 9 hr. About 15 hr. Size "AAA" LR-03 5. Suggestions when using batteries °‹...

  • Page 11: Basic Directions For Use

    Basic Directions for Use Power ON/OFF Press Playback or REC button for 2seconds, device will power up and LCD screen will be displayed as shown below. If no buttons are pressed within 1 minute, device will power off automatically to conserve power.

  • Page 12: How To Use Buttons

    VOICE FILE SECTION(A/B/C/D) Key Action: °™ means short press, and °™°™ means long press(more than 1 second). BUTTON KEY ACTION WHEN PLAYER IS NOT WORKING WHEN PLAYER IS RECORDING WHEN PLAYER IS PLAYING °™ Start playing current index Stop playing index Check the memory capacity ¢∫...
  • Page 13 FM RADIO SECTION(RADIO KEY) BUTTON KEY ACTION WHEN RECEIVING FM SIGNALS WHEN RECORDING FM RADIO BROADCAST Start to create and set channels °™ /°· ¢∫ for each FM station Select channel memory(01~10) and °™ ¢∫ ¢ ∫ frequency Select channel memory(01~10)and °™...
  • Page 14 MP3 FILE SECTION(MP3) WHEN PLAYER IS PLAYING BUTTON KEY ACTION WHEN PLAYER IS NOT WORKING §— Stop playing track Start playing current track /°· ¢∫ §—§— Stop playing track Start scanning/playing from current track §— Start playing the next track Conversion to next track ¢∫...
  • Page 15 1. Map of menu-Voice section S H Q MENU M O D E A R S O F F C O N T O F F Y E A R D A Y S E T M O N T H H O U R M I N U T E D A T...

  • Page 16: Operation Of Playback Dial

    2. Map of Menu-MP3 Part MENU EL(BACK LIGHT) O F F M O N T H D A Y H O U R M I N U T E D A T ( D A T E ) (ALARM) O F F S U N ~ S A T H O U R M I N U T E...
  • Page 17 Move Playback dial upward and downward, (2) press button in When setting menu, (1)move the button up and down(when it is moving up and down, playback dial does not work), and (2) press button in. Then the section of menu is set. (1) Move the button up and down (2) Press button in.

  • Page 18: How To Record And To Set Up Mode

    How to record You can record up to 99 messages (files) in each of the four (A, B, C and D) folders. ®ÁPress the file button to select the appropriate folder that you want to record to.(Choose one among A/B/C/D) ®ËPlace the device or microphone to face the source of the sound, then press REC/STOP button for 1 second.
  • Page 19 How to Set ARS Press MENU button and select ARS while player is in the stopped position, When ARS is ON, recoding will pause automatically when there is no sound present so that you can save and minimize recording time ("ARS PAUSE" will appear repetitively while it is in action).

  • Page 20: Various Methods For Playback

    How to Play Voice Part ®ÁChoose the message that you want to listen. ®ËChoose one file among A, B, C and D, and select the file with FILE button. ®ÈBy moving PLAYBACK dial up and down, select the number of the m e s s a g e .
  • Page 21 Search & Play If you press PLAYBACK dial for 2 seconds, the recorder will play its every message for just 10 seconds orderly. While the recorder is scan-playing, if you press PLAYBACK dial one more time, you can hear the message of the number you chose. As for playback of MP3, its Search &...

  • Page 22: Deleting And Organizing Data

    Deleting massages is only possible when the player stops it's work completely. °‹ Deleting Messages One by One ®ÁChoose one message that you want to erase. Select the message by moving FILE button and PLAYBACK dial. ®ËPush ERASE button for 1 second, and LCD will display "ERS". The recorder plays the message to make you sure.

  • Page 23: Timer/Rec & Alarm/Play Function

    For TIMER/REC, SET mode and time need to be fixed. ®ÁPress MENU buttons, "MODE" appears on LCD screen. Set “TMR(Timer)” by moving and pushing PLAYBACK dial. ®ËDelete "ON" by shifting PLAYBACK dial and set PLAYBACK dial. ®ÈDAT(DATE) flickers. ®Í Each number for year (Y), month (M) and day (D) will flicker one by one by pressing PLAYBACK dial so that select numbers by moving the button.
  • Page 24 Cancel of TIMER/REC ®Á Change "ON" to "OFF" in the second step of TIMER/REC (Cancel) Stop during TIMER/REC °‹ ®Á Press REC button °ÿ Caution -. Only one item of TIMER/REC is possible -one for each VOICE files/FM radio -. Before you start TIMER/REC, check amount of possible time. If time for recording takes longer than available time, TIMER/REC is impossible.
  • Page 25 How to Set ALARM/PLAY Function ALARM/PLAY is the function which automatically starts the message that you selected before. ®ÁBring the message that you want to play with ALARM/PLAY function on LCD screen.(See No. 1 of How to Play to know specifically) ®ËBy moving PLAYBACK dial up and down, bring "ARM(ALARM)"...
  • Page 26 If you want to play messages at the same time everyday ®Á Set ARM(ARAM) up "ON" in the same way with step 1~3 of setting ALARM/PLAY function. ®ËBy moving PLAYBACK dial up and down, select "DLY(DAILY)" and set up ®ÈSet up the time you want to record with PLAYBACK dial. ®Í...

  • Page 27: How To Connect With External Appliances

    How to Connect with External Appliances How to Connect with External Microphone -. Put the plug of a microphone into the external microphone terminal of the player. °ÿ When the external mike is connected with the microphone terminal of the player, internal microphone does not work. °‹...
  • Page 28 Recording from external appliances When you record certain messages from external appliances, turn down the volume of the appliance, and then connect audio cable with it and start to record. When recording, set up the volume of the appliance to the medium level, and try not to change it during the recording process.

  • Page 29: Fm Signal-Receiving Function

    Note: This function is available only for the models that have the radio function. If you want clearer sound when you listen to the FM radio, use the supplied earphones which will act as an antenna. °ÿ AUTO SEEK is convenient function when you listen to the radio. If you press and hold the FF or REW button for 2 seconds, it will stop automatically on the radio stations that the player can receive signals to.

  • Page 30: Ddr-3000 Series Software & Mail Manager

    DVR-Explorer is a managing program for DDR-3000 SERIES which transfer or plays MP3 files from computer to DDR-3000 SERIES, it manages recorded voice or FM radio file (DVF) from DDR-3000 SERIES and has following features. °‹ Transferring(upload/download) file to/from the DDR-3000 Series - MP3,DVF and normal data files °‹...

  • Page 31: Connecting Ddr-3000 Series And Set Up

    Connecting DDR-3000 SERIES and setting up DVR-Explorer (1) Insert the DDR-3000 Series setup CD into the CD-ROM drive and it will start automatically. If Auto-run doesn't work execute setup file "CD-ROM:\setup.exe" or "CD-ROM:\Voice Bank\setup.exe". Setup will progress automatically. Once setup is completed software icon will be installed in the START Menu.
  • Page 32 (6) Searched USB driver file and click on ' NEXT ' button. (7) Click on ' NEXT ' button to finish wizard. (8) Once USB drive setup is completed, check for setup progress from device manager at My Computer. °ÿ If DDR-3000 SERIES is not after software is opened. Check for USB device on PC, and for proper connection of Cable.

  • Page 33: Composition Of Software

    Composition of software Figure of Software Play Manage Window File File Manage Manage Window Window Flash Folder Memory Manage Manage Window Window Flash Memory Transfer list Manage Window Manage Window (1) Paying MP3, WAV, CD and DVF Double click on MP3, WAV, Audio CD Track and DVF file on file control window or use drag and drop to playlist for instant play.
  • Page 34 (2) Managing DVF file and MP3 file File managing using the software is very similar to Window Explorer(r). Left part of the window shows the hard disk (Computer Info) and CD- ROM drive installed in system with it's inside folders. Right part of the window shows various files inside folders.
  • Page 35 (4) Buttons Button Function Particular information Prints file list in flash memory. print Re-reads the information on flash screen. reload Choose the file stored in flash memory, delete then press this button to delete the file. Choose the files to be move to flash memory for file Transfer to flash manage window, then click this button to transfer memory...

  • Page 36: Spectrum Screen And Sound Effect

    DDR-3000 Software displays multiple spectrum screens. Default setting is same as the picture at the bottom, but screen can be change in various ways by clicking on the left mouse button. ¢– Spectrum screen of DDR-3000 series software 1 This changing spectrum screen can be used by users taste. Following pictures are example of some features.

  • Page 37: Transferring Mp3

    Transferring MP3 It's very simple to transfer MP3 file to DDR-3000 SERIES. Mentioned up at top, select MP3 files from file manage window and choose folder manage window. Then, drag and drop files to flash memory manage window. Also, click on icon from flash memory managing section for same reaction.

  • Page 38: Sending Dvf Files To Computer

    Sending DVF files to computer The way to transfer DVF file to DDR-3000 Series is: choose from Album Managing section then left mouse click on the file you want transferred, select icon. Procedure is same as transferring MP3 file Receiving DVF files to computer. to the DDR-3000 Series.
  • Page 39 The way to transfer DVF file to DDR-3000 Series is choose from Album Managing section then left mouse click on the file you want transferred, select icon. Procedure is same as transferring MP3 file to the DDR-3000 Series. Through steps 5). 6), you can easily transfer DVF or MP3 files in the flash memory.

  • Page 40: Deleting Mp3 And Dvf Files

    Deleting MP3 and DVF files Deleting MP3 or DVF files stored in flash memory in the DDR-3000 Series is same as deleting files in Windows Explorer(r). Select one of the stored file from the flash memory by clicking on the left mouse button, then press 'delete' button from tool bar in Flash Memory Managing section.

  • Page 41: Resetting Flash Memory

    Resetting flash memory Just like formatting a hard disk on a computer, the flash memory used in the DDR-3000 Series can be reset (formatted). All the data in the flash memory will be lost when formatting. ®ÁSelect "File" from the main tool bar, then select 'Format Flash Memory' to format the flash memory.

  • Page 42: Managing Files By Using Software

    Managing files using the Software It's easy to manage MP3 and DVF files using the DDR-3000 Series Software. Make a new folder in the location you want(this can be done by right mouse clicking on the New Folder icon), copy and save frequently used MP3 and/or DVF files.

  • Page 43: Mail Manager

    Mail Manager Special Features °‹ Play/Record DVF file °‹ Voice mail function: auto appending at mail program °‹ Creates self play function : voice file+player °‹ Edit DVF file : delete/insert beginning, ending, and/or middle of recording °‹ 16various voice effect Mail Manager is a program that plays self created voice files (DVF files) from the DDR-3000 Series.
  • Page 44 1) Voice Recorder Has Voice mail, Voice memo function, record and play of compressed feature of high sound quality DVF file. °‹ Play °‹ Pause/Stop °‹ Record (Half way insertion record possible) °‹ Move forward °‹ Move Backward 2) Convenient use method Auto-append of voice mail to mail program.
  • Page 45 5) Drag and Drop If use drag and drop function of mail manager attaching voice mail to other mail program or network emulator not supported by mail manager will be possible. Press left button of mouse on drag and drop To add voice mail to Voice file+player(.exe) other program.

  • Page 46: General Specifications

    GENERAL SPECIFICATIONS (DDR-3000/R) DDR-3256/ DDR-3032/ DDR-3064/ DDR-3128/ MODEL 3256R 3032R 3064R 3128R SHQ: 136min SHQ: 272min SHQ:544min SHQ:1088min Recording HQ : 272min HQ : 544min HQ:1088min HQ :2176min time SP : 544min SP :1088min SP :2176min SP :4352min Recording mode SHQ(14.8Kbps) / HQ(8Kbps) / SP(6.4Kbps)
  • Page 47 Easy to find convenient and easy tracks Search Repeat Playback of one track or all tracks & optional playback USB 1.1 Network Hard disk space of more than CPU 200MHz, RAM 64Mb and 20MB System requirement windows98 , windows2000 , windows ME , windows XP interface Sound Bluster 16 Sound card...
  • Page 48 Inquiry of A/S When damage to device occurs, stop the use of the product and request for after service from our customer support staff at DIASONIC TECHNOLOGY CO. LTD. Phone : 82-31-474-0852 Warranty Card(provisions) We offer free repair service for products that malfunction under normal use, up to 1 year from the original purchase date.
  • Page 49 5) Breakdown or damage caused by fire, pollution, and any natural disaster. 6) Breakdown or damage caused by lealcage from battery. 7) When accessories(battery) need replacement. <Request when mailing> Please beware of following when mailing. 1. Contact our customer service department to receive a RMA # before mailing in the product.

  • Page 53: Warranty Card / Limited Coverage

    WARRANTY CARD Product Category: Digital Voice Recorder Model: DDR-3000 SERIES The Term of Guarantee: 1 Year Date of Purchase: . . . Name PURCHASER Address Telephone Name SELLER Address Telephone °‹ Please refer to our customer service department for any information or breakdown on the product.
